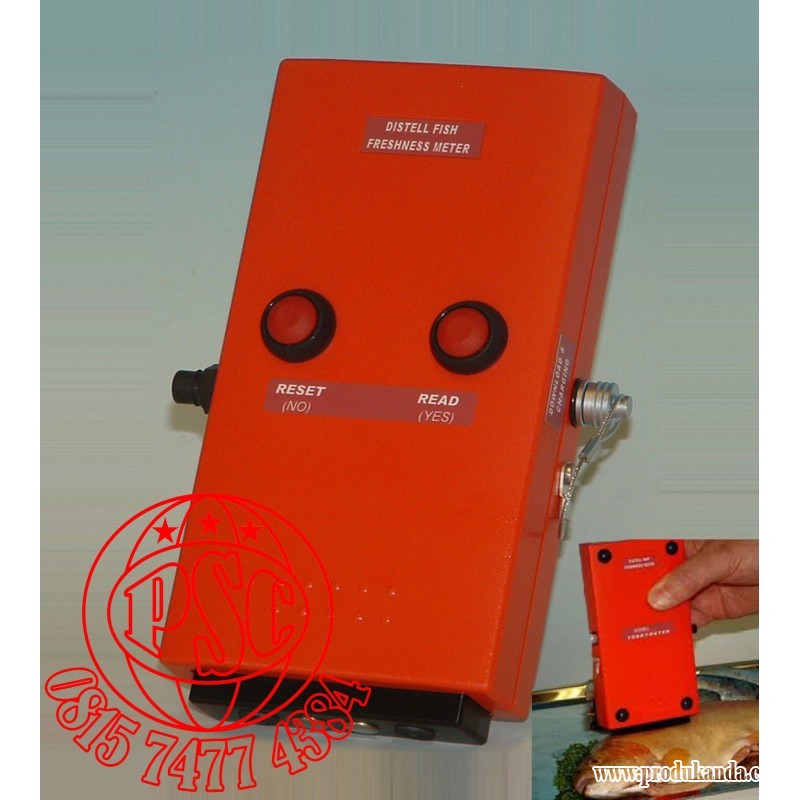

Alat Ukur Kesegaran Ikan Torrymeter
Torrymeter
Instrument Temp. Range	Max – 25 °C to + 45 °C
Fish Temp. Range	0° to 20 °C ( Allowable )
	0° to 10 °C ( Recommended for best results )
Power Source	Self contained rechargeable cells
Dimensions	Overall length – 155 mm
	Overall width ( max ) – 80 mm
	Overall depth ( max ) – 30 mm
Weight	250 gm
Meter Enclosure	Made from ABS plastic, waterproofed to IP65  ( BS 5490, 1977 ).
Sensor Enclosure	Acetal plastic, Carbon & Steel electrodes
Charger / Power Supply Module
Input Voltage	100-240 VAC, 50/60 Hz
Output Voltage	12 VDC
Charging Current	150-300 mA
Mains Supply Connections	3-pin plug or other suitable terminals for country of use.
	Colour coding :
	Brown wire : Live
	Blue wire : Neutral
	Yellow/Green : Earth
Dimensions	Overall length : 100 mm
	Overall width : 60 mm
	Overall depth : 60 mm incl fitted plug
Weight	150 gm

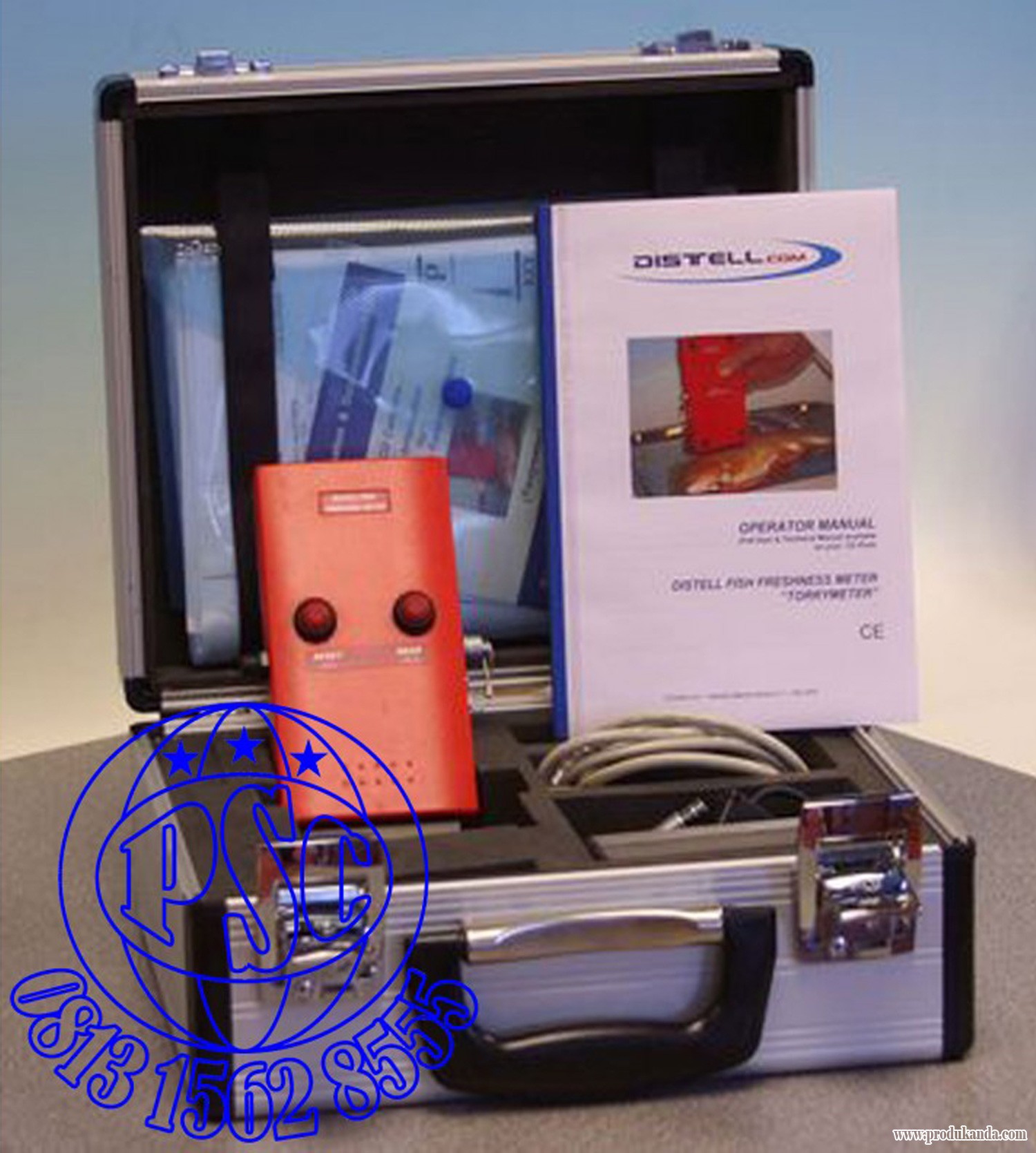

Carry case	Made from : Aluminium body, Steel fittings, plastazote foam
