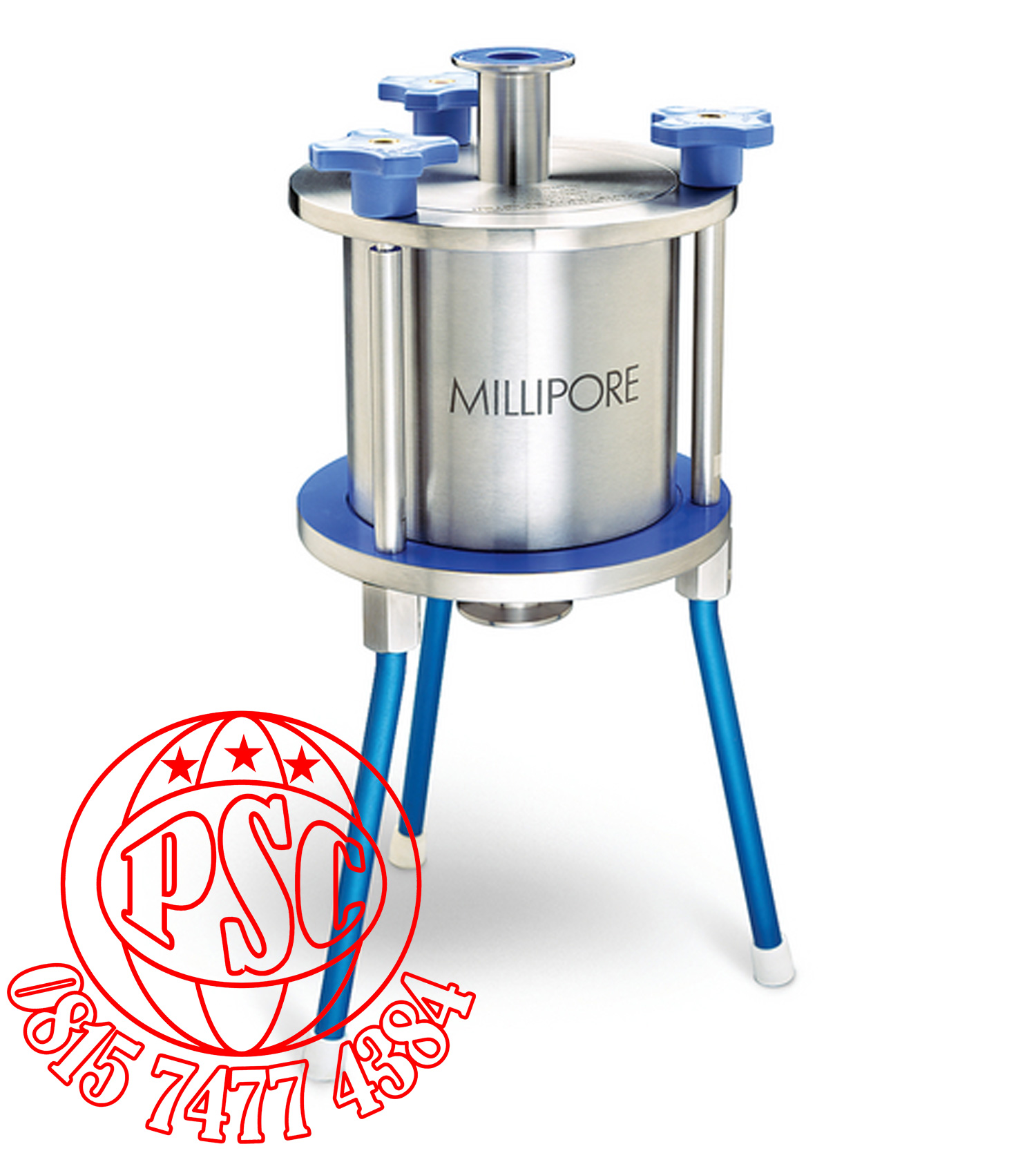

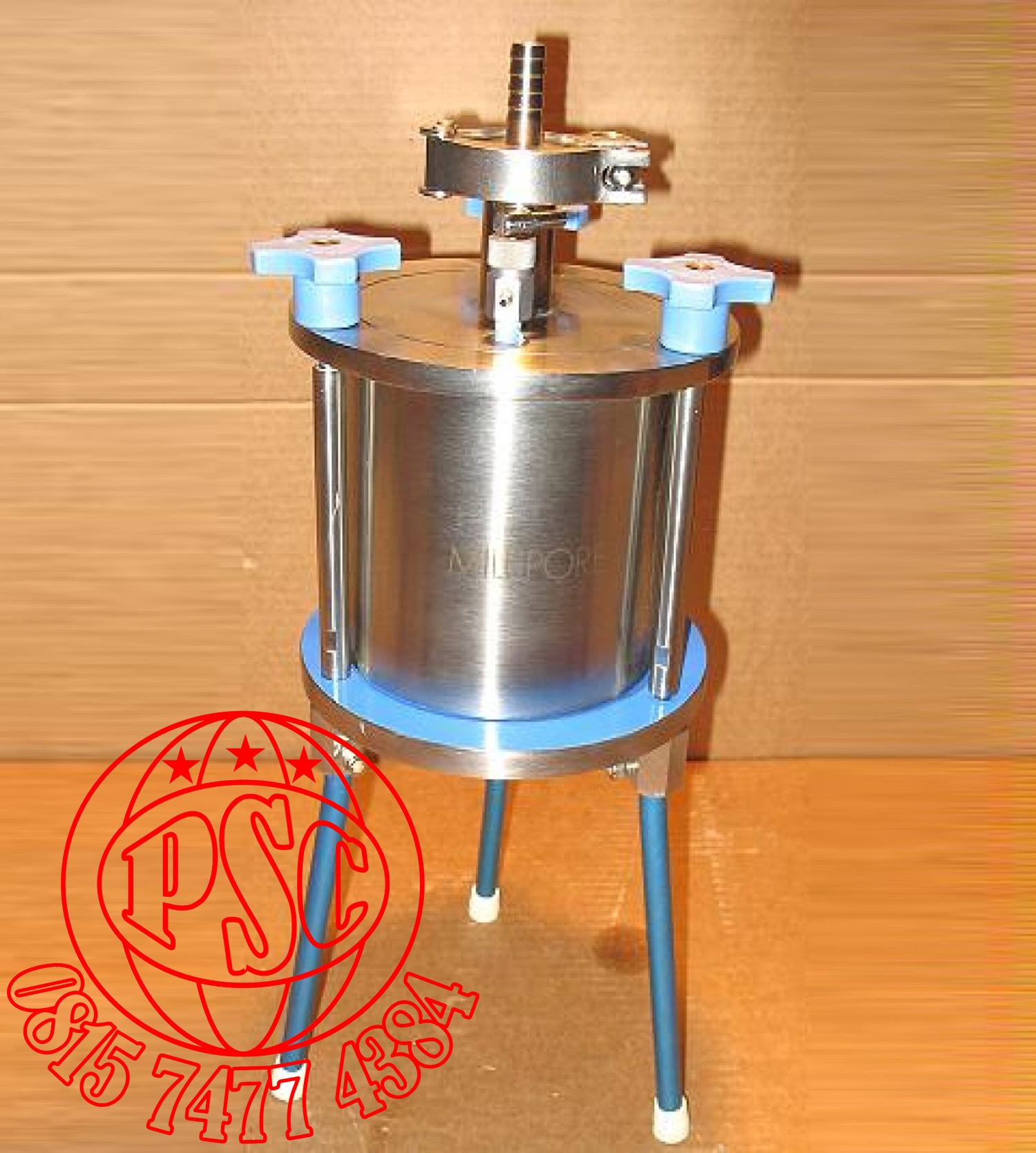

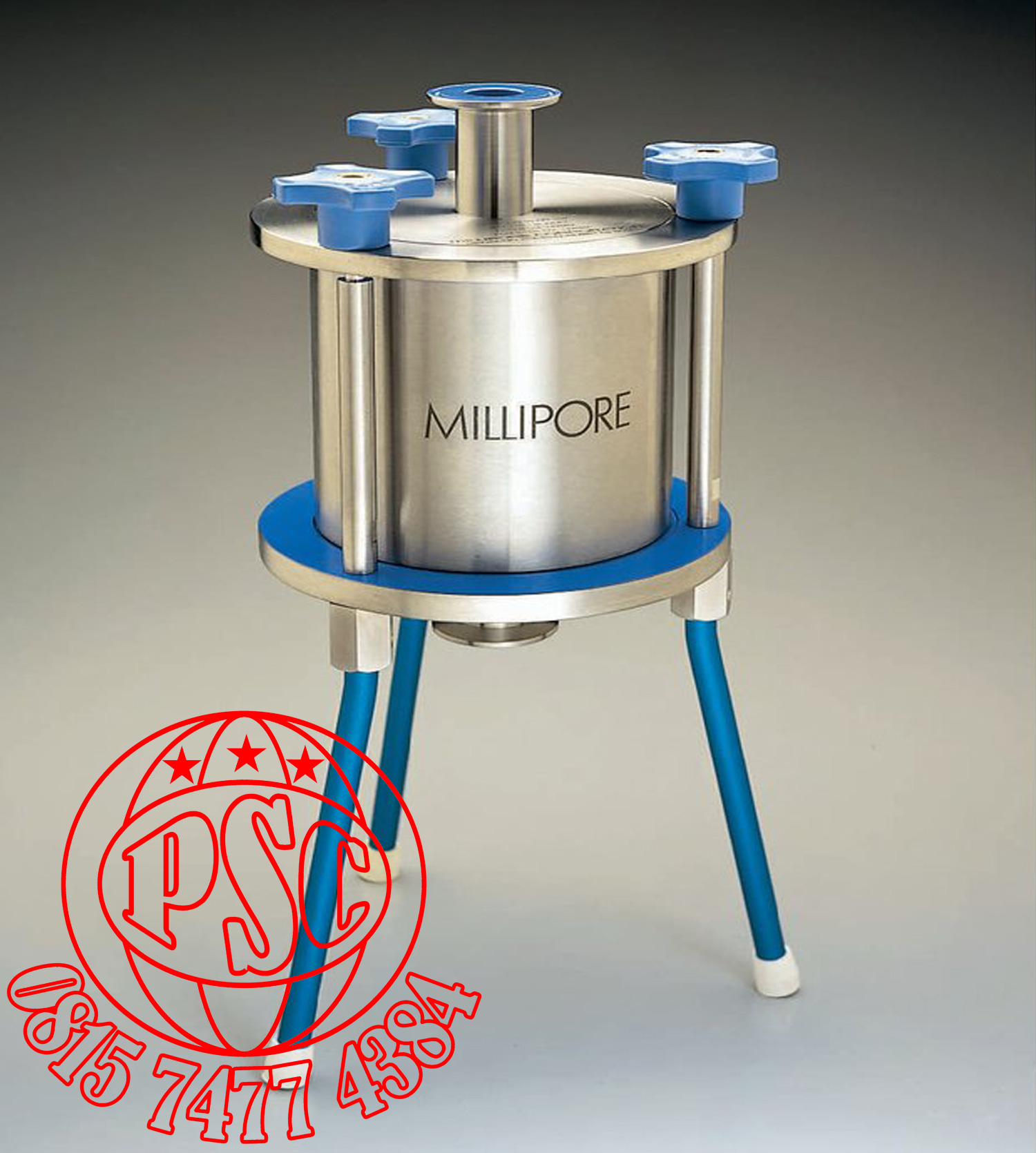

YT30142HW Hazardous Waste Filtration System Merck |
|
|
USEPA EP Toxicity Test & Toxicity Characteristic Leaching Procedure-TCLP |
|
|
Description |
|
|
Catalogue Number |
YT30142HW |
|
Description |
Hazardous Waste Filtration System,142 mm |
|
Product Info |
|
|
Connections, Inlet/Outlet |
1-1/2 in. Sanitary flange with clamps and adapters for 14 mm(9/16 in) ID hose |
|
Connections, Vent/Drain |
1/8 in NPTF |
|
Fitting Inlet |
1-1/2 in Sanitary Flange with clamps and adapters for 14 mm (9/16 in) ID hose; 1/8 in. NPTF upstream port for vent/relief |
|
Fitting Outlet |
1-1/2 in Sanitary Flange with clamps and adapters for 14 mm (9/16 in) ID hose |
|
Max. Inlet Pressure,bar (psi) |
6.9 bar (100 psi) |
|
Application |
USEPA EP Toxicity Test & Toxicity Characteristic Leaching Procedure (TCLP). |
|
Physicochemical Info |
|
|
Pressure/Vacuum |
Pressure |
|
Dimensions |
|
|
Height |
42.2 cm (16.6 in) x18.4 cm |
|
Diameter |
18.4 cm |
|
Filtration Area |
120 cm² |
|
Weight |
12.3 kg (27.1 lb) |
|
Filter Diameter (⌀) |
142 mm |
|
Materials Info |
|
|
Materials of Construction |
316 stainless steel; aluminum legs; molded polypropylene handwheels; PTFE seal |
|
Accessories |
|
|
Description Gasket |
|
|
Catalogue Number |
YY2004057 |
|
Description |
Gasket, 1-1/2 in., PTFE-coated fluoroelastomer |
|
Packaging Info |
|
|
Material Size |
10 |
|
Desc Tubing |
|
|
Catalogue Number |
XX6700035 |
|
Description |
Tubing for pressure use,1/2 in. ID |
|
Product Info |
|
|
Max. Inlet Pressure,bar (psi) |
9 bar (125 psi) |
|
Application |
Accessories for filter holders for sample preparation. |
|
Dim. |
|
|
Length |
305cm |
|
Diameter |
1.27cm (0.5 in) (I.D) |
|
Materials Info |
|
|
Chemistry |
Polyvinyl Chloride (PVC) |
|
Packaging Info |
|
|
Material Size |
1 |
|
Membrane Filters |
|
|
Catalogue Number |
AP4014250 |
|
Product Information |
|
|
Filter Code |
AP40 |
|
Filter Color |
White |
|
Maximum Operating Temp. |
550°C |
|
Filter Type |
Depth filter |
|
Biological Information |
|
|
Wettability |
Hydrophilic |
|
Physicochemical Information |
|
|
Pore Size |
0.7 µm |
|
Porosity % |
90% |
|
Water Flow Rate |
6 mL/min x cm² |
|
Filter Surface |
Plain |
|
Thickness |
475 µm |
|
Filter Diameter (⌀) |
142 mm |
|
Chemistry |
Glass Fiber |
|
Material Size |
50 pack,AP40,142 mm |
|
Description Rotary Agitator |
|
|
Catalogue Number |
YT310RAHW |
|
Description |
Millipore Rotary Agitator, 115 V/60 Hz |
