Allegro Full Mask Low Pressure Systems |
|
|
Specifications |
|
|
Product Description |
Full Mask Low Pressure Systems |
|
Part Number |
9200 and 9210 Series |
|
Style |
Supplied Air |
|
General Description |
Allegro’s complete Full Mask Systems offer portable, lightweight, air sources for one, two or three workers. They are offered with one, two or three comfortable full mask supplied air respirators, a ¼ hp, ¾ hp or 1½ hp ambient air pump and 50’ or 100’ ( 15.24 m to 34.4 m ) breathing air hose. |
|
Full Mask Respirator |
Durable silicone rubber |
|
Hypoallergenic and chemical/Ozone resistant |
|
|
Replaceable polycarbonate lens |
|
|
Removable hairnet |
|
|
Down tube comes with a 90 degree elbow that allows it to be directed over the shoulder |
|
|
OBAC quick-connect plug with wide diameter and minimal air restriction |
|
|
Pump |
|
|
Type |
Oil-less, rotary vane |
|
Vanes |
Carbon construction |
|
Inlet Filter |
40.0 Micron bronze/steel ( ¼ HP ) |
|
50 Micron felt material with metal grid inlet filter housing |
|
|
Exhaust Filter |
0.3 Micron HEPA |
|
Pressure Gauge |
1½” ( 3.8 cm ) face, steel housing ( 0-15 psi ) ( 0-1.03 bar ) |
|
Working Pressure |
2-12 psi ( 0.14-0.83 bar ) ( 15 psi max ) ( 1.03 bar max ) |
|
Performance |
0-5 CFM ( 0-8.5 m³/hr ) ( ¼ HP ) |
|
0-10 CFM ( 0-16.99 m³/hr ) ( ¾ HP ) |
|
|
0-20 CFM ( 0-33.98 m³/hr ) ( 1½ HP ) |
|
|
Motor |
|
|
Type |
¼ HP, ¾ HP, or 1½ HP UL Listed |
|
Volts |
115V/230V AC Single Ø |
|
Power Required |
5.5 A ( ¼ HP ), 8.3 A ( ¾ HP ), 16 A ( 1½ HP ) |
|
Hose |
Polyvinyl chloride with reinforced braided polyester yarn |
|
|
-20°F to 150 °F ( -28.8 °C to 65.5 °C ) |
|
|
Maximum pressure 185 psi @ 70° F ( 12.76 bar @ 21.1°C ) |
|
Available |
|
|
Part Number |
Description |
|
9200-01 |

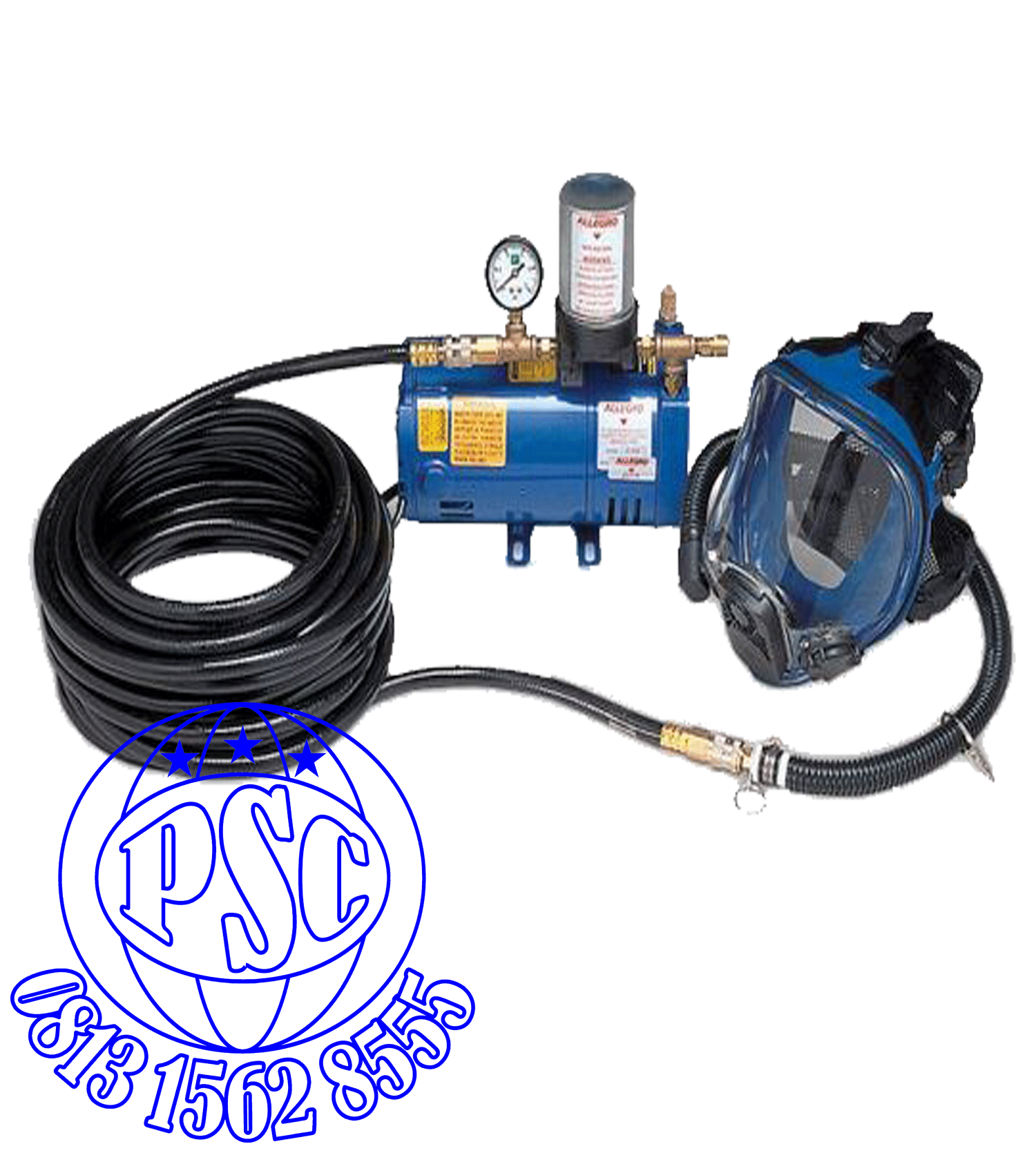

One Worker Full Mask System with ¼ hp pump & 50’ hose ( 15.24 m ) |
|
9200-02 |

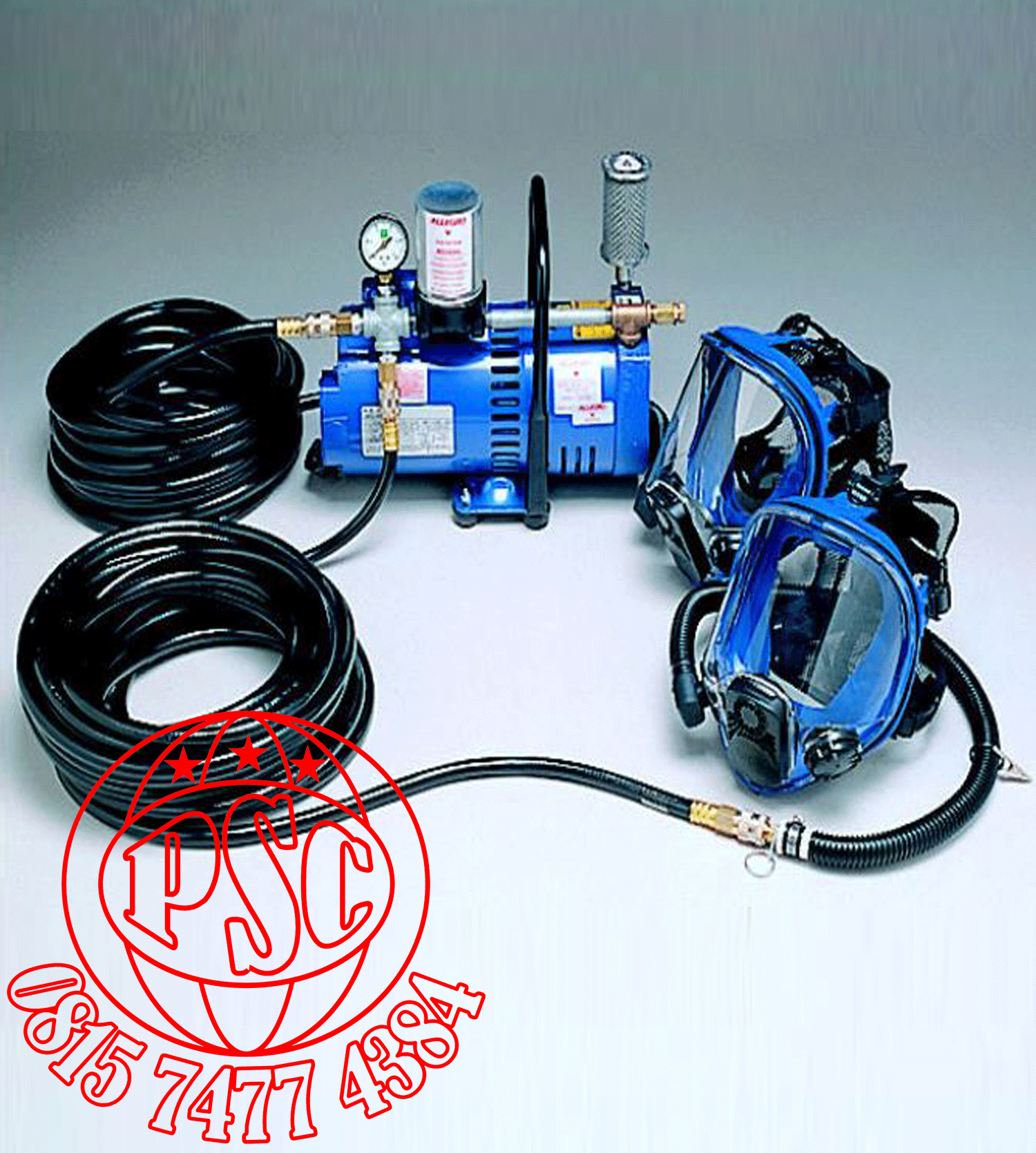

Two Worker Full Mask System with ¾ hp pump & 50’ hose ( 15.24 m ) |
|
9200-03 |
Three Worker Full Mask System with 1½ hp pump & 50’ hose ( 15.24 m ) |
|
9210-01 |
One Worker Full Mask System with ¼ hp pump & 100’ hose ( 34.4 m ) |
|
9210-02 |
Two Worker Full Mask System with ¾ hp pump & 100’ hose ( 34.4 m ) |
|
9210-03 |
Three Worker Full Mask System with 1½ hp pump & 100’ hose ( 34.4 m ) |
