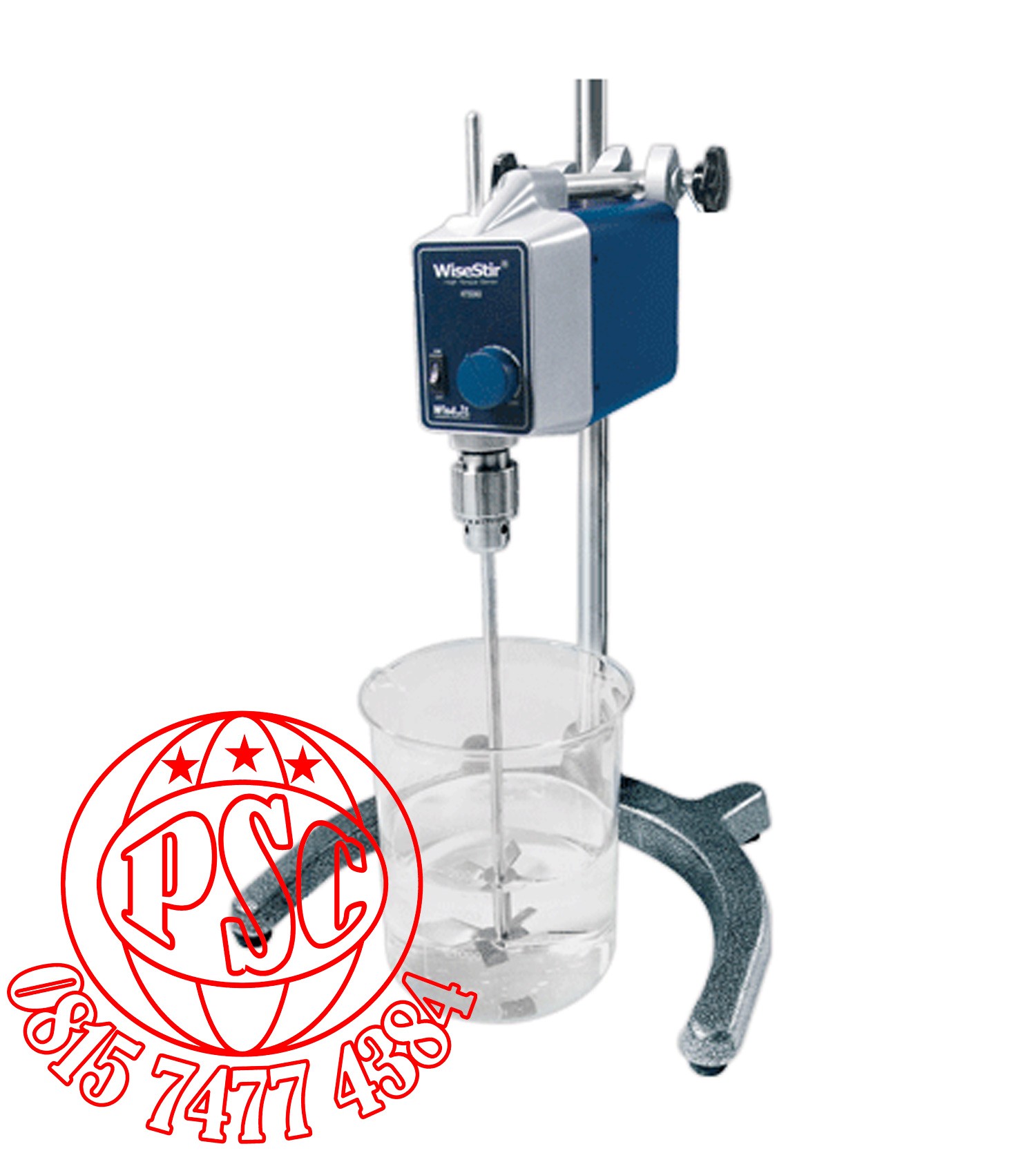

Analog Overhead Stirrer HT-AX Daihan Scientific

Specification

Stirring Capacity & Models

Max. 40 Lit. ( H2O )

Max. 60 Lit. ( H2O )

“HT-50AX”

“HT-120AX”

Maximum Viscosity

100,000 mPas

150,000 mPas

Maximum Torque

300 Ncm

500 Ncm

Speed Range & Motor

0 ~ 1,000 rpm, Worm - Geared DC Motor ( 3.5:1 Ratio )

Motor Rating ( Input / Output )

83 / 75 W,  1/10 HP

130 / 120 W,  1/6 HP

Controller

Analog Phase Controller

Max. Impeller Shaft Diameter

10 mm

Permissible Temp. & Humidity

0 ~ 40 ℃,  80 %

Safety Device

Over Heat Protector for motor

Material

ABS and Aluminum

Dimension & Weight

90 ×180 × h130 mm, 3.5 kg

90 × 210 × h130 mm,  4 kg

Packing Size & Gross Weight

320 × 300 × h180 mm, 5 kg

320 × 300 × h180 mm,   8 kg

Power Consumption

85 W

130 W

Power Supply & Cord Plug**

1 Phase, AC 120 V, 60 Hz or  AC 230 V, 50 / 60 Hz
