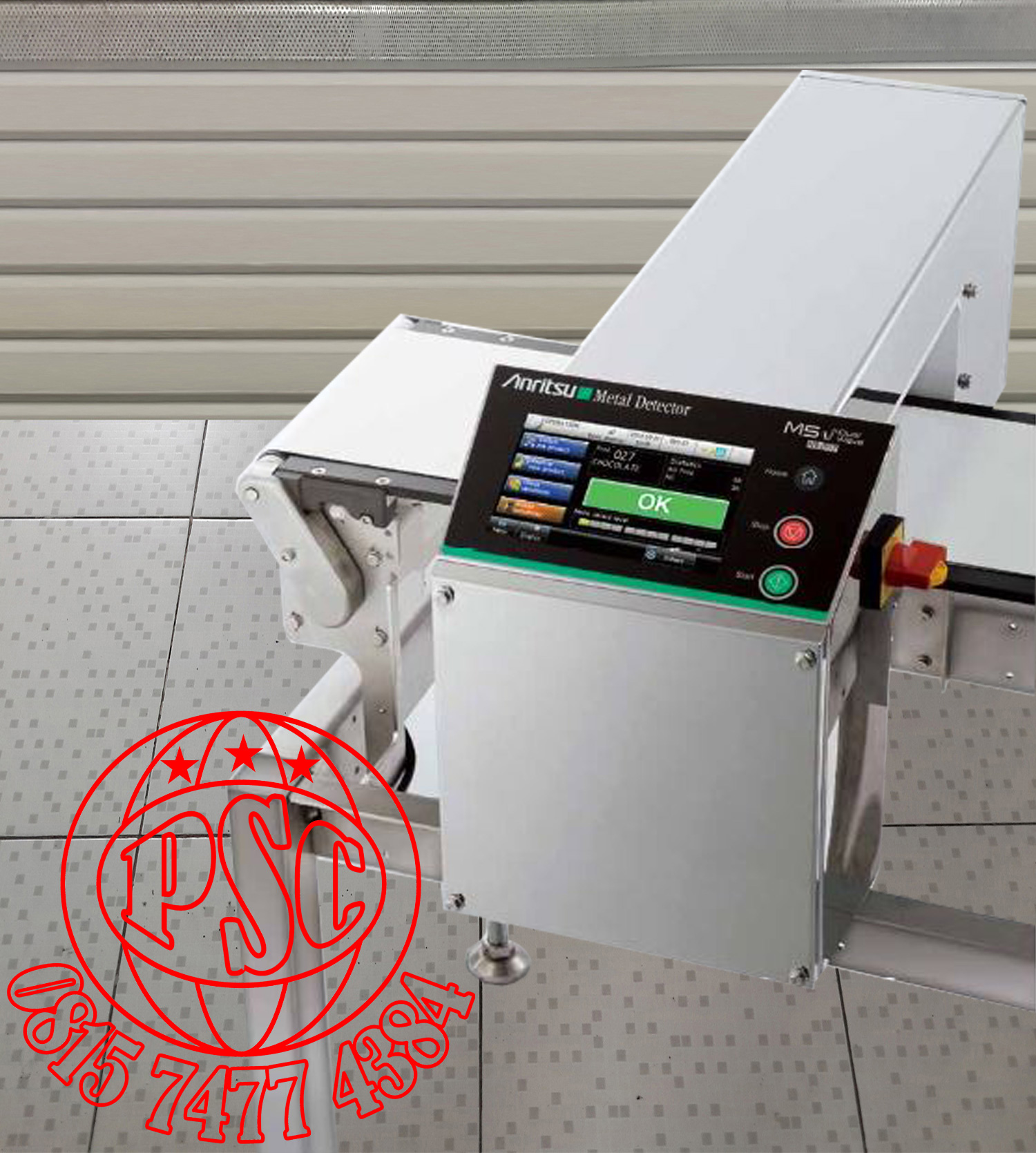

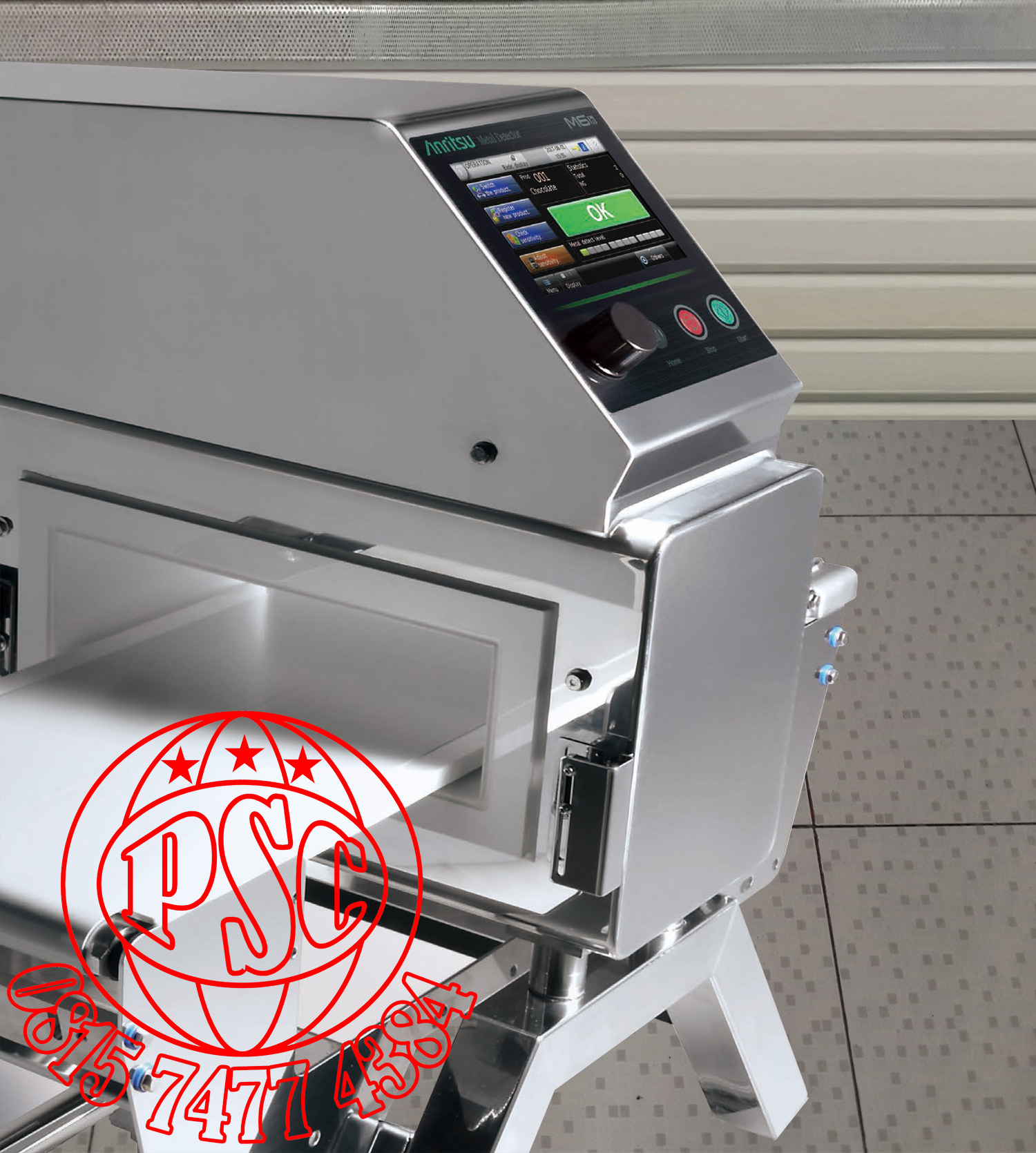

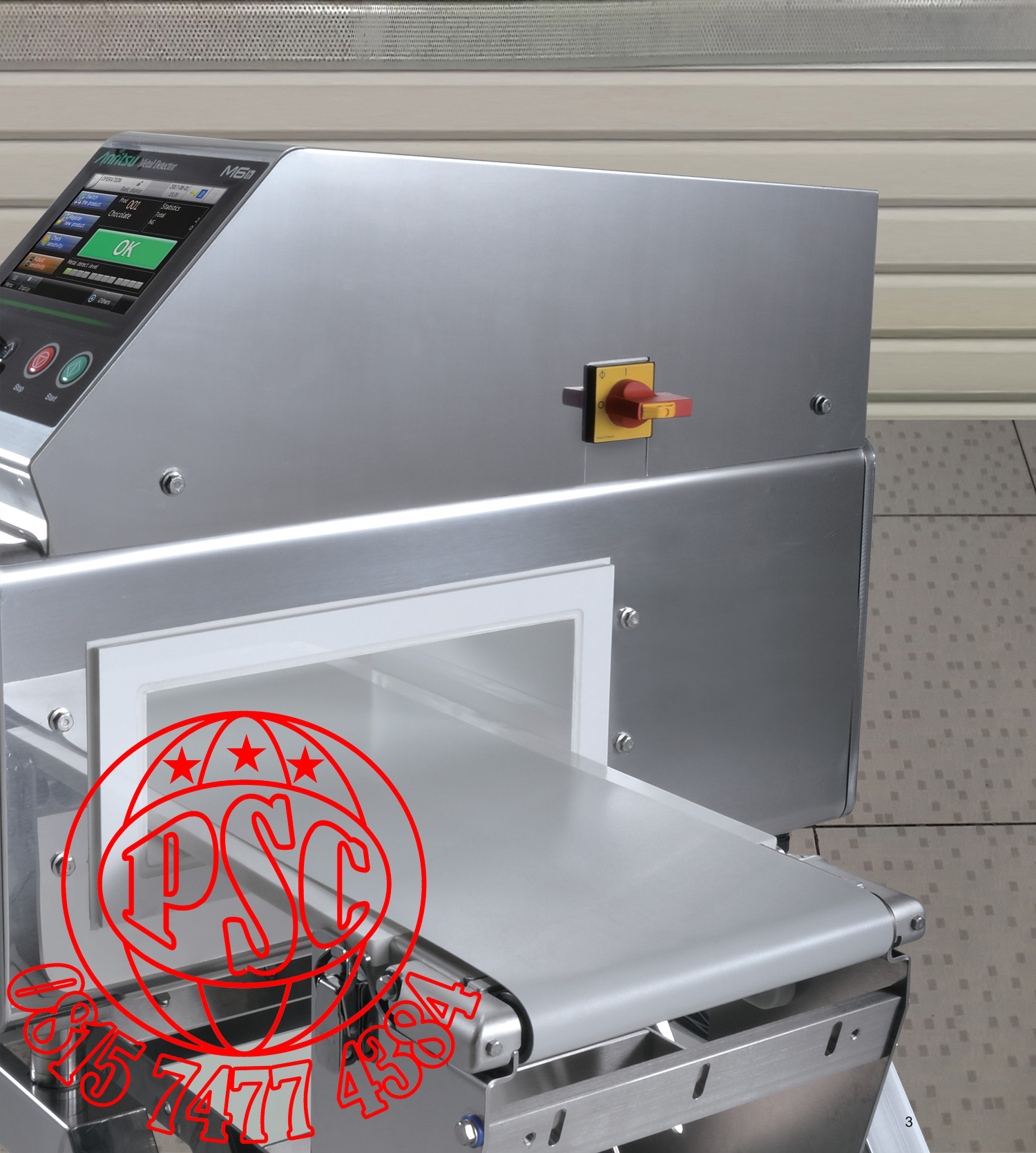

Anritsu metal Detector M5 Series Dual Wave ( Duw )
Specifications
Model	Non Waterproof	KDB3005AHF	KDB3008AHF	KDB3012AHF	KDB3015AHF	KDB3018AHF
	Waterproof	KDB3005AHW	KDB3008AHW	KDB3012AHW	KDB3015AHW	KDB3018AHW
Pass height		50 mm	80 mm	120 mm	150 mm	180 mm
Maximum pass width		300 mm
Belt width		230 mm
Display		7-inch color TFT LCD
Operation method		Touch panel ( Start, Stop, and Home are direct push buttons )
Preset memory		Maximum 200
Product packaging		Both general and aluminum-evaporated-packaging products
Detection method		Simultaneous 2-frequency magnetization detection method
Belt speed ¹		25 m/min ( 50 Hz ), 30 m/min ( 60 Hz )
Maximum product weight ²		15 kg
metal detection		Rejection signal output and beep, or  belt stop and beep
Power supply ³ ⁴		100 Vac, single phase 50/60 Hz ; 110/115/120 Vac, single phase 60 Hz ; 200 Vac, single phase 50/60 Hz ;
		220/230 Vac, single phase 50/60 Hz ; or 240 Vac, single phase 50 Hz
Power consumption		160 VA, rush current 50 A ( type ) ( 20 ms or less )
Mass		77 kg	76 kg	79 kg	81 kg	82 kg
Environmental conditions		0° to 40 °C, relative humidity 30 % to 85 %, non-condensing
Protection class		AHF type : IP30 compliance / AHW type : IP66 compliance
Exterior		Indicator and detector head : stainless steel ( SUS304 )
		Conveyor frame and stand AHF type : metal ( coating ) / AHW type : stainless steel ( SUS 304 )
Data output		USB port as an option ( USB 2.0 ), Ethernet interface as an option ( 10base-T, 100base-TX )
Standard Features
Dust and Waterproof Protection ( W type )
Coaxial Type metal Detector
Estimated Sensitivity Display
Interactive Guidance
Statistics
NG History
Simple Cleaning ( For all types except KD813 A )
Flow Direction Change
Variable Belt Speed ( For all types except KD813 A )
Variable Line Heights
Auto Reciprocal Setting
online Interface ( Standard feature for all types except KD813 A )
HACCP Support
Automatic Power Switching
Optional Features
Printer
Rejection ///////////confirm/i/i/i/i/i/i/i/i/i/i/iation
Reverse Rejection
Ethernet
CE Marking
FCC Compliance
