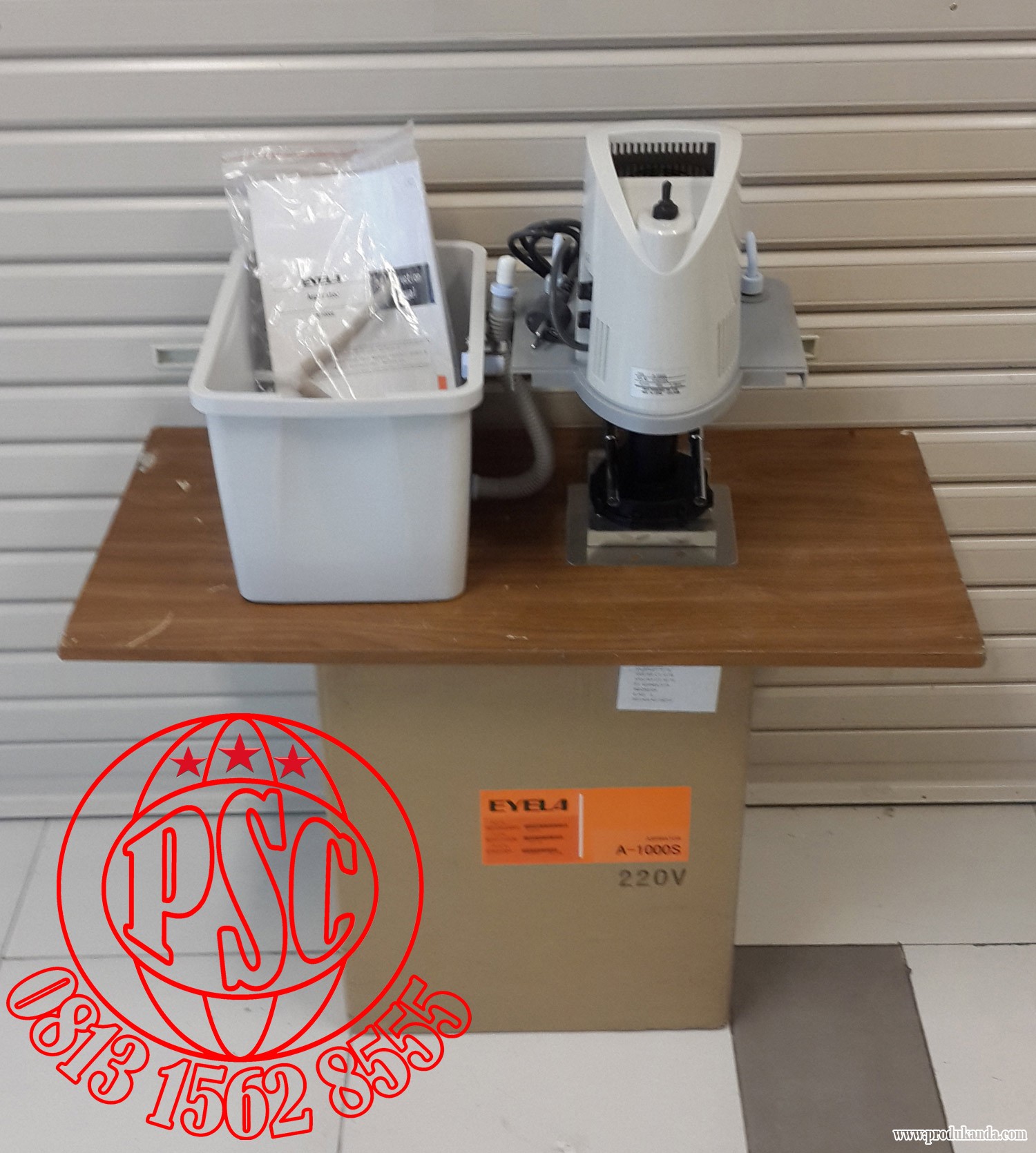

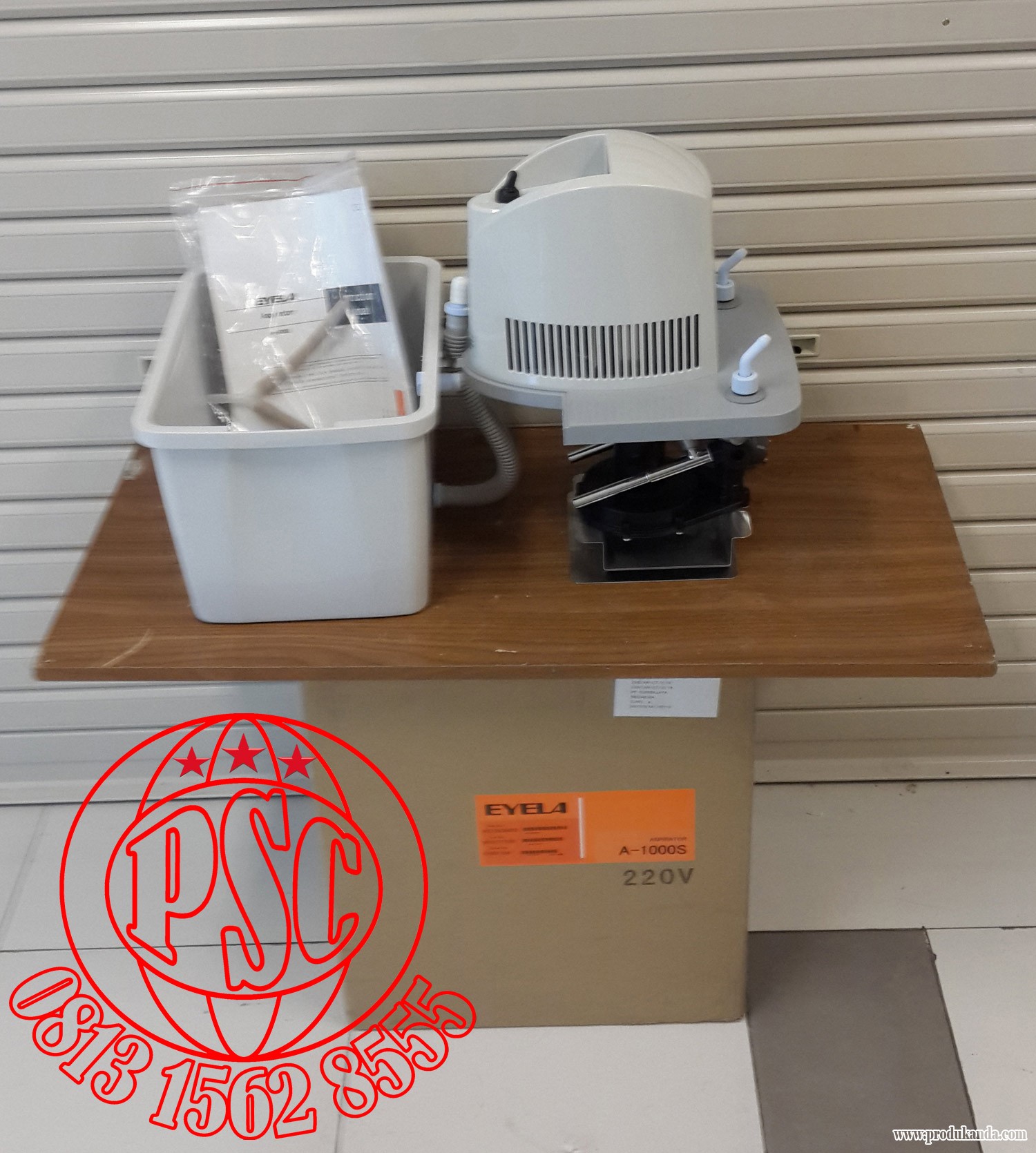

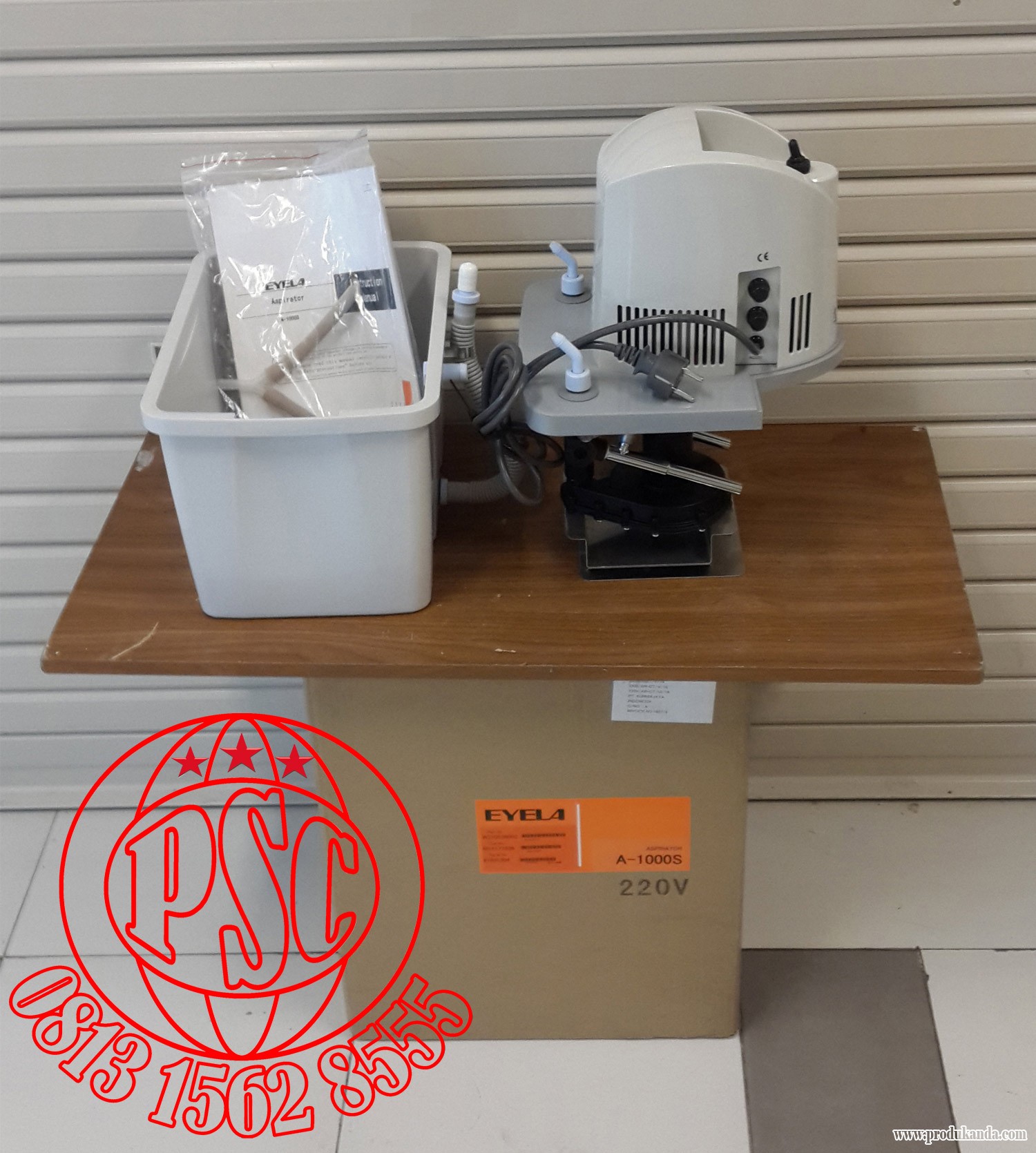

Aspirator Pump A-1000S Eyela
Highly recommended for use in an area　lacking water service or where it is difficult to obtain constant water pressure.
Transparent lid cover makes it possible to check the water condition in the bath. Bath structure is made to be removed and cleaned easily
Precisely processed metal aspirators are equipped to realize stable water displacement.
Water in preserving tank is circulated by pump and it clears waste water regulation.
Highly chemical resistive Teflon aspirator is also available (option).
Specification
Product	Aspirator
Model	A-1000S
Product No.	210530
Exhaust system	Pressurized circulation system by water pump.
Max. displacement	16 L/min ( 50 Hz ), 19 L/min ( 60 Hz )
Ultimate vacuum	Water temp.	5 ℃	10 ℃	20 ℃
	Pa ( mmHg )	872 ( 6.5)	1228 (9.2 )	2338 ( 17.5 )
Safety features	Check valve, Thermal protector
Motor	Induction motor 150 W
Aspirator	metal aspirator, 2 sets
Water bath dim. & volume	255 W x 351 D x 216 H ( mm ), 10 L
Water bath material	Polypropylene PP
Suction hole diam.	OD 10 m ( 2 holes )
Exhaust nozzle diam.	13 mm
Overflow nozzle diam.	17.5 mm
Ambient temp.	5 ～ 35 ℃
Dimensions ( mm )	255 W x 351 D x 406 H
Net weight	6.7 kg
Input power	280 VA
