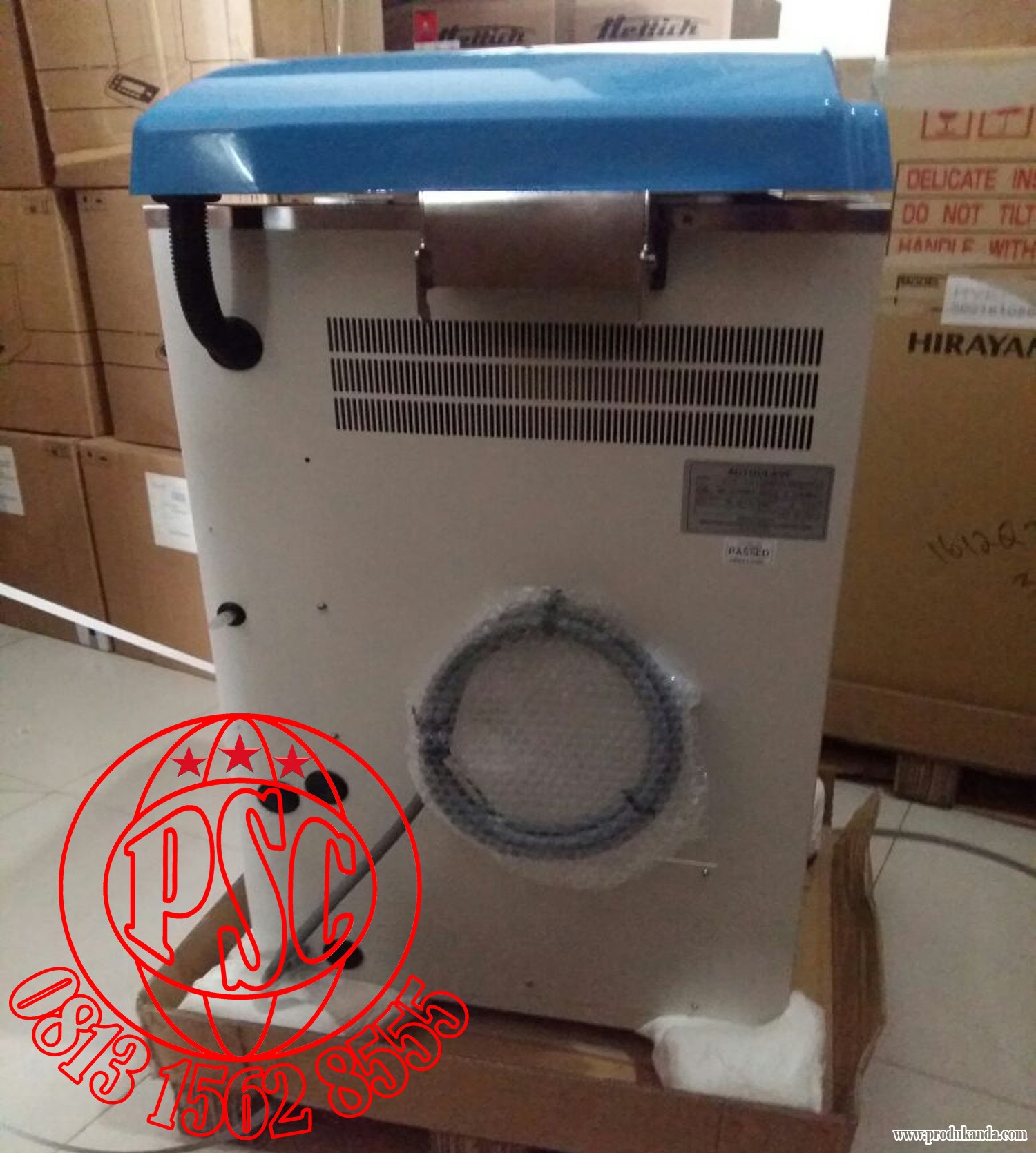

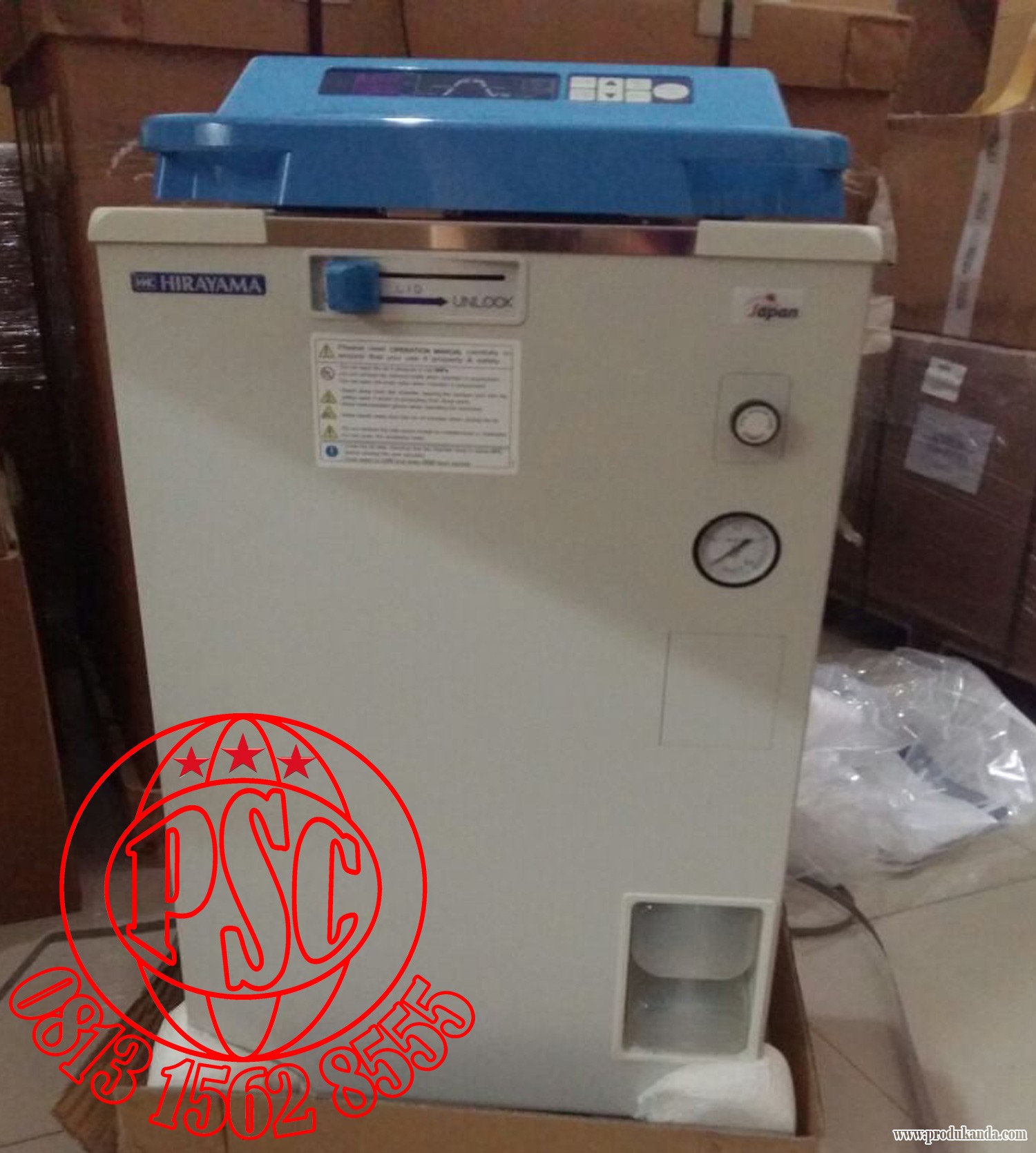

Autoclave Hirayama HV-85 |
||||
|
The Most Advanced Autoclaves with Unique Features |
||||
|
Electromechanical lock system |
||||
|
Dual-sensing interlock mechanism |
||||
|
Double-sensing system for air evacuation |
||||
|
Programmable auto start |
||||
|
Process status display |
||||
|
Process mode for agar |
||||
|
Retrofittable accessories ( Any combination possible ) |
||||
|
A : Forced cooling unit |
||||
|
F : Floating sensor |
||||
|
P : Digital printer |
||||
|
W : Automatic water supply |
||||
|
Z : All combined ( A+F+P+W ) |
||||
|
Specification |
||||
|
Model |
HV-25 |
HV-50 |
HV-85 |
HV-110 |
|
Effective capacity |
25 liter |
50 liter |
85 liter |
110 liter |
|
Chamber size ( mm ) |
240 φ × 550 D |
300 φ ×710 D |
420 φ × 615 D |
420 φ × 795 D |
|
Outer dim ( W × H × D ㎜ ) |
480 × 950 × 460 |
510×1040×530 |
660 × 1000 × 650 |
660 × 1180 × 650 |
|
Max.Steril.temp |
126 ℃ |
135 ℃ |
135 ℃ |
135 ℃ |
|
Process mode |
4-modes |
4-modes |
4-modes |
4-modes |
|
Net weight |
41 kg |
57 kg |
71 kg |
81 kg |
