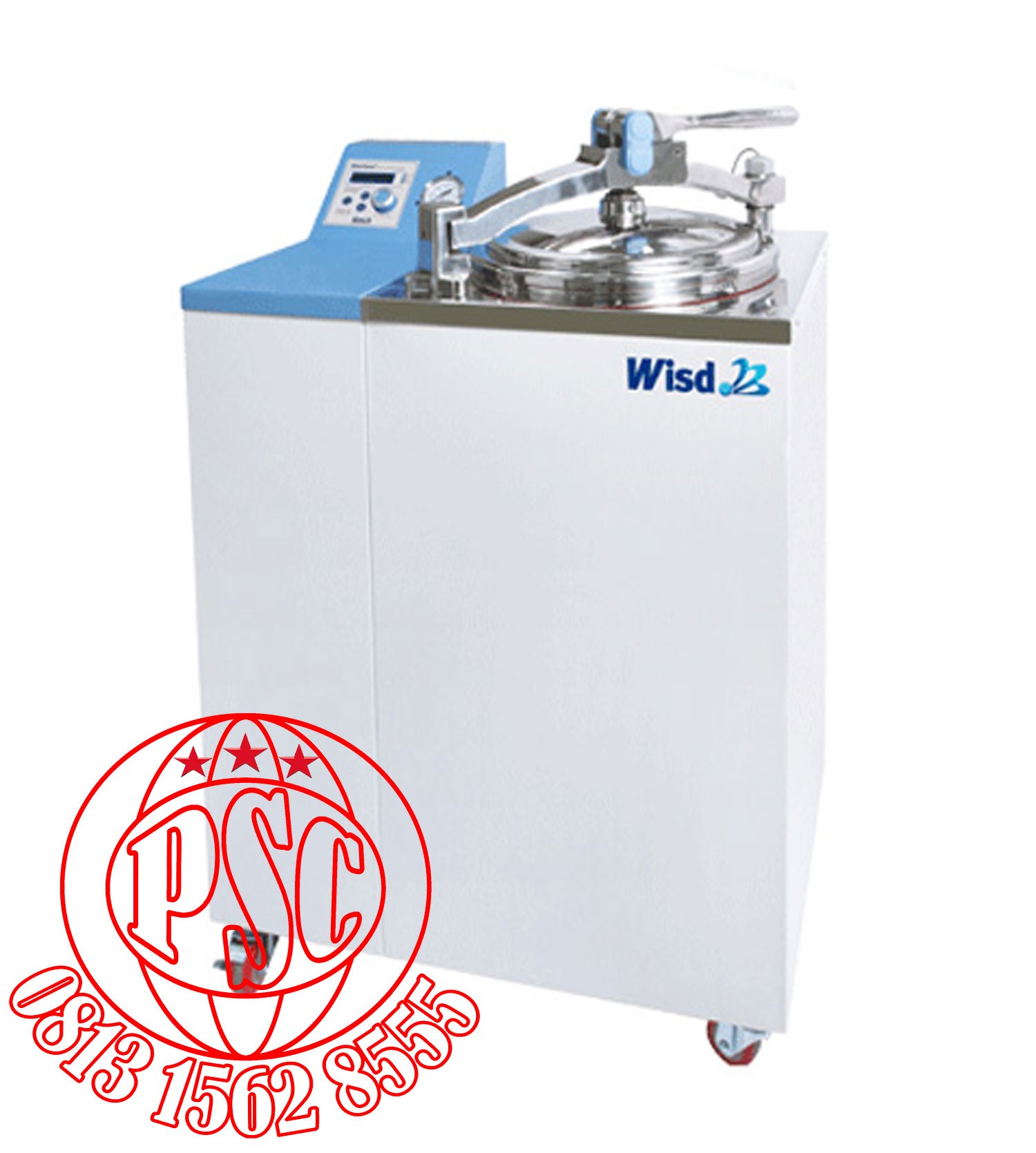

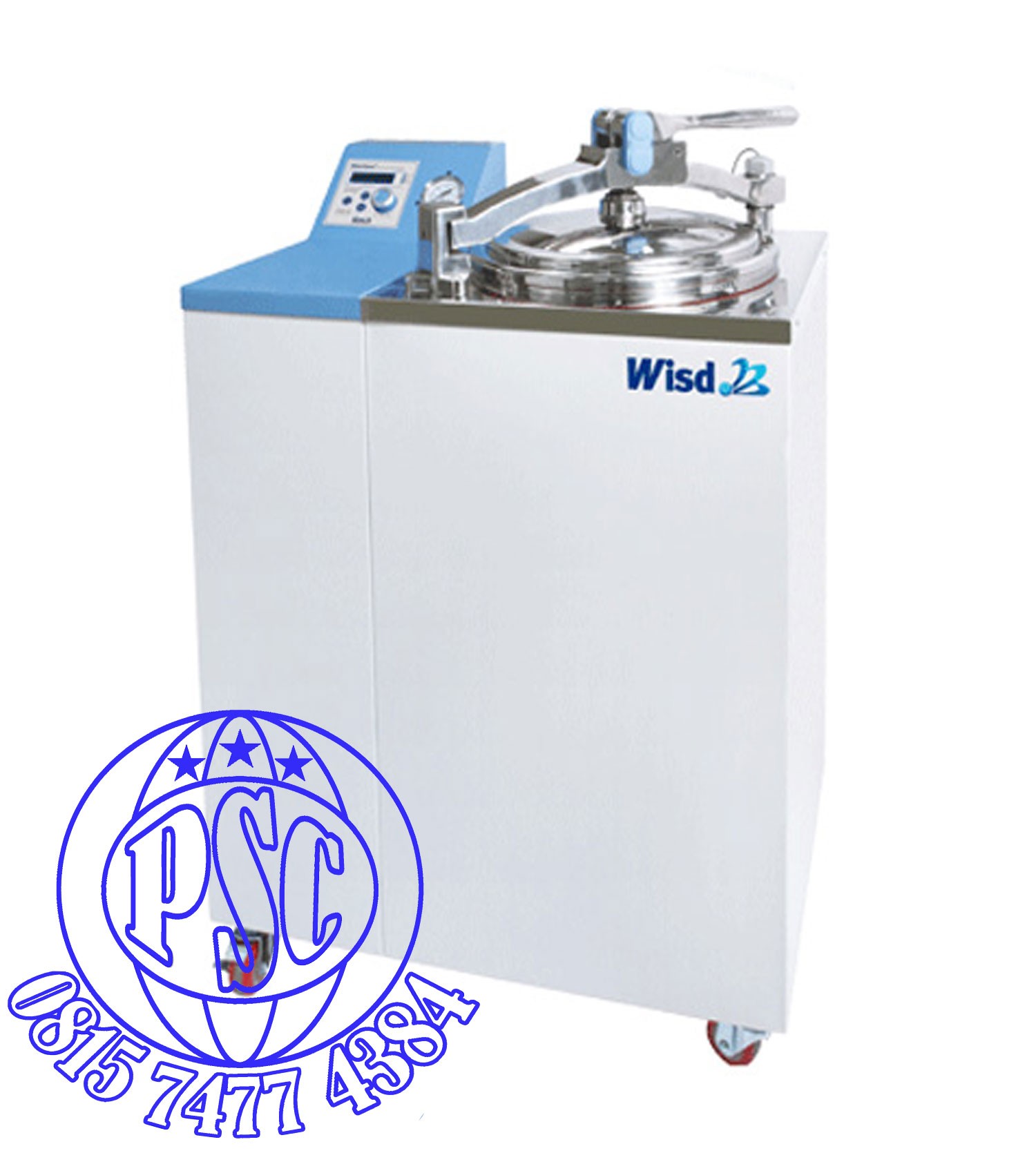

Autoclave MaXterile Daihan Scientific

Specification

(1) Standard-model

MaXterile 47

MaXterile 60

MaXterile 80

MaXterile 100

Standard-type

(2) Recorder-model

MaXterile 47R

MaXterile 60R

MaXterile 80R

MaXterile 100R

Recorder-type : Built in Recording Printer, Sterilization Cycle Data

( Date, Temp., Pressure, Time, Error Status, etc. )

Capacity

47 Lit.

60 Lit.

80 Lit.

100 Lit.

Temp. Range & Accuracy

Ambient +5 ℃ to 132 ℃, ±0.5 ℃ at 121 ℃

Pressure & Gauge

1.2 kgf/cm2 at 121℃/ 2.0 kgf/cm2 at132℃, 0 ~ 3 kgf/cm2

Sterilization mode

Solid- or Liquid-mode

Heating Power/ Consumption

2 kW

3 kW

2 kW × 2

2 kW × 2

Timer & Alarm

60 min, Error status & Timer-end

Display

Digital LCD with Back - Light Function

Controller

Digital Fuzzy-Control System ( Fully Automatic )

Door & Closing System

Lever-type Sliding Door / Safety Electronic Door Closing System

Safety Circuit

Over-Temp./-Pressure/-Current protection, Sensor Error Detection

Printer

Thermal type printer, Record Paper Roll : w58 × Φ40 mm

Material

Stainless steel ( ＃304 )-Pressure Vessel, Powder Coated steel-External

Basket

2ea of Stainless steel Wire Baskets are Included

Basket Dimension

Φ270 × h240 mm

Φ320 × h240 mm

Φ370 × h240 mm

Φ420 × h240 mm

Dimension

Inner

Φ300 × h670 mm

Φ350 × h650 mm

Φ400 × h650 mm

Φ450 × h630 mm

( W x D x H )

Outer

680 × 470 × 880 mm

680 × 470 × 900 mm

780 ×580 × 900 mm

780 × 580 × 900 mm

Packing Size

840 × 610 × h1,252 mm

950 × 730 × h1,352 mm

Gross Weight

117 kg

120 kg

170 kg

170 kg

Power Supply

1Phase - AC 120 V, 60 Hz or - AC 230V, 50/60Hz

1 Phase - AC 120V, 60Hz or - AC 230V, 50/60Hz

3 Phase - AC 380V, 50/60Hz
