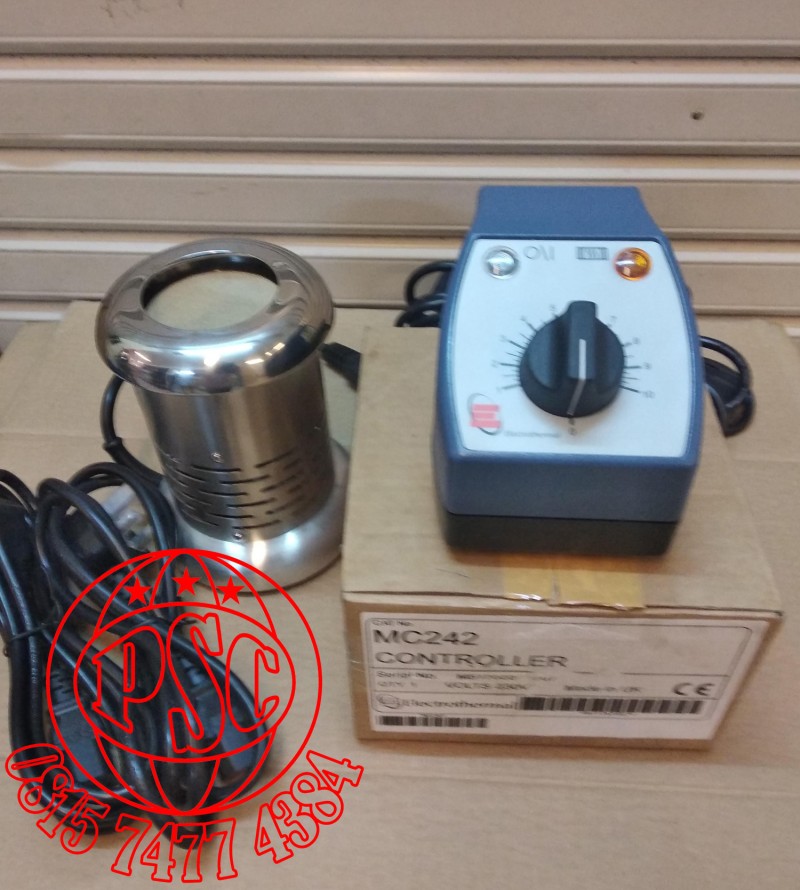

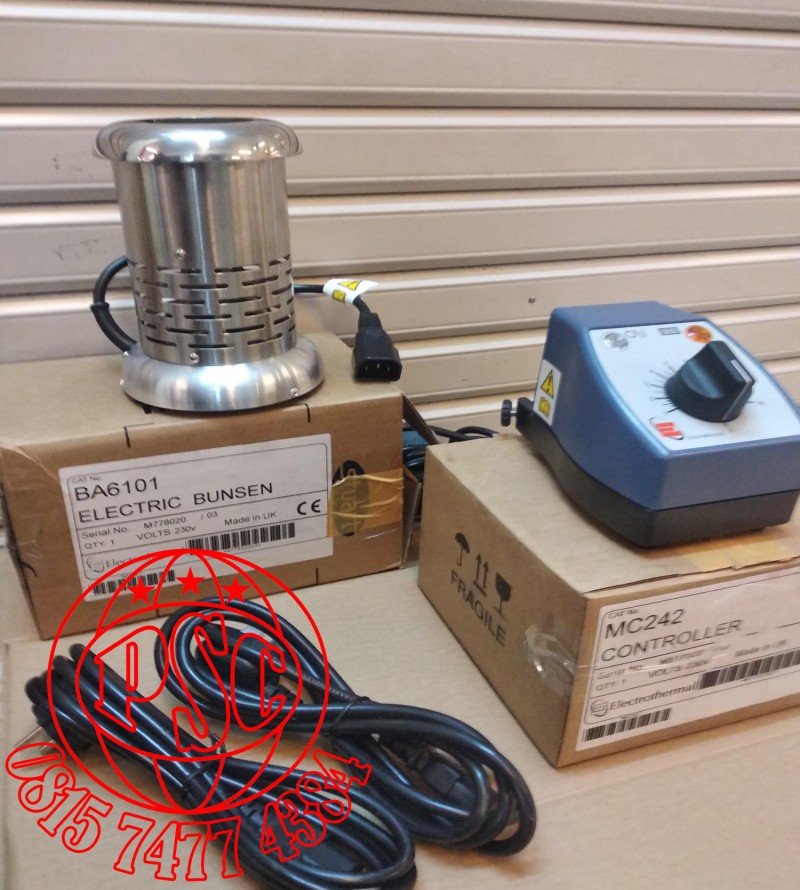

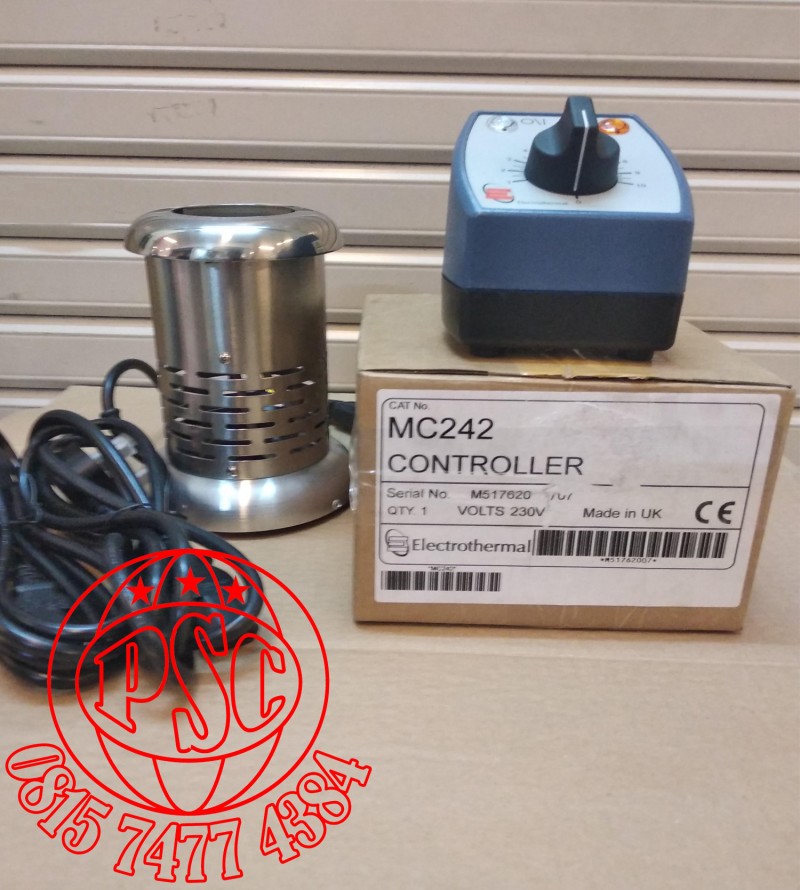

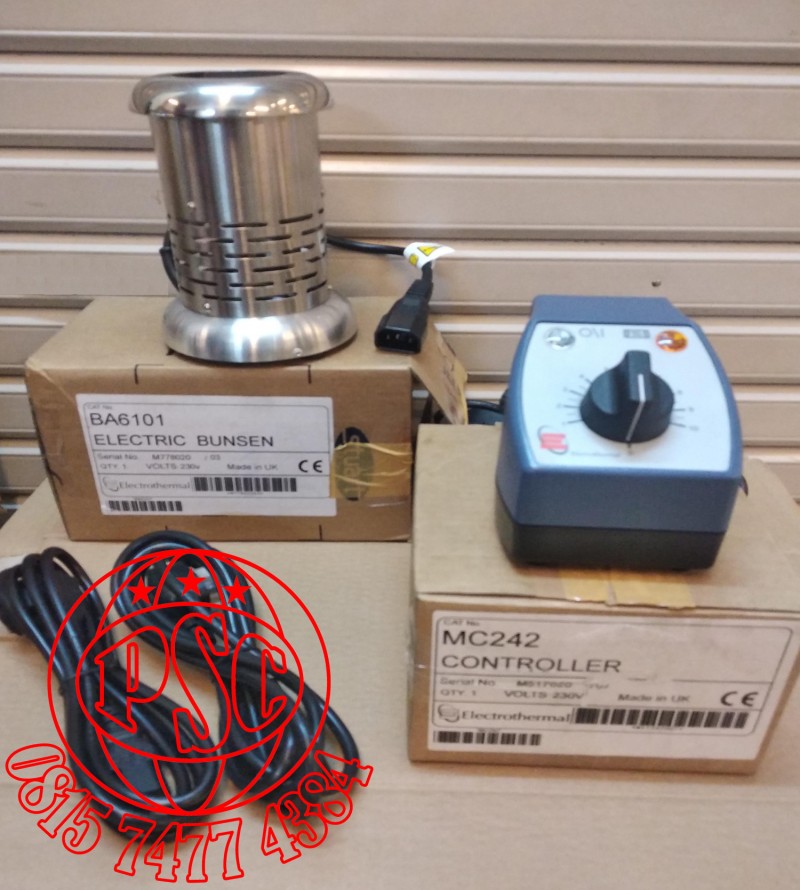

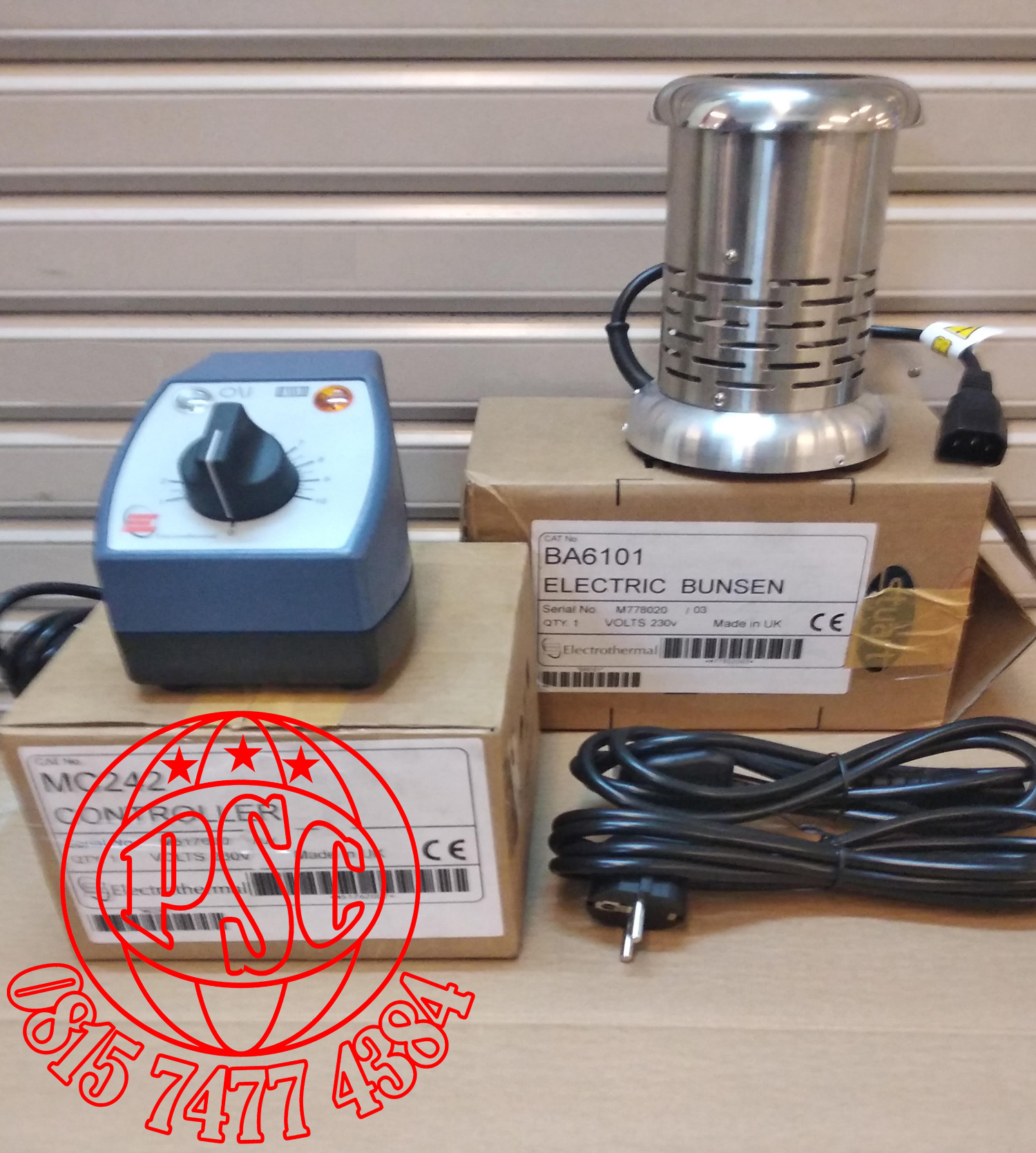

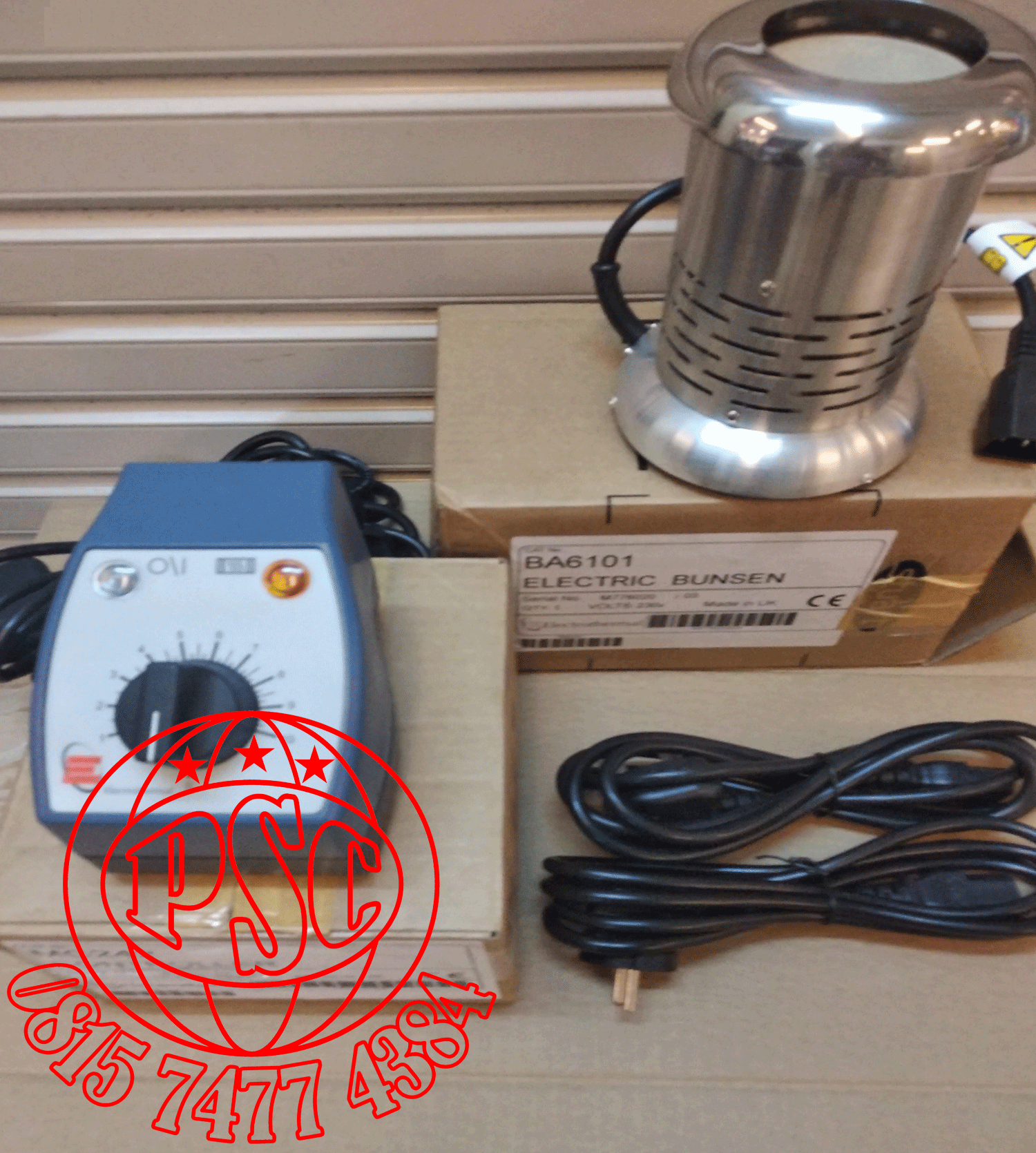

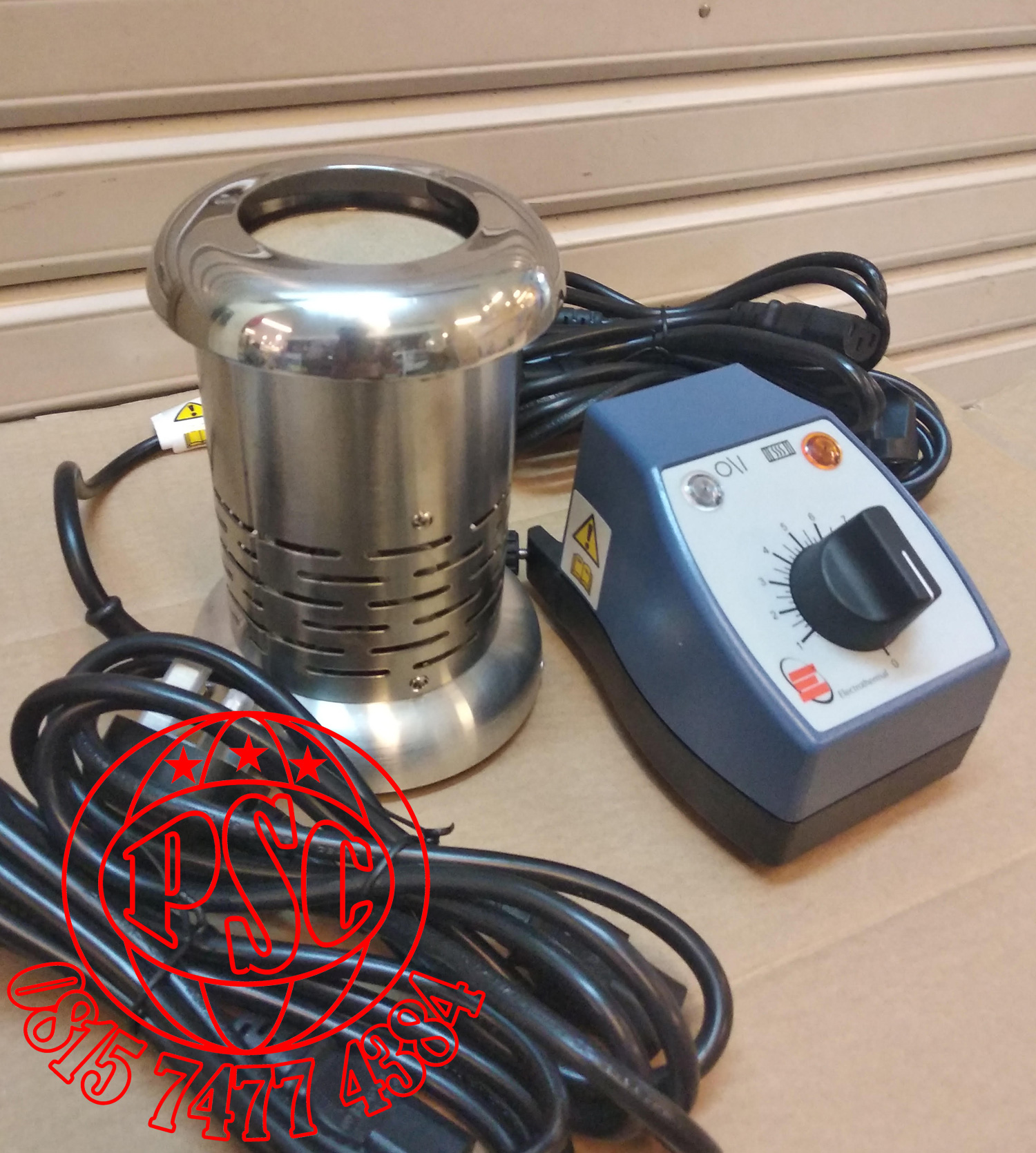

BA6101 Electric Bunsen
The Electric Bunsen combines the advantages of a regular gas burner with the clean easy operation of our Electromantles. Radiation from the heater is directed upwards to a focal point. The Electric Bunsen is ideal for heating test tubes, crucibles, small flasks and beakers, regardless of their shape.
It is corrosion-resistant and has a cool-to-touch base
Key Features
• Conical shaped heating element directs radiant heat to the top cavity
• Top cowl deflects heat away from your hand
• Air circulation from the vented housing keeps the base cool enough to hold during operation
• Burner consumes only 400W of power

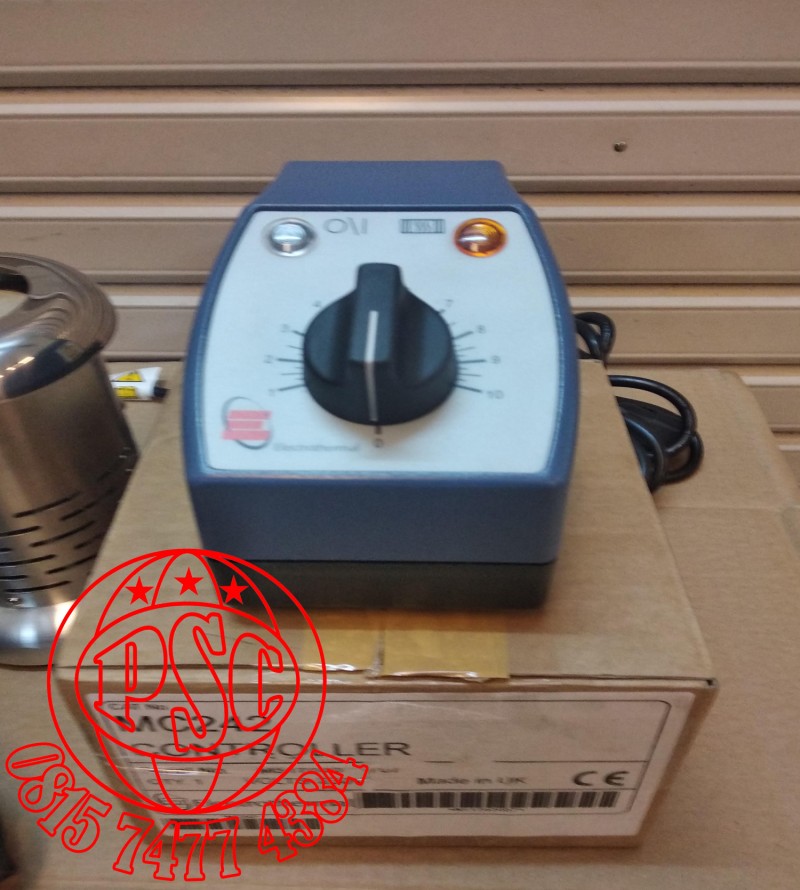

• Recommended controller is the MC5
Technical Specification
Part Code	BA6101
Description	Electric Bunsen
Max Temperature	800 °C
Material	Stainless Steel
Shipping weight	0.5 kg
Dimensions ( D x H )	120 mm x 177 mm
Ordering Information
Without MC5 Controller	Electrical requirements
BA6101	230V 50/ 60Hz, 480 w
BA6101X1	115V 50/ 60Hz, 430 w
With MC5 Controller	Electrical requirements
BA6101/C	230V 50/ 60Hz, 480 W
BA6101/CX1	115V 50/ 60Hz, 430 W
