VENTILATION BLOWER, HIGH OUTPUT,EXPLOSION PROOF

Part Number

9515-50EX

Style

AXIAL FAN 16” ( 40.6 cm )

General Description

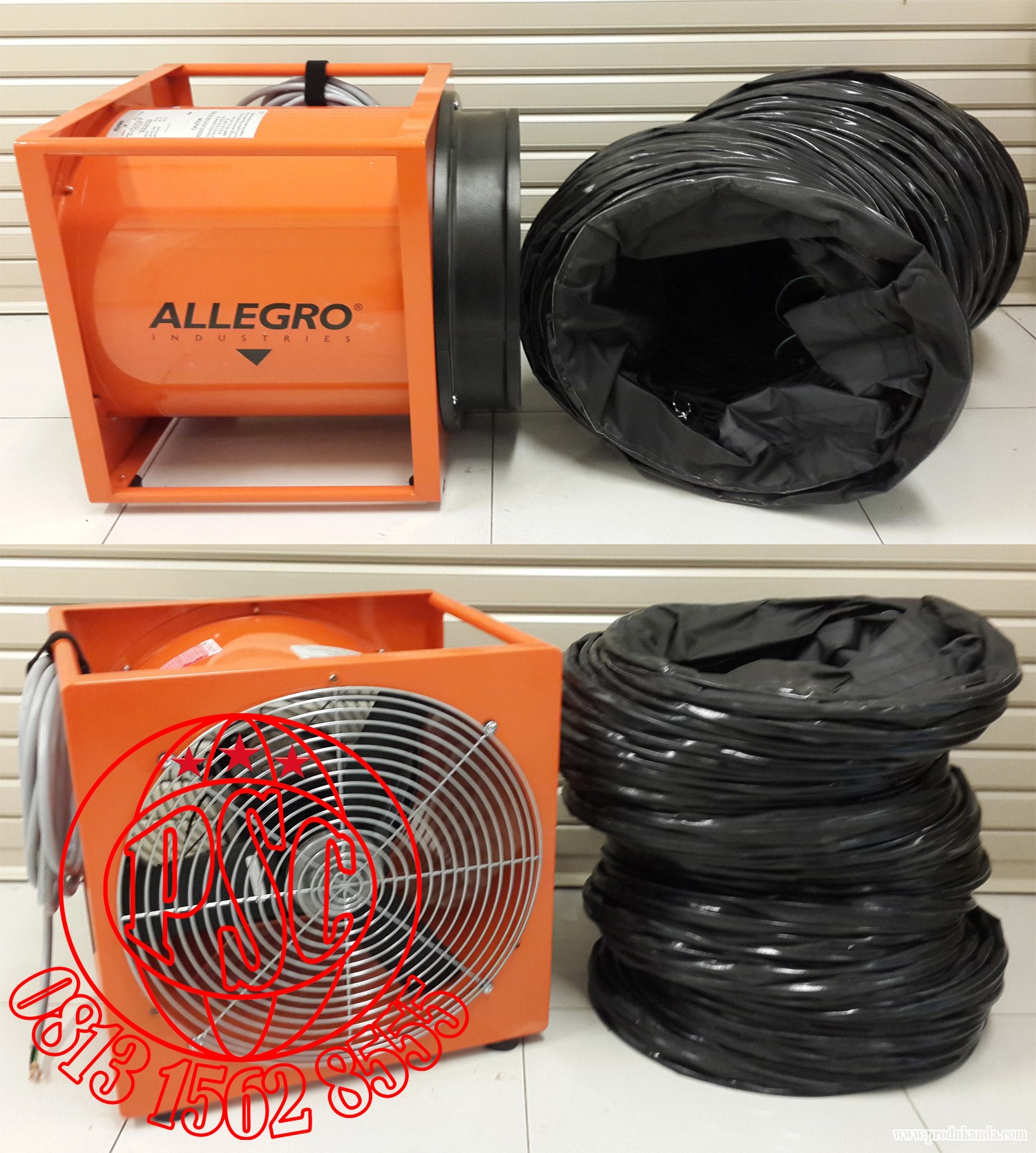

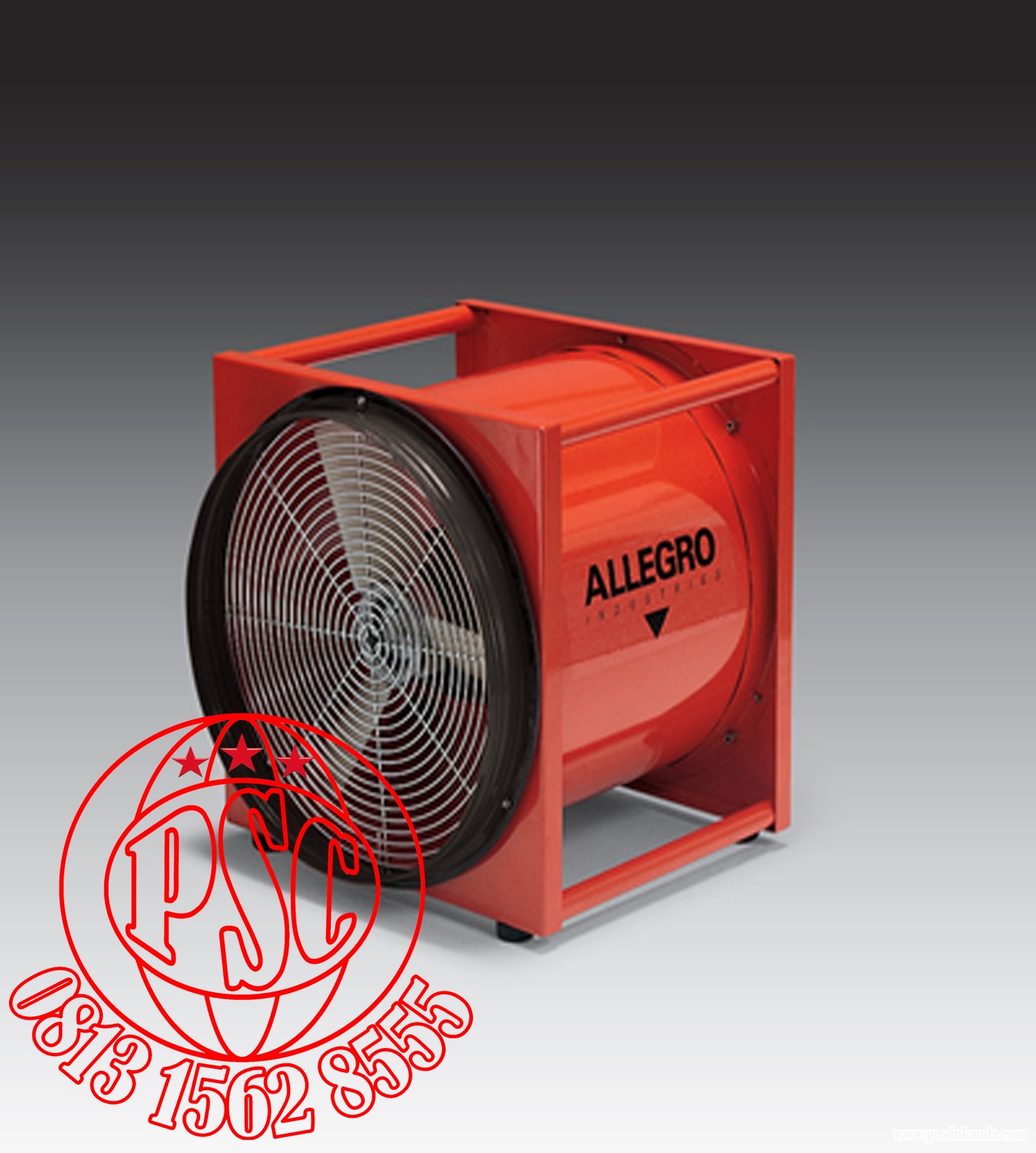

Designed for applications requiring a maximum amount of output. Made from 16 gauge cold rolled steel housing and powder -coated in safety orange with 3 blade impeller . Powered by a 1 ½ hp, 3450 RPM UL listed, IEC Ex/ATEX/INMETRO certified motor. Comes with an interchangeable flange for intake or exhaust mounting, integrated carry handles for easy transport and a steel/zinc plated grill. Four rubber feet, built in on/off switch and voltage change switch are added features of this powerhouse unit.

Construction

Complete unit epoxy powder-coated in orange

Interchangeable flange for intake or exhaust side mounting

16 gauge cold rolled steel housing

Integrated carry handles

Steel grill ( zinc plated ) , equipped with four rubber feet

Built -in “on/off” switch

Duct grounding lug

Motor

HP

1½ HP

Certifications

UL Listed, IEC Ex/ATEX/INMETRO Certified

Volt age/Hz

115/230V AC, 50/ 60 Hz, Single Phase ( Integrated voltage selector )

RPM

3450

Current Draw

15.5/7.8 A ( 60 Hz )

Cord

25’ ( 7.63 m ) 12/3 AWG MTW 90 C 600 V

Plug

NEMA 20 Amp , 125V or 250V plug,Explosion Proof rated

Protection

Thermal, Automatic Reset

FAN

Anti-Static glass reinforced polyamide ( PAGAS ) three blade fan with aluminum hub

Accessories

Ducting

Black, single -ply, neoprene coated, statically conductive vinyl/polyester material, temp.resistant up to 250 °F ( 121.1 °C )

Retractable, non-collapsible design, Class 1 hard drawn spring steel wire helix ( meets ASTM 227 specs )

Grounding cable on both ends

EX Rated Receptacle

Iron mounting box with triple coat finish and spring-loaded door to keep out dust when in use. When plug is not in use, a neoprene gasket inside receptacle seals around plug to keep out dirt, water, dust, etc

9503 - 03 : 125 V only

9503 - 06 : 250 V only

EX Rated Extension Cords

9540 - 50EX : 115 V

9540 - 60EX : 230 V

Hazardous Location Rating

Motors

EX Plugs

ATEX

II 2 G Ex d Gb

NEC 500

Class I, Group B, C, D Class II, Group F&G

IECEx

Ex d IIB Gb

NEC 505

Class I, Zone 1, Group IIB & H2

INMETRO

Ex d IIB Gb

Blower Dimensions

Length In ( cm )

Width In ( cm )

Height In ( cm )

Weight Lbs ( Kg )

18” ( 45.7 )

18” ( 45.7 )

19” ( 48.2 )

62 lbs ( 28,12 )

Flow Rates

( CFM calculated using 15’ ( 4.57 m ) of 16” ( 40.6 cm ) ducting )

Free Air CFM ( m³/hr )

One 90° Bend CFM ( m³/hr )

Two 90° Bends CFM ( m³/hr )

4839 ( 8226.30 )

2942 ( 5001.40 )

2926 ( 4974.20 )
