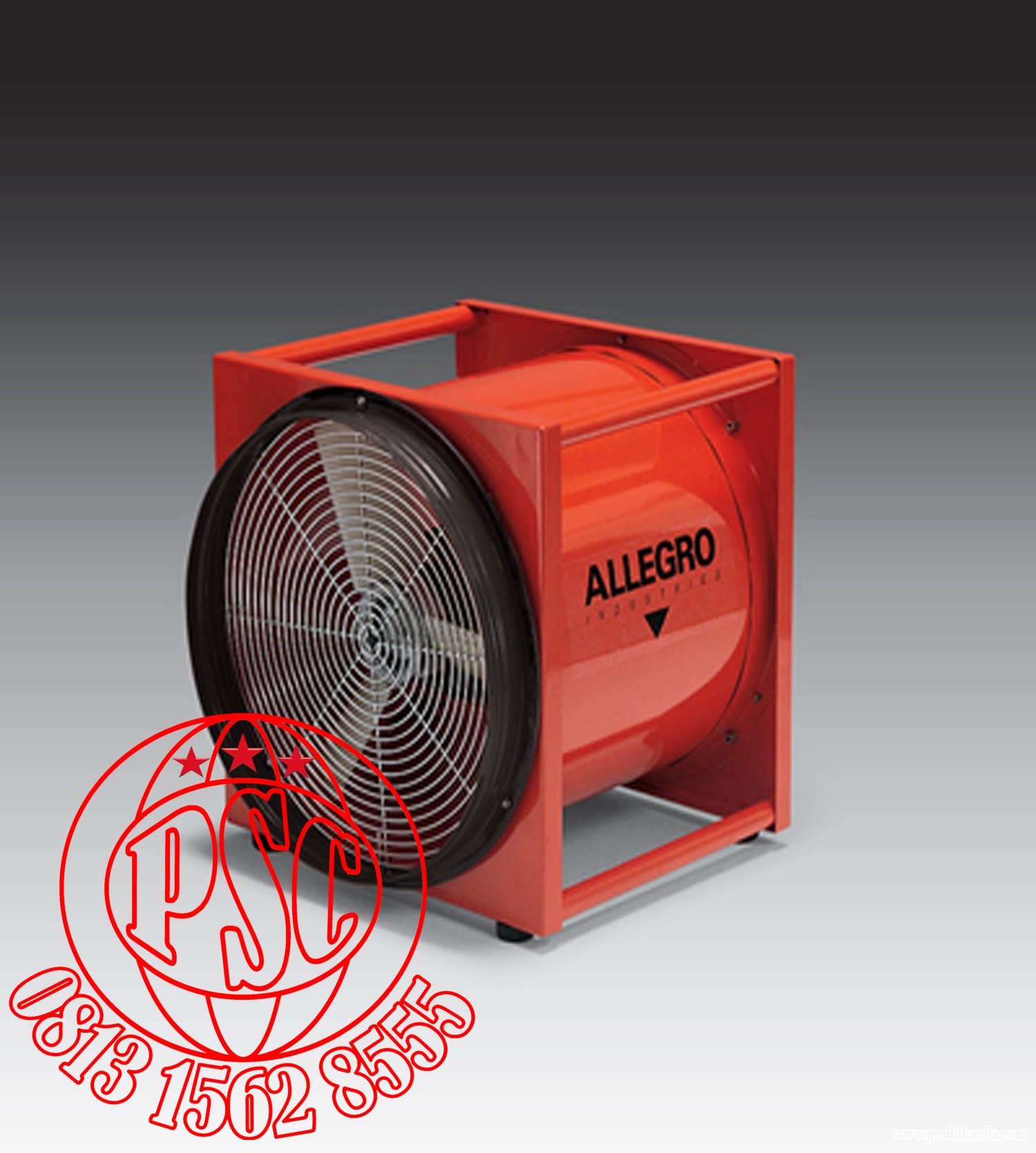

Blowers Axial : 20” High Output Blower Allegro Safety
Specifications
Product Description	VENTILATION BLOWER, HIGH OUTPUT
Part Number	9525-50
Style	AXIAL FAN 20” ( 50.8 cm )
General Description	Allegro’s 20” ( 50.8 cm ) High Output blower offers a high powered motor for applications requiring a maximum amount of output. It offers the highest output of any of our blowers. Certified to CSA Standard C22.2 No. 113.
Construction	Complete unit epoxy powder coated in “safety orange”
	Interchangeable flange for intake/exhaust side mounting
	16 gauge cold rolled steel housing
	Bolted motor mount construction
	Integrated carrying handles
	Steel/chrome plated grill
	Equipped with four rubber feet
Motor	HP	2 HP, Single Phase
	Certification	UL Recognized, CSA Certified
	Volts	115/230V AC, 60 Hz
	Max RPM	3450
	Current Draw	21/10.5A
	Cord	25’ ( 7.62 m ) 12/3 AWG, SJOOW-A Neoprene 300 V medium duty
	Plug	NEMA 5-30P or NEMA 6-30P ( Twist Lock type )
Fan	Glass reinforced polypropylene ( PPG ) four blade fan with aluminum hub
	Moving fan mounted 1⅝” ( 4.12 cm ) from grill for safety, grill gap- 5/16” (.79 cm )

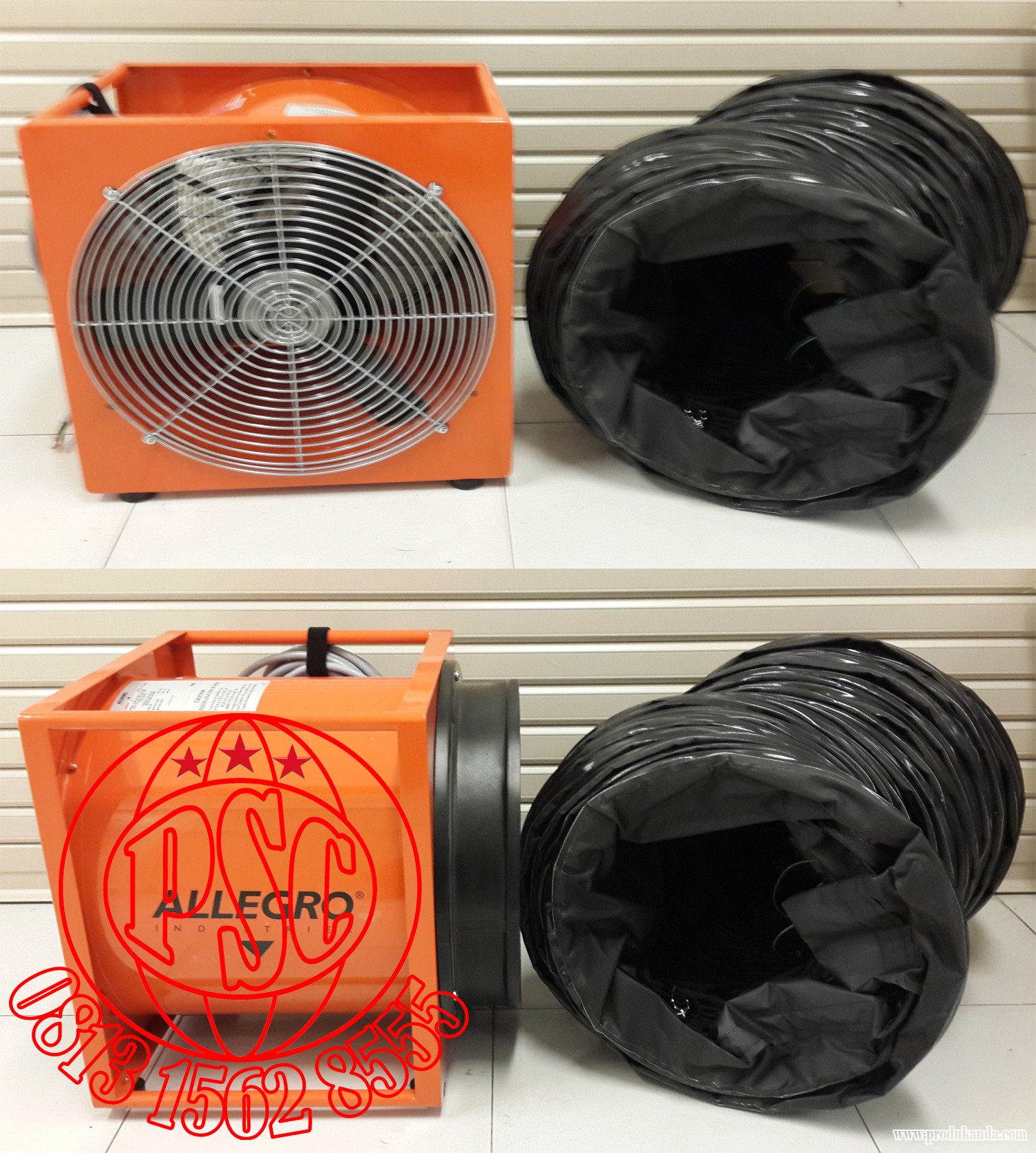

Ducting : ( Optional )	Retractable, non-collapsible design
	Single-ply, PVC coated, vinyl and polyester materials, temperature resistant up to 180 °F ( 82.2 °C )
	Yellow color with black weather-strip and integrated nylon straps
	Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs
Blower Dimensions	Length In. ( cm )	Width In. ( cm )	Height In. ( cm )	Weight Lbs. ( Kg )
	19” ( 48.2 cm )	22” ( 55.8 cm )	22 ½” ( 57.1 cm )	83 lbs ( 37.6 kg )
Flow Rates	( CFM calculated using 15’ ( 4.75 cm ) of 20” ( 50.8 cm ) ducting )
	Free Air CFM ( m³/hr )	One 90° Bend CFM ( m³/hr )	Two 90° Bends CFM ( m³/hr )
	7500 ( 12742.58 )	6700 ( 11383.37 )	6130 ( 10414.93 )
