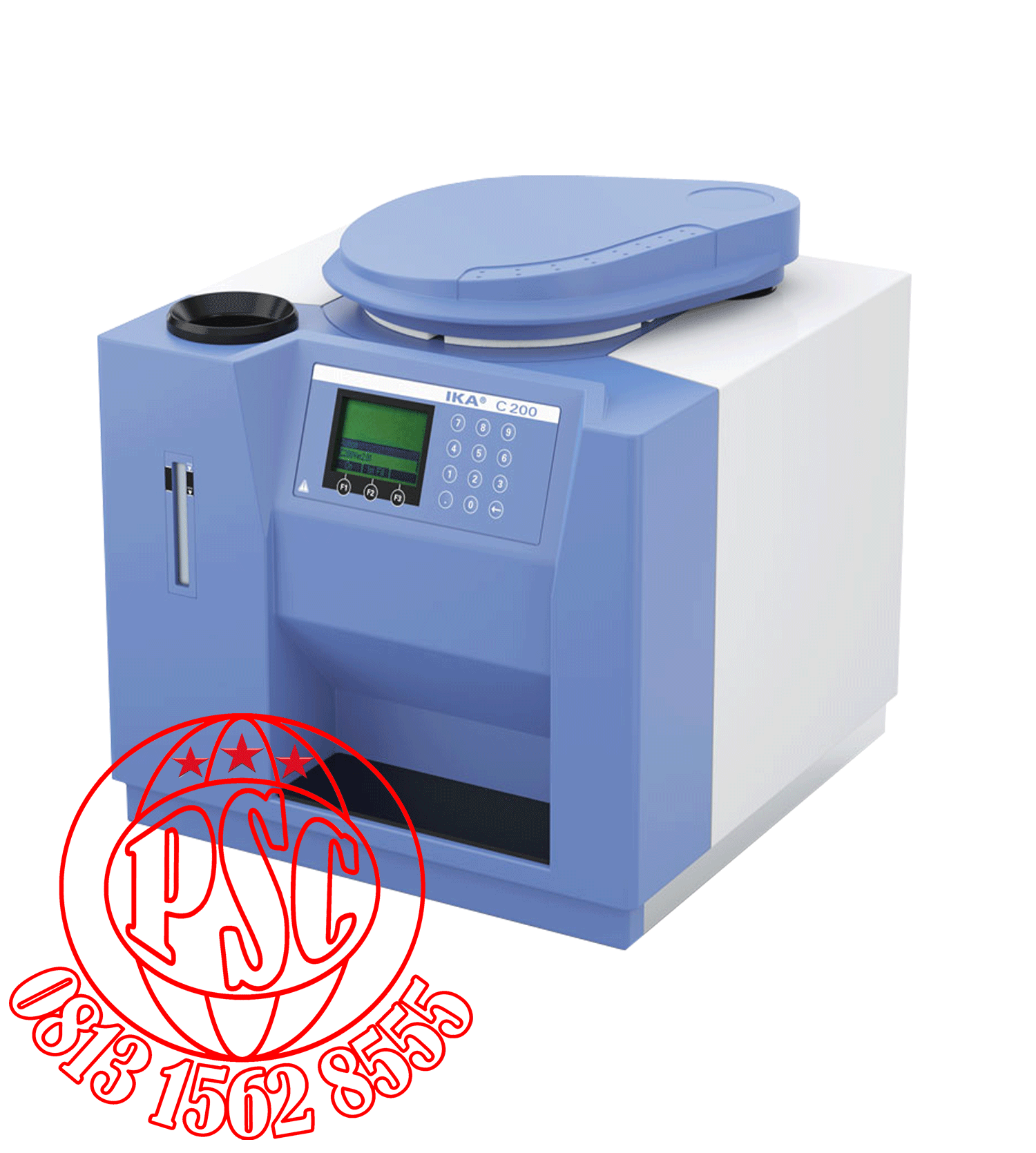

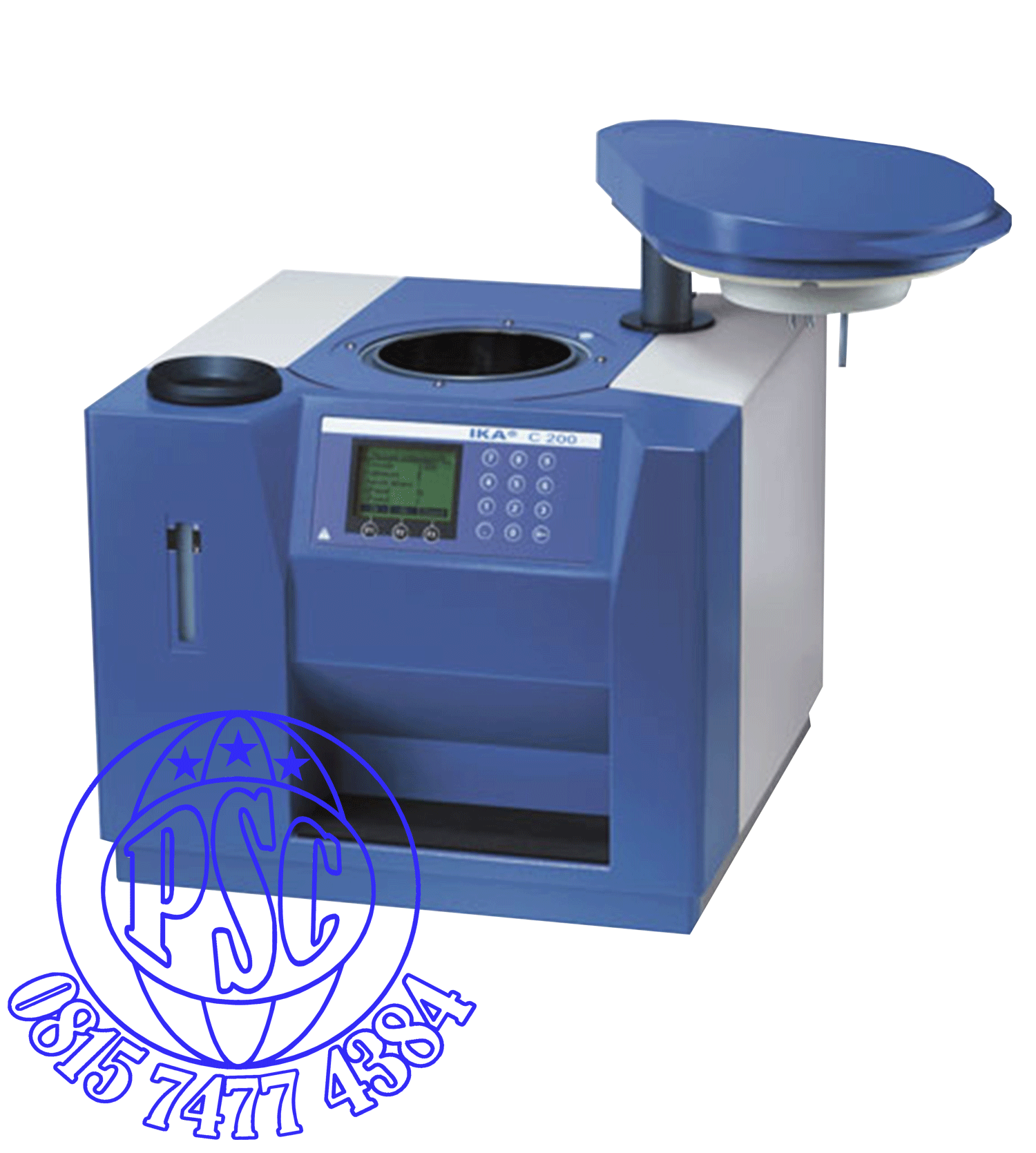

Bomb Calorimeter C 200 IKA

Technical Data

Measuring range max.

40000 J

Measuring mode dynamic 25 °C

yes

Measuring mode isoperibol 25 °C

yes

Measuring time dynamic approx.

8 min

Measuring time isoperibol approx.

17 min

Reproducibility dynamic ( 1 g benzoic acid NBS39i )

0.1 % RSD

Reproducibility isoperibol ( 1 g benzoic acid NBS39i )

0.1 % RSD

Working temperature max.

25 °C

Temp. measurement resolution

0.0001 K

Interface printer

Centronix

Interface PC

RS232

Decomposition vessel C 5010

yes

Decomposition vessel C 5012

yes

Analysis according to DIN 51900

yes

Analysis according to ISO 1928

yes

Dimensions ( W x H x D )

400 x 400 x 400 mm

Weight

21 kg

Permissible ambient temp.

20 - 25 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 20

RS 232 interface

yes

Voltage

100 - 240 V

Frequency

50/60 Hz

Power input

120 W
