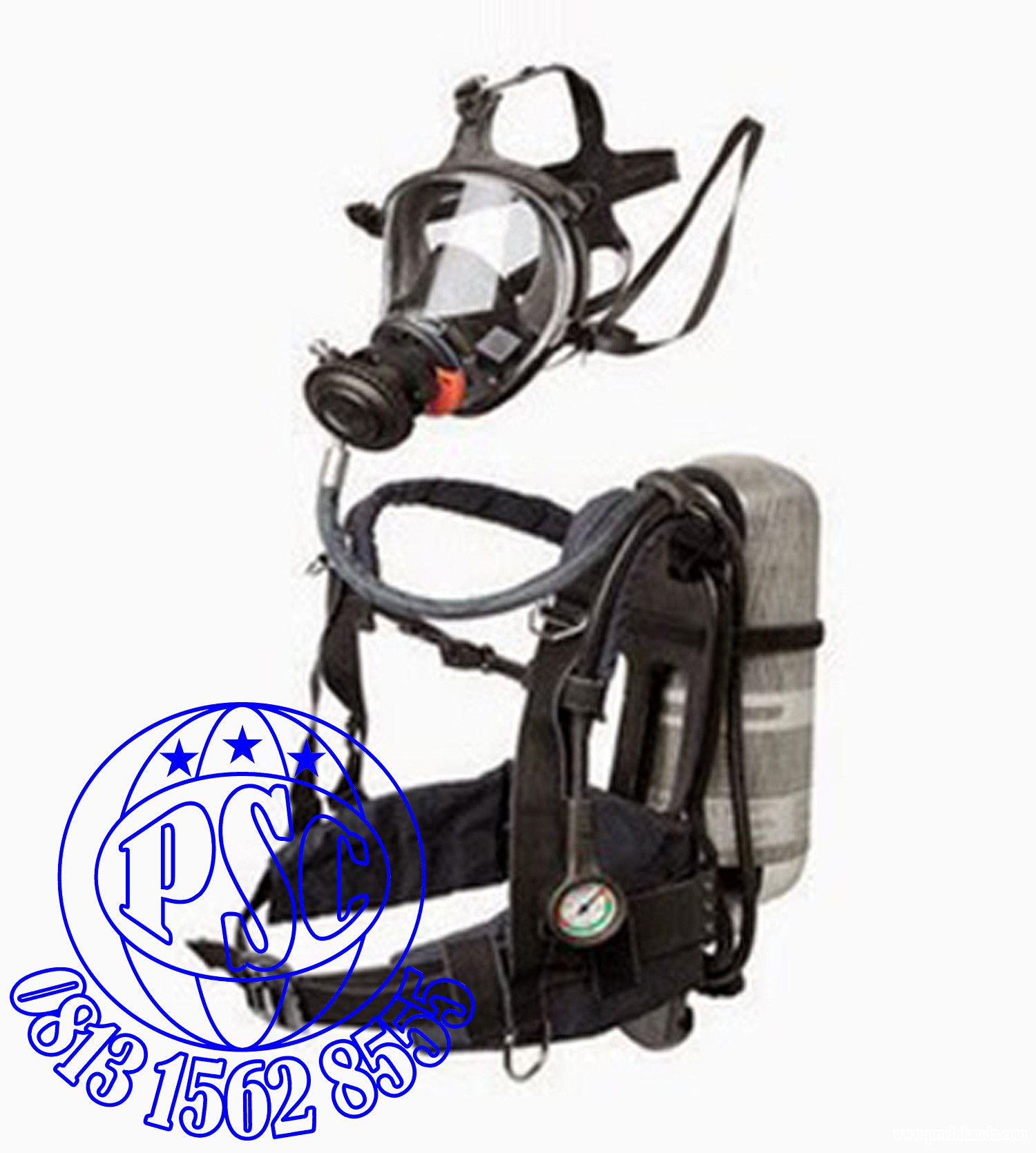

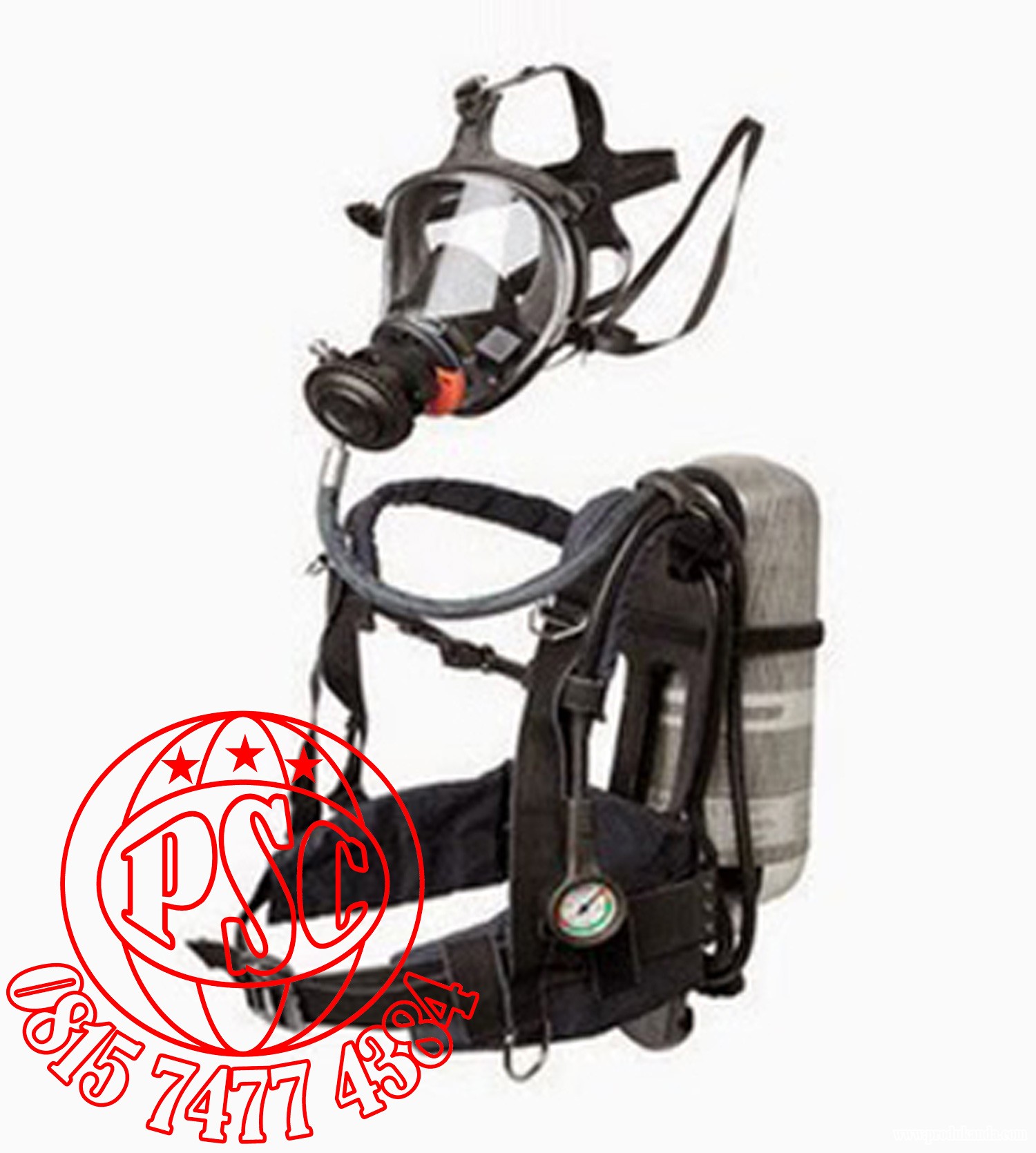

Breathing Apparatus RN/A1683 C FR Spasciani
Technical Data
Pressure Reducer	piston with compensator
Automatic Demand Valve	with integral alarm device and supplementary supply button
Setting of the Alarm	55 ± 5 bar
Volume/ pressure of Cylinder	6, 8 l/ 300 bar
Air reserve	1870 N liters
Duration	62 min at an average consumption of 30 l/ min for a single user Classification and Marking
Certified Type 2 to EN137	2006 and meeting with directives 98/ 686/ EEC ( PPE ) , 97/ 23/ EC ( PED ) and 96/ 98/ CE ( MED ) .
Materials
Mask	TR 82 A CL3+
Outer face blank	EPDM
Panoramic Visor	scratch and solvent resistant polycarbonate
Inner Nose Cup	TPE
Five arm head harness	Neoprene
Carrying strap	para-aramidic webbing
Backplate	thermoplastic polypropylene
Harness with padding & soft belt	para-aramidic and aramidic webbing, self-extinguishing foam
Medium pressure hose ( demand valve and reducer ) rubber protected by para aramidic sleeve
Pressure reducer	brass alloy nickel plated
Automatic Demand Valve	fiber glass reinforced nylon housing
Cylinder	Composite
Weight	10.5 Kg approx., set complete with mask and fully charged cylinder
Dimensions	310 x 660 x 220 mm,measured with set laying down on a flat surface.
The set is packed w/ o cylinder in a carton box dimensions 710 x 210 x 460 mm
Cylinder is packed into a carton box dimensions 710 x 150 x 160 mm
