Breathing Apparatus Viking Z Seven AVON Protection

Viking z-seven

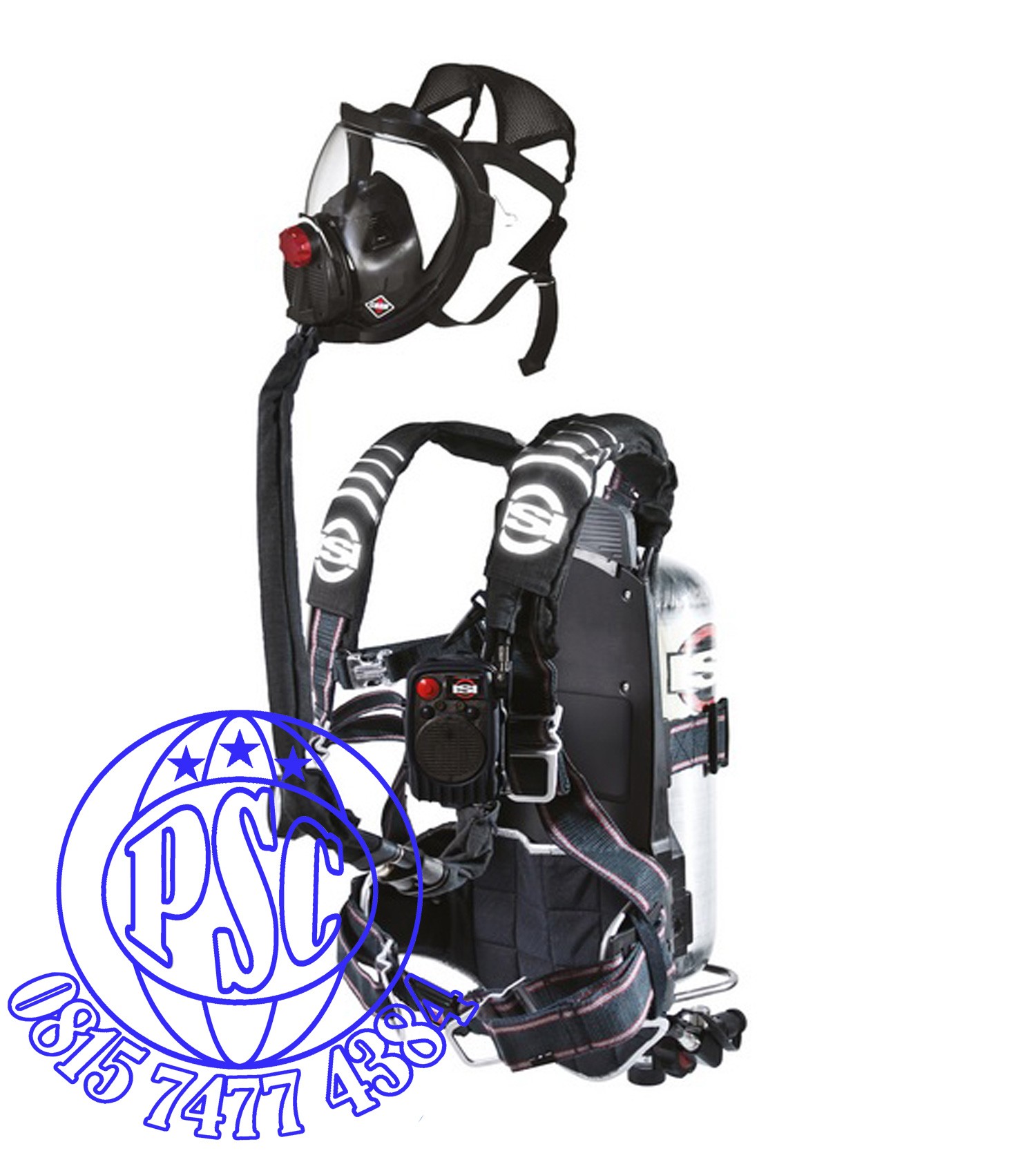

The Avon Protection ( Formerly ISI ) Viking Z Seven SCBA is designed specifically for fire service and heavy industrial use, with its flame-resistant straps, PASS ( Personal alert Safety System ) , and all other features that were required in the NFPA Standard, 1981, 2007 edition: including heads-up display and complete CBRN protection. The Viking Z Seven also includes integrated communications, with voice amplification as a standard feature, and the patented AirSwitch technology incorporated into the facemask.

Features & Benefits

10 year comprehensive electronics warranty

1 battery source for quick and easy maintenance

Extended pressure gauge hose with luminescent dial for easier reading

New robust face mask hanger

Larger cylinder connection hand wheel for easier Operation

Improved electronics software for increased battery life and reliability

Low Profile Facemask

Innovative, lightweight AirSwitch facemasks provide comfort and reduced user burden

Exceptional visibility delivered through optically correct double curve visor

Low profile AirSwitch regulator with one click-to-cylinder ambient air feature

Simple two-strap head harness with pull forward design for quick donning/ doffing

Better Communications

Integrated low profile Voice Amplification System ( VAS ) for reduced snag points

Engineered to balance breathing noise without impacting essential communications

Adjustable voice level selection automatically retained for future use

Nose-cup mounted Heads-Up Display with a built-in microphone for clearer communications

Lighter Weight Backframe

Luminescent shoulder straps provide extra user identification

Easy-to-pull waist-belt and loop style buckles for quicker donning/ doffing with gloved hands

Ultra-light, enclosed backframe designed to protect critical SCBA components with single C-Cell battery source

Universal harness assembly allows for multiple cylinder sizes and durations

Exceptional PASS Device and Data Logging

Two motion sensors eliminate false pre-alarms

PASS assembly housed inside sealed enclosure within the backframe

Single alarm PASS device is in accordance with the NFPA 1981 Standard 2007 Edition

Data logging for up to 2000 PASS on/ off and pre-alarm/ full alarm events

Wireless downloading of information by Guardian security device

Technical specs

Breathing Performance

103 Ipm with mask pressure above ambient

Environmental Range

The operating range down to -25 0 F

Materials Used

Harness

Kevlar Webbing with Stainless Steel hardware

Backplate

Glass filled Polyester

Cylinder Valve

Anodized Aluminum

Approvals

TC-13F-551CBRN : 2216 psi 30 min

TC-13F-552CBRN : 4500 psi 30 min

TC-13F-553CBRN : 4500 psi 45 min

TC-13F-554CBRN : 4500 psi 60 min
