CT3 Texture Analyzer Brookfield

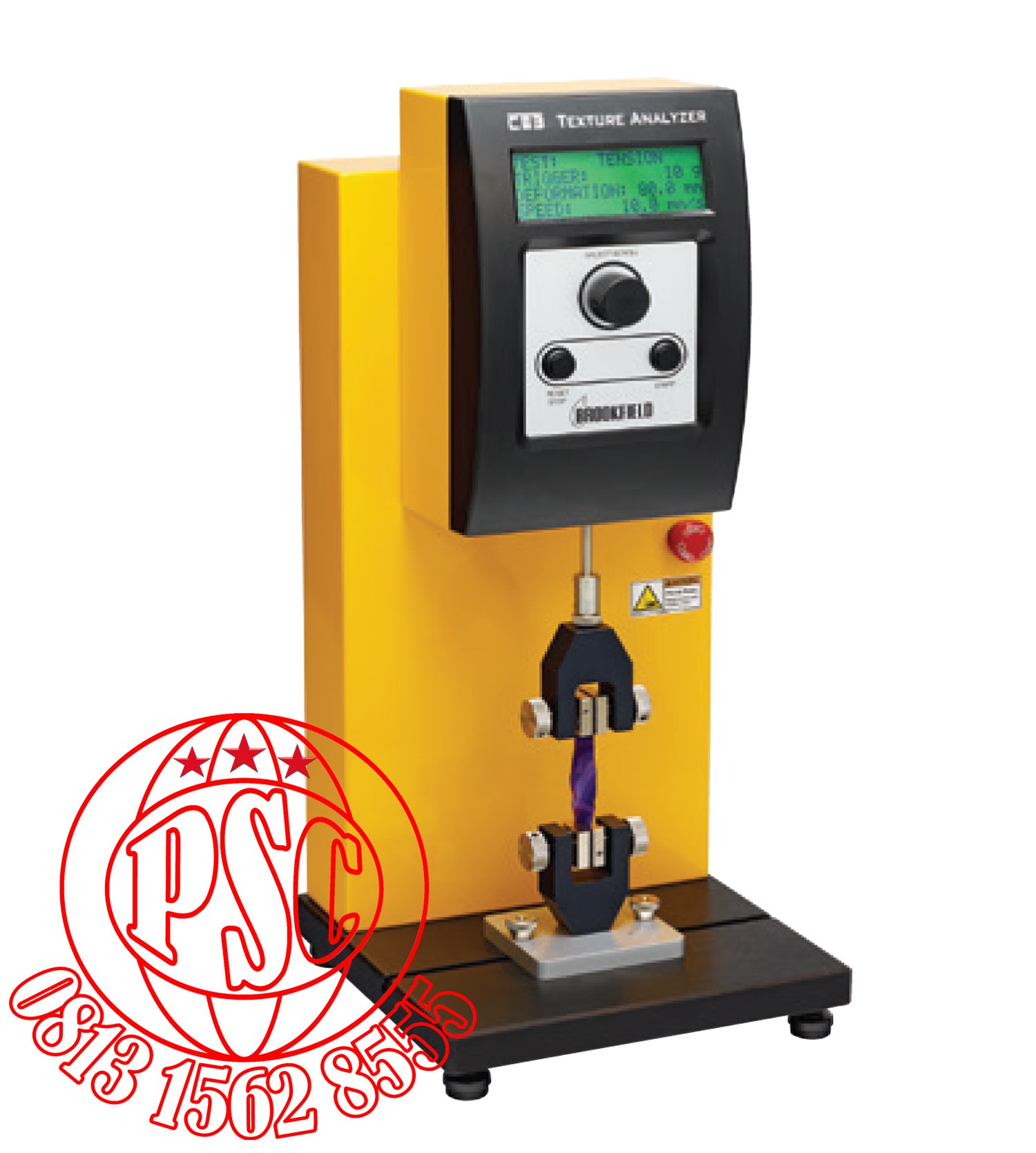

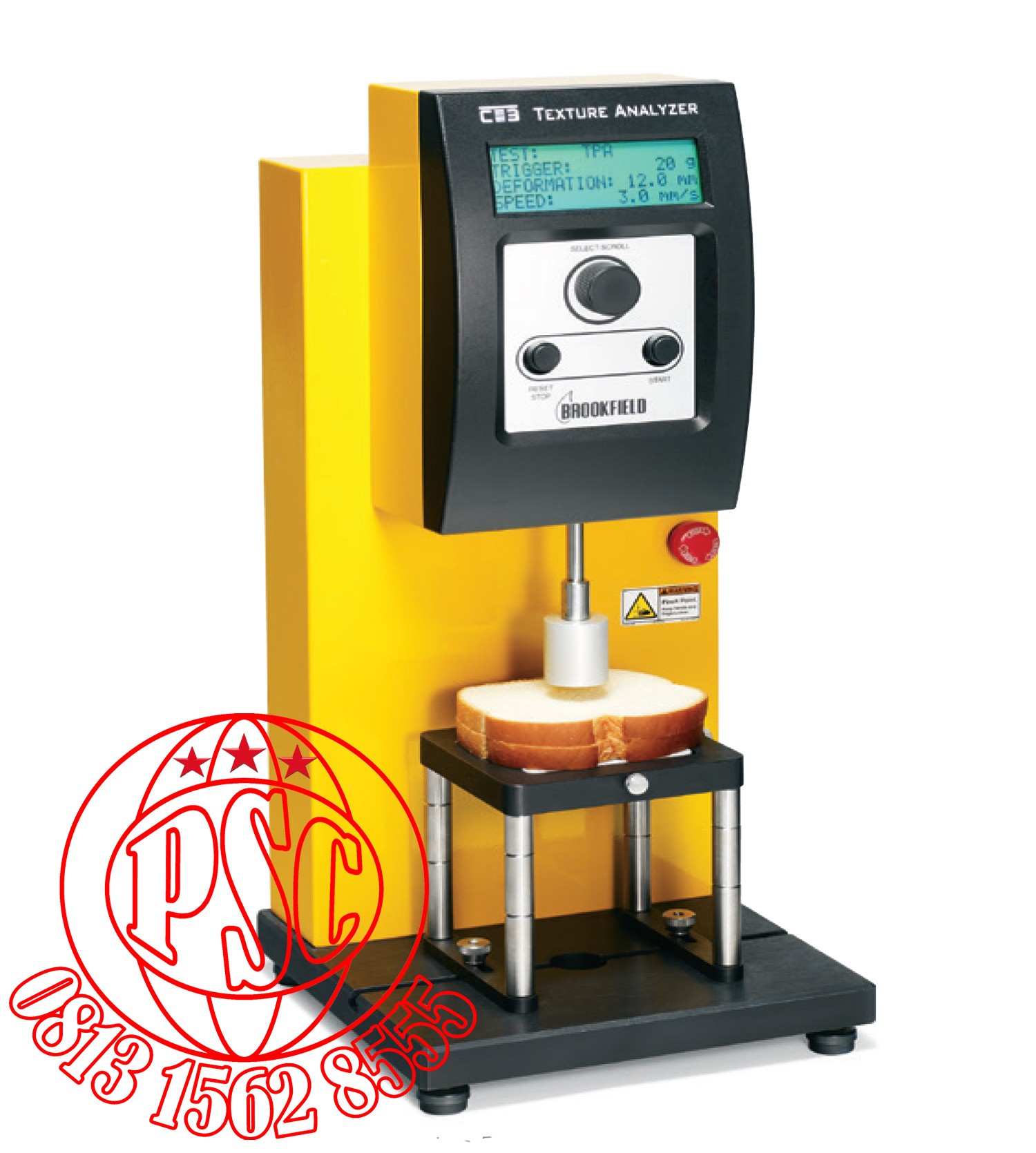

The Brookfield CT-3 Texture Analyzer is a powerful universal testing machine that offers both compression and tensile testing at a much lower price than other testers in its class.
The CT3 can calculate, through compression and tensile data, a number of physical properties that have proven to be highly correlated to human sensory evaluation of food and other consumer products. With six built-in test modes and ten memory slots for operator-protected tests with administrator rights, a wide choice of accessories and an optional software package, the CT-3 is perfect for most any physical testing requirements. The CT3 performs like a high end texture analyzer but at a fraction of the cost. Its uses can expand with your applications - or your testing imagination! The CT3's easy-to-operate design will have your R & D and QC up and running in no time.
Typical Applications
Food Applications
Biscuits	Adhesives
Bread	Asphalt
Butter	Candles
Cakes	Cosmetics
Candies	Creams
Cheese	Detergent
Chocolate	Foams
Confectionery	Grease
cookies	Gum
Crackers	Packaging
Gels/Gelatin	Personal Care
Margarines	Polymers
Meat Products	Rubber Sealants
Pet Foods	Silicone
Pudding	Soap
Sauces	Sponges
Snack Foods	Wax
Spreads
Starch
Surimi
Parameters Measured
Elasticity
Hardness
Cohesiveness
Burst Strength
Breaking Point
Fracturability
Gel Strength
Ripeness
Yield Point
Spreadability
Tackiness
Consistency
Relaxation
Pliability
Adhesiveness
Firmness
ANNUAL CALIBRATION SERVICE ( RECOMMENDED )
We recommend that this instrument be returned to Brookfield or an authorized dealer on an annual basis for our Calibration & Certification Service. Having this annual maintenance done will ensure the instrument's long life and optimal performance.
Specifications
MODEL	Load Range/Resolution*
CT3-100	0-100 g/0.01 g
CT3-1000	0-1000 g/0.10 g
CT3-1500	0-1500 g/0.20 g
CT3-4500	0-4500 g/0.50 g
CT3-10 kg	1-10000 g/1.0 g
CT3-25 kg	1-25000 g/2.0 g
CT3-50 kg	2-50000 g/5.0 g
