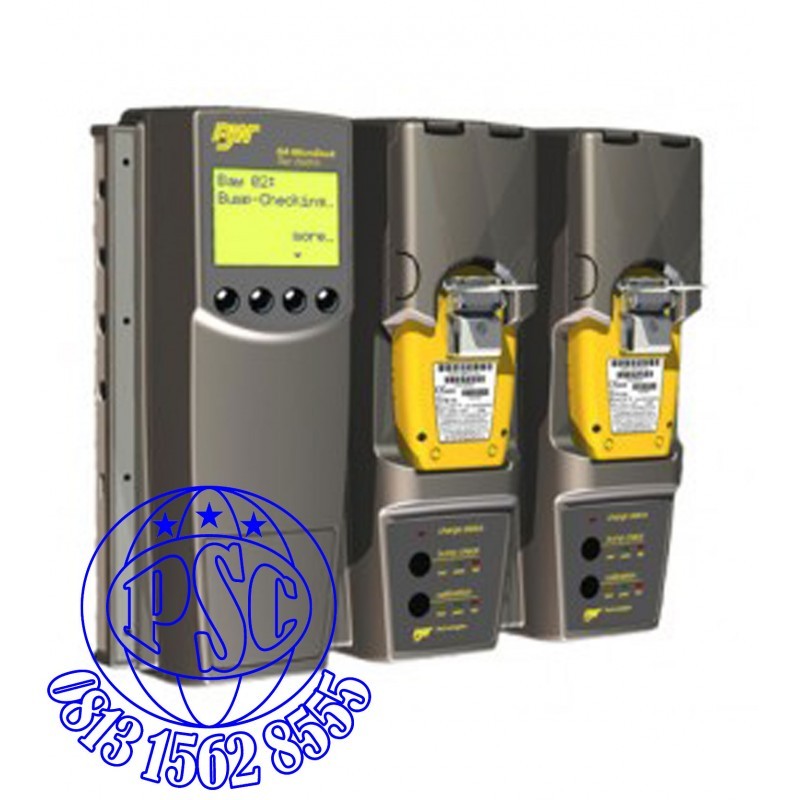

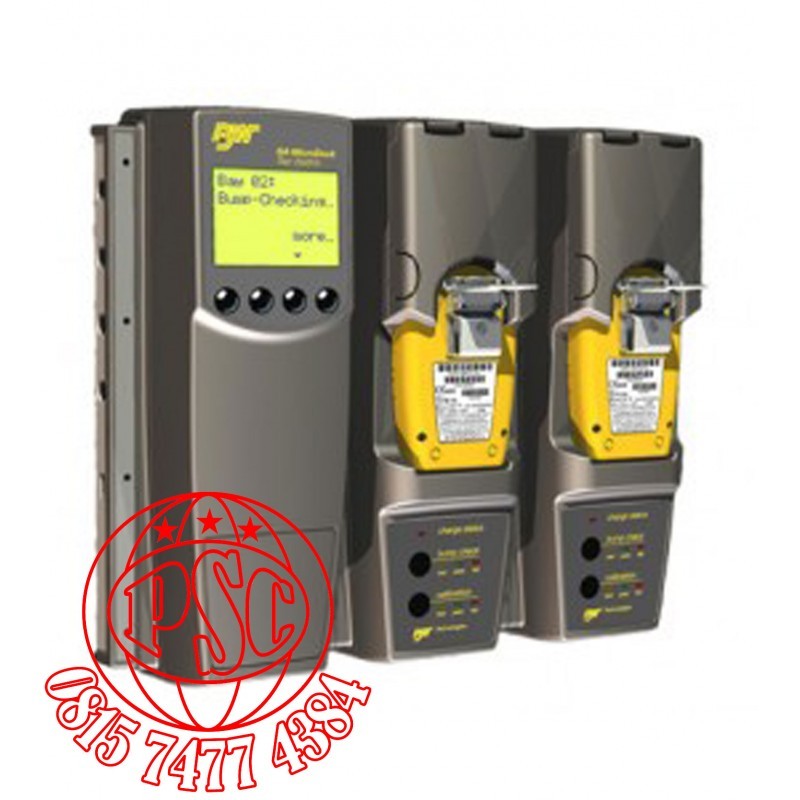

BW MicroDock2 Calibration and Docking Station

Specifications

Microcontroller

High performance microcontroller system

Power Supply

6V wall adapter or four C-cell batteries

Real-Time Clock

Provides time and date stamp for "last calibration" and "last bump" data

Data Storage

Automatic (instrument and base station) 64 MB MultiMediaCard data storage system

External Interface

USB 2.0 interface for PC ( USB 2.0 full speed )

Pump

DC motor, micro-diaphragm; 3.3V PCB mount

Flow Rate

Typically 300 mL/min

Calibration Gas Cylinder Inputs

2-gas inlets (standard) 5-gas inlets (maximum)

Automatic Tests

Functional bump, calibration, audible alarm, visual alarm

Configuration Recognition

Automatic ( instrument and sensor )

Detector Configuration

User-settable with Fleet Manager applications

Calibration Gas Connections

Built-in ( base station ) 1/8" SMC connect sub-miniature coupling

Solenoid

Built-in ( docking modules )

LED Indicators

Yellow - TEST ( on each docking module )

Green - PASS

Red - FAIL

LCD

4 line x 16 characters, wide viewing angle, user-selectable backlighting

Physical Size

8.3 x 10.4 x 3.2 in. / 21.2 x 26.3 x 8.2 cm ( base station plus one docking module )

Enclosure

Impact- resistant PC/ABS ( polycarbonate )

Command Keys

base Station

Menu navigation

Docking Modules

One touch Bump-test initiation

One touch Calibration initiation

Communications Method

Infrared communication between docking module and detector

Order Information

BW DOCK2-3-1C1K-00-G

base Station with GasalertMicro 5 Series Module, 1 Fresh Air and 2 Gas Inlets, Charging with Power Supply

BW DOCK2-0-1G-00-G

GasalertClip Extreme Carbon Monoxide ( CO ) Docking Module

BW DOCK2-0-1M-00-G

GasalertMax XT II and GasalertMax XT Docking Module, Charging With No Power Supply

BW DOCK2-0-1N-00-G

GasalertQuattro Docking Module, Charging With No Power Supply

BW DOCK2-0-1P-00-G

GasalertMicroClip Docking Module, Charging with No Power Supply

BW DOCK2-2-00-G

base Station with 1 Fresh Air and 1 Gas Inlet, Without Power Supply

BW DOCK2-2-1C1K-00-G

base Station with GasalertMicro 5 Series Module, 1 Fresh Air and 1 Gas Inlet, Charging with Power Supply

BW DOCK2-2-1C1M-00-G

base Station with GasalertMax XT II and GasalertMax XT Module, Charging with Power Supply

BW DOCK2-2-1C1N-00-G

base Station with GasalertQuattro Module, Charging with Power Supply

BW DOCK2-2-1C1P-00-G

base Station with GasalertMicroClip Docking Module, Charging with Power Supply

BW DOCK2-2-1D-00-G

base Station with Gasalert Extreme Module

BW DOCK2-2-1E-00-G

base Station with GasalertClip Extreme Hydrogen Sulfide ( H₂S ) Module

BW DOCK2-2-1F-00-G

base Station with GasalertClip Extreme Sulfur Dioxide ( SO₂ ) Module

BW DOCK2-2-1G-00-G

base Station with GasalertClip Extreme Carbon Monoxide ( CO ) Module

BW DOCK2-2-1H-00-G

base Station with GasalertClip Extreme Oxygen ( O₂ ) Module

BW DOCK2-2-1J-00-G

base Station with GasalertMicro 5 Series Module with 1 Fresh Air and 1 Gas inlet, Non-Charging

BW DOCK2-2-1M-00-G

base Station with GasalertMax XT II and GasalertMax XT Module, Charging with No Power Supply

BW DOCK2-2-1N-00-G

base Station with GasalertQuattro Module, Charging with No Power Supply

BW DOCK2-2-1P-00-G

base Station with GasalertMicroClip Docking Module, Charging with No Power Supply

BW DOCK2-3-00-G

base Station with 1 Fresh Air and 2 Gas Inlets, Without Power Supply

BW DOCK2-4-00-G

base Station with 1 Fresh Air and 3 Gas Inlets, Without Power Supply

BW DOCK2-5-00-G

base Station with 1 Fresh Air and 4 Gas Inlets, Without Power Supply
