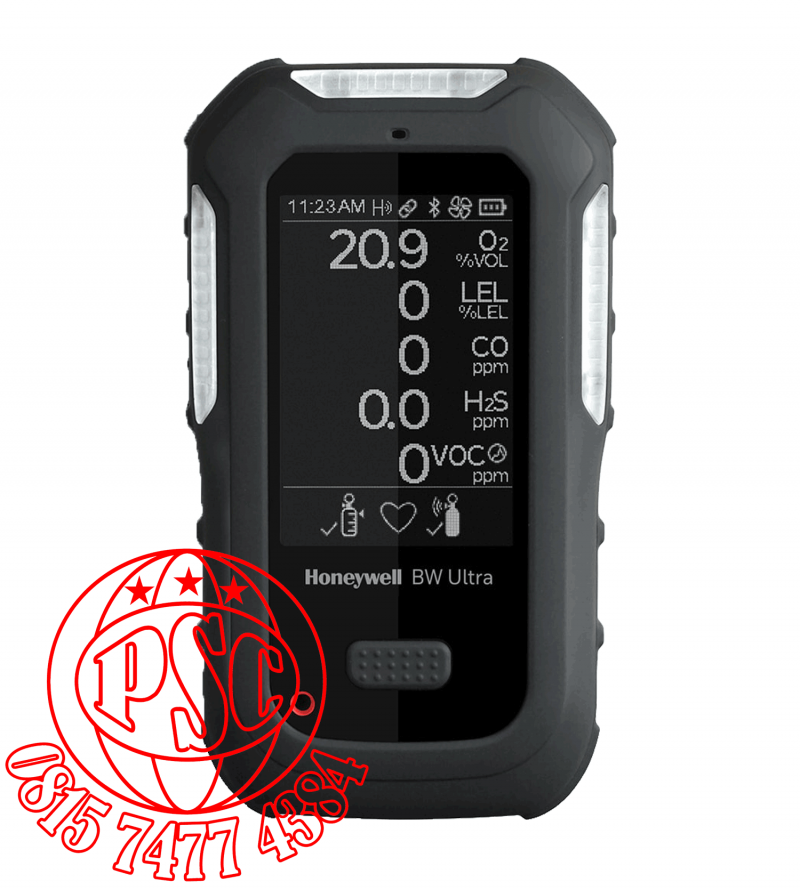

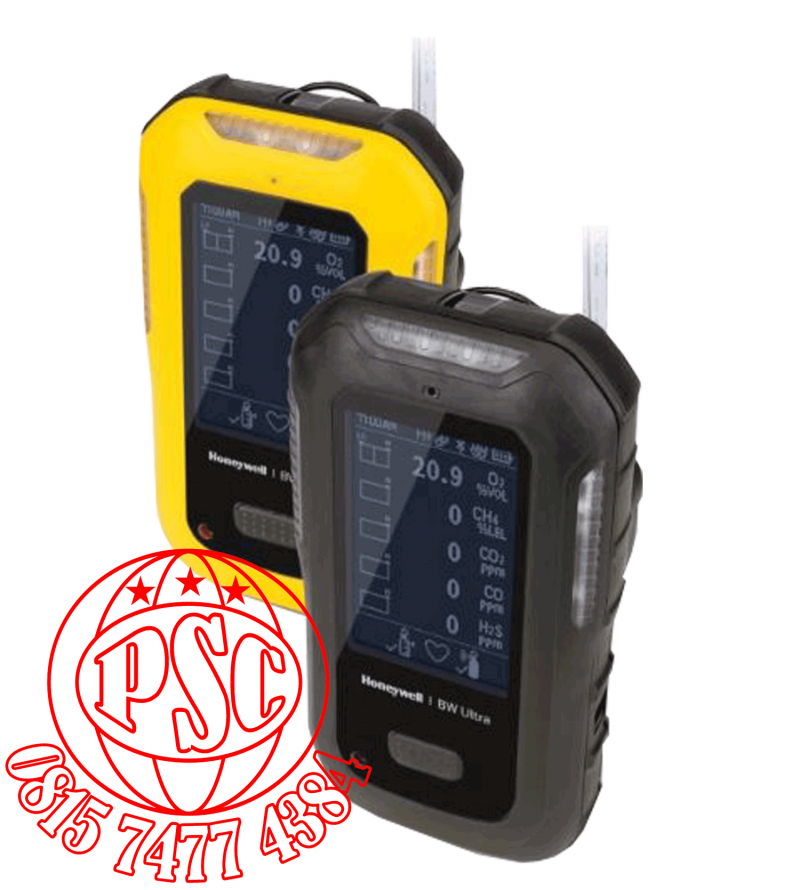

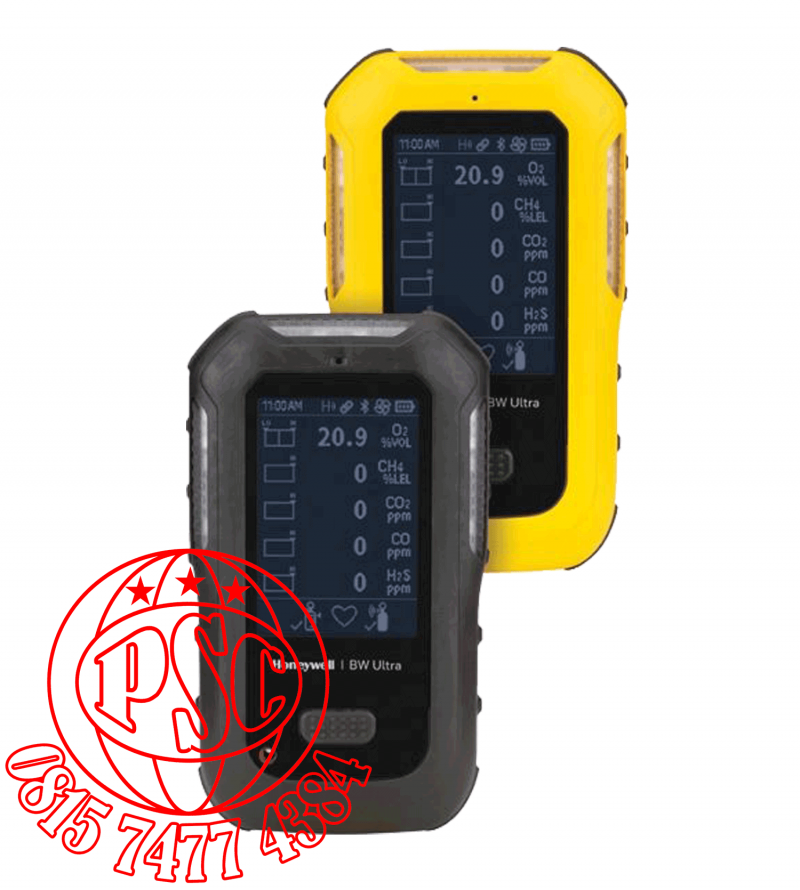

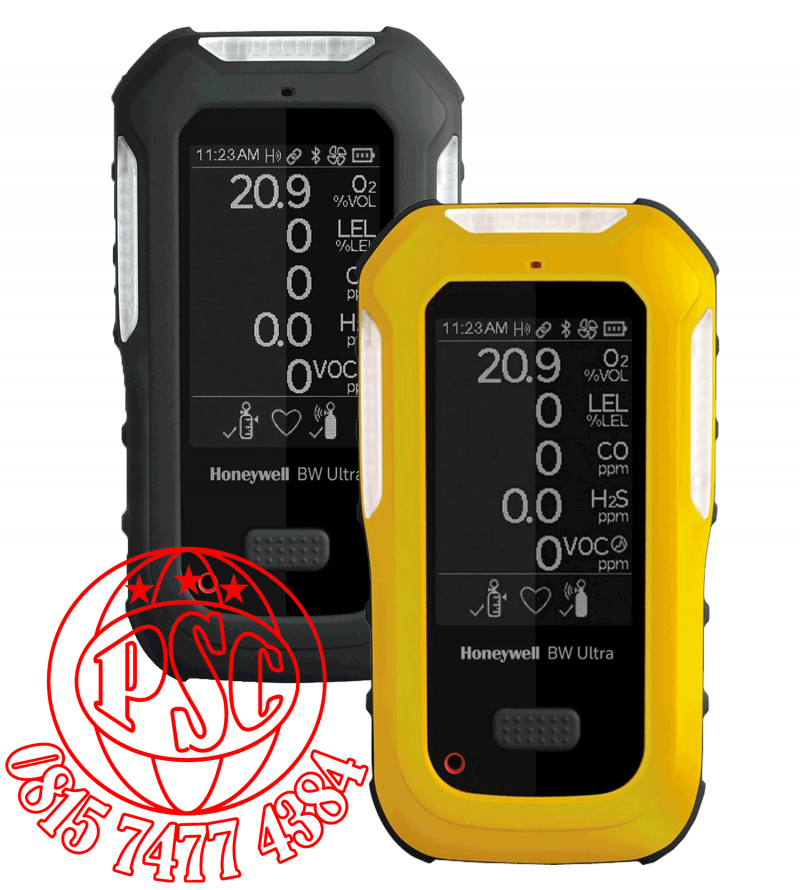

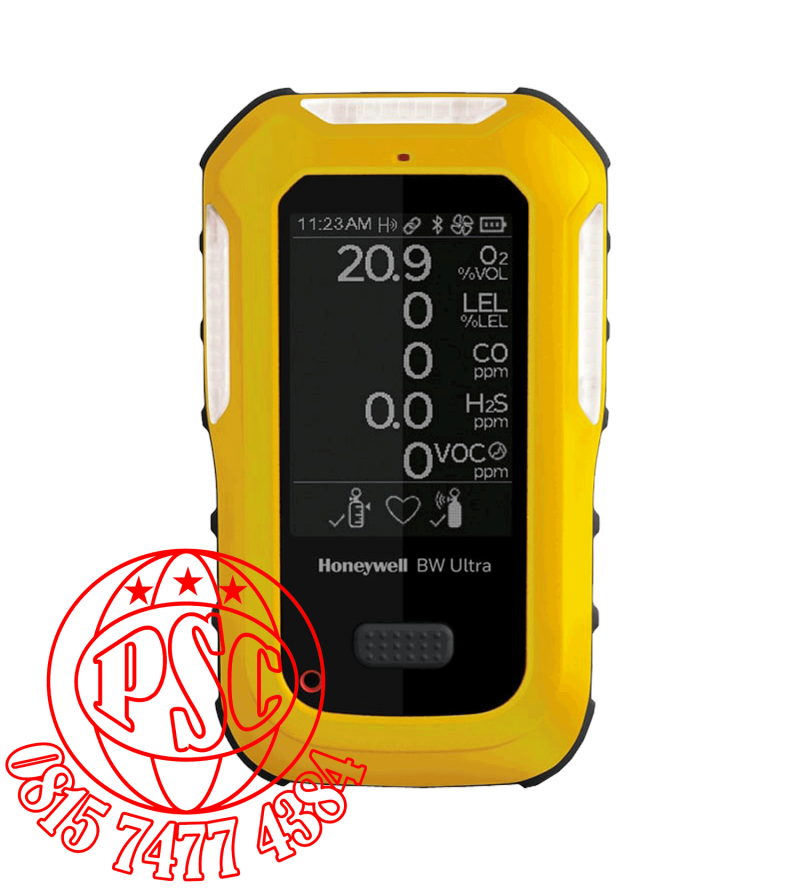

Honeywell BW Ultra Multi-Gas Detector

Specifications

Size

5.8 x 3.3 x 1.6 in. / 14.8 x 8.5 x 4.0 cm

Weight

14.5 oz. / 411 g ( with clip )

Operating Temperature

-4 to 131 °F ( -20 to 50 °C )

Humidity

5 - 95 % RH ( non-condensing ) continuous

Ingress Protection

IP66/68

Alarms and Type

Visual, vibrating, audible ( 95 dB ); Low, High, TWA, STEL, OL ( over limit )

Self Test

Activated detectors automatically perform one internal diagnostic test every 24 hours ( sensors, battery, and circuitry )

Typical Battery Life

18 hours ( 14 hours with PID or IR sensor ) @ -4 °F / -20 °C

Pump Draw

Sample from up to 75 ft. / 22.9 m

Event Logging

30 alarm events and 10 bump events

Data Logging

45 days based on 8 hour shifts every 15 seconds logging

Order Information

Honeywell BW Ultra Multi-Gas Detector, O₂, LEL, H₂S, CO & VOCs

Model : HU-X1W1H1M1Q1-Y-N

Portable multigas detector designed for sampling and monitoring confined spaces, before and after entry. Features the 1-Series sensor for fast response, reliable performance, and long life even in most extreme environment. That means high accuracy and lower costs. This model includes 5 sensors : O₂, LEL filtered, H₂S, CO and PID for VOCs.

Honeywell BW Ultra Multi-Gas Detector, O₂, LEL, H₂S, CO & IR

Model : HU-X1W1H1M1B1-Y-N

Portable multigas detector designed for sampling and monitoring in confined spaces, before and after entry. Features the 1-Series sensor for fast response, reliable performance, and long life even in the most extreme environments. That means high accuracy and lower costs. This model includes 5 sensors : O₂, LEL filtered, H₂S, CO and IR ( infrared ).

Honeywell BW Ultra Multi-Gas Detector, O₂, LEL, H₂S, CO & SO₂

Model: HU-X1W1H1M1S1-Y-N

Portable multigas detector designed for sampling and monitoring in confined spaces, before and after entry. Features a 1-Series sensor for fast response, reliable performance, and long life even in the most extreme environments. That means high accuracy and lower costs. This model includes 5 sensors : O₂, LEL filtered, H₂S, CO and SO₂.

Honeywell BW Ultra Multi-Gas Detector, O₂, LEL, H₂S, CO & NH₃

Model : HU-X1W1H1M1A1-Y-N

Portable multigas detector designed for sampling and monitoring confined spaces, before and after entry. Features the 1-Series sensor for fast response, reliable performance, and long life even in most extreme environments. That means high accuracy and lower costs. This model includes 5 sensors : O₂, LEL filtered, H₂S, CO and NH₃.

Honeywell BW Ultra Multi-Gas Detector, O₂, LEL, H₂S, CO & Cl₂

Model : HU-X1W1H1M1C1-Y-N

Portable multigas detector designed for sampling and monitoring confined spaces, before and after entry. Features the 1-Series sensor for fast response, reliable performance, and long life even in most extreme environments. That means high accuracy and lower costs. This model includes 5 sensors : O₂, LEL filtered, H₂S, CO and Cl₂.

Honeywell BW Ultra Multi-Gas Detector, O₂, LEL, H₂S & CO

Model : HU-X1W1H1M100-Y-N

Portable multigas detector designed for sampling and monitoring confined spaces, before and after entry. Features the 1-Series sensor for fast response, reliable performance, and long life even in most extreme environments. That means high accuracy and lower costs. This model includes 4 sensors : O₂, LEL filtered, H₂S and CO.

Honeywell BW Ultra Multi-Gas Detector, O₂, LEL, H₂S, CO, IR for %LEL & % vol

Model : HU-X1W1H1M1W4-Y-N

Portable multigas detector designed for sampling and monitoring confined spaces, before and after entry. Features the 1-Series sensor for fast response, reliable performance, and long life even in most extreme environments. That means high accuracy and lower costs. This model includes 5 sensors : O₂, LEL filtered, H₂S, CO and IR for %LEL & % vol. ( combustibles ).

Honeywell BW Ultra Multi-Gas Detector, O₂, LEL, H₂S, CO & H₂

Model : HU-X1W1H1M1R1-Y-N

Portable multigas detector designed for sampling and monitoring confined spaces, before and after entry. Features the 1-Series sensor for fast response, reliable performance, and long life even in most extreme environments. That means high accuracy and lower costs. This model includes 5 sensors : O₂, LEL filtered, H₂S, CO & H₂.

Honeywell BW Ultra Multi-Gas Detector, O₂, LEL, H₂S, CO & NO₂

Model : HU-X1W1H1M1D1-Y-N

Portable multigas detector designed for sampling and monitoring confined spaces, before and after entry. Features the 1-Series sensor for fast response, reliable performance, and long life even in most extreme environments. That means high accuracy and lower costs. This model includes 5 sensors : O₂, LEL filtered, H₂S, CO and NO₂.

Honeywell BW Ultra Multi-Gas Detector, O₂, LEL, H₂S, CO & HCN

Model : HU-X1W1H1M1Z1-Y-N

Portable multigas detector designed for sampling and monitoring confined spaces, before and after entry. Features the 1-Series sensor for fast response, reliable performance, and long life even in most extreme environments. That means high accuracy and lower costs. This model includes 5 sensors : O₂, %LEL filtered, H₂S, CO and HCN.
