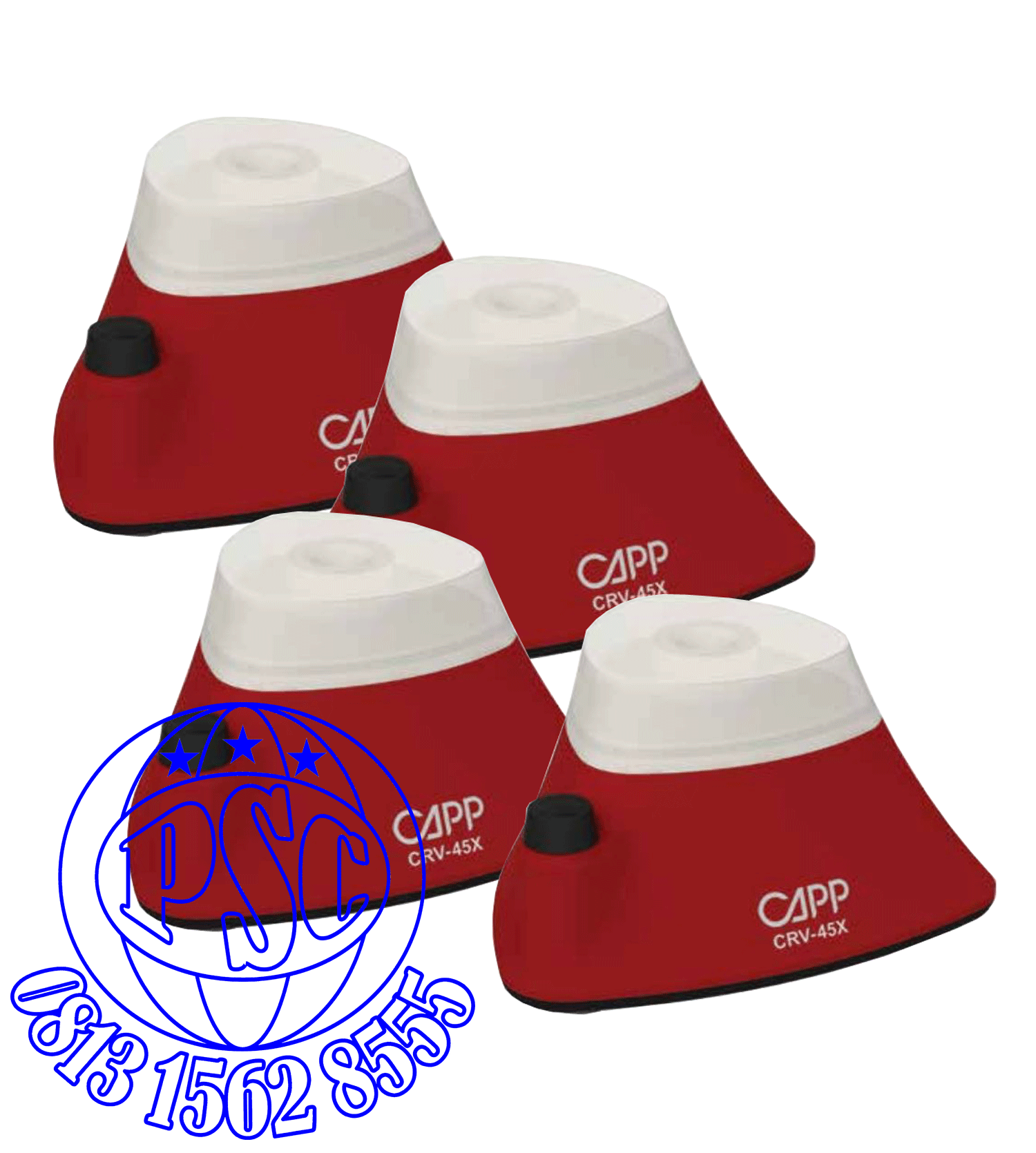

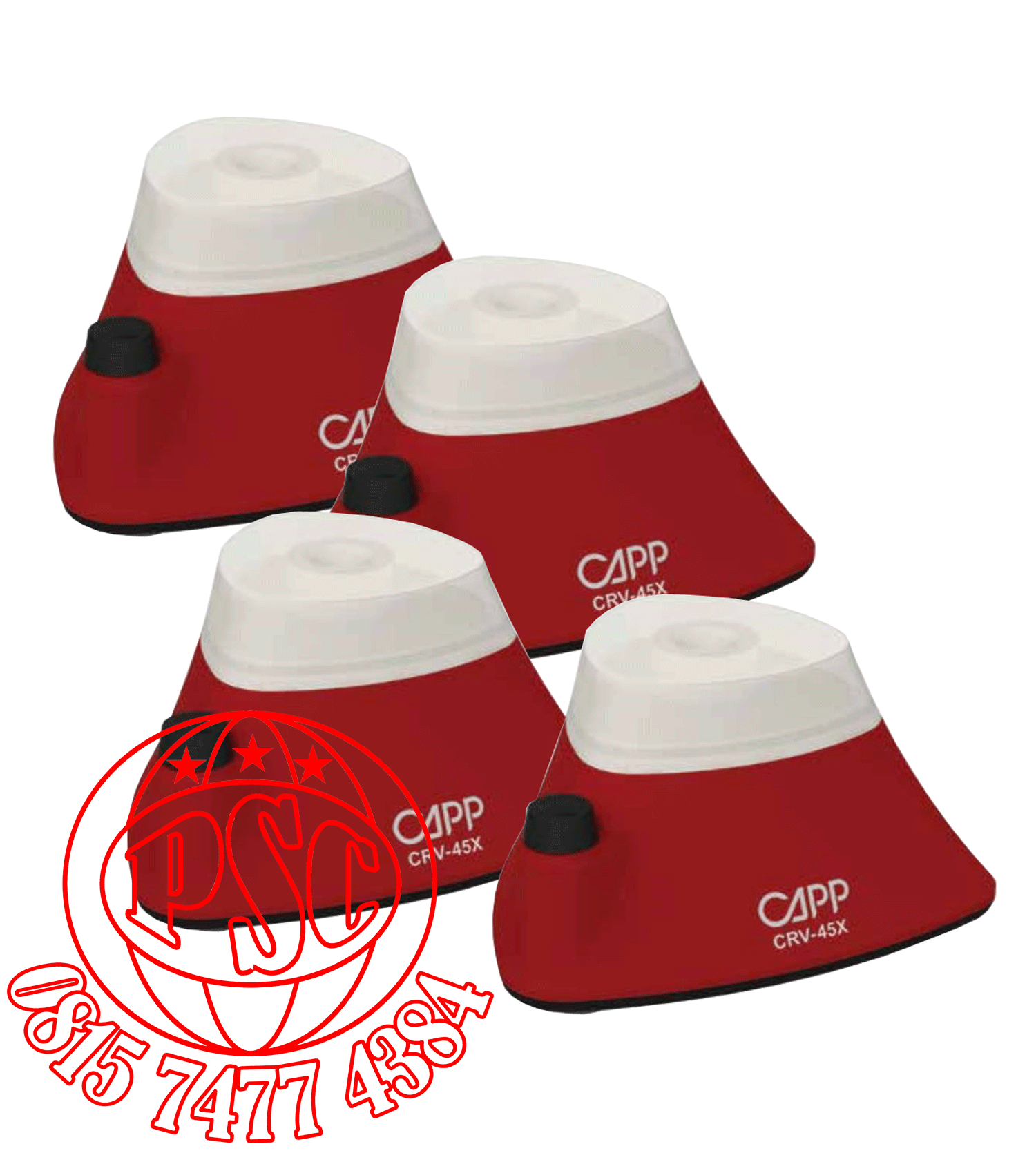

CappRondo Vortexer

Specifications

Technical Data

Motion

Orbital

Speed Range ( RPM )

0 - 4,500

Orbital Diameter

4 .5 mm

Operating Mode

Touch

Max tube diameter

30 mm

Power Supply

Universal ( 90 to 230V, 50 / 60 Hz.)

Motor

Brush-less DC motor

Max. Load Capacity

500 gm

Permissible ambient temperature

5 - 40 °C

Permissible relative moisture

80 %

General Data

Material

Body

PC ABS

Platform

Die Cast

Dimension ( W × D × H )

100 × 100 × 67 mm

Net Weight ( kg / lbs )

0.55 / 1.21

Power Consumption

15 W

Protection Class ( DIN EN 60529 )

IP 43
