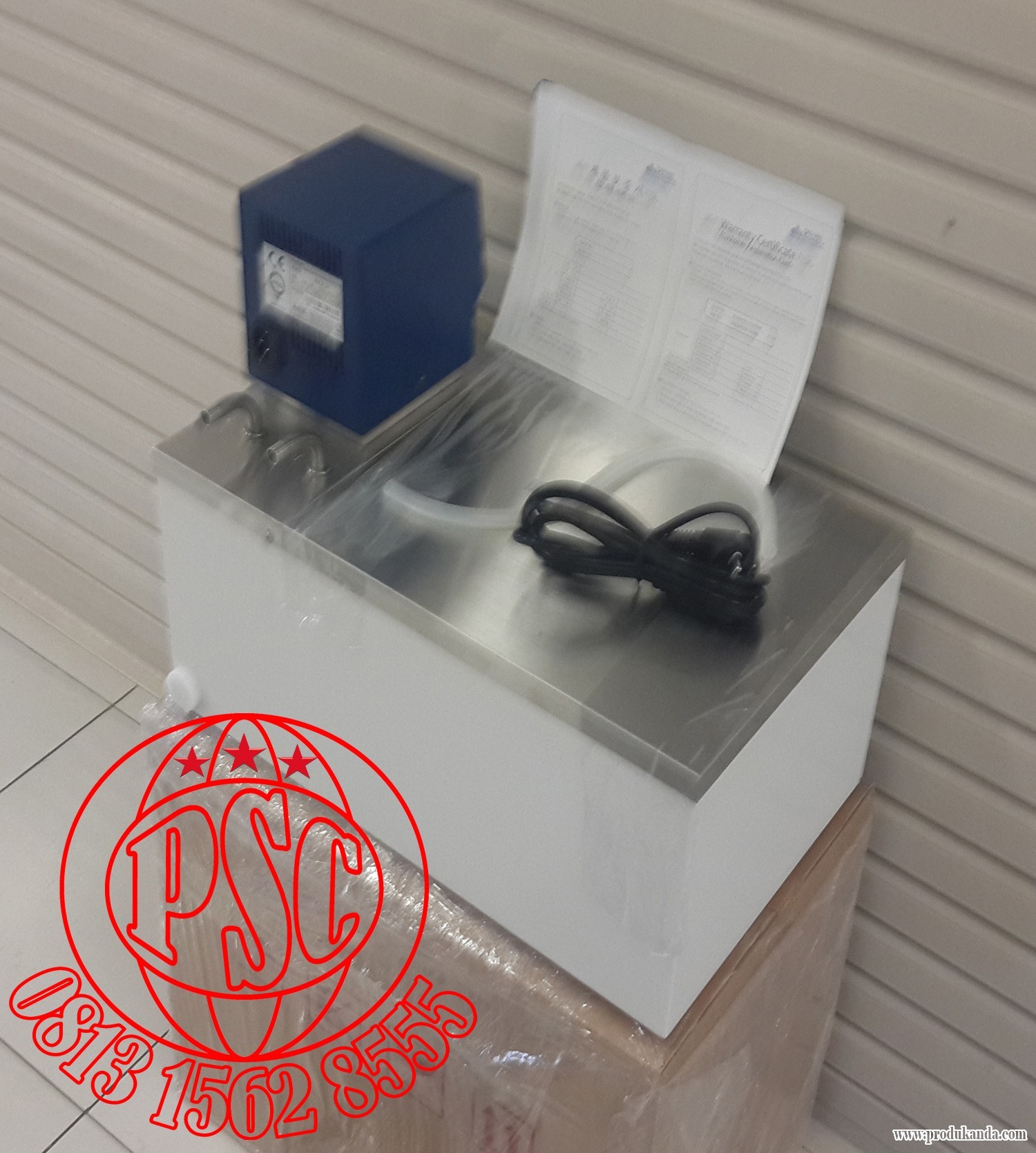

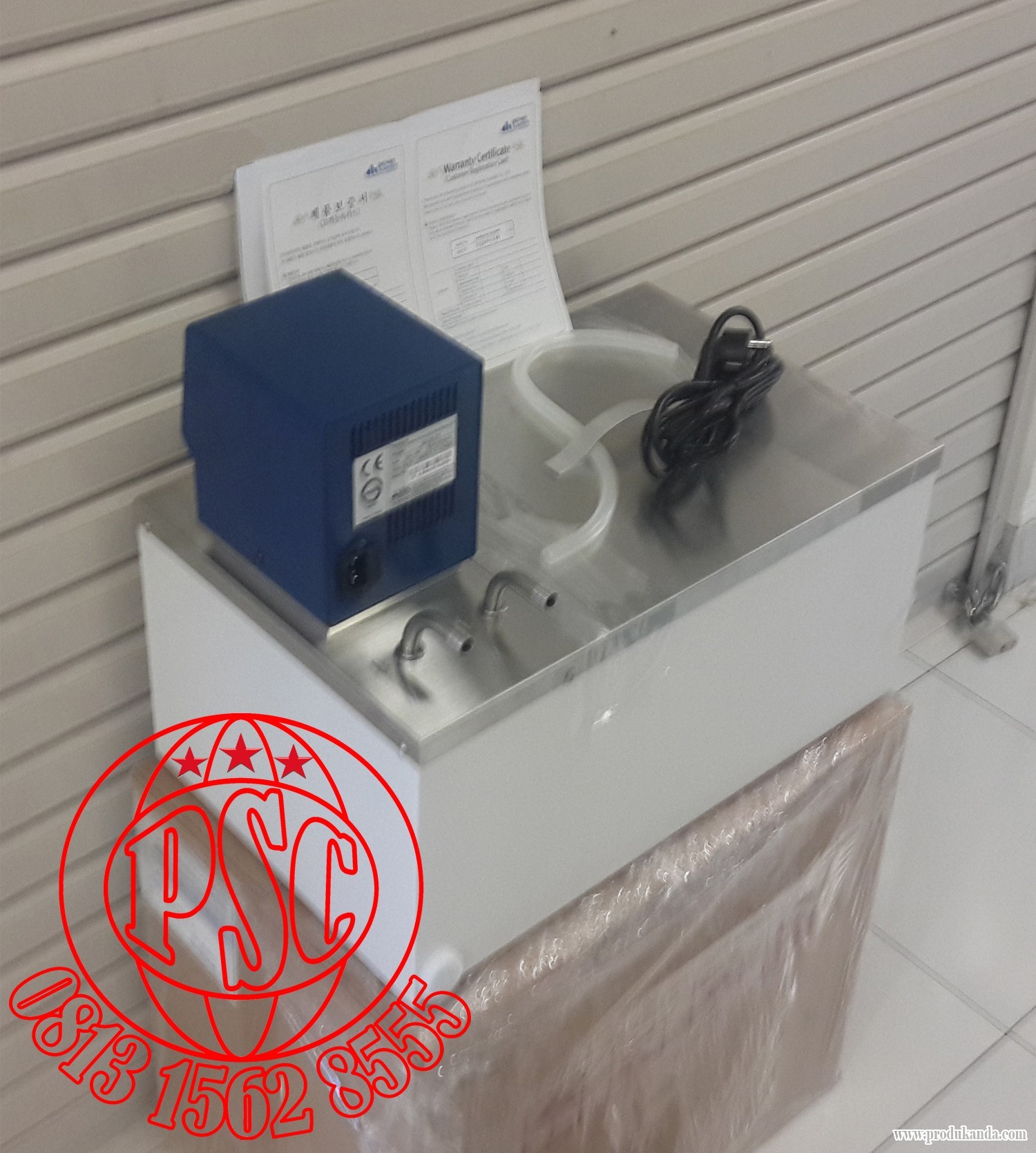

Circulation Water Bath WCB-6,WCB-11,WCB-22 Daihan Scientific

Specifications

Capacity & Models

6 Lit.

11 Lit.

22 Lit.

“WCB- 6”

“WCB- 11”

“WCB- 22”

Temp. Range & Accuracy Ambient

＋5 ℃~ 100 ℃, ± 0.1 ℃

Temp. Resolution

 0.1 ℃-Display, 0.1 ℃-Control

Temp. Uniformity & Probe

 ±0.2 ℃, PT100

Heating Power

800 W

1 kW

2 Kw

Pump

5 Lit. / min ( Internal / External )

Circulation Nozzle

 i.d. 7 × o.d. 11 mm ( i.d. 9 / o.d. 12 mm silicon tube connected for inner circulation )

Timer & Alarm

99 hr 59 min ( Delay & Continuous run ), Error status & Timer-end

Display

Digital LCD with Back-Light Function

Controller

Digital Fuzzy Controller with Jog - Shuttle Switch ( Turn＋Push )

Safety Circuit

Over-Temp./-Current protection, Sensor Error & Low Level Detection

Material

Stainless steel (＃304 )-Internal, Powder Coated steel-External

Lid

included Stainless steel Flat Lid, Optional Dome Lid

Drain Valve

None

Mounted ( Φ9.5~11 mm )

Dimension

Effective Space

120 × 155 × h 150 mm

170 × 240 × h 150 mm

372 × 295 × h 150 mm

( W × D × H )

Internal

300 × 155 × h 150 mm

302 × 240 × h 150 mm

500 × 295 × h 150 mm

External

330 × 185 × h 385 mm

335 × 275 × h 385 mm

540 × 335 × h 410 mm

Packing Size & Gross Weight

350 × 210 × h 410 mm, 11 kg

360 × 300 × h 420 mm, 13 kg

580 × 380 × h 470 mm, 18 kg

Power Supply

1 Phase, AC 120 V, 60 Hz or  AC 230 V, 50 / 60 Hz
