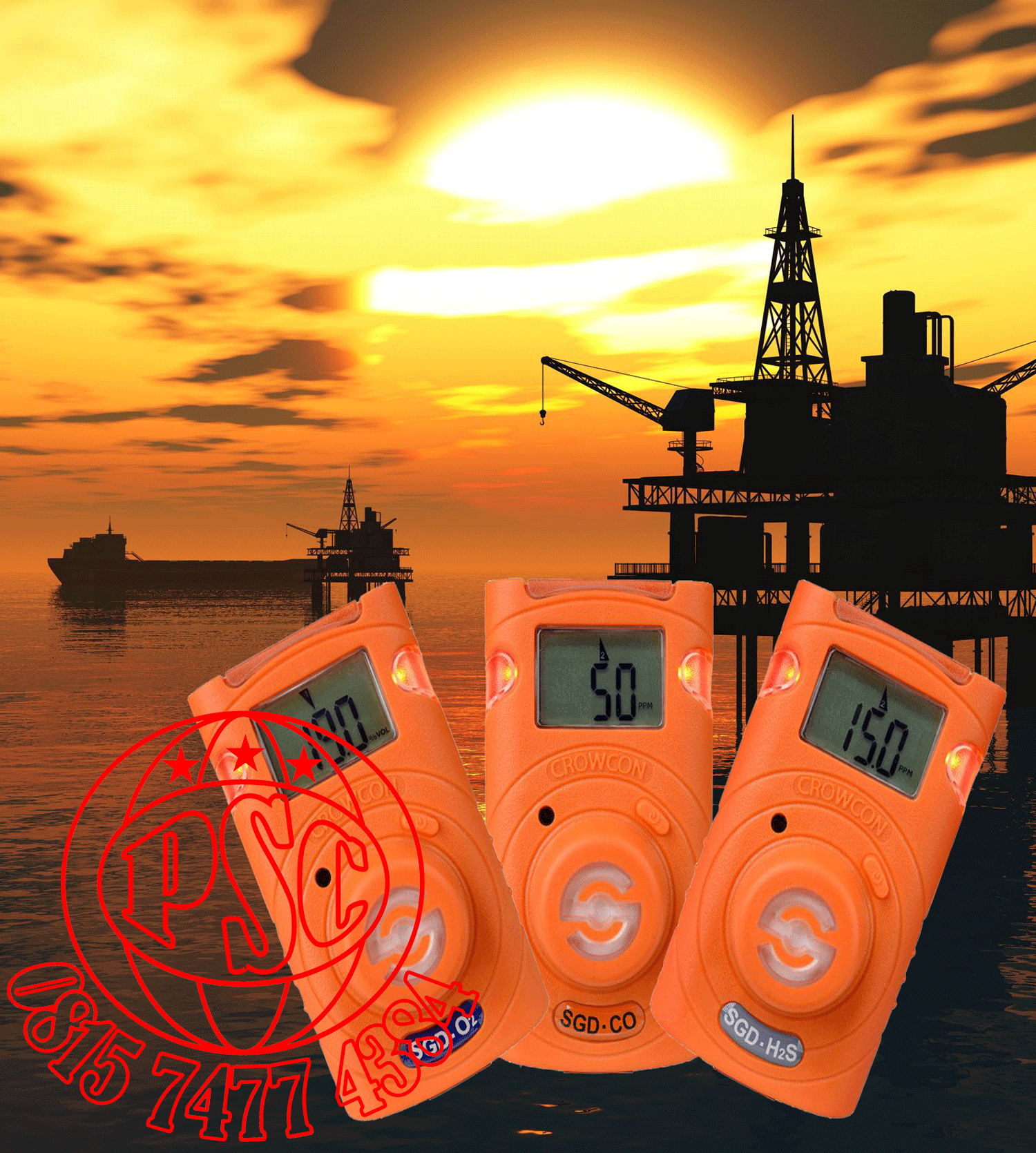

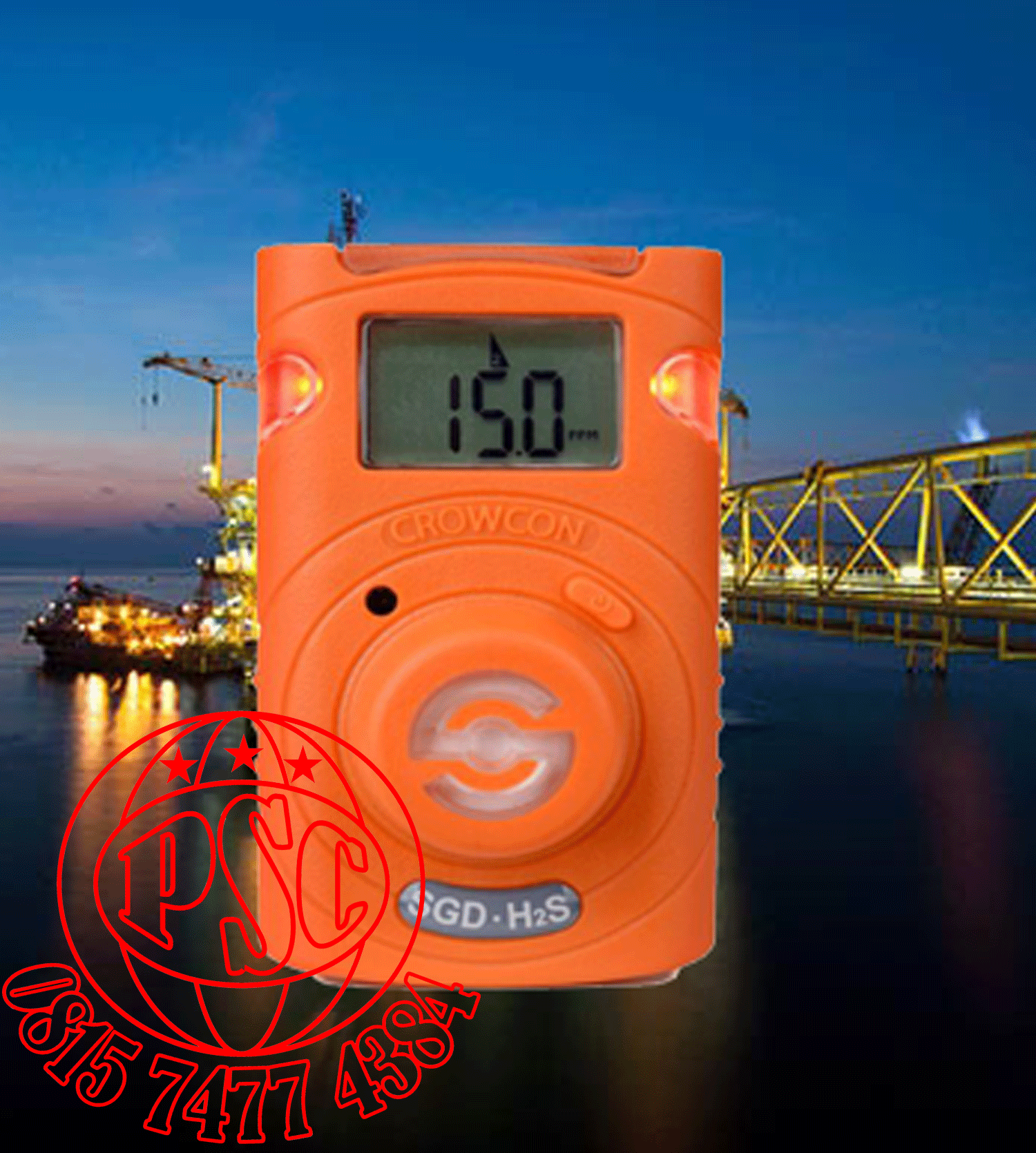

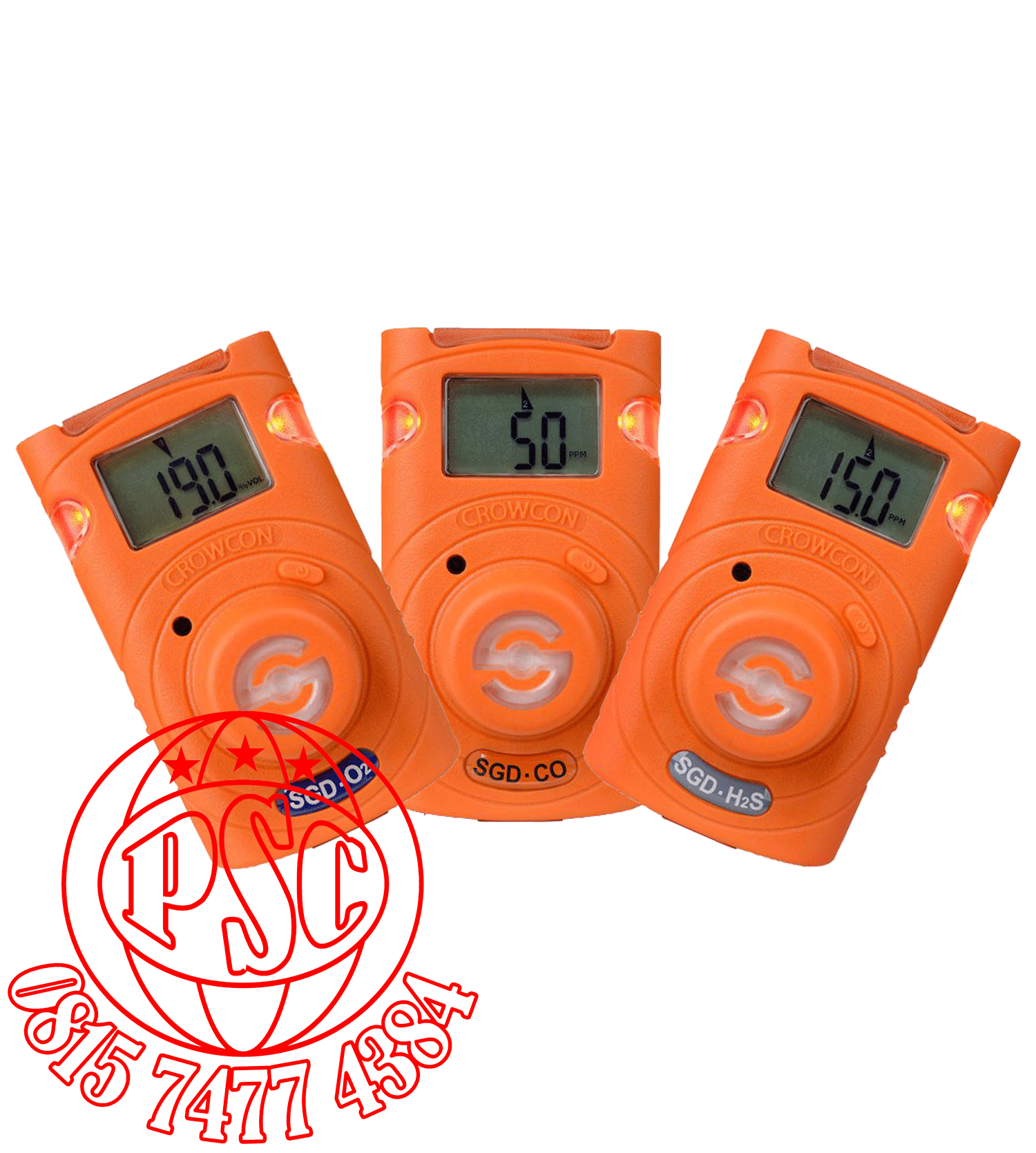

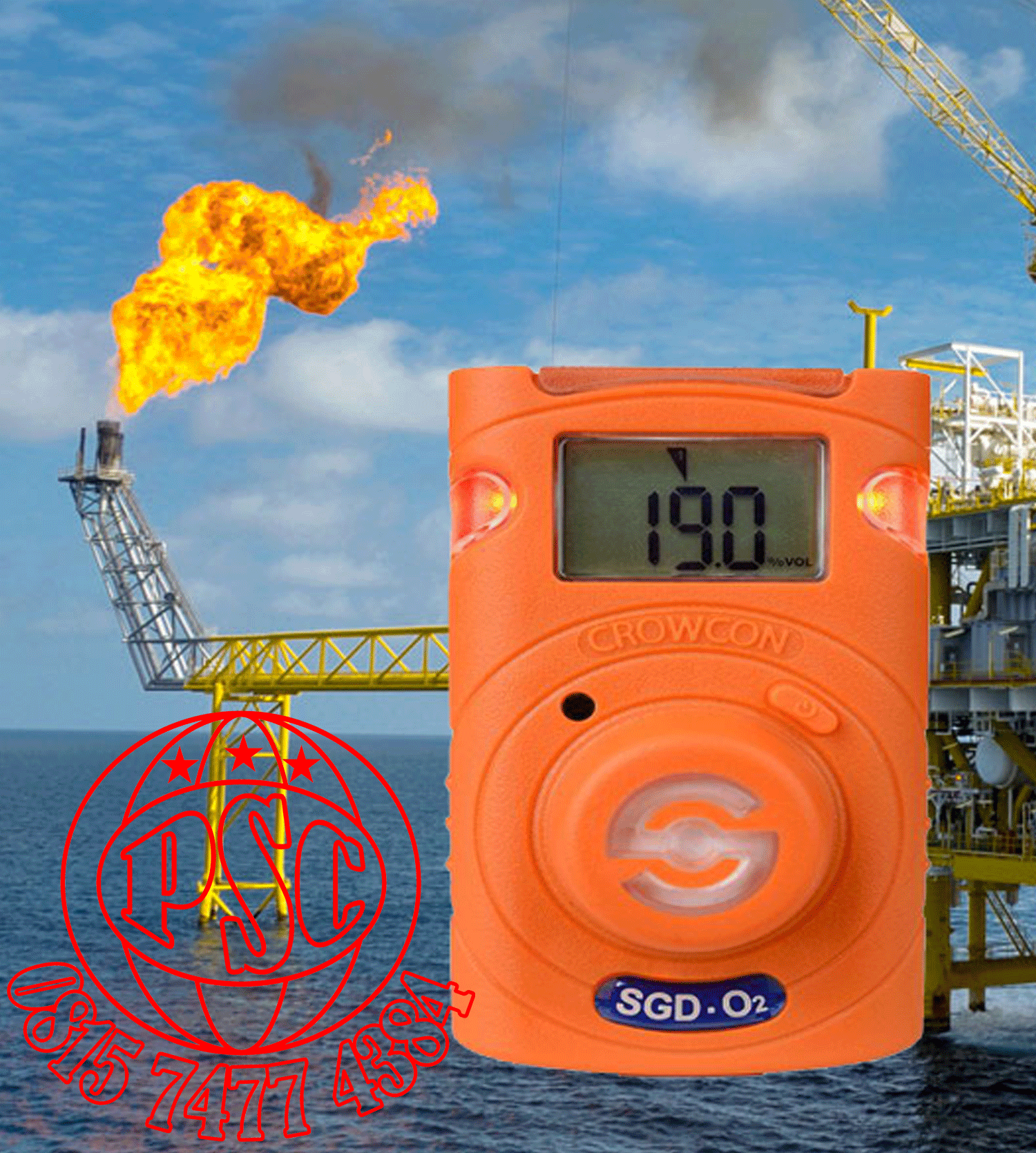

Clip SGD Single Gas Detector Crowcon

Specifications

Size

91 x 54 x 32 mm ( 3.6 x 2.1 x 1.3 ins )

Weight

93 g ( 2.7 oz ) toxic, 104 g ( 3.7 oz ) O2

Alarms

Top, front and side visual LEDs

90 dB audible alert at 10cm

Vibrate

Temperature

H2S -40 °C to + 50 °C ( -40 °F to +122 °F )

CO  -40 °C to + 50 °C ( -40 °F to +122 °F )

O2  -35 °C to + 50 °C ( -31 °F to +122 °F )

Humidity

5 % to 95 % non-condensing RH

Event logging

Most recent 30 events

Ingress protection

IP66 and IP67

Tests

Self test on activation and every 20 hrs : continuous automatic battery integrity tests

Operational life

2 years > 2900 alarm minutes*

Shelf life

6-month shelf life prior to activation

Shown on box label

Compliance

EMC Directive 2004/108/EC, FCC and IECES

Certification

UL-913 & CSA-C22.2 No.157

Class 1 Div 1 & 2, Groups A, B, C and D

ATEX II 1G Ex ia IIC T4 Ga

IECEx Ex ia IIC T4

Warranty

2 years from activation*

Sensor range

H2S  0 - 100 ppm

CO    0 - 300 ppm

O2    0 - 30 % vol.

Communication accessory

* 4 alarm minutes per day

Gases and Ranges

Gas

Part number

Alarm 1

Alarm 2

H2S

CL-H-2

2 ppm

5 ppm

H2S

CL-H-5

5 ppm

10 ppm

H2S

CLH-10

10 ppm

15 ppm

CO

CL-C-25

25 ppm

50 ppm

CO

CL-C-30

30 ppm

100 ppm

CO

CL-C-35

35 ppm

50 ppm

O2

CL-O-19

19 % vol.

23.5 % vol.

O2

CL-O-19.5

19.5 % vol.

23.5 % vol.
