COD Meter & Multiparameter Hanna Instruments
General Meter
Wavelength Accuracy	±1 nm
Light Source	5 LEDs with 420 nm, 466 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters
Spectral bandwidth	8 nm
Input Channels	1 pH electrode input and 5 photometer wavelengths
pH ElectrodeD	Digital pH electrode (not included)
Logging Type	Log on demand with user name and sample ID optional input
Logging Memory	1000 readings
Connectivity	USB-A host for flash drive; micro-USB-B for power and computer connectivity
GLP	Calibration data for connected pH electrode
Display	128 x 64 pixel LCD with backlight
Battery Type / Life	3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement
Power Supply	5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable ( included )
Environment	0 to 50.0 oC ( 32 to 122.0 oF ); 0 to 95 % RH, non-condensing
Dimensions	206 x 177 x 97 mm ( 8.1 x 7.0 x 3.8" )
Weight	1.0 kg ( 2.2 lbs.)
Photometer/Colorimeter Light Detector	Silicon photodetector
Cuvette Type	Round, 24.6 mm
Number of Methods	128 max.

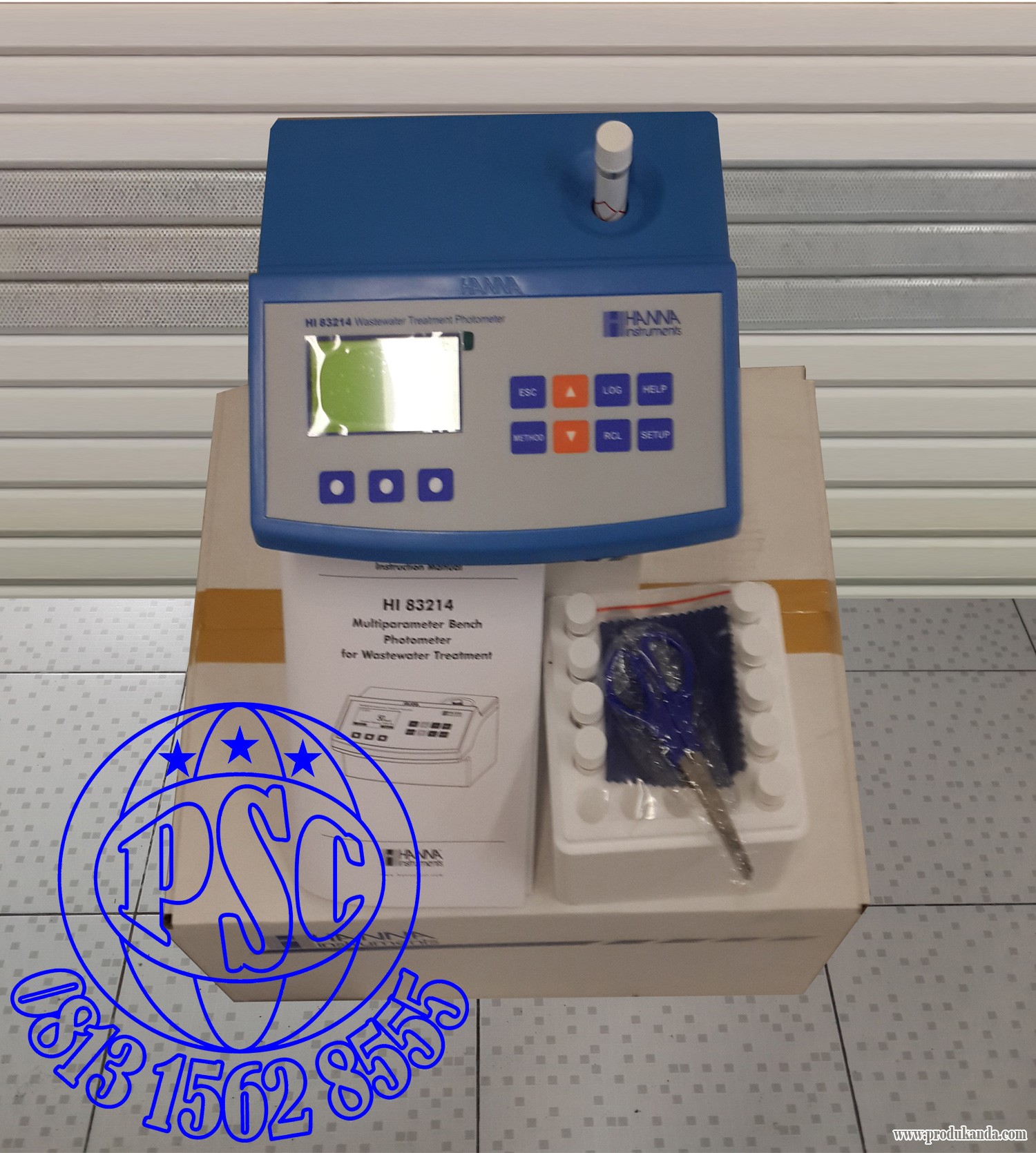

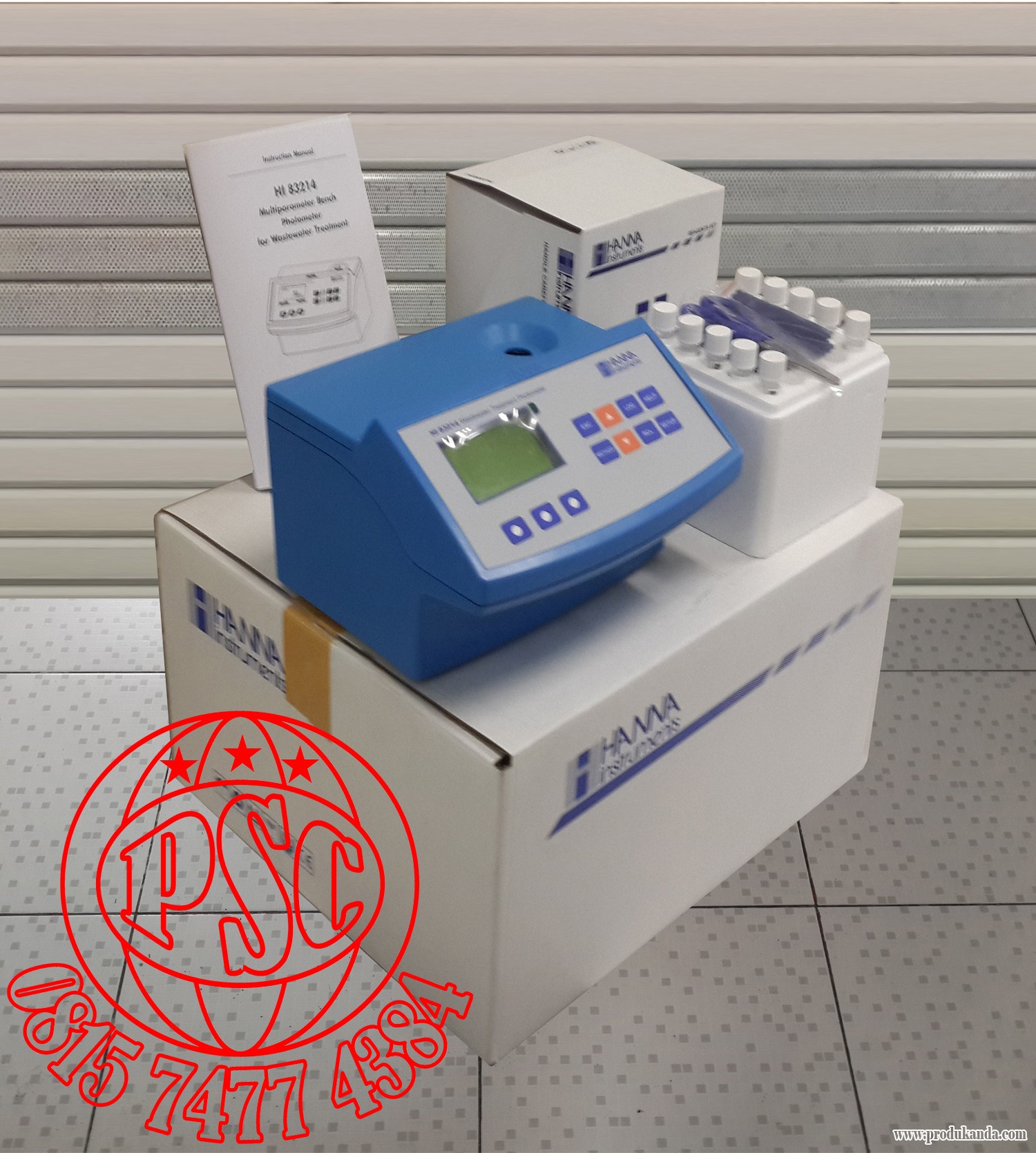

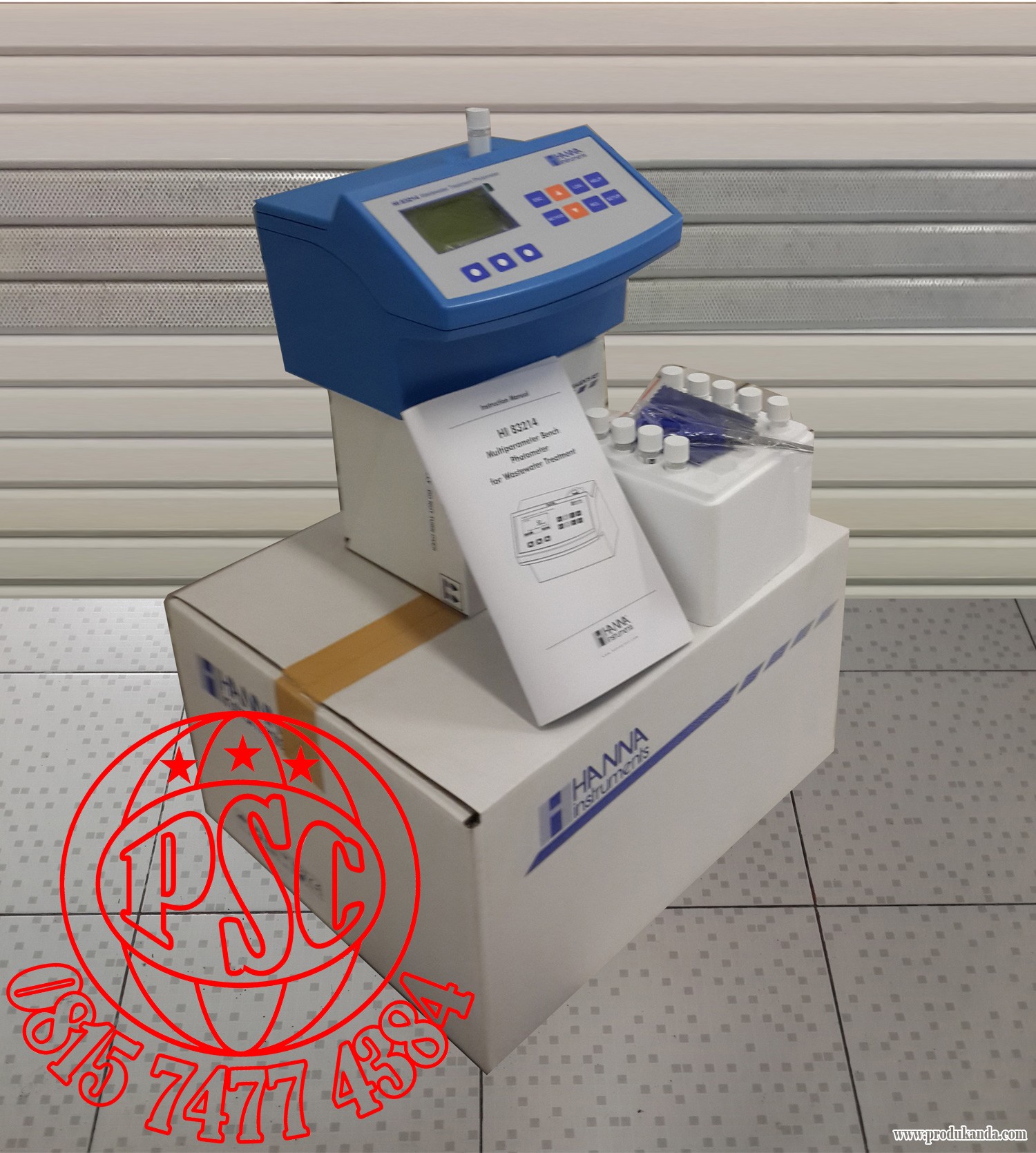

Ordering Information	HI83314 is supplied with sample cuvettes and caps (4 ea.), cloth for wiping cuvettes, USB to micro USB cable connector, power adapter and instruction manual.
	*Please note, reagents are not included but can be purchased here.
Reagent Informations
Parameter	Range	Resolution	Accuracy ( at 25 °C )	Wavelength	Reagent Code
Absorbance	0.000 to 4.000 Abs	0.001 Abs	+/-0.003 Abs @ 1.000 Abs
Ammonia, Low Range	0.00 to 3.00 mg/L (as NH3 -N)	0.01 mg/L	±0.04 mg/L ±4 %	420 nm	HI93700-01
Ammonia, Medium Range	0.00 to10.00 mg/L (as NH3 -N)	0.01 mg/L	±0.05 mg/L ±5 %	420 nm	HI93715-01
Ammonia, High Range	0.0 to 100.0 mg/L (as NH3 -N)	0.1 mg/L	±0.5 mg/L ±5 %	420 nm	HI93733-01
C O D, Low Range	0 to 150 mg/L (as O2 )	1 mg/L	±5 mg/L or ±4 %	420 nm	HI93754A-25
C O D, Medium Range	0 to 1500 mg/L (as O2 )	1 mg/L	±15 mg/L or ±4 %	610 nm	HI93754B-25
C O D, High Range	0 to 15000 mg/L (as O2 )	1 mg/L	±150 mg/L or ±2 %	610 nm	HI93754C-25
Chlorine, Free	0.00 to 5.00 mg/L (as Cl2 )	0.01 mg/L	±0.03 mg/L ±3 %	525 nm	HI93701-01
Chlorine, Total	0.00 to 5.00 mg/L (as Cl2 )	0.01 mg/L	±0.03 mg/L ±3 %	525 nm	HI93711-01
Iron, Total ( 16 mm Vial )	0.00 to 7.00 mg/L (as Fe)	0.01 mg/L	±0.20 mg/L ±3 %	525 nm	HI96778-50
