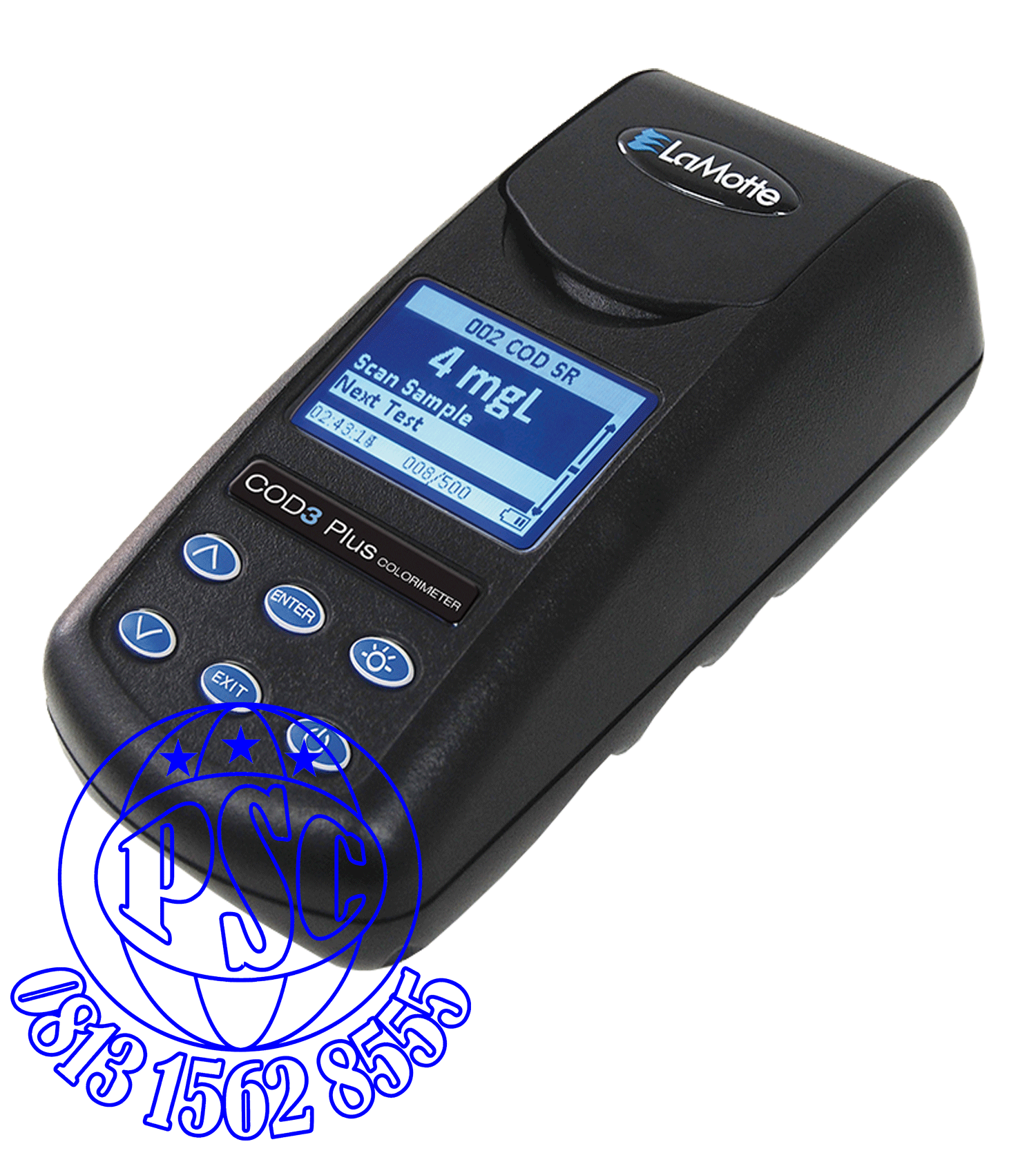

COD3 Plus Colorimeter 1925 Lamotte
Specifications
Light Source	LED/filter setup at 428 nm and 635 nm
Detector	Photodiode
Display	160 x 100 LCD, 20 x 6 line graphics display
Range	0 -125 %T
Resolution	1 % FS
Accuracy	2 % FS
Pre-Programmed Tests
Test Factor	Range ppm	Test Method ( # Rgts )	# Tests	Code
Ammonia Nitrogen ( LR ), Fresh	0.05-1.00	Salicylate ( 3 )	25	3659-01-SC
Ammonia Nitrogen ( LR ), Salt	0.10-1.00	Salicylate ( 3 )	25	3659-01-SC
Boron	0.05-0.80	Azomethine-H ( 2 )	50	4868
Cobalt	0.025-2.000	PAN ( 3 )	50	4851
COD, Low with Mercury†	5-150	Acid Digestion ( 1 )	25	0075-SC
COD, Low without Mercury†	5-150	Acid Digestion ( 1)	25	0072-SC
COD, Standard with Mercury†	50-1,500	Acid Digestion ( 1 )	25	0076-SC
COD, Standard without Mercury†	50-1,500	Acid Digestion ( 1 )	25	0073-SC
COD, High with Mercury†	500-15,000	Acid Digestion ( 1 )	25	0077-SC
COD, High without Mercury†	500-15,000	Acid Digestion ( 1 )	25	0074-SC
Color	20-1,000	Platinum Cobalt ( 0 )	?	NA
Copper ( Cu-Cuprizone )	0.03-2.00	Cuprizone ( 2 )	50	4023
Copper ( Cu DDC )	0.05-6.00	Diethyldithio-carbmate	100	3646-SC
Cyanuric Acid	10-200	Melamine ( 1 )	100	3661-SC
Dissolved Oxygen	0.25-11.0	Winkler Colorimetric ( 3 )	100	3688-SC
