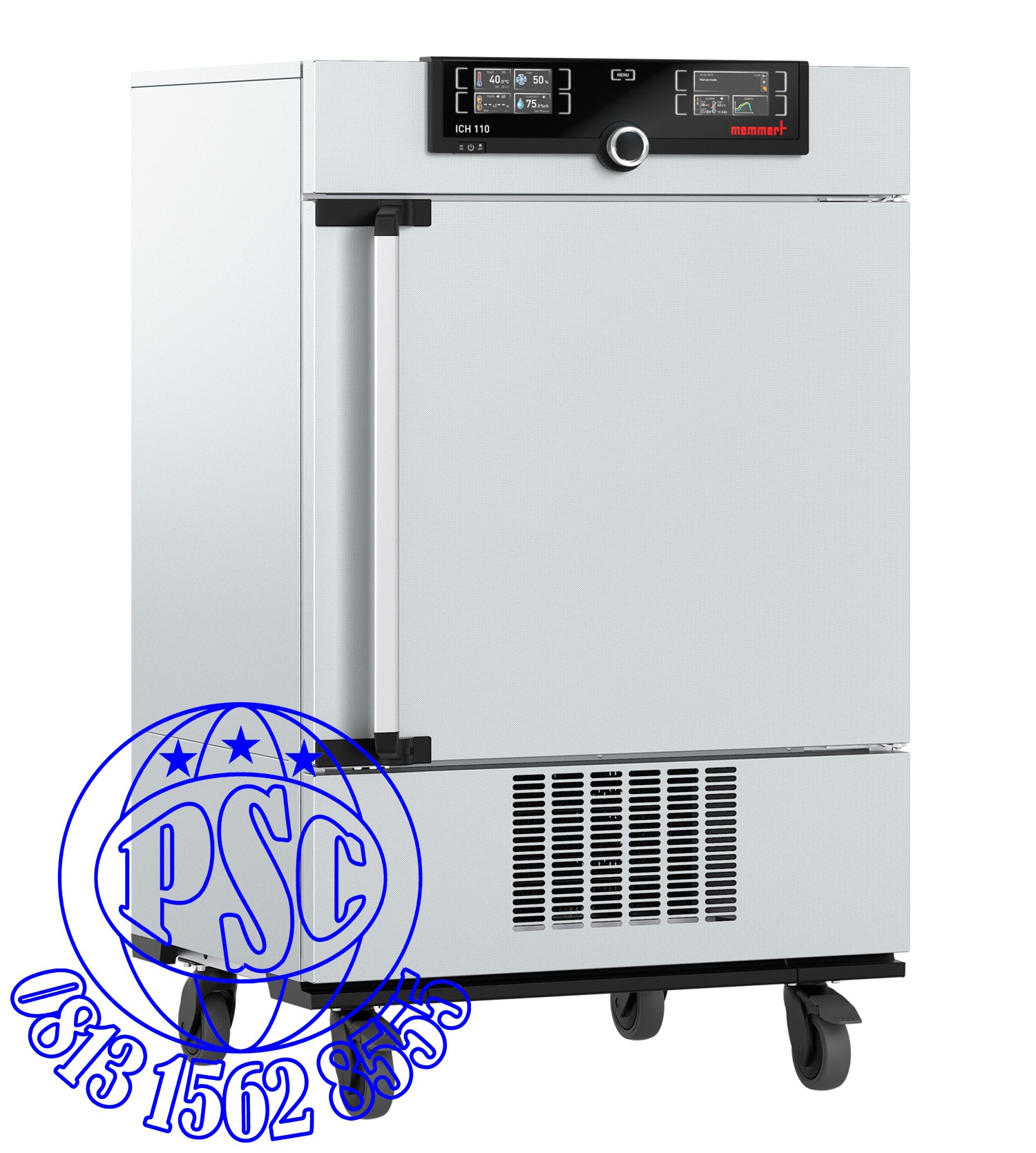

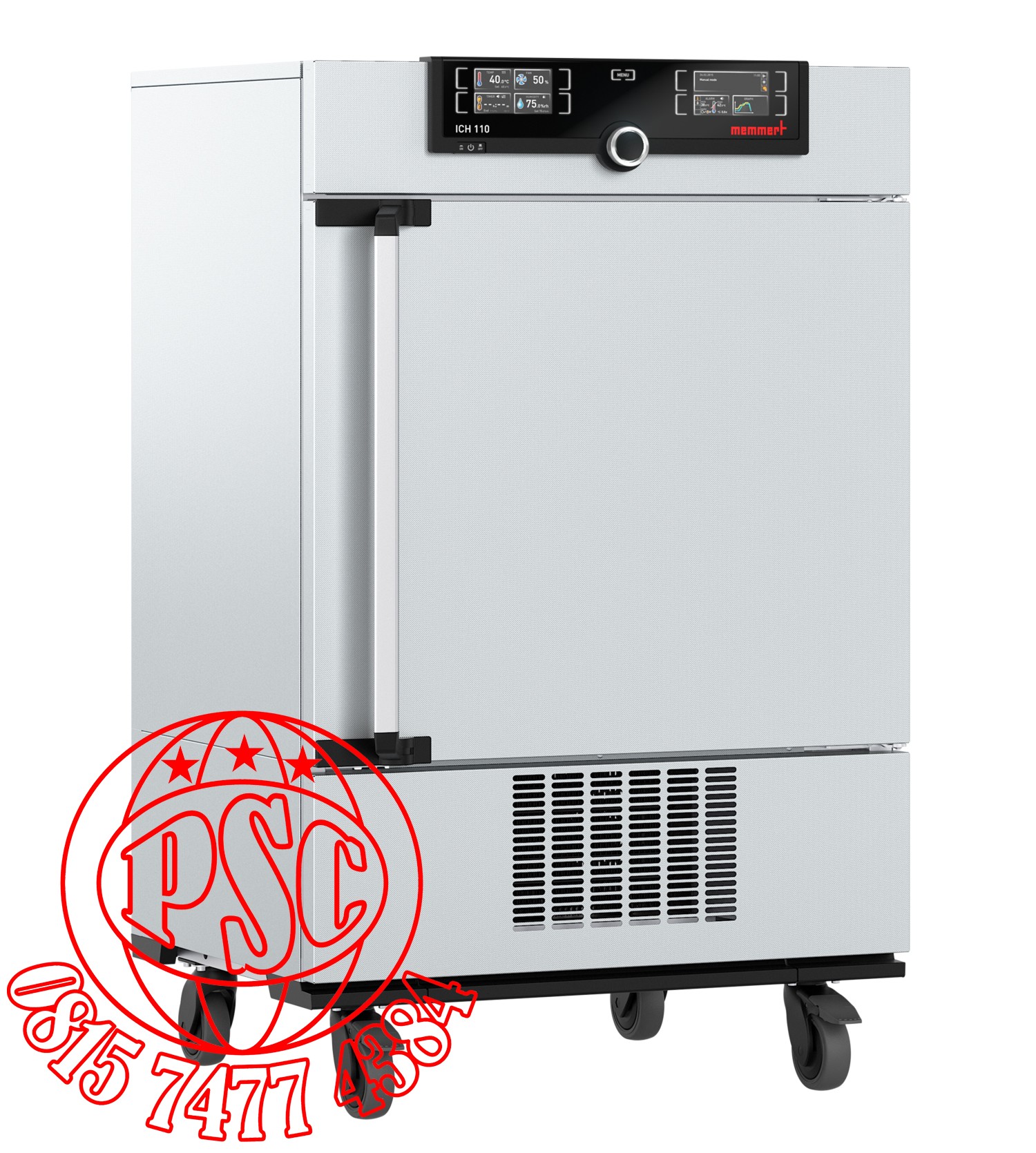

Constant Climate Chamber HPP110, HPP260 & HPP750 Memmert

Control of standard components

ControlCOCKPIT

Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays

Temperature

Resolution of display for setpoint

Without light: from 0 °C to +70 °C

With light: from +15 °C to +40 °C

and actual temperature values

0.1 °C

Control technology

Adjustable parameters

Temperature ( Celsius or Fahrenheit ), relative humidity, programme time, time zones, summertime/wintertime

Function SetpointWAIT

The process time does not start until the set temperature is reached

Language setting

German/English/Spanish/French

Calibration

Three freely selectable temperature values, 2-point calibration for humidity: 20 and 90 % rh

Ventilation

Forced ventilation by Peltier fan

Communication

Programming

AtmoConTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port

documentation

Programme stored in case of power failure

Safety

Autodiagnostic system

Integral fault diagnostics for temperature and humidity control

Alarm

Visual and acoustic

Temperature control

Over- and undertemperature monitor TWW, protection class 3.3 or  adjustable temperature limiter TWB, protection class 2, selectable on display

AutoSAFETY

Additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature

Heating concept

Heating and cooling performance distribution by individual control of the Peltier elements in the upper and lower row

energy-saving Peltier heating-/cooling system integrated in the rear ( heat pump principle )

Standard equipment

Door

Fully insulated stainless steel door with2-point locking ( compression door lock )

Door

Inner glass door

Housing

Rear zinc-plated steel

Internals

2 stainless steel grids

ConSTANT CLIMATE CHAMBER HPP110

Stainless steel interior

Dimensions W x H x D in mm

w(A) x h(B) x d(C): 560 x 480 x 400 mm

Volume

108 Liter

Max. loading of chamber

150 kg

Textured stainless steel casing

w (D)  x h (E) x d (F) : 745 x 864 x 674 mm

Electrical data

Voltage

115 V, 50/60 Hz

Electrical load

Approx. 650 W

Voltage

230 V, 50/60 Hz

Electrical load

Approx. 650 W

Dimensions approx incl. carton

B x H x T : 830 x 1050 x 800 mm

Net weight

Approx. 77 kg

Gross weight carton

Approx. 102 kg

ConSTANT CLIMATE CHAMBER HPP260

Stainless Steel Interior

Max. loading of chamber

200 kg

Dimensions W x H x D in mm

w(A) x h(B) x d(C) : 640 x 800 x 500 mm

Volume

256 l

Textured stainless steel casing

w(D) x h(E) x d(F) : 824 x 1183 x 774 mm

Electrical data

Voltage

230 V, 50/60 Hz

Electrical load

Approx. 920 W

Voltage

115 V, 50/60 Hz

Electrical load

Approx. 920 W

Dimensions approx incl. carton

B x H x T: 930 x 1380 x 930 mm

Net weight

Approx. 122 kg

Gross weight carton

Approx. 173 kg

ConSTANT CLIMATE CHAMBER HPP750

Stainless Steel interior

Max. loading of chamber

200 kg

Dimensions W x H x D in mm

w(A) x h(B) x d(C): 1040 x 1200 x 600 mm

Volume

749 l

Textured stainless steel casing

w(D) x h(E) x d(F): 1224 x 1726 x 874 mm

Electrical data

Voltage

230 V, 50/60 Hz

Electrical load

Approx. 1200 W

Voltage

115 V, 50/60 Hz

Electrical load

Approx. 1200 W

Dimensions approx incl. carton

B x H x T: 1330 x 1910 x 1050 mm

Net weight

approx. 208 kg

Gross weight carton

approx. 279 kg
