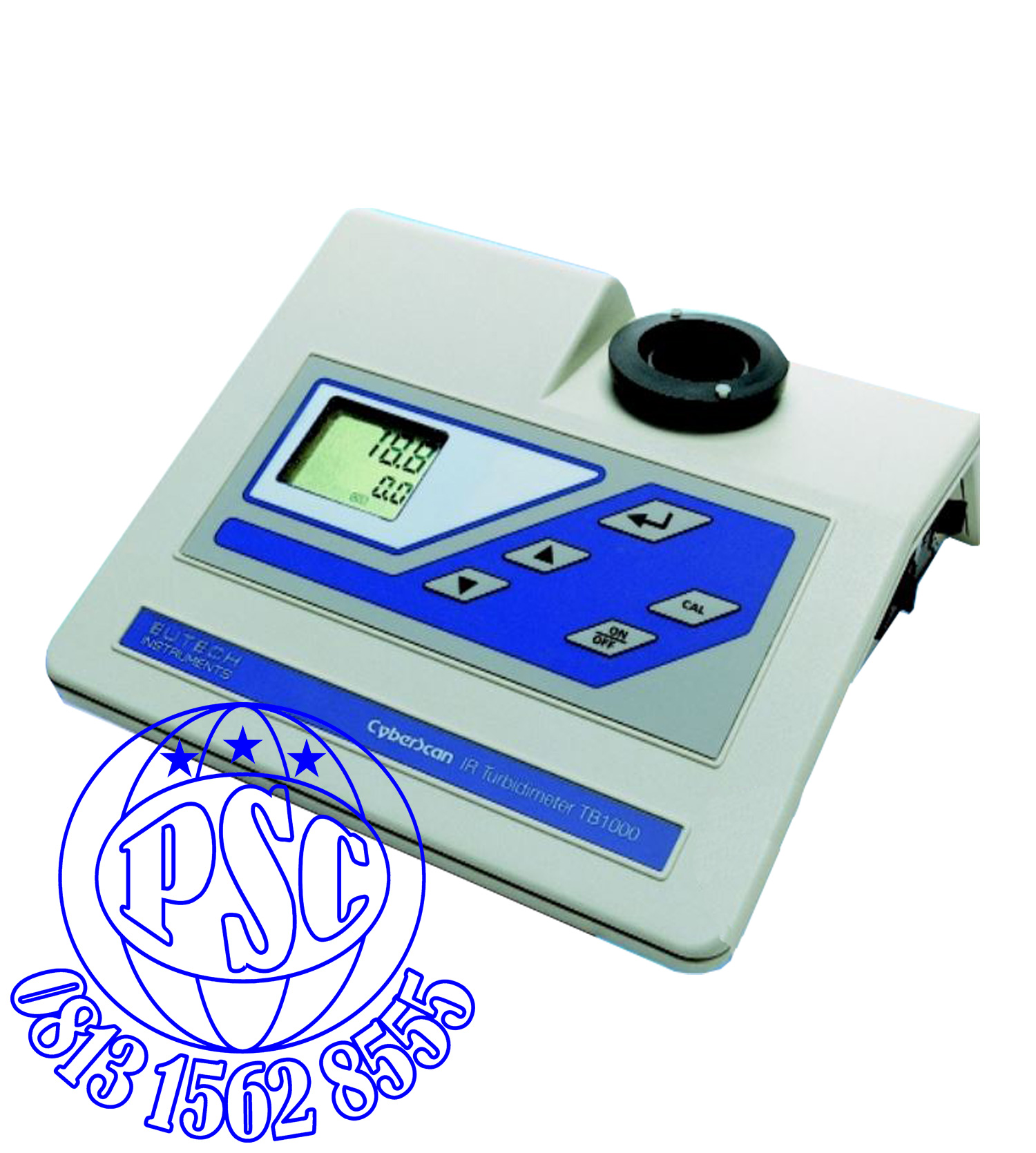

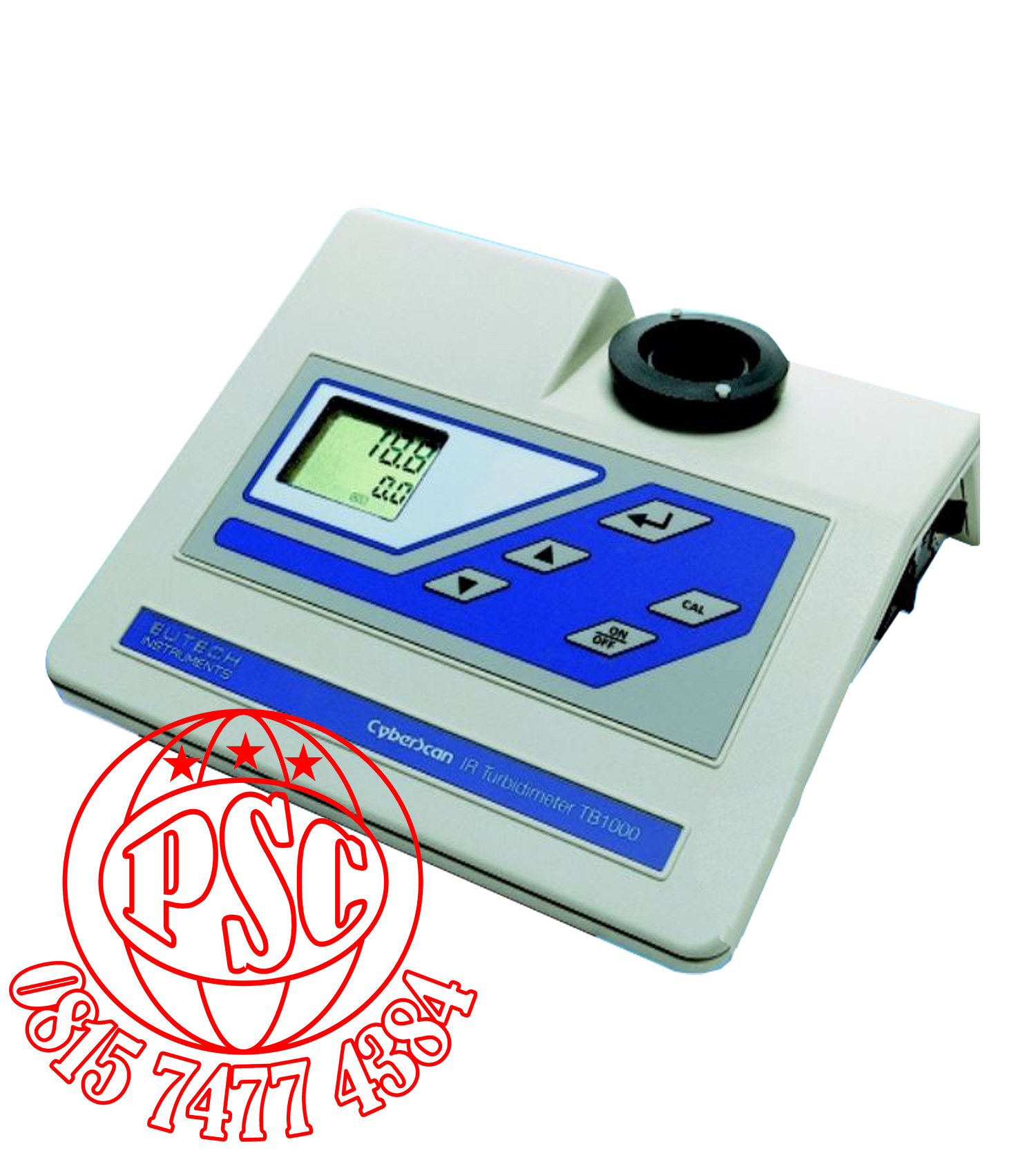

CyberScan Turbidity Meter TB 1000 Eutech Instrument
Product Features
Multi-Point Push-Button Calibration ( Up to 3 points ) for optimum full-range accuracy of ± 2 % full scale
Auto-Ranging for fast response and best resolution ( up to 0.01 NTU ) over wide measurement range
Push-Button Calibration is hassle-free, quick and easy
Auto-alert Calibration prompts at user-defined interval to ensure regularly scheduled recalibration for ISO and GLP compliance
RS232 Communication interface to download data to a printer or PC for report documentation
Built-in Real-time Clock stamps stored data and calibration data with time & date - meets standards for GLP purposes
Self-Diagnostic with message codes for easy troubleshooting
Pour-Through Assembly Module ( optional ) allows instantaneous sampling without having to transfer samples into cuvettes thus saving time.
The CyberScan TB1000 series turbidity meters ( employing the Nephelometric non-ratio or NTU principle ) are designed to meet stringent requirements of today's scientists. TB1000 series meet the performance criteria specified by USEPA method 180.1 for NTU measurement and ISO 7027 ( IR version ). Ideal for beverage production, drinking water, waste water treatment, petrochemical and electroplating applications.
Product Specification
Product	Description
Turbidity Range	0 to 1000 NTU
Resolution & Accuracy	0.01 NTU ( 0 to 9.99 NTU );
	0.1 NTU ( 10 to 99.9 NTU );
	1 NTU ( 100 to 1000 NTU )
	& ± 2 % of measured range + 0.01 NTU
Repeatability	± 1 % of measured range + 0.01 NTU
No. of Calibration Points	Up to 3 points
Calibration Options	4 points ( 0.02, 10, 100, 1000 )
Light Source	White light ( tungsten ) or  infrared
Response Time	< 6 seconds
Real-Time Clock	Date and time
Output	RS232
Power	12 VDC, using AC adapters 110 VAC or 220 VAC, 50/60 Hz
Order Information
Order No.	Item
ECTBDIR100040	CyberScan TB 1000 infra-red turbidity bench meter ( NTU ) with calibration kit ( ECTBDIRCALKT ) & 100/240 VAC power adapter
ECTBDW100040	CyberScan TB 1000 white light turbidity bench meter ( NTU ) with calibration kit ( ECTBDWCALKT ) & 100/240 VAC power adapter
ECTBDWCALKT	Calibration kit set for ECTBDW1000 ( 0.02, 10.0, 1000 NTU )
ECTBDIRCALKT	Calibration kit set for ECTBDIR1000 ( 0.02, 10.0, 1000 NTU )
