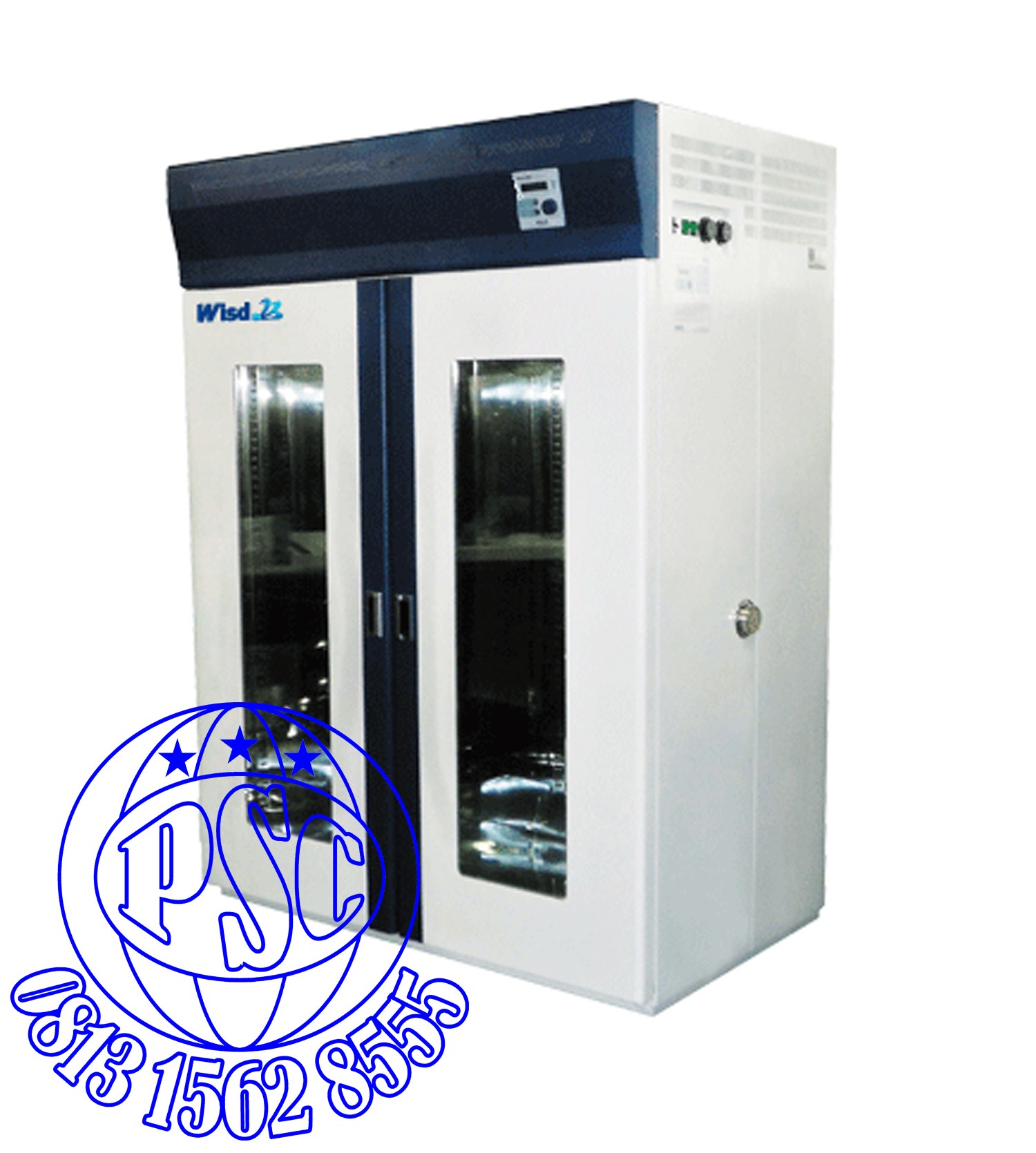

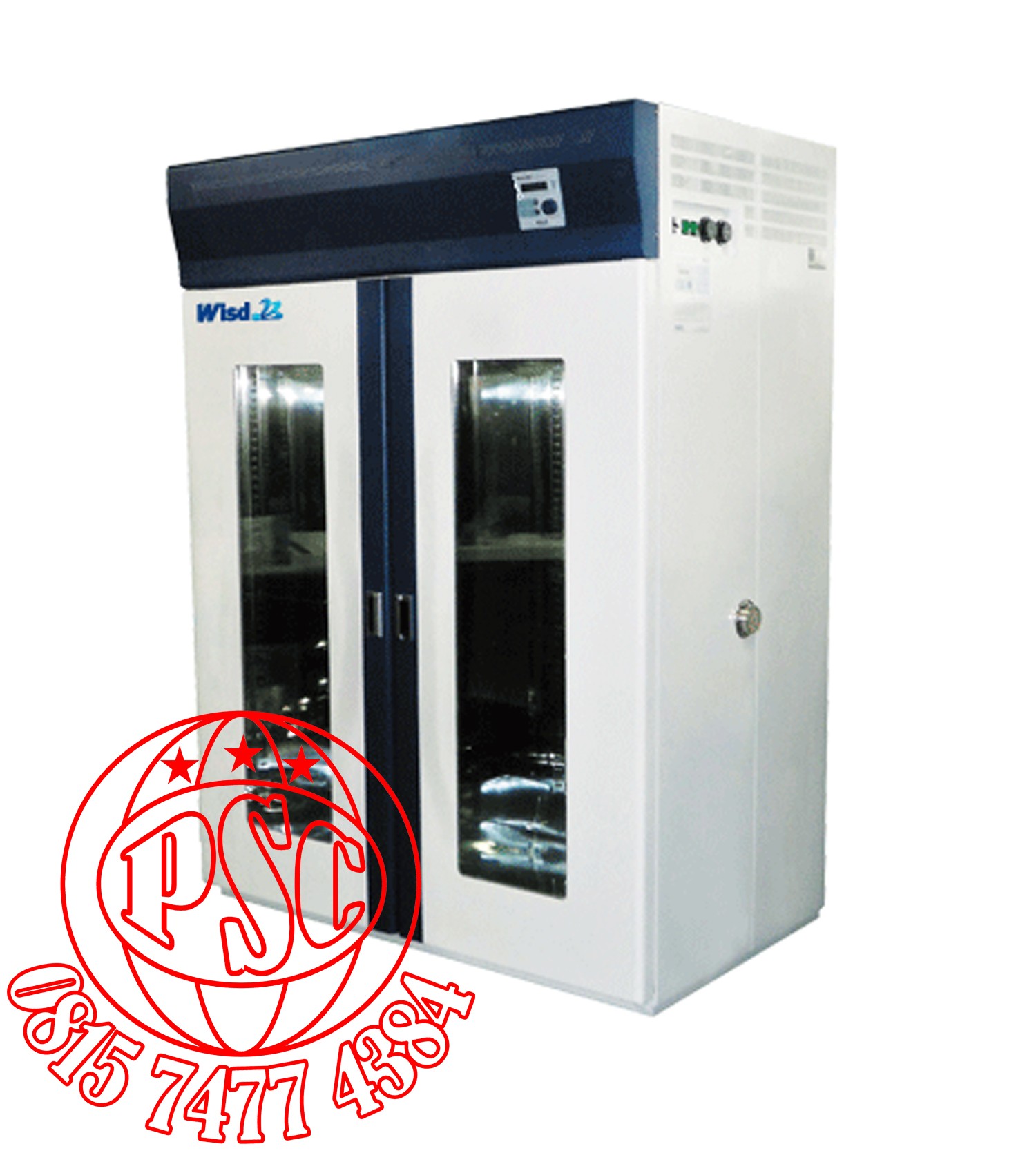

Digital Cold Lab Chamber/Refrigerator WCC Daihan Scientific

Specification

Outer Door, Capacity & Models

1 × Outer Door, 255 Lit.

2 × Outer Door, 1176 Lit.

“WCC-250”

“WCC-1000”

Temp. Range & Accuracy

0 ℃ to 10 ℃, ±0.5 ℃ at 4℃

Temp. Uniformity & Sensor

±2.0 ℃ at 4 ℃,  PT100

Temp. Resolution

1 ℃-Display, 1 ℃-Control

Refrigerant

CFC-Free ( R-404A ) Refrigeration System

Compressor

1/3 HP

3/8 HP

Evaporator

Auto Exchange Dual Evaporator

Defrost & Circulation

Automatic Defrost System, Dual Turbo Fan

Display

Digital LCD with Back-Light Function

Controller

Digital Fuzzy Controller with Jog-Shuttle Switch ( Turn+Push )

Door

Outer Door with Glass Window & Inner Glass Door

Included Shelf & Load per Shelf

Teflon Coated 3 Shelves,16 kg

Teflon Coated 6 Shelves,16 kg

Utility Device

with Access Hole, AC inlet 120V / 230V, Lamp

Safety Device

Over Current- & Temp-

Over Current Protection, Sensor Error Detection

Material

Stainless steel ( ＃304 )-Internal, Powder Coated steel-External

Dimension

Interior

505 × 505 × h1,000 mm

1,200 × 700 × h1,400 mm

Exterior

660 × 790 × h1,800 mm

1,350 × 850 × h2,000 mm

Net Weight

217 kg

398 kg

Packing Size & Gross Weight

960 × 960 × h2,050 mm, 277 kg

1,580 × 1,220 × h2,180 mm, 478 kg

Power Consumption

600 W

700 W

Power Supply & Cord Plug

1 Phase, AC 120V, 60Hz or  AC 230V, 50 / 60Hz
