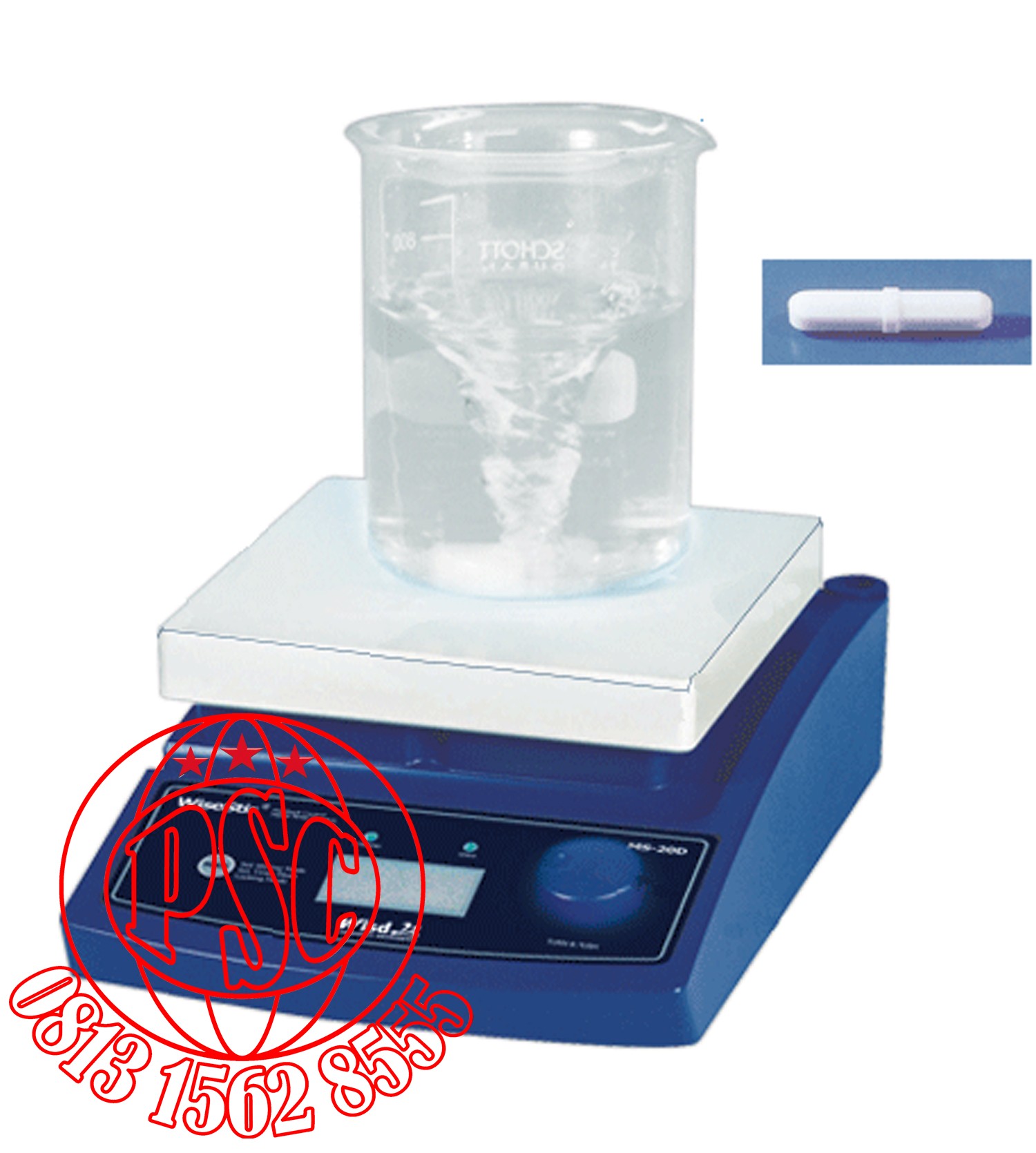

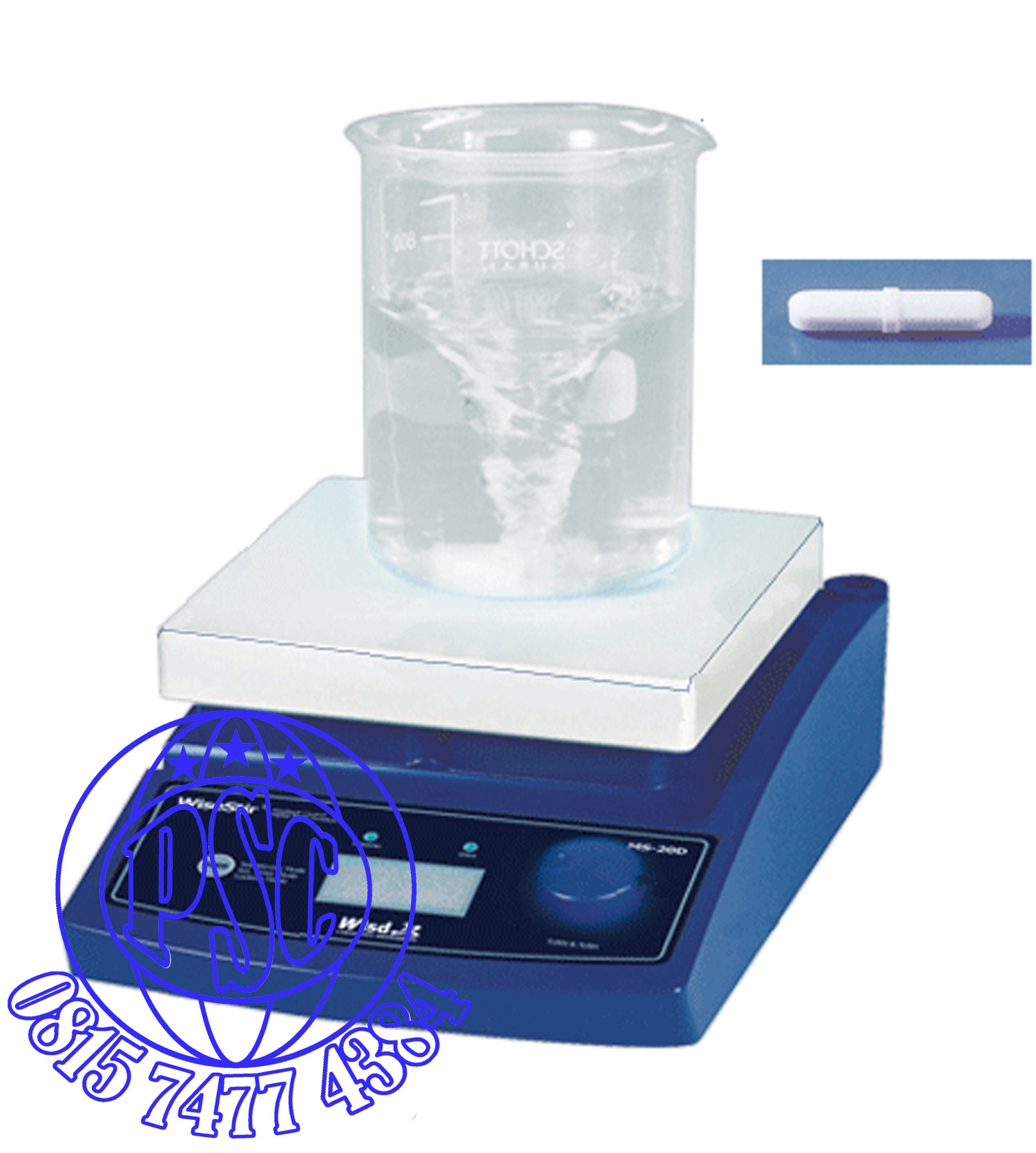

Magnetic Stirrer MS-D Daihan Scientific

Specification

Model

180 × 180 mm Plate-type

“MS- 20D”

Plate Size

180 × 180 mm

Stirring Capacity ( H2O )

Max. 20 Lit.

Speed Range

80 ~ 1,500 rpm

Motor Rating

9 / 4 W

Speed Accuracy

± 5 %

Speed Control Resolution

5 rpm

Timer & Alarm

99 hr 59 min ( with Continuous run.), Error status & Timer-end

Display

Digital LCD with Back - Light Function

Controller

Digital Feedback Controller with Jog Shuttle Switch ( Turn+Push )

Stirring Bar

3cm bar-included, Usable : up to 5 cm bar

Permissible Ambient Temp.

Ambient +5 ~ 50 ℃

Permissible Relative Moisture

85 %

Plate

Ceramic Coated Aluminum ( Chemical / Acid Resistance )

Body

Powder Coated Aluminum

Dimension ( W × D × H )

206 × 307 × 99 mm

Weight ( kg )

3.1 kg

CE Certified,  PL ( Product Liability ) Insurance

Others

Storage Function ( RPM, Timer ) Locking Mode ( Jog - Shuttle Input Disabled ) Alarm ( Error Status and Timer-end )

Packing Size ( W × D × H )

400 × 280 × 200 mm

& Gross Weight

5 kg

Power Consumption

10 W

Power Supply & Cord/ Plug*

Free Voltage ( 1 Phase, AC 80 ~ 240 V, 50 / 60 Hz )
