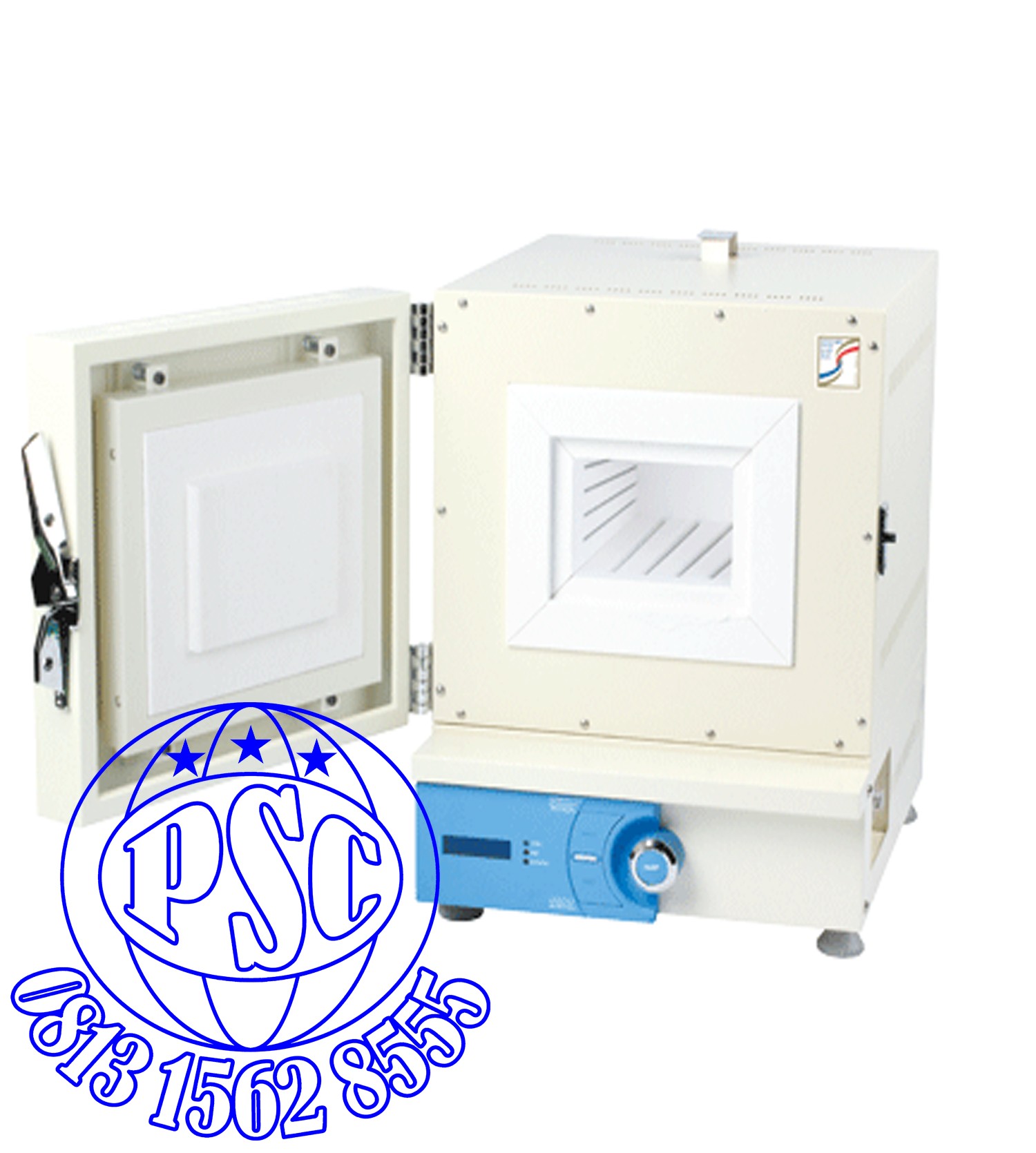

Digital Muffle Furnace FX 1,000℃ Daihan Scientific

DAIHAN-brand® 1,000℃ Digital Muffle Furnaces, “FX”, Exposed Heating Elements-type, with Certi. & Traceability with Digital PID Control, Short Heat-up Time, Ceramic Fiber, 4-Side Heating, with Ceramic Fiber Plate, 3~63 Lit.

Specification

Capacity & Model and Temp. Range

3L FX-03

4.5L FX-05

12L FX-12

14L FX-14

27L FX-27

63L FX-63

300 ℃ ~ 1000 ℃

Heater

Kanthal A1, Expose Wire Heating Elements, 4-Side Heating

Thermocouple

K-type Thermocouple

Heating Power

1.4 kW

1.8 kW

3.6 kW

4.0 kW

4.6 kW

9 kW

Required time to be reached 800 ℃

16 min

 16 min

20 min

 20 min

 20 min

23 min

Timer & Alarm

99 hr 59 min ( Delay & Continuous run ), Error status & Timer-end

Display

Digital LCD with Back - Light Function

Controller

Digital PID Controller with Jog-Dial Switch ( Turn+Push )

Safety Circuit

Over-Temp./-Current protection, Sensor Error Detection

Safety Switch for Door Opening

Material

Ceramic Fiber with Heating Wire-Internal, Powder Coated steel-External Ceramic Fiber-Insulation

Dimension

Internal ( cm )

13 × 25 × 9

15 × 30 × 10

20 × 30 × 20

25 × 35 × 16

30 × 30 × 30

40 × 40 × 40

( W x D x H)

External (cm )

39 × 48 × 53

42 × 53 × 55

48 × 55 × 66

53 × 58 × 62

58 × 59 × 76

63 × 71 × 79

Packing Size ( W x D x H ) (cm)

63 × 54 × 77

68 × 57 × 78

70 × 63 × 89

74 × 68 × 85

74 × 73 × 99

116 × 90×110

Gross Weight

47 kg

54 kg

59 kg

73 kg

83 kg

225 kg

Power Supply

1 Phase, AC 120V, 60Hz or AC 230V, 50/60Hz

1 Phase AC 120V, 60Hz or AC 230V, 50/60Hz or 3 Phase AC 380V, 50/60Hz
