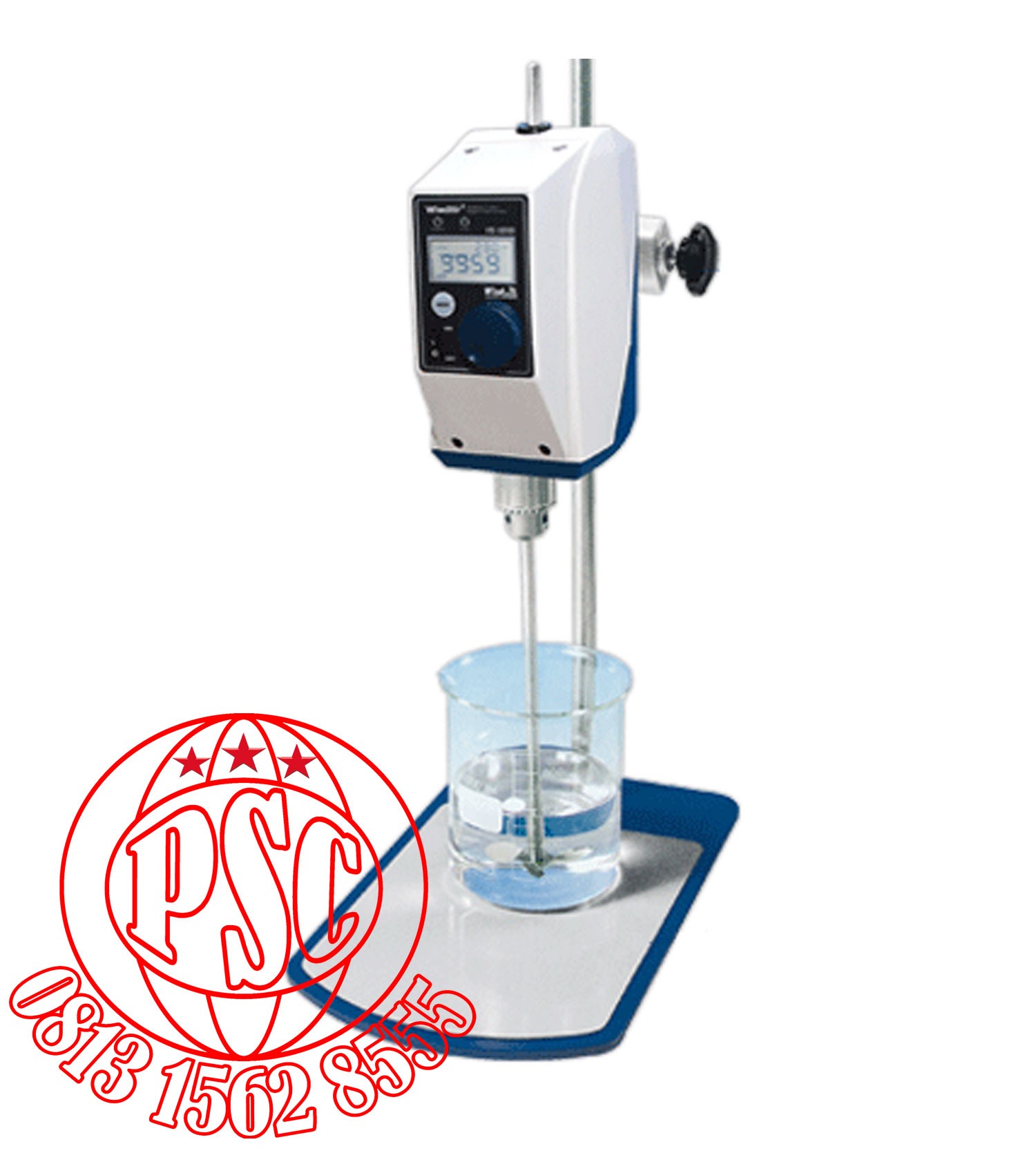

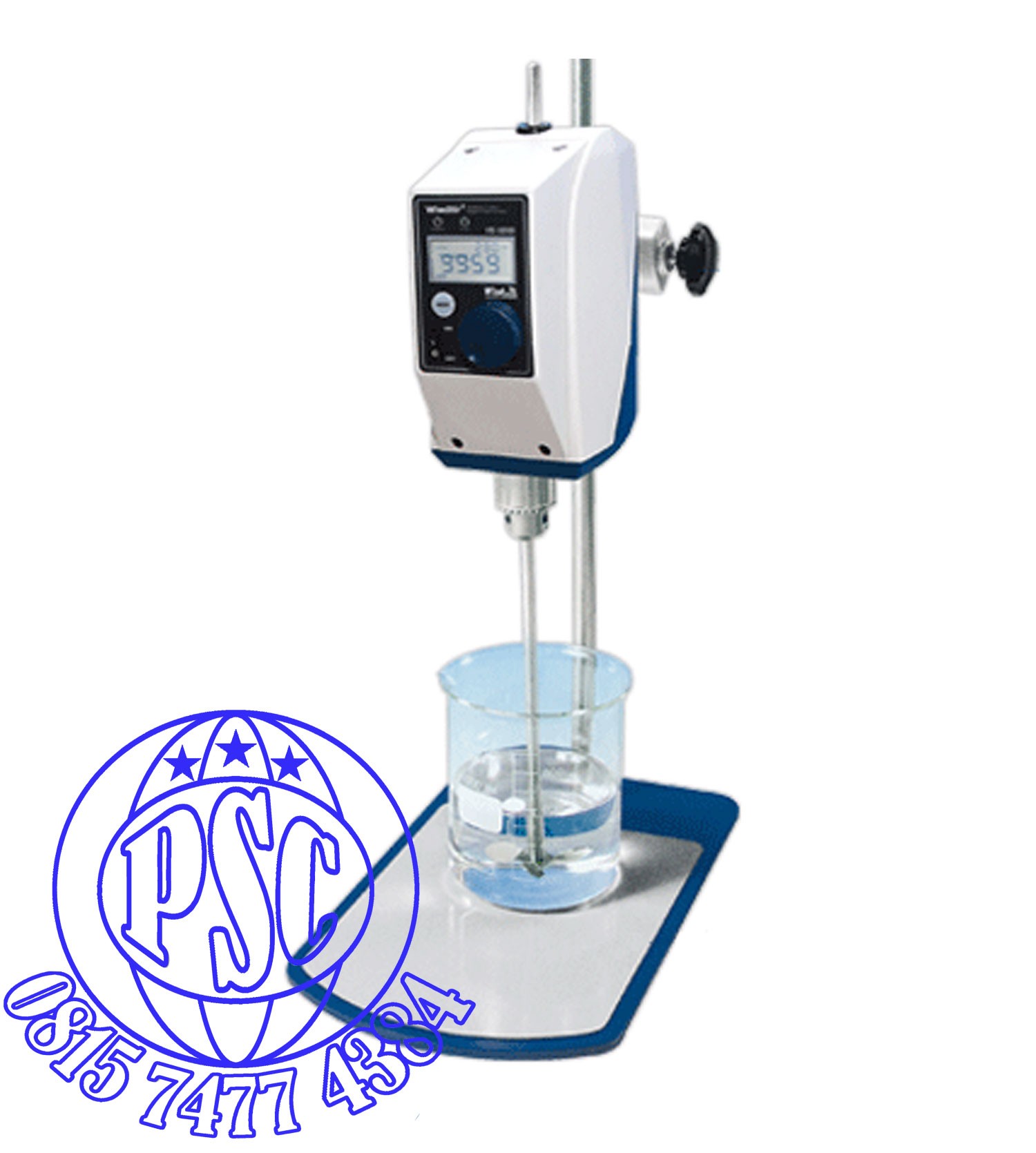

Digital Overhead Stirrer HS-30D & HS-100D Daihan Scientific

Specification

Stirring Capacity & Models

Max. 10 Lit. ( H2O )

Max. 20 Lit. ( H2O )

“HS-30D”

“HS-100D”

Maximum Viscosity

10,000 mPas

50,000 mPas

Maximum Torque

85 Ncm

145 Ncm

Speed Range & Resolution

200 ~ 3,000 rpm, 1 rpm-Display / 1 rpm-Control

Motor

Worm - Geared DC Motor

Motor Rating ( Input / Output )

83 / 75 W,  1/10 HP

130 / 120 W,  1/6 HP

Timer & Alarm

99 hr 59 min ( with Continuous run.),  Error status & Timer-end

Display

Digital LCD with Back - Light Function

Controller

Digital Feedback Controller with Jog Shuttle Switch ( Turn + Push )

Max. Impeller Shaft Diameter

8 mm

Permissible Temp. & Humidity

0 ~ 40 ℃,  80 %

Safety Device

Overload & Heat Protector for Motor

Material

ABS and Aluminum

Dimension & Weight

90 × 145 × h 180 mm,  4.5 kg

90 × 145 × h 180 mm,  5.3 kg

Packing Size & Gross  Weight

320 × 300 × h180 mm,   5 kg

320 × 300 × h180 mm,   8 kg

Power Consumption

85 W

130 W

Power Supply & Cord Plug**

1 Phase, AC 120 V, 60 Hz or AC 230 V, 50 / 60 Hz
