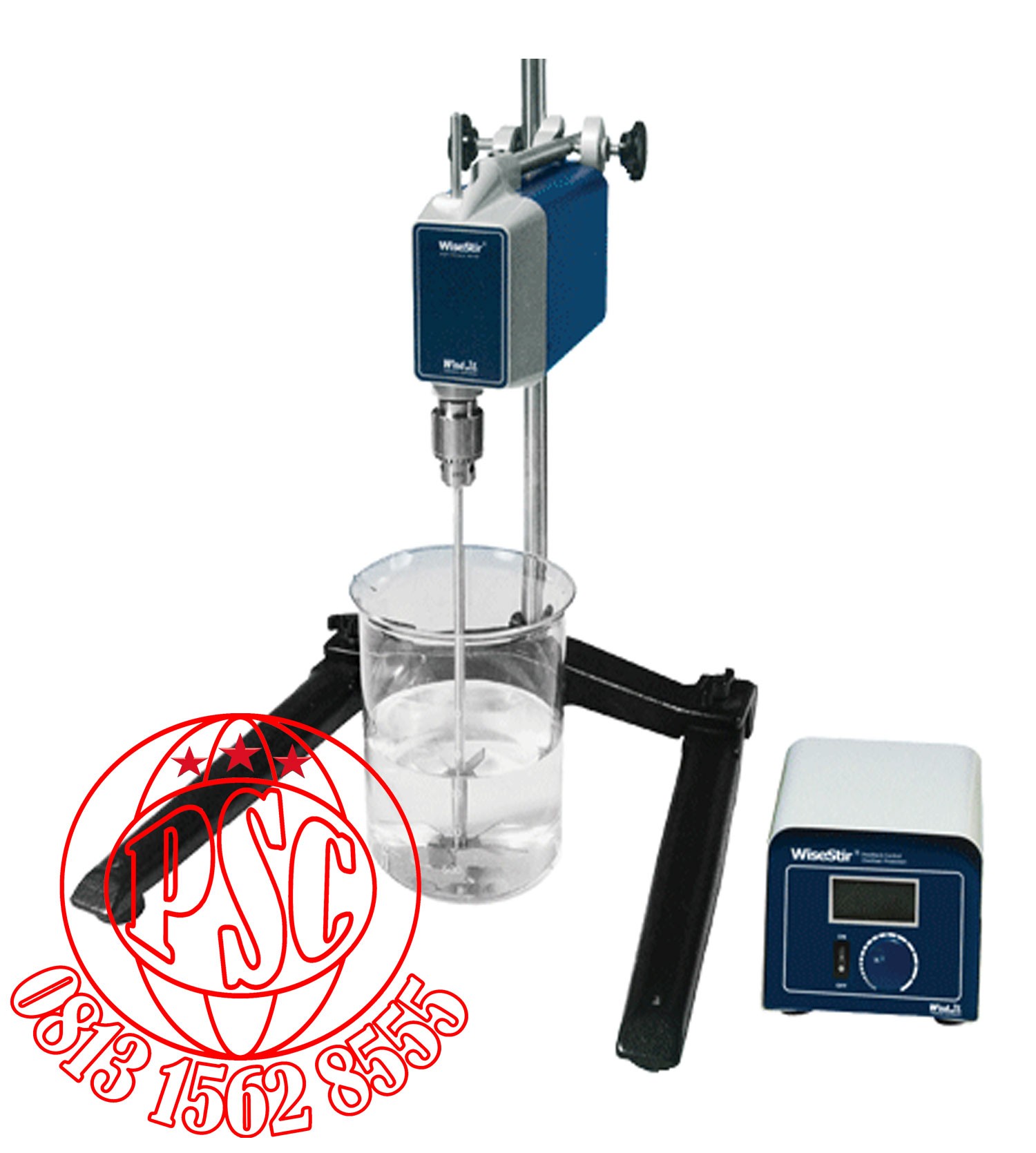

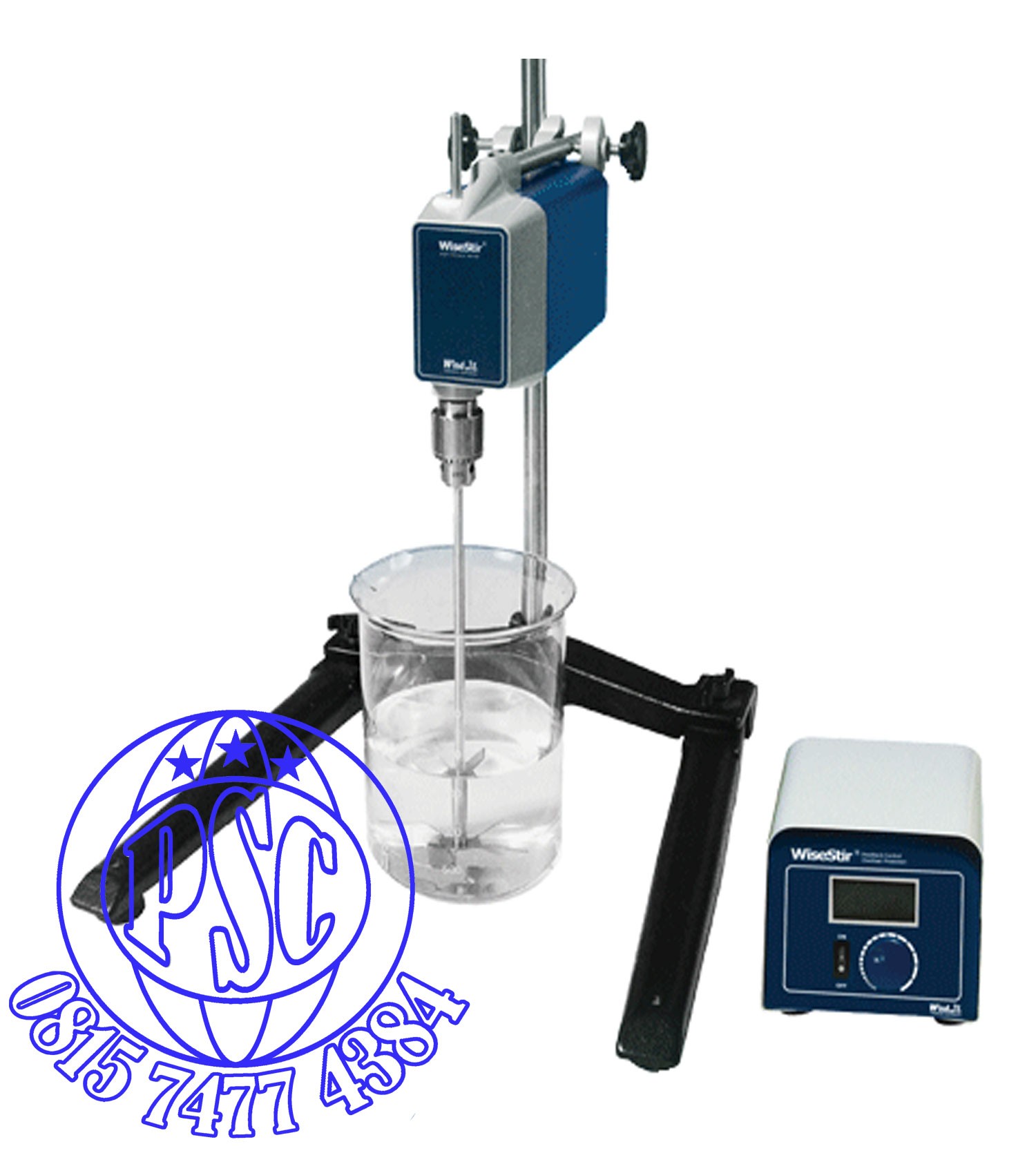

Digital Overhead Stirrer HT-T Daihan Scientific

Specification

Stirring Capacity & Models

Max. 40 Lit. ( H2O )

Max. 60 Lit. ( H2O )

“HT- 50T”

“HT- 120T”

Maximum Viscosity

100,000 mPas

150,000 mPas

Maximum Torque

300 Ncm

500 Ncm

Speed Range & Motor

50 ~ 1,000 rpm,  Worm-Geared Motor ( 3.5 : 1 Ratio )

Motor Rating (Input / Output)

83 / 75 W,  1/10 HP

130 / 120 W,  1/6 HP

Timer & Alarm

99 hr 59 min ( with Continuous run.), Timer-end Alarm

Display

Digital LCD with Back - Light Function

Controller

Remote type Digital Feedback Controller with Jog Shuttle Switch

Max. Impeller Shaft Diameter

Φ10 mm

Permissible Temp. & Humidity

0 ~ 40 ℃,  80 %

Safety Device

Overload & Heat Protector for motor

Material

ABS and Aluminum

Dimension & Weight*

155 × 180 × h 110 mm, 3.5 kg

155 × 230 × h 110 mm, 4 kg

Packing Size & Gross  Weight

580 × 340 × h 230 mm, 5 kg

580 × 340 × h 230 mm, 8 kg

Power Consumption

75 W

120 W

Power Supply & Cord Plug**

1 Phase, AC 120 V, 60 Hz or  AC 230 V, 50 / 60 Hz
