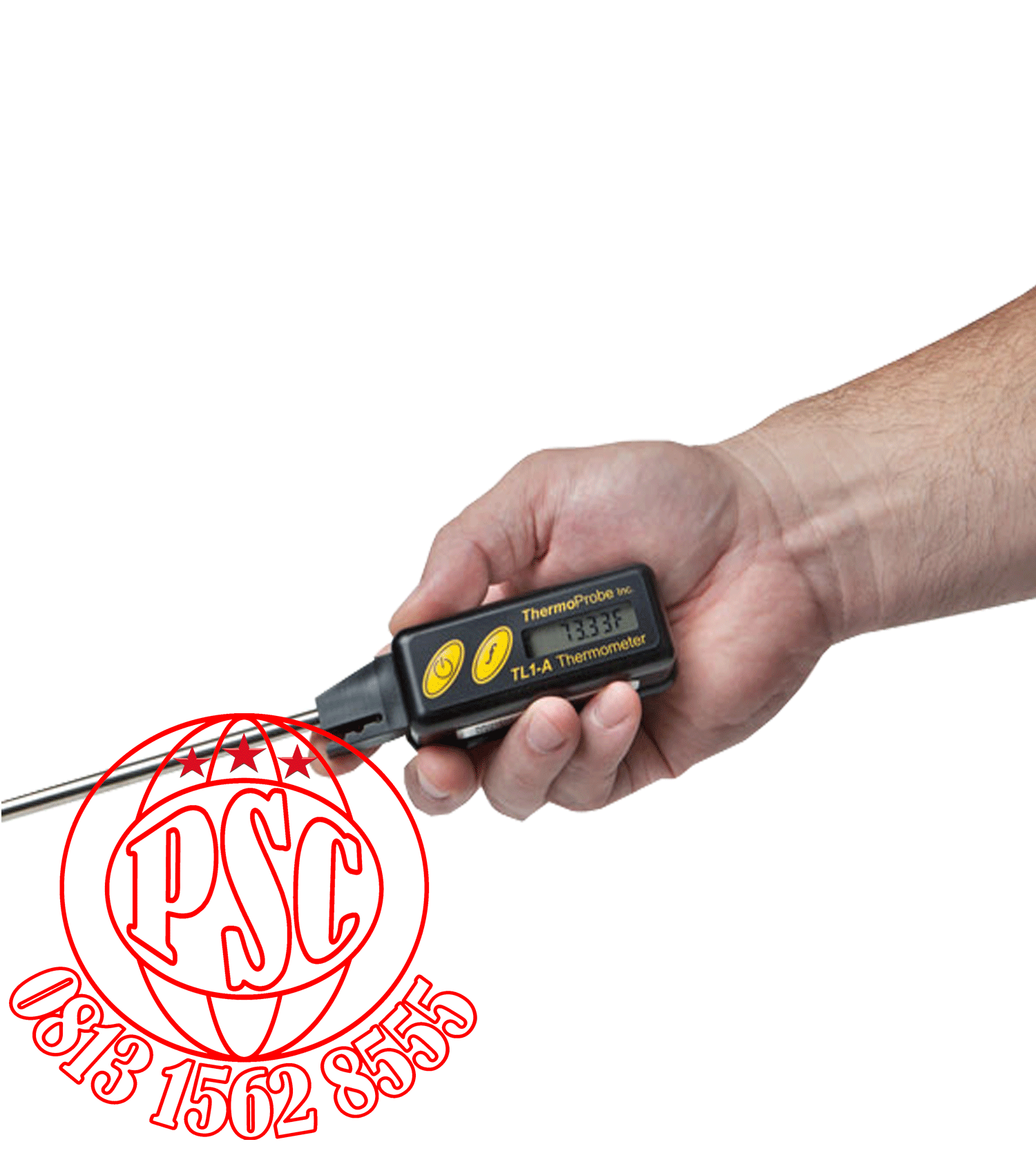

Digital Thermometer TL1-A ThermoProbe |
|
Product Description |
|
The TL1-A is an intrinsically safe digital laboratory thermometer designed for use in hazardous locations. The TL1-A is an improved version of the original ThermoProbe model TL1. The TL1-A is intended to be used anywhere a precision glass stem thermometer or other type thermometer is used. The TL1-A incorporates glass thermometer simplicity and reliability with the convenience of a digital display. Like precision mercury thermometers, the TL1-A has accuracy, repeatability and long-term stability. But unlike those thermometers there will never be problems with mercury separation or hazardous material cleanup. The TL1-A is commonly used as a calibration reference for field temp. instruments such as gauging thermometers and flow meters. With a history of proven accuracy, The TL1-A has become a standard for temp. in multiple industries. |
|
The versatile software functions allow easy selection of Celsius or Fahrenheit units and display resolution. Encoded calibration is unaffected by temperature, vibration, or battery removal. Low battery display, and failure mode indications protect the user from false data. The intuitive display indicators allow the user to establish accurate temperature readings. Minimum, maximum and average temperatures are automatically stored to memory for later reference. |
|

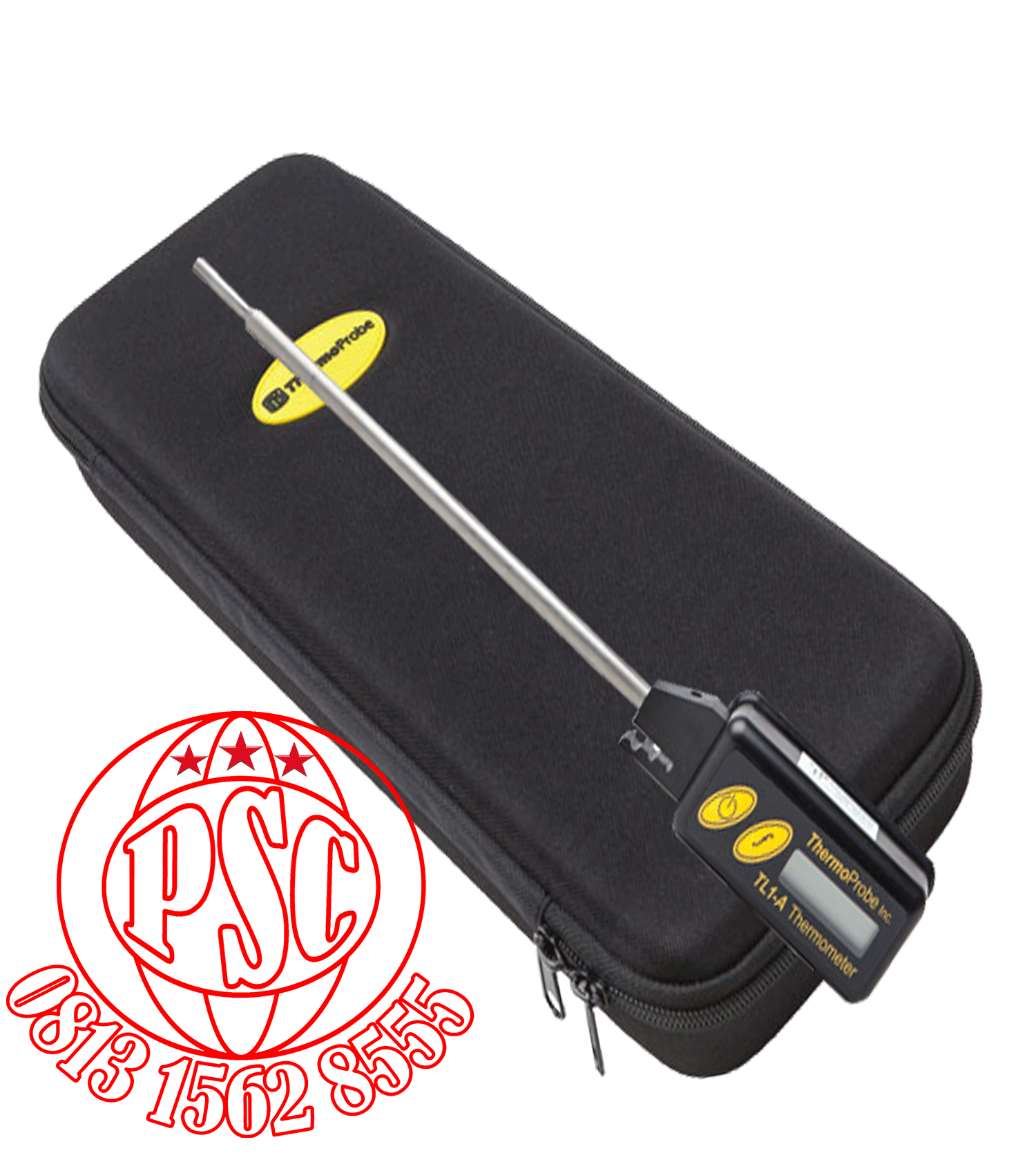

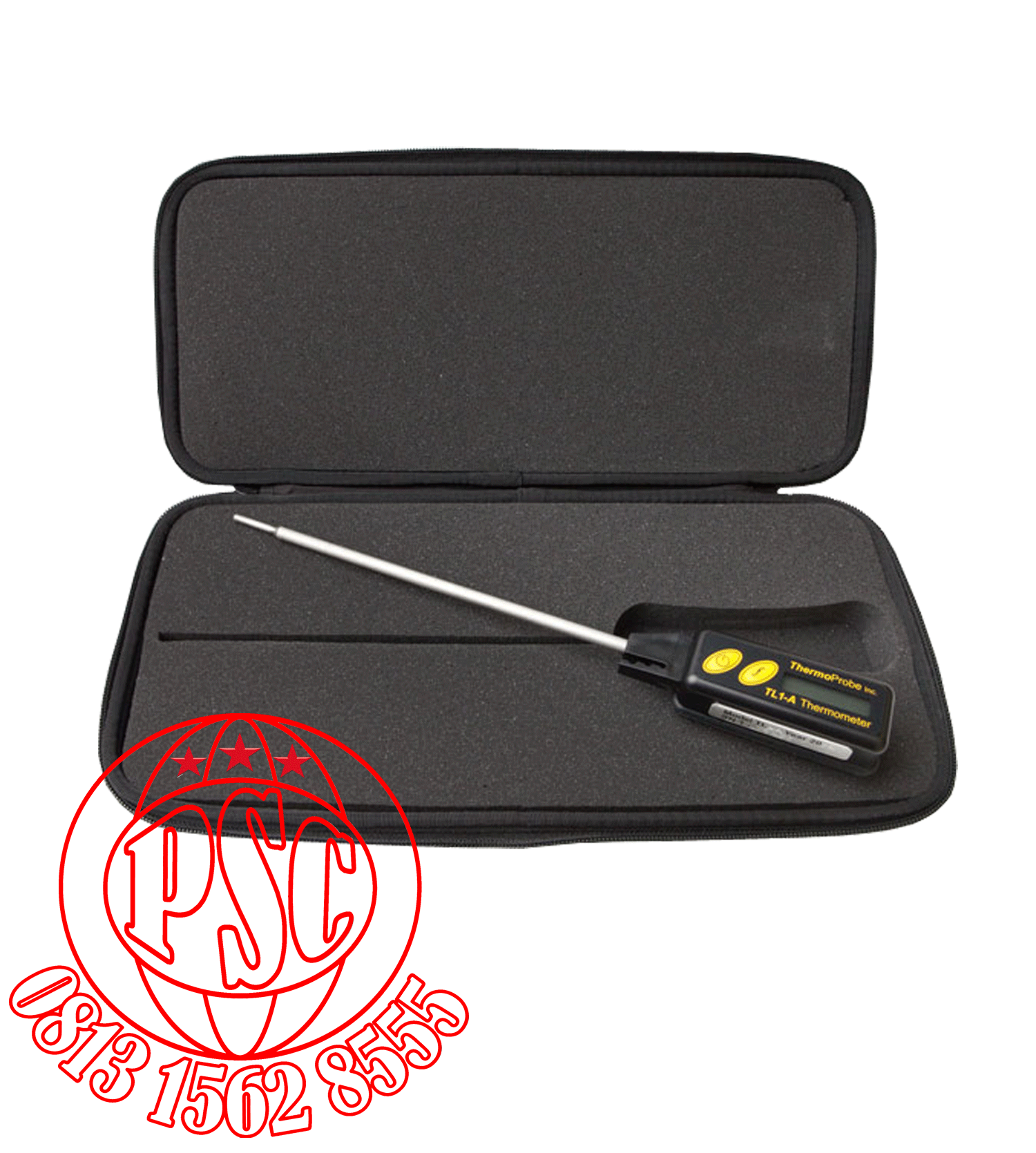

The TL1-A is constructed with a robust aluminum case and stainless steel temperature probe. Different from most electronic thermometers, the “Cordless” TL1-A has no wires to get in the way or break. The sealed overlay switch interface makes for intuitive operation. The TL1-A comes equipped with an easily replaceable coin cell battery, providing up to 100 hours of operation |
|
Certifications |
|
The TL1-A certifications are recognized in Europe ( ATEX ) and internationally ( IECEx ) |
|
4 Point NIST Traceable Calibration and a one year warranty included |
|
|
Applications |
|
|
Hazardous location, Intrinsically Safe, Laboratory, Temp., Calibration, Reference, Petroleum, Pipeline, Thermo well, Thermowell, Handheld, Metrology, NIST, Traceable, Certified, API, ASTM, Temperature bath, Distillation, Melting point test, Flash point test, Prover, Flow meter, Pharmaceutical, Food, Dairy, Pete’s Plug, Viscosity, Portable, Digital, Inspector, Temp. Calibrator, Precision, Ex, UL, ATEX, IECEx |
|
|
Technical Specifications |
|
|
Display |
LCD with 0.25 inch characters; Trend Indicating Arrows; Low Battery & Fault indication |
|
User Functions |
Auto Off after 20 minutes or continuous operation; Lowest Reading, Highest Reading, Average Reading; Switchable in Units of °C or °F; Display tenths or hundredths resolution |
|
Construction |
Stainless Steel temperature sensor; |
|
Standard Sensor length 20 cm ( 8" ); |
|
|
Standard diameter 6.35 mm ( 1/4" ) with reduced diameter tip of 4.76 mm ( 3/16" ); |
|
|
Sensor mount acetyl plastic; Electronics and display in 3.5" × 1.2" anodised Aluminum enclosure; |
|
|
Molded Silicone seal; |
|
|
Highly durable display window, graphics and membrane switches. |
|
|
Weight |
93 g ( 3 ounce ) |
|
Temp. Resolution |
0.01 Degress |
|
Calibrated Accuracy |
±0.06 °C from -10 °C to 160 °C, ±0.1 °F from 14 °F to 320 °F; NIST Traceable Report of Test |
|
Temp. Time Constant |
8 seconds in circulated water bath ( 63.2 % response to temperature change ) |
|
Electronics |
Microcontroller and precision 20 bit A/D Converter; FLASH memory; Recommended Temperature Range for best accuracy 0 °C to 44 °C, 32 °F to 112 °F; 100 Ohm, Class A Platinum RTD; Immersion depth 11cm, 4" |
|
Sensor |
100 Ohm, Class A Platinum RTD; Immersion depth 11cm, 4" |
|
Battery |
20mm Coin Size 3 V Lithium, Duracell Type CR2032; Over 100 hours Service Life at 21°C, 70°F |
|
Battery Operating Range -20 °C to 54 °C ( -4 °F to 130 °F ). |
|
|
Note: Battery may not provide adequate power if ambient temperature is below -20 °C, -4 °F or above 54 °C, 130 °F |
|
