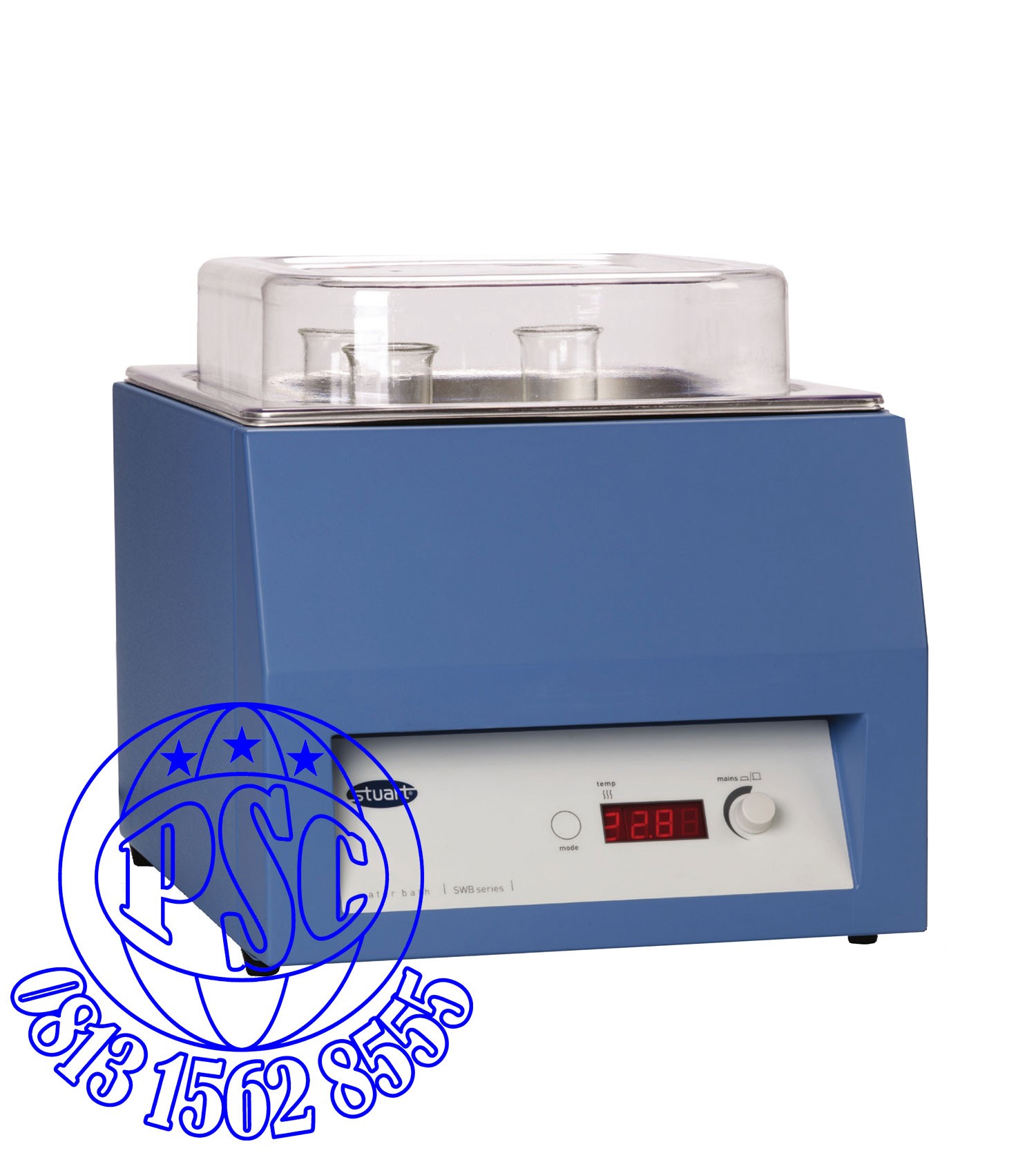

Digital Water Baths, SWB6D, SWB15D, SWB24D Stuart

• Choice of sizes: 6, 15 or 24 Litres

• Digital display and selection of temperature

• Low level water sensor

• Integral drain

• Supplied with robust polycarbonate lid

Three robust and reliable water baths,each with easy to clean stainless steel tank and sturdy metal outer casing

Digital water baths with easy to use temperature control and clear to read LED water temperature. Incorporated over temperature protection system that tracks the set temperature and controls the heater in the event of a fault. The heater is mounted underneath the tank to allow easy cleaning. Includes low level water sensor which cuts power to prevent the bath boiling dry. Incorporated drain for easy emptying of the bath. Minimum set temperature is 25°C.

Bath covers are included as standard with each bath to help reduce heat losses and evaporation. The covers are manufactured from robust polycarbonate allowing full visibility of the bath contents.

Specifications

Model

SWB6D

SWB15D

SWB24D

Capacity

6 L

15 L

24 L

Temperature range

+25°C to 99.9°C

+25°C to 99.9°C

+25°C to 99.9°C

Temperature stability

± 0.5°C

± 0.5°C

± 0.5°C

Internal dimensions ( w x d x h ),mm

300 x 150 x 200

300 x 325 x 200

300 x 500 x 200

Overall dimensions ( w x d x h ), mm

335 x 230 x 280

335 x 408 x 280

335 x 584 x 280

Net Weight, kg

6.5 kg

9.0 kg

12.8 kg

Heater Power

350 W

750 W

1400 W

Electrical supply

230 V, 50 Hz

230 V, 50 Hz

230 V, 50 Hz

IP Rating

31

31

31
