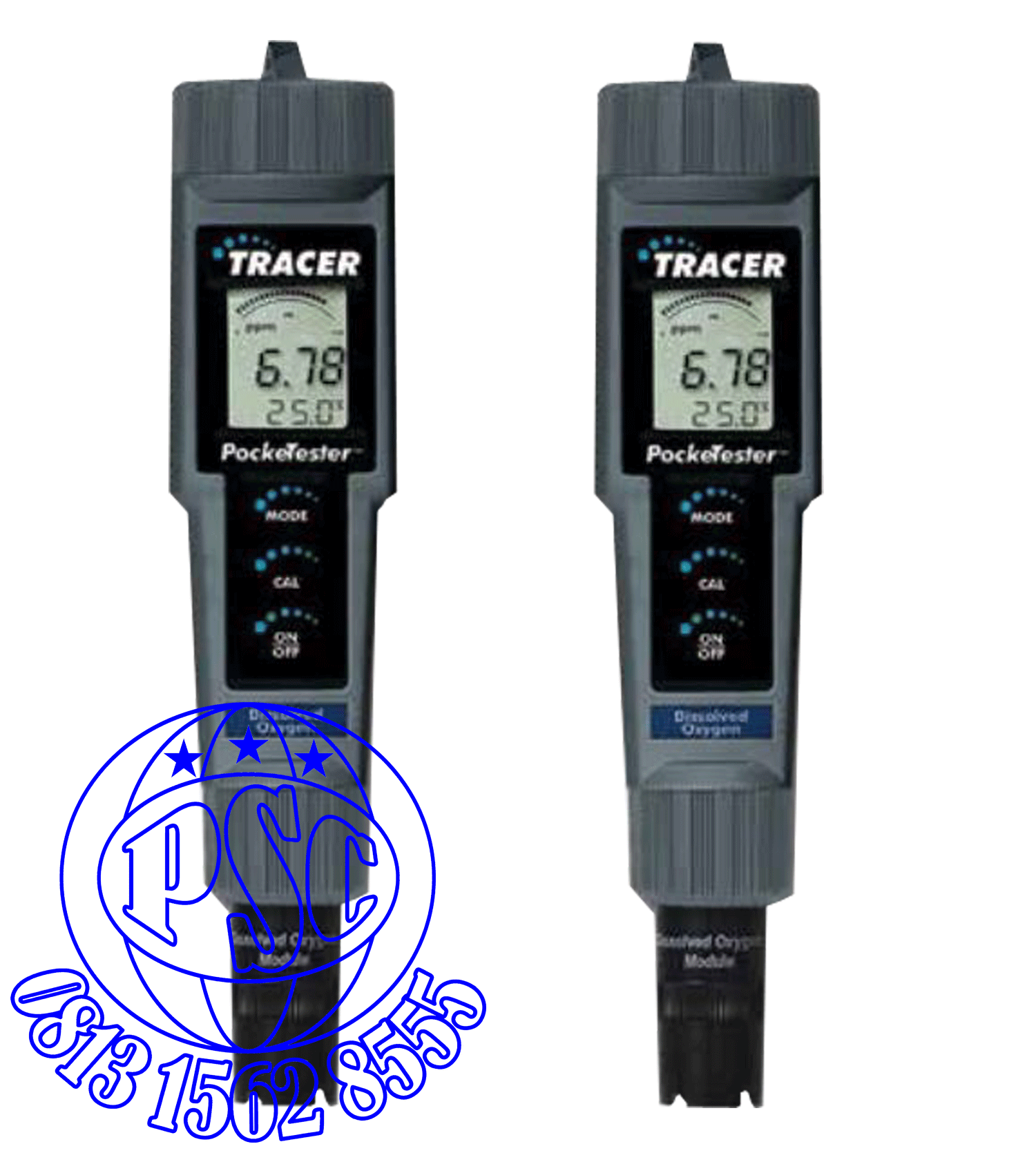

Dissolved Oxygen Tracer 1761 Lamotte
Applications	Water and Wastewater, Industrial Water Boiling and Cooling, Drinking Water
DO Sensor Module	Order Code 1762
Oxygen level displayed as %	Saturation from 0 to 200.0 % or Concentration from 0 to 20.00 ppm ( mg/L )
Adjustable Altitude	Compensation ( 0-20,000 ft in 1,000 ft increments )
Adjustable Salinity	Compensation from 0 to 50 ppt
Memory	stores up to 25 data sets with DO and Temperature reading
Self-calibration	on power up; Data Hold, Auto power off, Low battery indicator
Optional	3 ft ( 1 m ) or 16 ft ( 5 m ) extension cable
Complete with DO electrode, protective sensor cap, spare membrane cap, electrolyte, four 1.5V SR44W batteries, and 48" (1.2m) neckstrap
Specifications
Description	Range	Resolution	Accuracy
DO ( sat. mode )	0 to 200.0 %	0.1 %	±2 % FS
DO ( conc. mode )	0 to 20.00 ppm ( mg/L )	0.01 ppm ( mg/L )	0.4 ppm ( mg/L )
Temperature	32 to 122 °F ( 0 to 50 °C )	0.1 °F/°C	±1.8 °F ( 1 °C )
Dimensions	1.4 x 6.9 x 1.6" ( 36 x 176 x 41 mm )
Accessories
Description		Order Code	Ship Code
DO Membrane Kit ( 6 screw-on membranes and solution )		1761M	NH ( 1 )
Weighted Stand w/Sample Cups ( 5 )		1746	NH ( 1 )
Sample Cups w/caps ( 24 )		1745	NH ( 1 )
DO Extension Cable ( 1 meters )		1763	NH ( 1 )
DO Extension Cable ( 5 meters )		1764	NH ( 1 )
