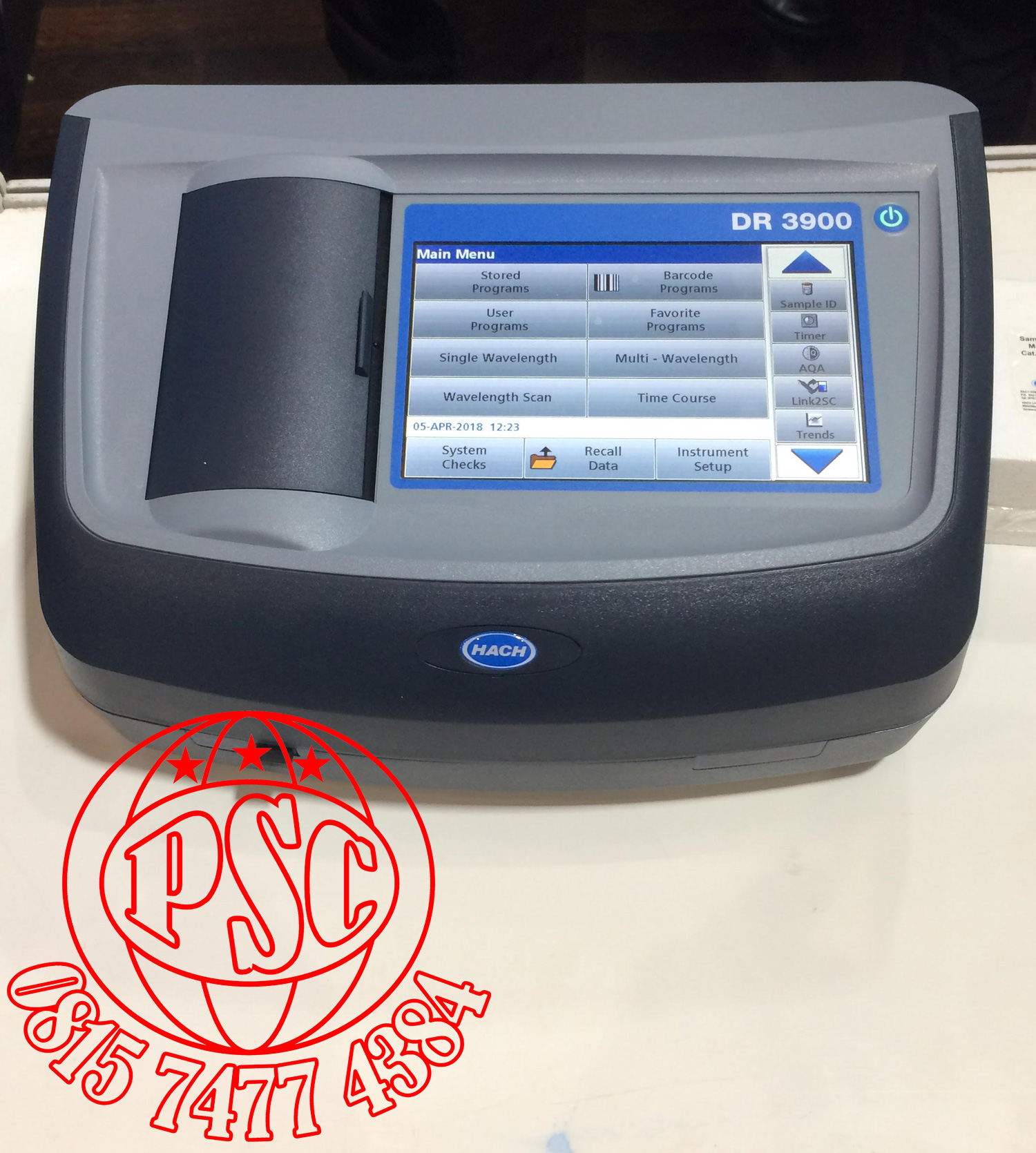

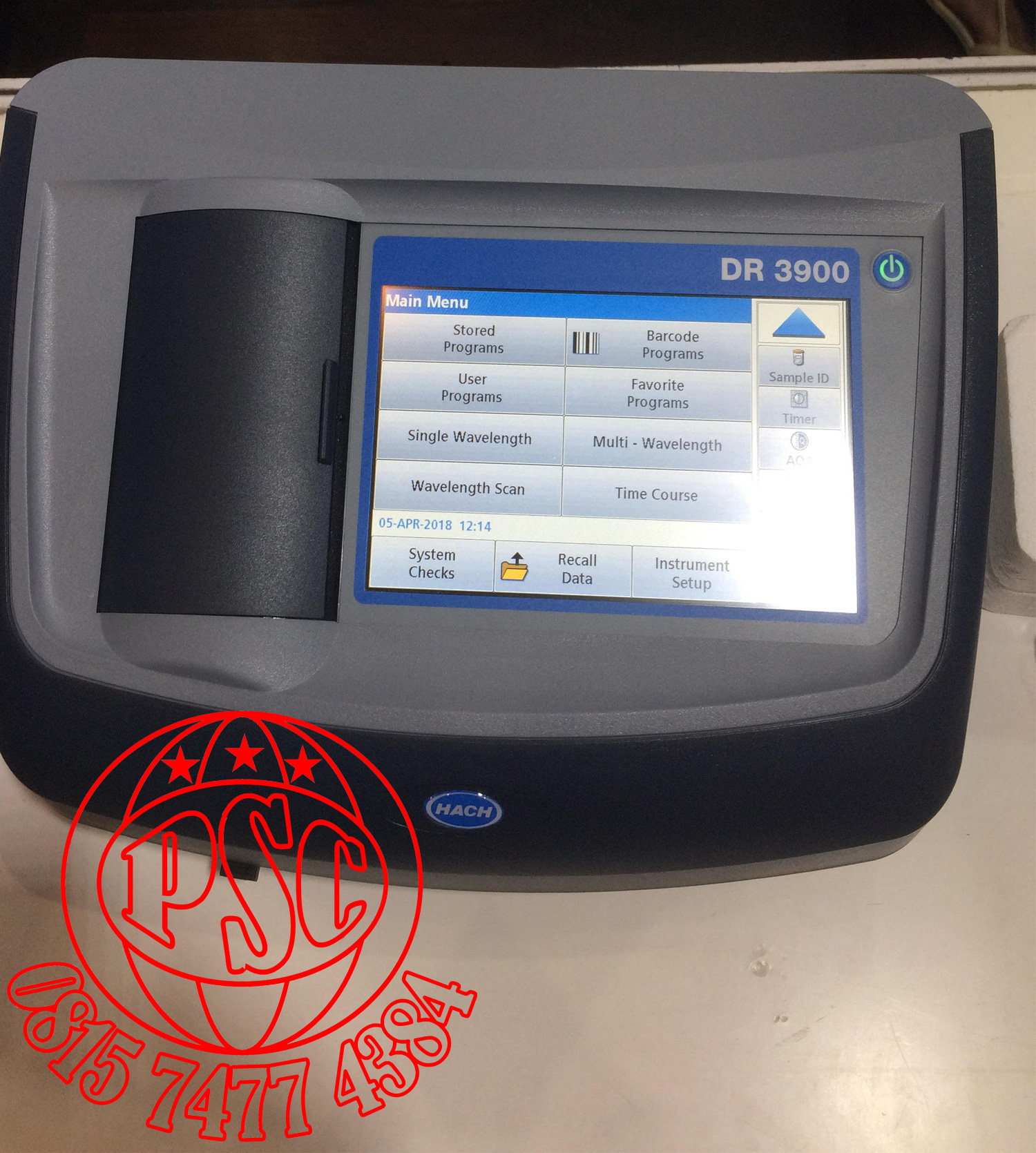

DR3900 Benchtop Spectrophotometer Hach |
|
|
DR3900 Benchtop VIS Spectrophotometer with RFID* Technology |
|
|
Catalog |
LPV440.99.00012 |
|
LPV440.99.00002 |
|
|
Specifications |
|
|
Beam Height |
10 mm |
|
Data Logger |
2000 measured values ( Result, Date, Time, Sample ID, User ID ) |
|
Dimensions ( H x W x D ) |
151 mm x 350 mm x 255 mm |
|
Display |
7" TFT |
|
Display Resolution |
WVGA ( 800 pix x 480 pix ) |
|
Display Size |
7 inch |
|
Display Type |
Colored touch-screen |
|
Enclosure Rating |
IP30 |
|
Includes |
Adapter "A" for 1" round + Accuvac/1 cm rectangular cuvettes, manual in m 5 languages ( GB, D, F, I, E ), power supply 100 - 240V, 47 – 63 Hz. |
|
Light Source |
Gas-filled Tungsten ( visible ) |
|
Manual Languages |
English, French ( CDN ), Spanish ( SA ), Portuguese (BR), Chinese, Japanese, Korean |
|
Max. operating humidity |
80 % |
|
Max. Storage Humidity |
80 % |
|
Operating Conditions |
10 °C to 40 °C |
|
Operating Mode |
Transmittance (%), Absorbance and Concentration, Scanning |
|
Optical System |
Reference beam, spectral |
|
Photometric Accuracy |
5 mAbs at 0.0 to 0.5 Abs |
|
Photometric Accuracy 2 |
1 % at 0.50 to 2.0 Abs |
|
Photometric Linearity |
< 0.5 % to 2 Abs |
|
Photometric Linearity 2 |
≤ 0.01 % at >2 Abs with neutral glass at 546 nm |
|
Photometric Measuring Range |
± 3.0 Abs ( wavelength range 340 to 900 nm ) |
|
Power Requirements |
With external power supply |
|
Power Requirements ( Hz ) |
50/60 Hz |
|
Power Requirements ( Voltage ) |
110 - 240 V AC |
|
Power Supply |
Desk Power Supply |
|
Preprogrammed Methods |
> 240 |
|
Sample Cell Compatibility |
Rectangular: 10, 20, 30, 50 mm, 1 inch; round: 13 mm, 16 mm, 1 inch |
|
Scanning Speed |
8 nm/S ( in steps of 1 nm ) |
|
Spectral Bandwidth |
5 nm ± 1 nm |
|
Storage Conditions |
-30 °C to 60 °C |
|
Stray Light |
< 0.1 % T at 340 nm with NaNO2 |
|
User Interface Languages |
Bulgarian, Chinese, Croatian, Czech, Danish, Dutch, English |
|
User Programs |
100 |
|
Wavelength Accuracy |
± 1.5 nm ( wavelength range 340 to 900 nm ) |
|
Wavelength Calibration |
Automatic |
|
Wavelength Range |
320 to 1100 nm |
|
Wavelength Reproducibility |
± 0.1 nm |
|
Wavelength Resolution |
1 nm |
|
Wavelength Selection |
Automatic, based on method selection |
|
Weight |
9.26 lbs. ( 4.2 kg ) |
