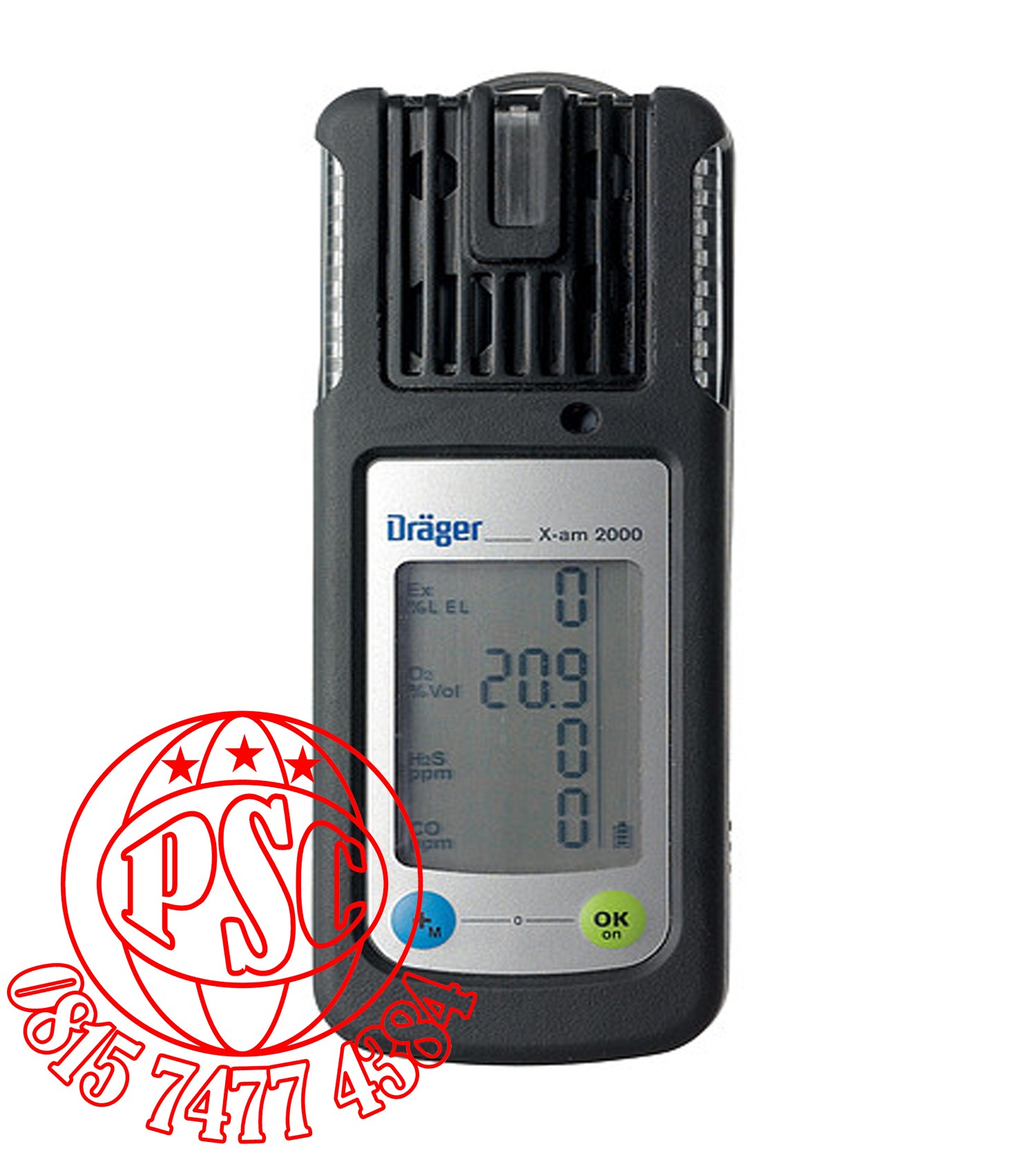

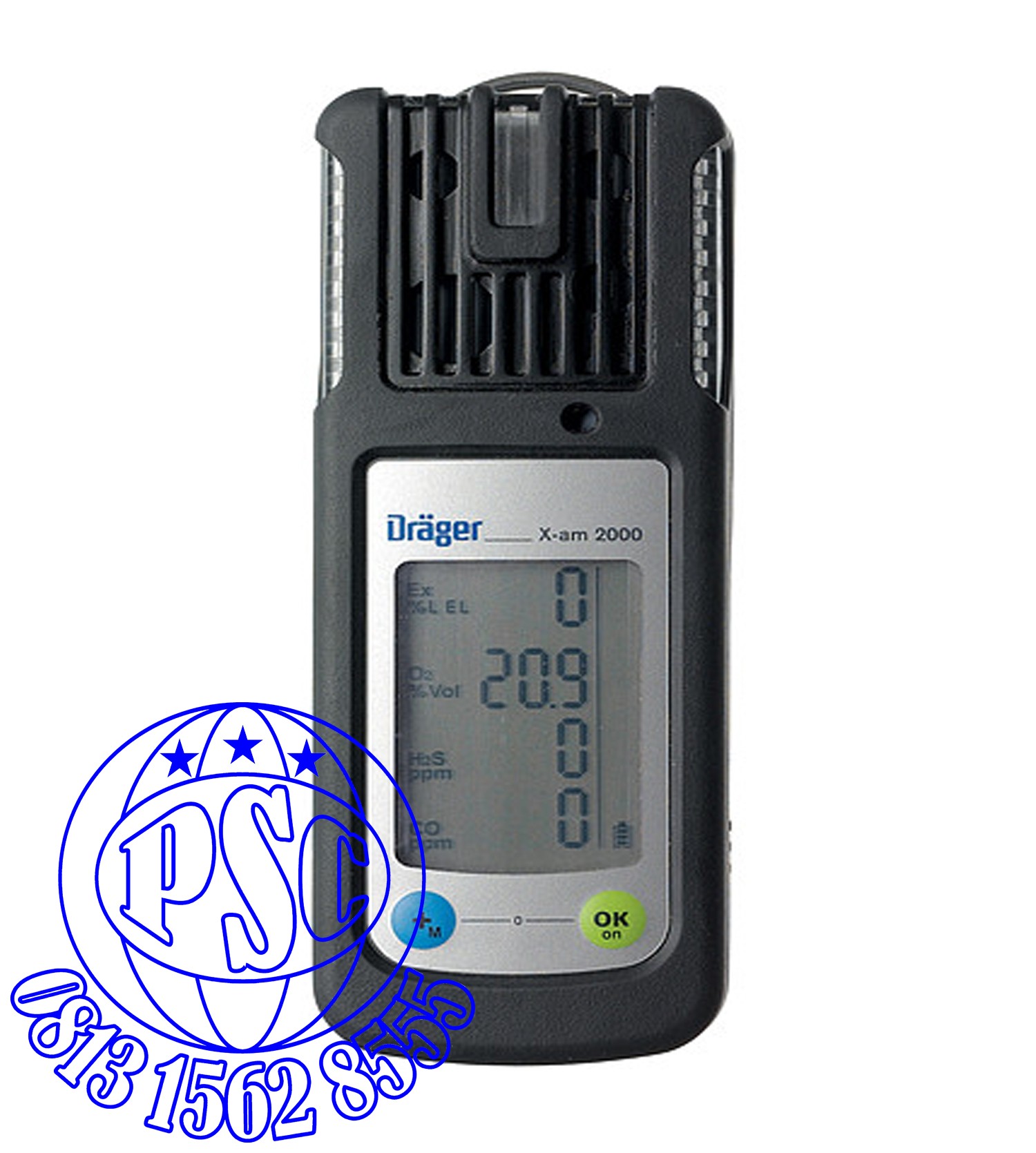

Drager X-AM 2000 Multi Gas Monitor

Specification

Dimensions ( W x H x D )

1.85”  x 5.08”  x 1.22”  ( 47 x 129  x 31 mm )

Weight

Approximately 7.8 oz ( 220 g )

Ambient conditions

Temperature -4 to +122  °F ( -20 to +50 °C )

Pressure

700 to 1300 mbar ( 20.7 to 38.4 inch Hg )

Humidity

10 to 95 % RH

Sensor

Measurement range

Response time T50 [ sec ]

Ex

0-100 % LEL or 0-5 vol.-%

8

O₂

0-25 vol.-%

6

CO

0-2000 ppm

6

H₂S

0-200 ppm

6

IP protection class

Instrument and sensor  block, IP 67

Alarms

Visual 180° Audible Multi-tone >90 dB at 30 cm ( 1 ft.)

Vibration Operating times

Alkaline > 12 hours

T4 battery pack > 12 hours

Charging times

< 4 hours

Data logger

Can be read out via IR > 1000 hours with 4 sensors  and a recording interval of 1 reading per minute

Approvals

ATEX

II 2G EEx ia d IIC T4/T3

I M2 EEx ia d I

UL

Class I Div. 1 Group A,B,C,D - CI. II E,F,G, T.-Code T4/T3

MSHA

Methane-air mixtures only

CSA

Class I Div.1 Group A,B,C,D, T.-Code T4/T3

IECEx

Ex ia d I/IIC T4/T3

CE-mark

Electromagnetic compatibility ( directive 89/336/EEC )
