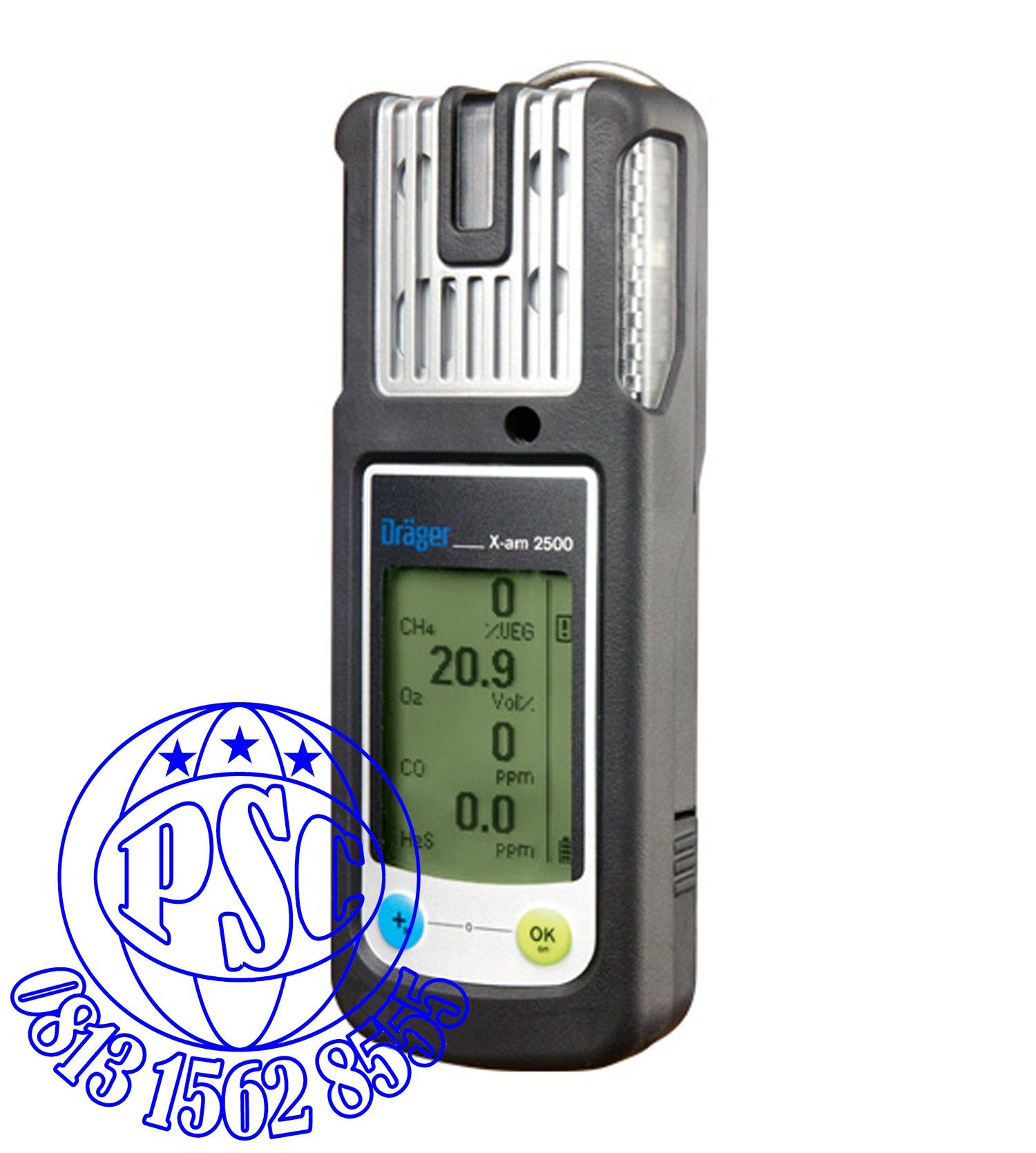

Drager X-AM 2500 Multi Gas Monitor

Dimensions ( W × H × D )

48 × 130 × 44 mm

Weight

220 – 250 g

Ambient conditions

Temperature

-20 to +50 °C

Pressure

700 to 1,300  mbar

Relative humidity

10 to 95 % RH

Protection class

IP67

Alarms

Visual

360°

Audible

Multi-tone > 90 dB at 30 cm

Vibration

Operating times

> 12 h with alkaline and NiMH,

> 13 h with NiMH HC,

> 250 h w/o Ex sensor with alkaline batteries

Charging time

< 4 h

Datalogger

Retrievable using an infrared interface > 1,000  h with 4 gases  at a recording interval of 1 value per minute

Approvals

ATEX

I M1 Ex ia I Ma, II 1G Ex ia IIC T3 Ga, I M2 Ex d ia I Mb, II 2G Ex d ia IIC T4/T3 Gb

Performance approval to :

EN 50104 ( 2002 ) + A1 ( 2004 )

O₂

EN 45544

CO & H₂S

EN 60079-29-1 : 2007

Methane to nonane

EN 50271 : 2010

Software and documentation

CSA ( Canada & USA )

Class I Div. 1 Group A, B, C, D T.-Code T4/T3

A/Ex ia IIC T3 /Ga

A/Ex d ia IIC T4/ T3 /Gb

IECEx

Ex ia I Ma

Ex ia IIC T3 Ga

Ex d ia I Mb

CE mark

Electromagnetic Compatibility ( Directive 2004/108/EC ); ATEX ( Directive 94/9/EC )

MED

Marine Equipment Directive ( Directive 96/98/EC )

Dräger X-am® 2500

Order No.

Dräger X-am® 2500  - Available in various versions. Cannot be modified later with other sensors. Includes calibration certificate. No power supply included.

Dräger X-am® 2500  EX1)

83 23 910

Dräger X-am® 2500  Ex, O₂  1)

83 23 912

Dräger X-am® 2500  Ex, O₂, H₂S-LC1)

83 23 914

Dräger X-am® 2500  Ex, O₂, CO1)

83 23 916

Dräger X-am® 2500  Ex, O₂, H₂S-LC, CO1)

83 23 918

Dräger X-am® 2500  Flex 1)

83 23 900

Choice of four sensors  ( 1 slot for CatEx and 3 slots for XXS sensors ). Can be modified later with other sensors. Includes calibration certificate. No power supply included.
