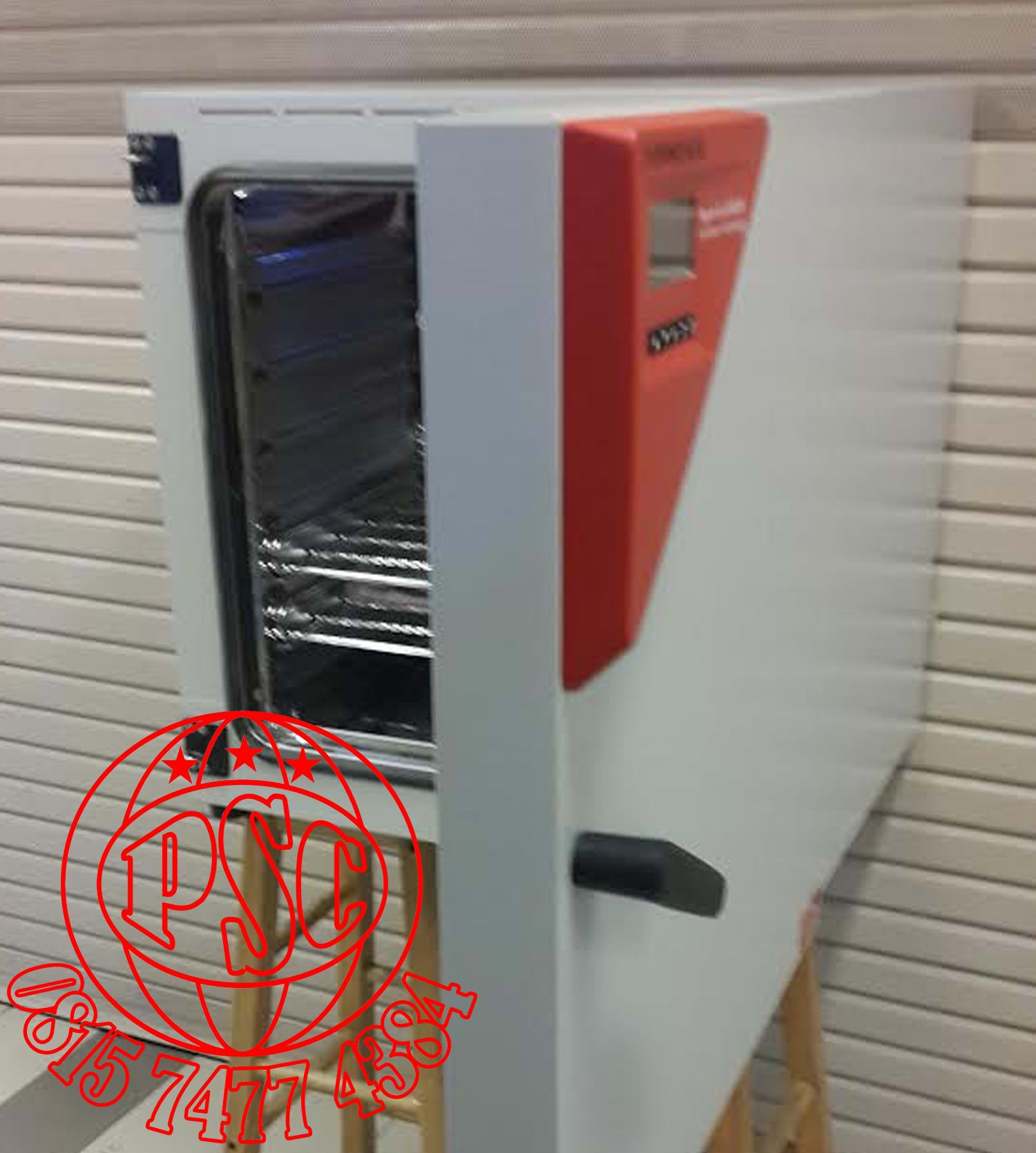

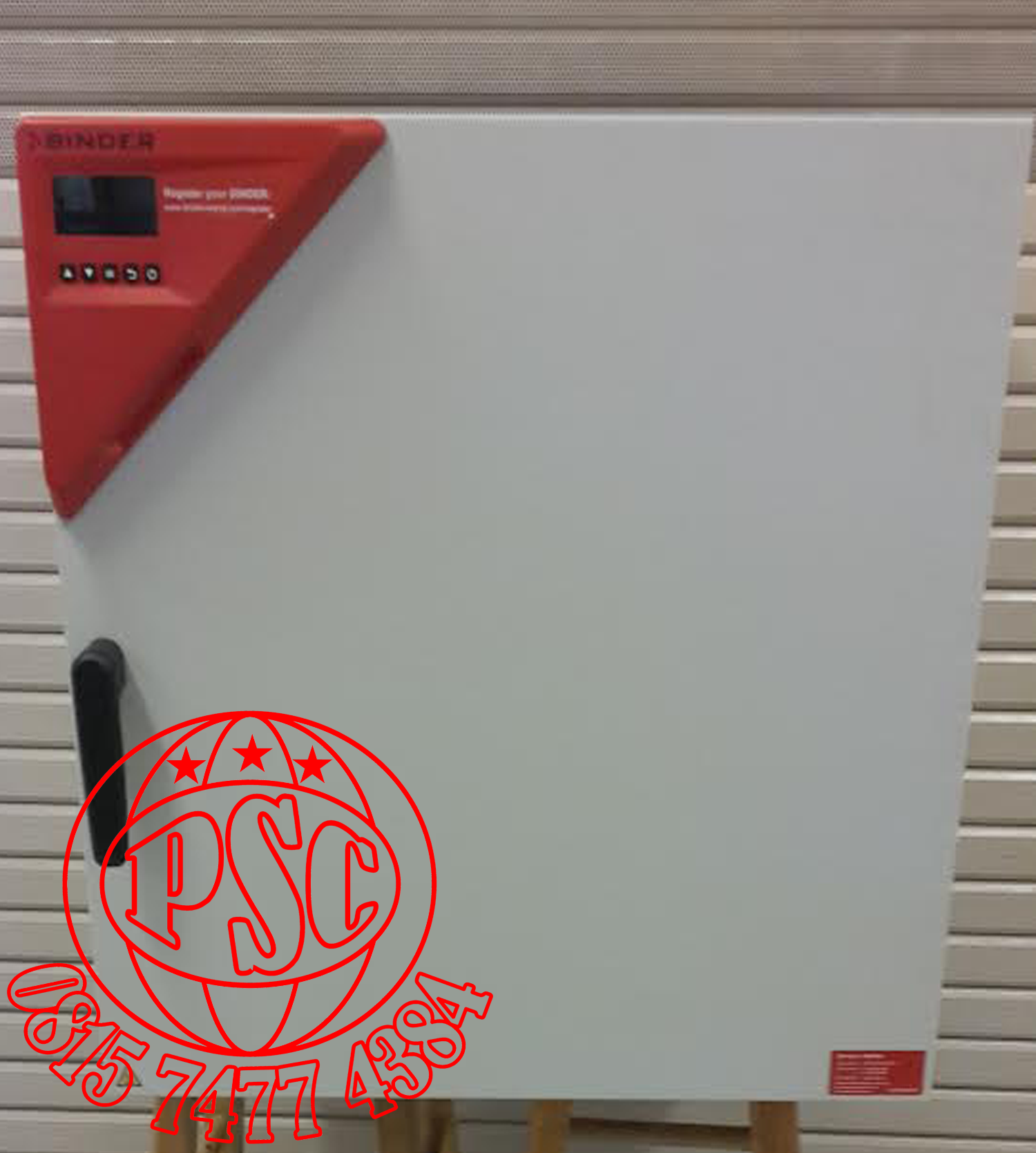

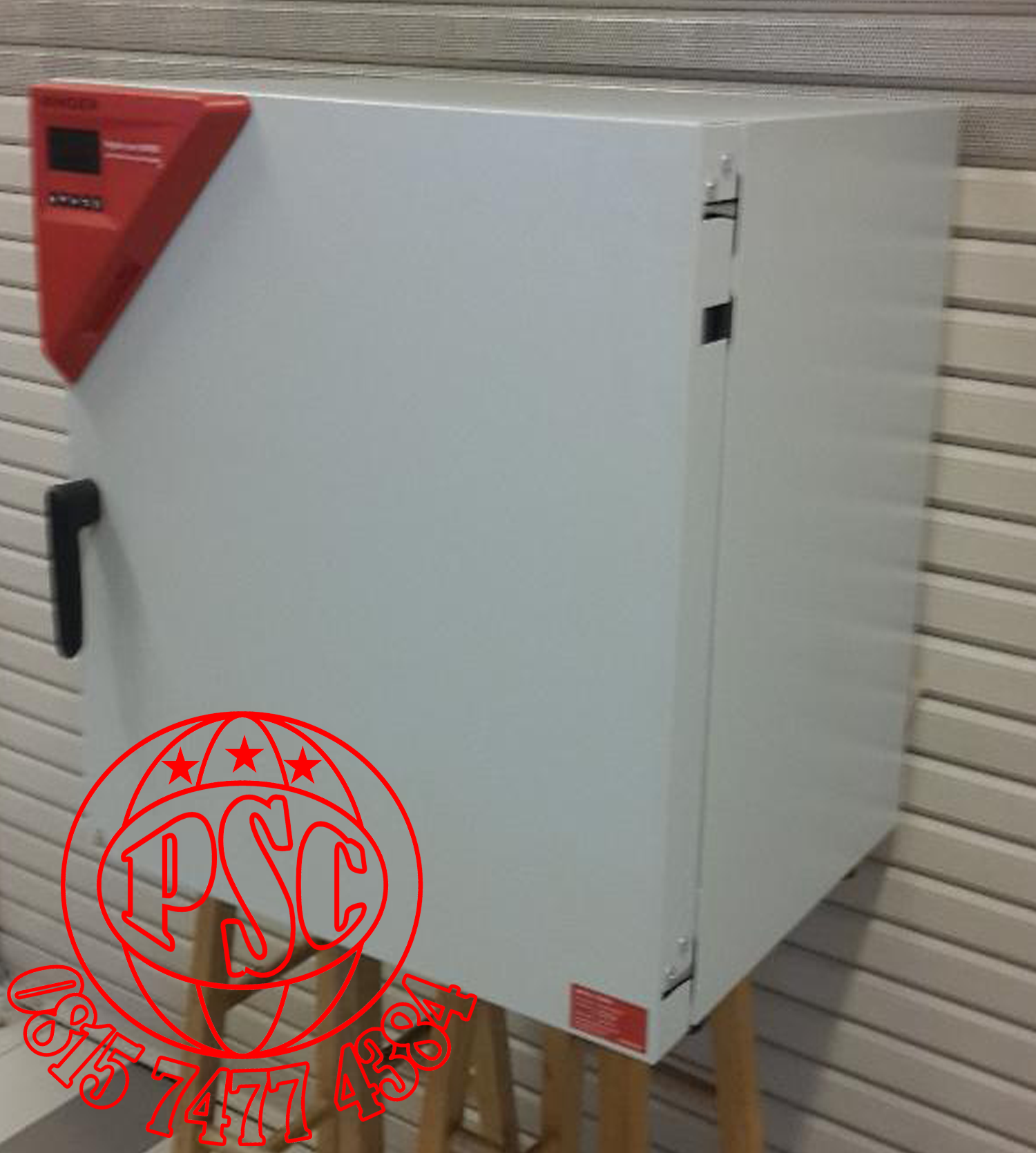

| Series ED | Drying and heating chambers Classic.Line with natural convection | |||
| important characteristics | |||
| Temperature range: room temperature plus 5 °C to 300 °C | |||
| APT.line™ preheating chamber technology | |||
| Free convection | |||
| Adjustable exhaust air flap | |||
| Controller with timer functions | |||
| 2 chrome-plated racks | |||
| Class 2 independent adjustable temperature safety device ( DIN 12880 ) with visual alarm | |||
| Technical Data ED Series | |||
| Description | ED 23 | ED 400 | ED 720 |
| Basic data | |||
| Interior volume [ L ] | 20 | 400 | 720 |
| Housing dimensions not incl. fittings and connections W x H x D [ mm ] |
435 x 495 x 520 | 1.235 x 1.025 x 765 | 1.235 x 1.530 x 865 |
| Performance Data Temperature | |||
| Temperature range 5 °C above ambient temperature to [°C] | 300 | 300 | 300 |
| Temperature uniformity at 150 °C [± K ] | 2,8 | 3 | 3,6 |
| Temperature fluctuation at 150 °C [± K ] | 0,5 | 0,5 | 0,5 |
| Heating-up time to 150 °C [min] | 28 | 71 | 84 |
| Recover y time after 30 seconds door open at 150 °C [min] | 28 | 31 | 34 |
| Series FED | Drying and heating chambers Classic.Line with forced convection and enhanced timer functions | |||
| important characteristics | |||
| Temperature range: room temperature plus 5 °C to 300 °C | |||
| APT.line™ preheating chamber technology | |||
| Adjustable fan speed | |||
| Adjustable exhaust air flap | |||
| Controller with expanded timer functions | |||
| 2 chrome-plated racks | |||
| Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm | |||
| Computer interface : RS 422 | |||
| Technical Data FED Series | |||
| Description | FED 400 | FED 720 | |
| Basic data | |||
| Interior volume [L] | 400 | 720 | |
| Housing dimensions not incl. fittings and connections W x H x D [mm] | 1.235 x 1.025 x 765 | 1.235 x 1.530 x 865 | |
| Performance Data Temperature | |||
| Temperature range 5 °C above ambient temperature to [°C] | 300 | 300 | |
| Temperature uniformity at 150 °C [± K ] | 3,8 | 3 | |
| Temperature fluctuation at 150 °C [± K ] | 0,7 | 0,3 | |
| Heating-up time to 150 °C [min] | 29 | 29 | |
| Recover y time after 30 seconds door open at 150 °C [min] | 6 | 8 | |
