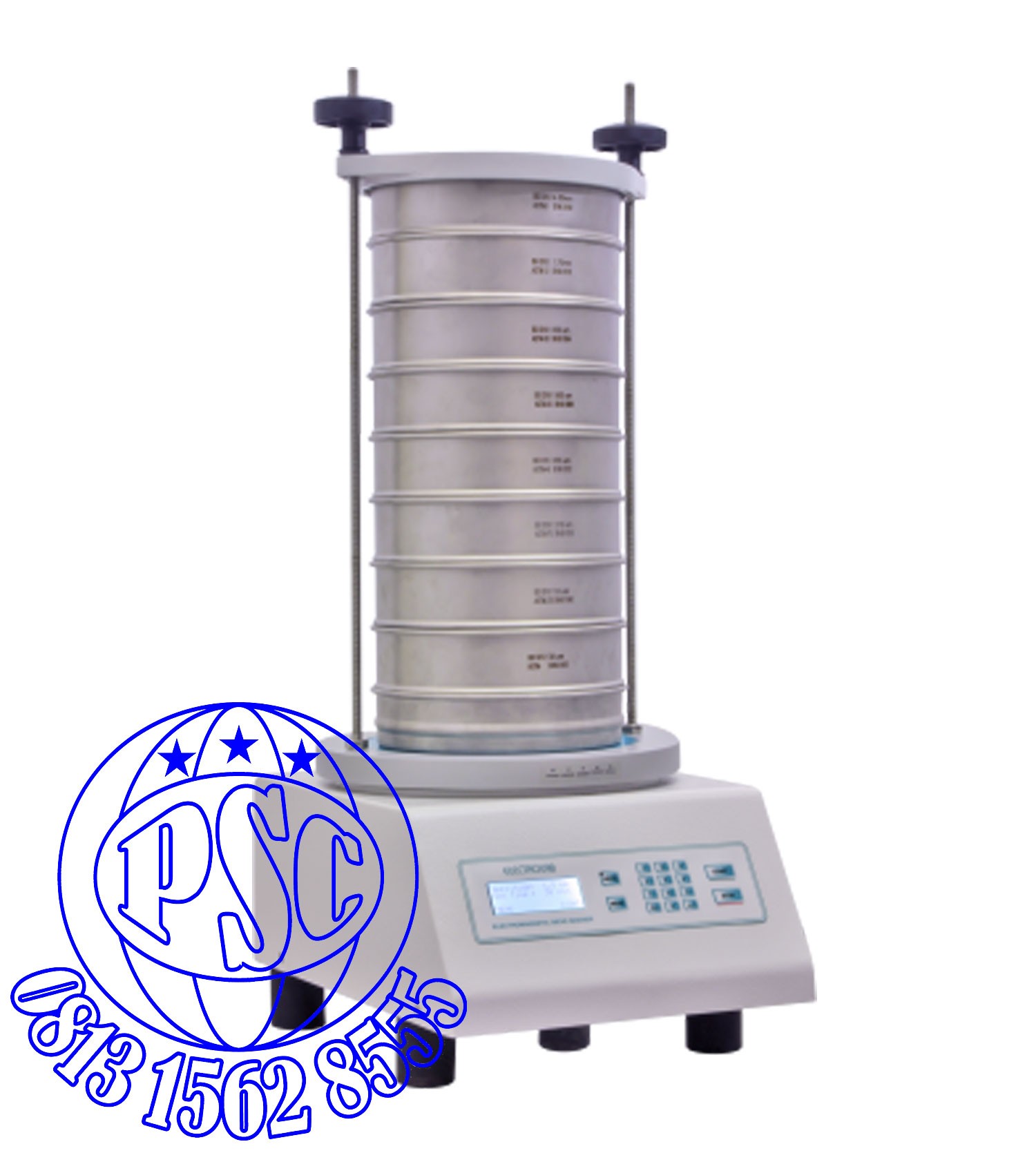

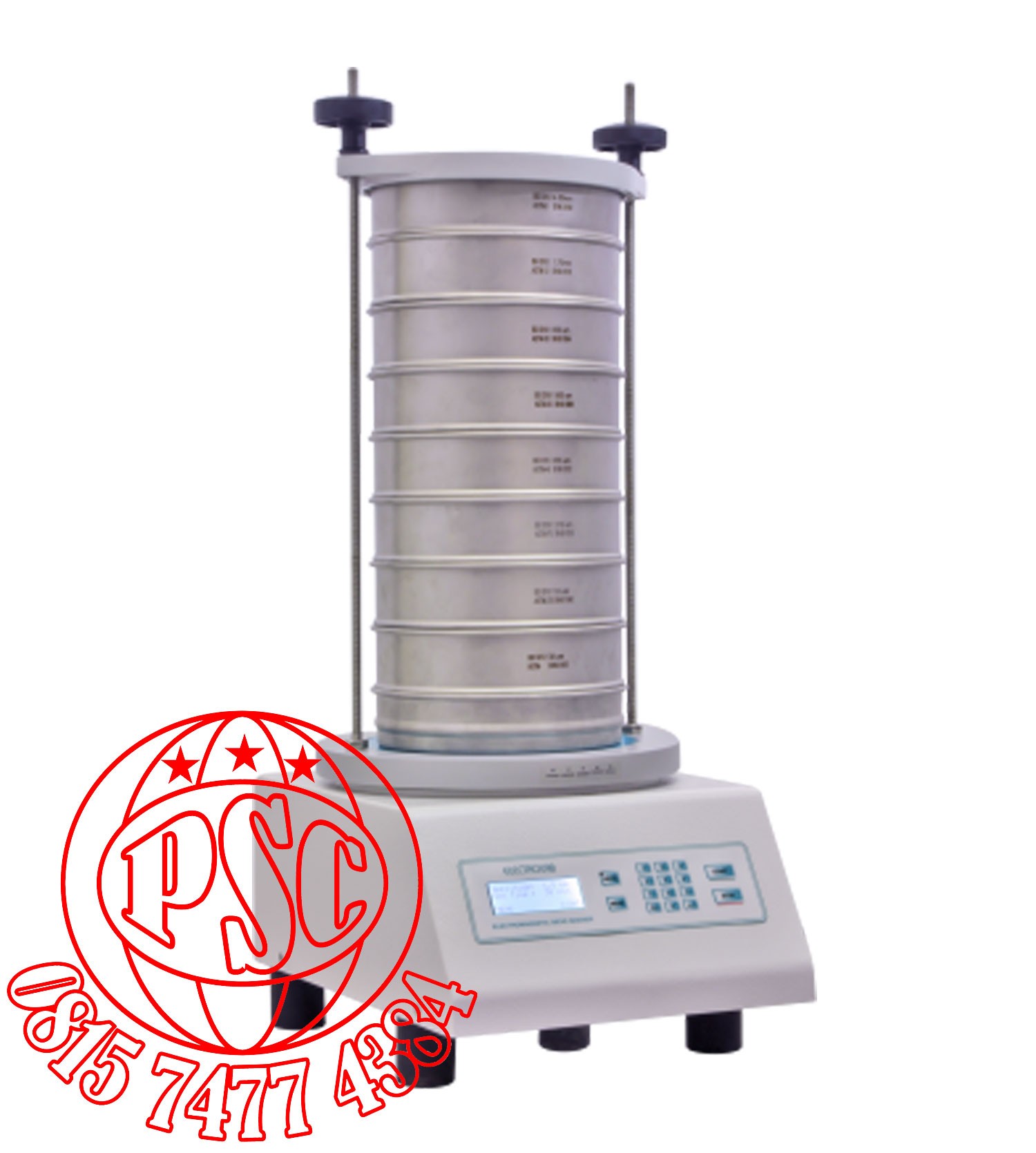

Electromagnetic Sieve Shaker EMS-8 Electrolab

Features

Ideal for particle size analysis and separation

Tri-dimensional sifting motion

Intermittent and continuous shifting motion with 15 programmable levels of amplitude

Very low noise operation with low maintenance

Programmable shake time from 1 min to 99 min

Suitable for dry and wet sieving

Dia 200 mm x h 50 mm ( upto 8 sieves ) and dia 100 mm x h 25 mm sieves ( upto 16 sieves ) are available

Specification

Dry sieving

Standard

Mode of operation

Continuous and intermittent

Intermittent operation

At intervals ( 0.5 sec.)

Capacity

Upto 8 sieves of 50 mm height

Upto 16 sieves of 25 mm height

Suitable for sieves from 28 µm to 4 mm

Shake time

Programmable from 1 min to 99 mins

Power level

Programmable from 5 to 20

Display

16 x 2 character alphanumeric LCD

Noise level

Less than 61 dB without sieves at maximum amplitude : Less than 71 dB with sieves and material at maximum amplitude

Power level

220/230V AC, 50 Hz, 600 VA

Dimensions ( L x W x H )

( 339 x 312 x 270 ) mm

Weight

50 kgs without sieves

Test Sieve Sizes

200 mm dia x 50 mm h and 100 mm dia x 25 mm h

ISO Nominal Aperture Supplementary

ASTM

Size R40/3

E11-01

B.S.S.

4.00 mm

No. 5

No. 4

3.35 mm

No. 6

No. 5

2.80 mm

No. 7

No. 6

2.36 mm

No. 8

No. 7

2.00 mm

No. 10

No. 8

1.70 mm

No. 12

No. 10

1.40 mm

No. 14

No. 12

1.18 mm

No. 16

No. 14

1.00 mm

No. 18

No. 16

850 μm

No. 20

No. 18

710 μm

No. 25

No. 22

600 μm

No. 30

No. 25

500 μm

No. 35

No. 30

425 μm

No. 40

No. 36

355 μm

No. 45

No. 44

300 μm

No. 50

No. 52

250 μm

No. 60

No. 60

212 μm

No. 70

No. 72

180 μm

No. 80

No. 85

150 μm

No. 100

No. 100

125 μm

No. 120

No. 120

106 μm

No. 140

No. 150

90 μm

No. 170

No. 170

75 μm

No. 200

No. 200

63 μm

No. 230

No. 240

53 μm

No. 270

No. 300

45 μm

No. 325

No. 350

38 μm

-

-

28 μm

-

-
