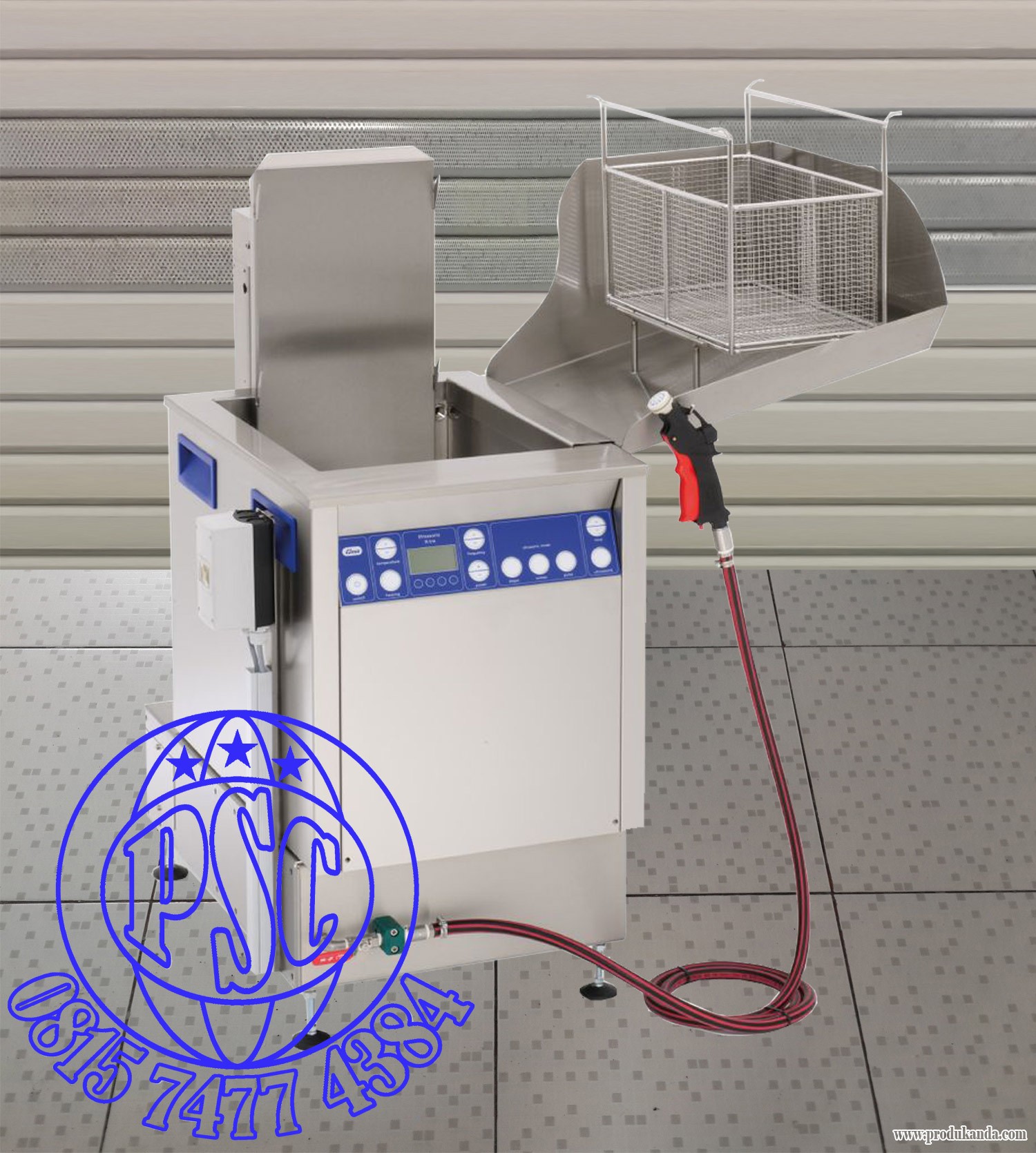

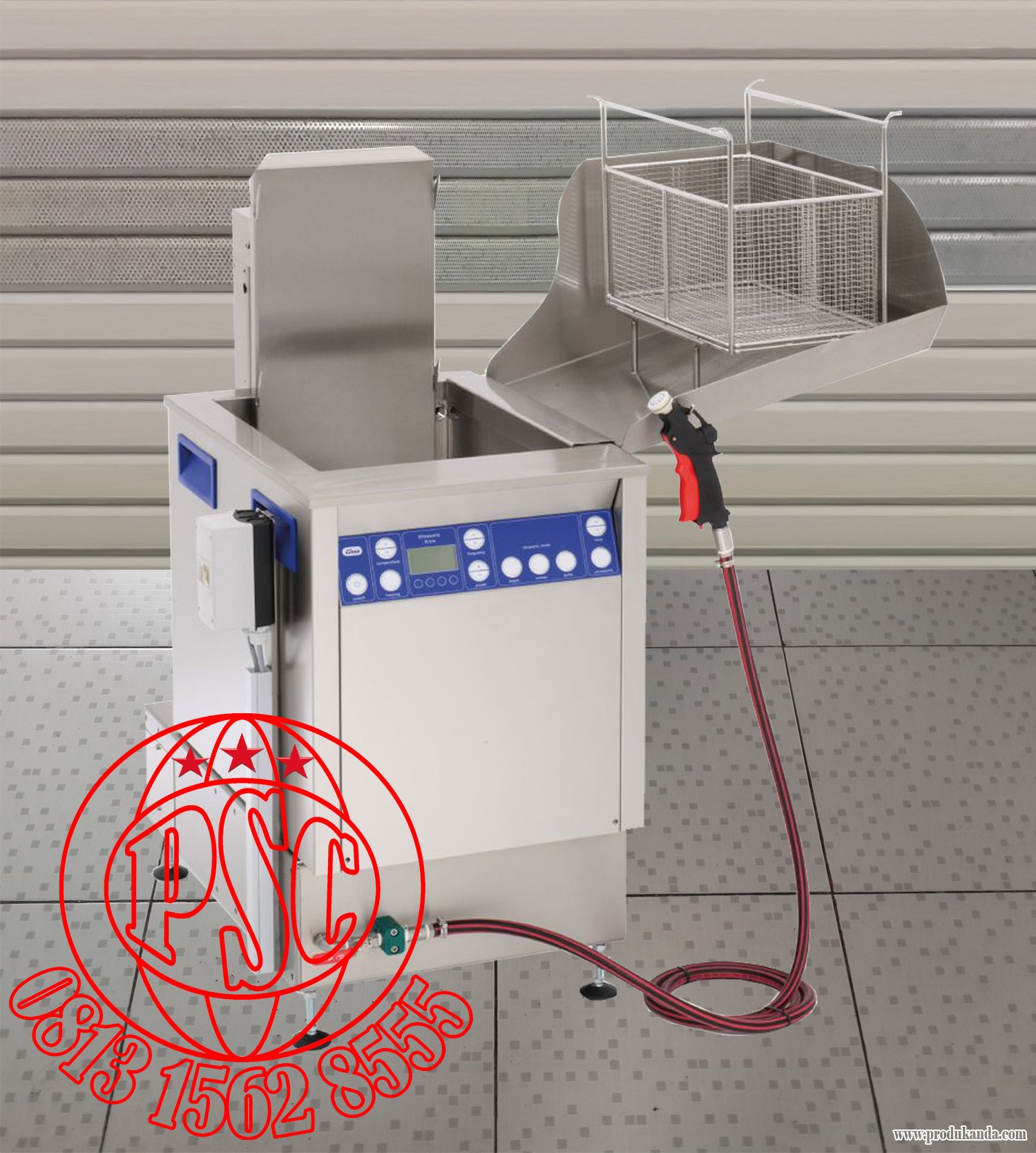

Elmasonic X-tra line Flex 1 Elma Ultrasonic Cleaner
Ultrasonic cleaning with oscillation.
The modular single cleaning station is designed for industrial use and is available in five sizes ( 300, 550, 800, 1200 and 1600 litres ). Equipped with two design variants : Multi-frequency 25/45 kHz ( MF2 ) or 35/130 kHz ( MF3 ) and an oscillation device for the cleaning basket that supports the cleaning effect of the ultrasound and provides a drain position for the stainless steel basket; the Elmasonic X-tra pro modules are ideal for various cleaning tasks.
Up to 5 user-defined cleaning programs can also be created and called up as well as functions such as Sweep, Pulse and Degas. Other product features such as
ultrasonic bath made of special stainless steel with high cavitation resistance ( V4A )
skimming ledge for optional surface run-off of e.g. oils
bottom run-off of cleaned sediments ( optional ) complete the range
Technical Data
Model	X-tra Line 300Flex1	X-tra Line 550Flex 1	X-tra Line 800Flex1	X-tra Line 1200Flex1	X-tra Line 1600Flex1
Ultrasonic frequency ( kHz )	25/45 or 35/130	25/45 or 35/130	25/45 or 35/130	25/45 or 35/130	25/45 or 35/130
Max. tank capacity ( l )	32.0	55.0	84.0	112.0	167.0
Total power requirement ( W )	2300	3900	6800	9300	9500
Unit outer dim W/D/H ( mm )	500/770/1100	500/940/1200	500/940/1500	730/1070/1500	730/1070/1700
Tank inner dim W/D/H ( mm )	327/332/250	327/501/295	327/501/445	519/600/303	550/600/456
EKO basket inner dim W/D/H ( mm )	248/258/188	248/428/224	244/4248/372	436/509/222	433/509/372
Weight ( kg )	80.0	90.0	110.0	200.0	220.0
