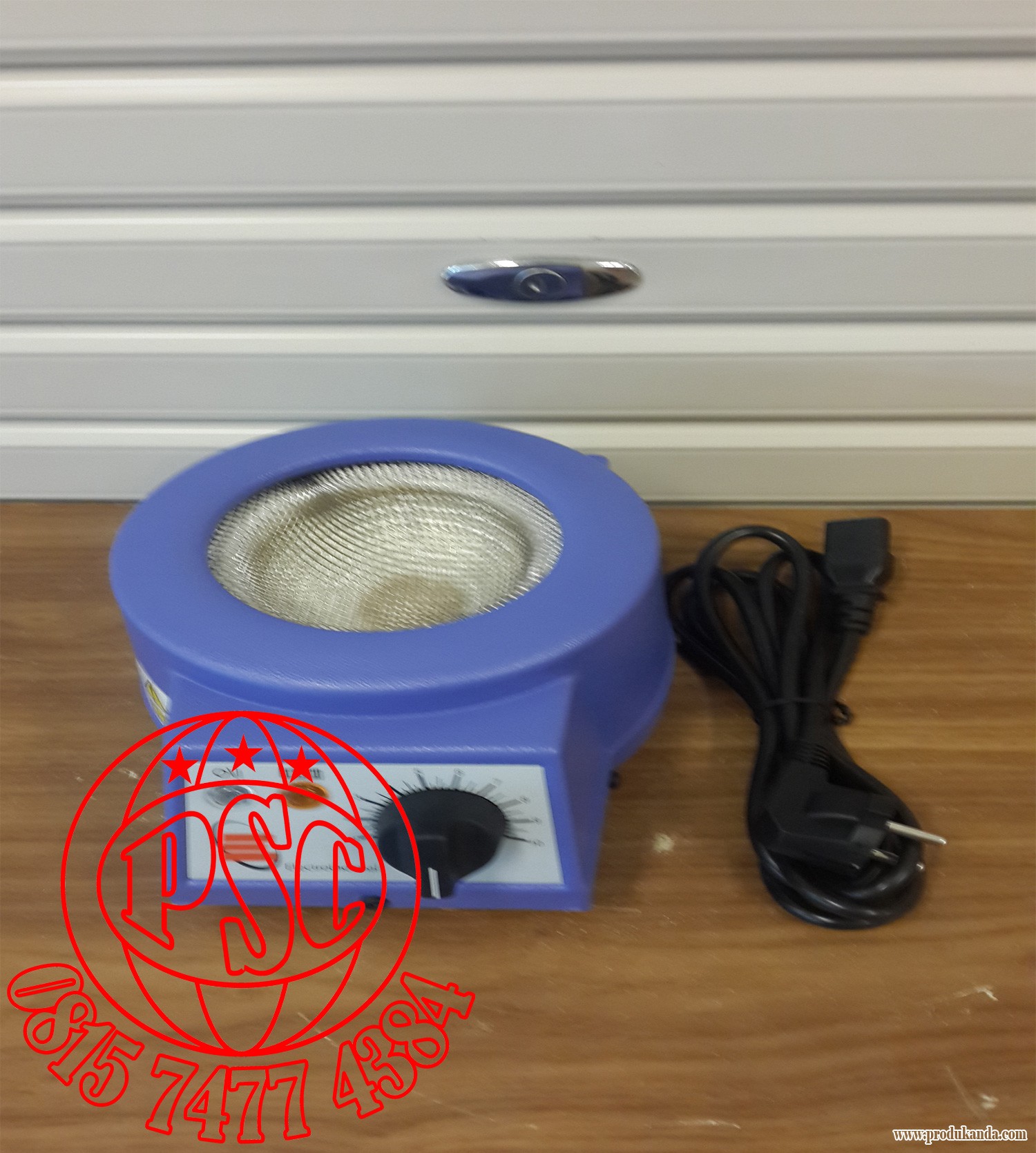

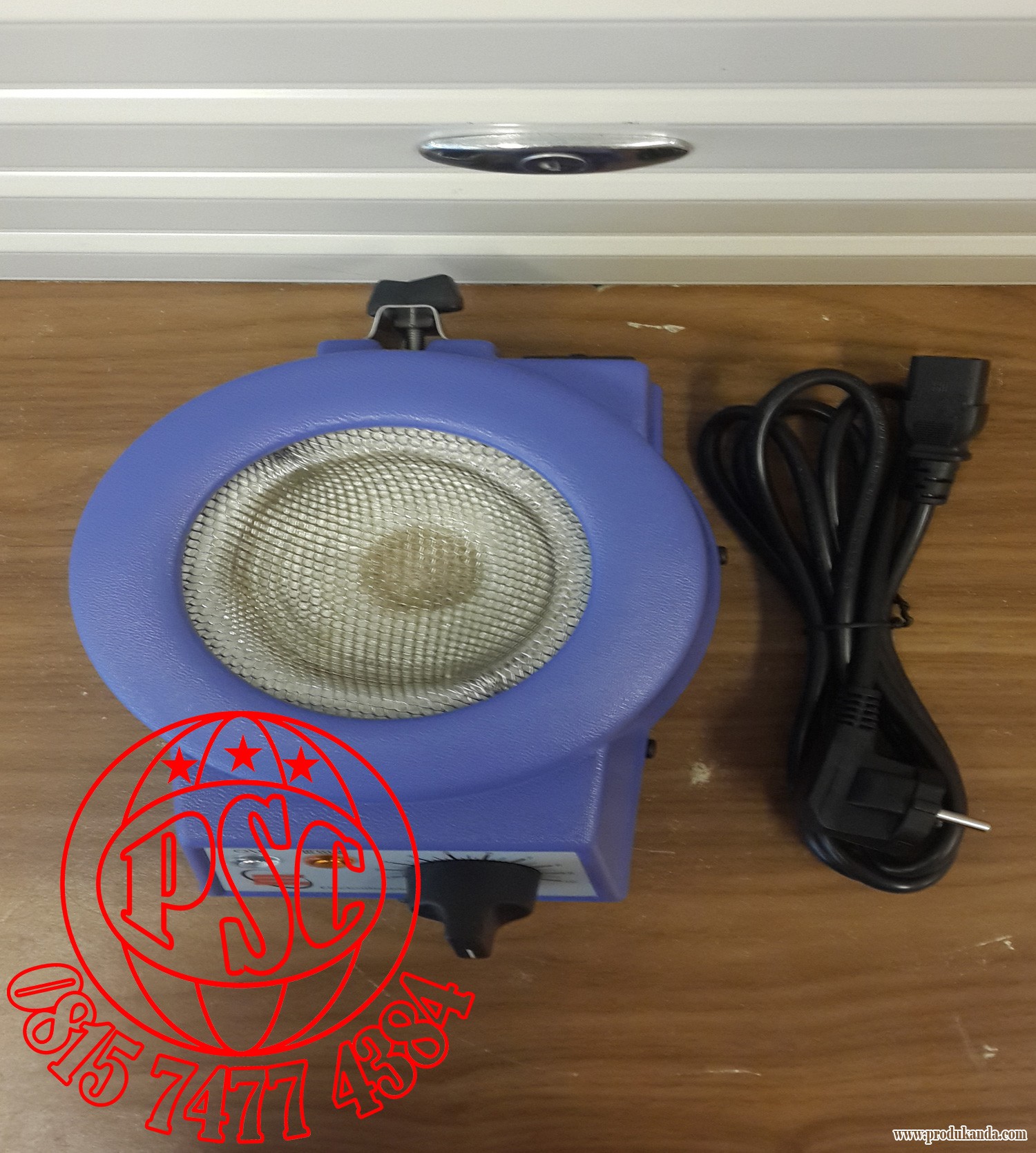

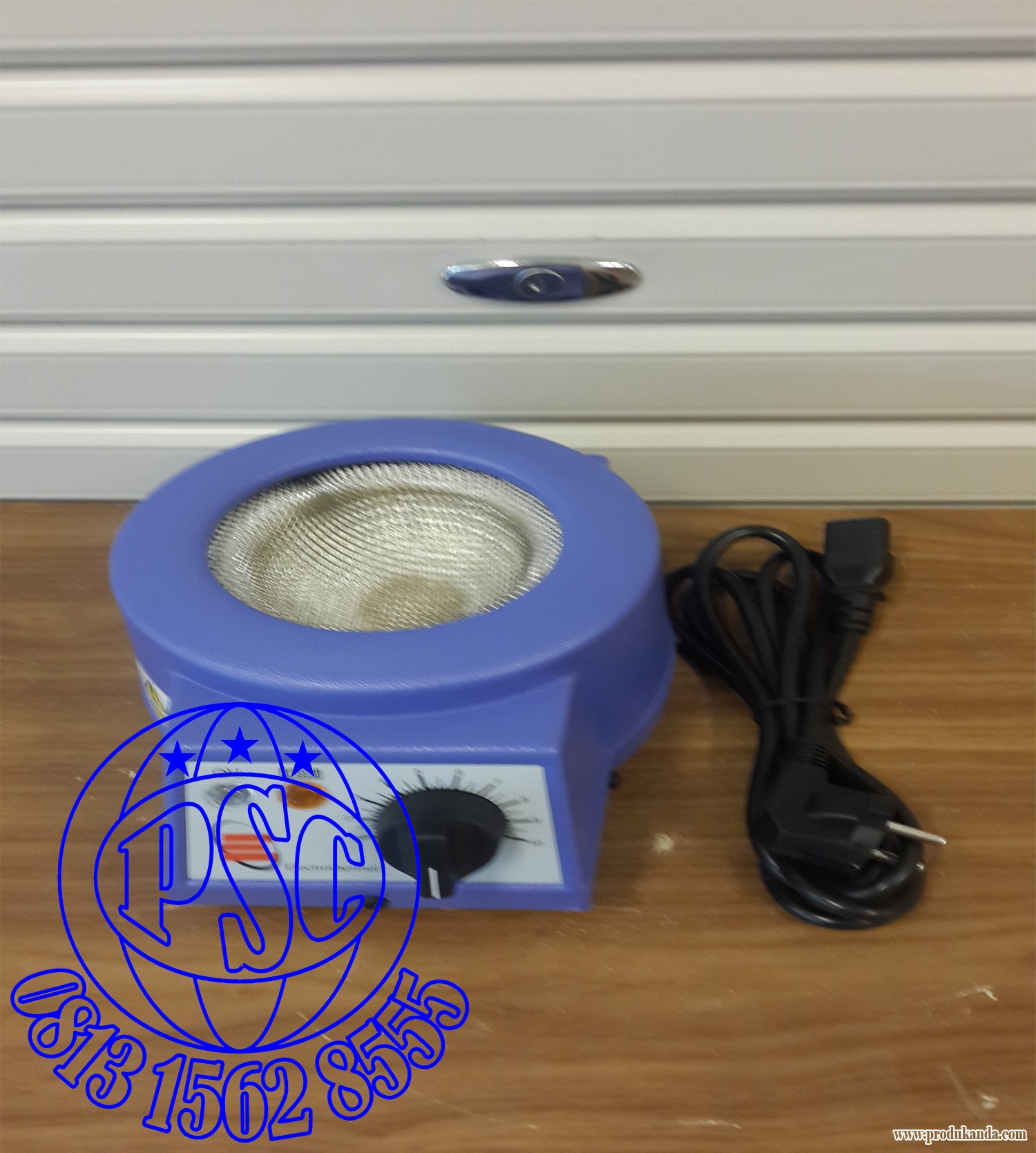

EMA Heating and Stirring Electromantles
The EMA Electromantle shares all the features of the standard EM Electromantle, but has the added functionality of magnetic stirring. The solid state stirring circuitry is built into the base of the main housing and provides powerful stirring over a range of capacities and viscosities. The stir bar is seldom lost due to our "auto-recapture" function.
Magnetic Stirring
The EMA Electromantle has the added functionality of stirring which widens the range of applications. Stirring operation is simply achieved by placing the correct size stir bar into the flask, turning the stir control to the minimum speed and ramping up slowly. If the magnetic coupling to the stir bar is lost for any reason, the stir speed control should be reduced slightly and the auto-recapture switch can be activated.
Key Features
Accepts round bottom flasks from 50 ml to 2 litres capacity
Bi-directional stirring speeds up to 520 rpm
Stir bar "auto-recapture" function
"Cool-to-touch" design
Maximum element temperature 450°C
Built-in energy regulator
Replaceble insulated heater cartridge
Indicator lamps for power and heater operation
A chemically resistant polypropylene outer casing
A grounded earth screen and double fuses for extra safety
Bracket for 1.3 cm support rods ( but not including the support rods )
Technical Specification
EMA Model	EMA0050, EMA0100, EMA0250	EMA0500, EMA1000	EMA2000
Flask capacity	50 ml - 250 ml	500 - 1000 ml	2000 ml
Material	Polypropylene outer casing	Polypropylene outer casing	Polypropylene outer casing
Max element temperature	450 °C	450 °C	450 °C
Dimensions ( D x W x H )	260 x 175 x 133 mm	310 x 238 x 157 mm	400 x 350 x 197 mm
Shipping weight	1.73 kg	2.75 kg	5.68 kg
Ordering Information
Model	Capacity	Electrical Requirements
EMA0050/CEB	50 ml	230v 50ኘHz, 80 w UK and EU plug
EMA0050/CEBX1	50 ml	115v 50/ 60Hz, 96 w
EMA0100/CEB	100 ml	230v 50/ 60Hz, 80 w UK and EU plug
EMA0100/CEBX1	100 ml	115v 50/ 60Hz, 96 w
EMA0250/CEB	250 ml	230v 50/ 60Hz, 170 w UK and EU plug
EMA0250/CEBX1	250 ml	115v 50/ 60Hz, 210 w
EMA0500/CEB	500 ml	230v 50/ 60Hz, 220 w UK and EU plug
EMA0500/CEBX1	500 ml	115v 50/ 60Hz, 270 w
EMA1000/CEB	1000 ml	230v 50/ 60Hz, 320 w UK and EU plug
EMA1000/CEBX1	1000 ml	115v 50/ 60Hz, 400 w
EMA2000/CEB	2000 ml	230v 50/ 60Hz, 520 w UK and EU plug
EMA2000/CEBX1	2000 ml	115v 50/ 60Hz, 595 w
