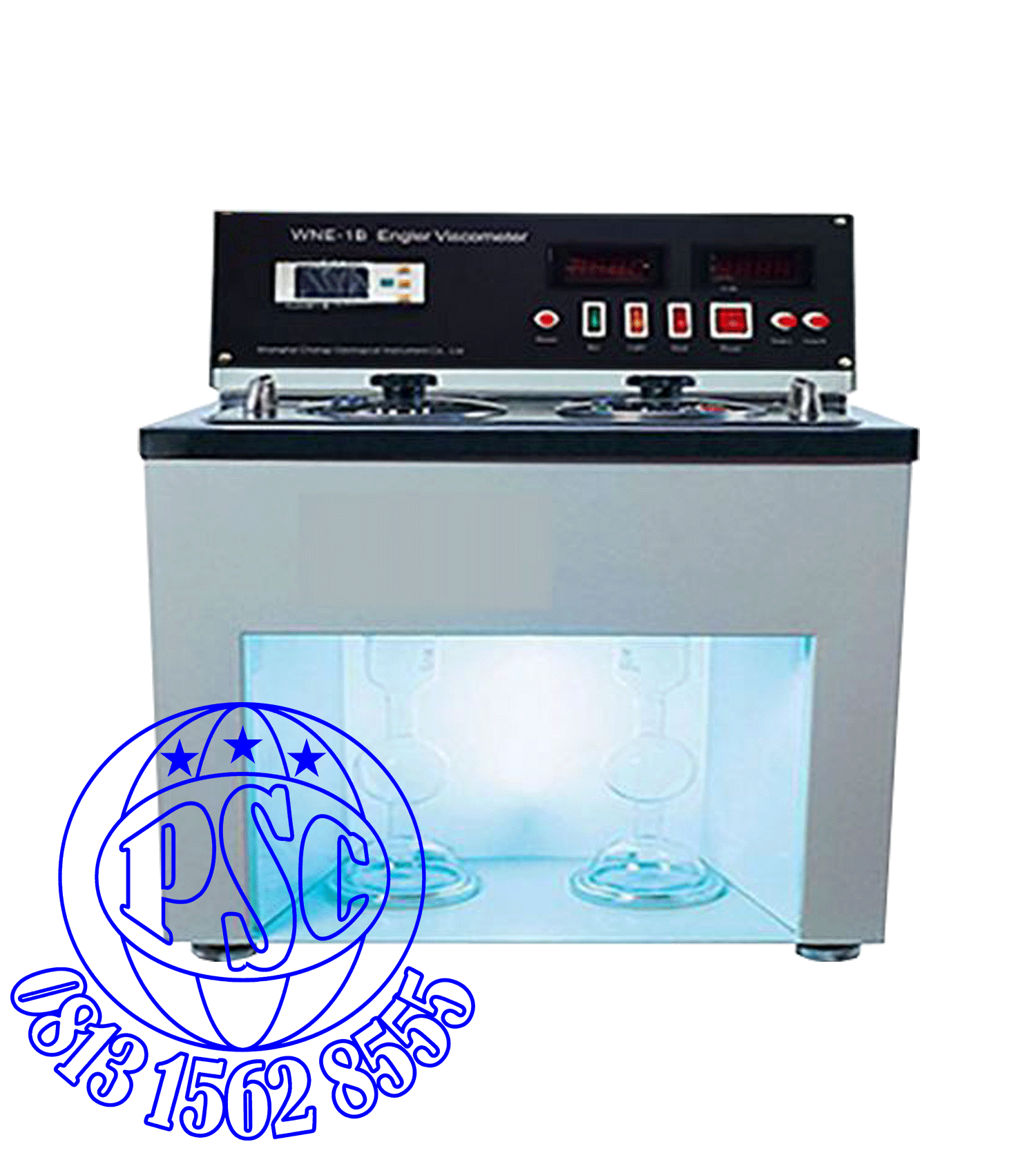

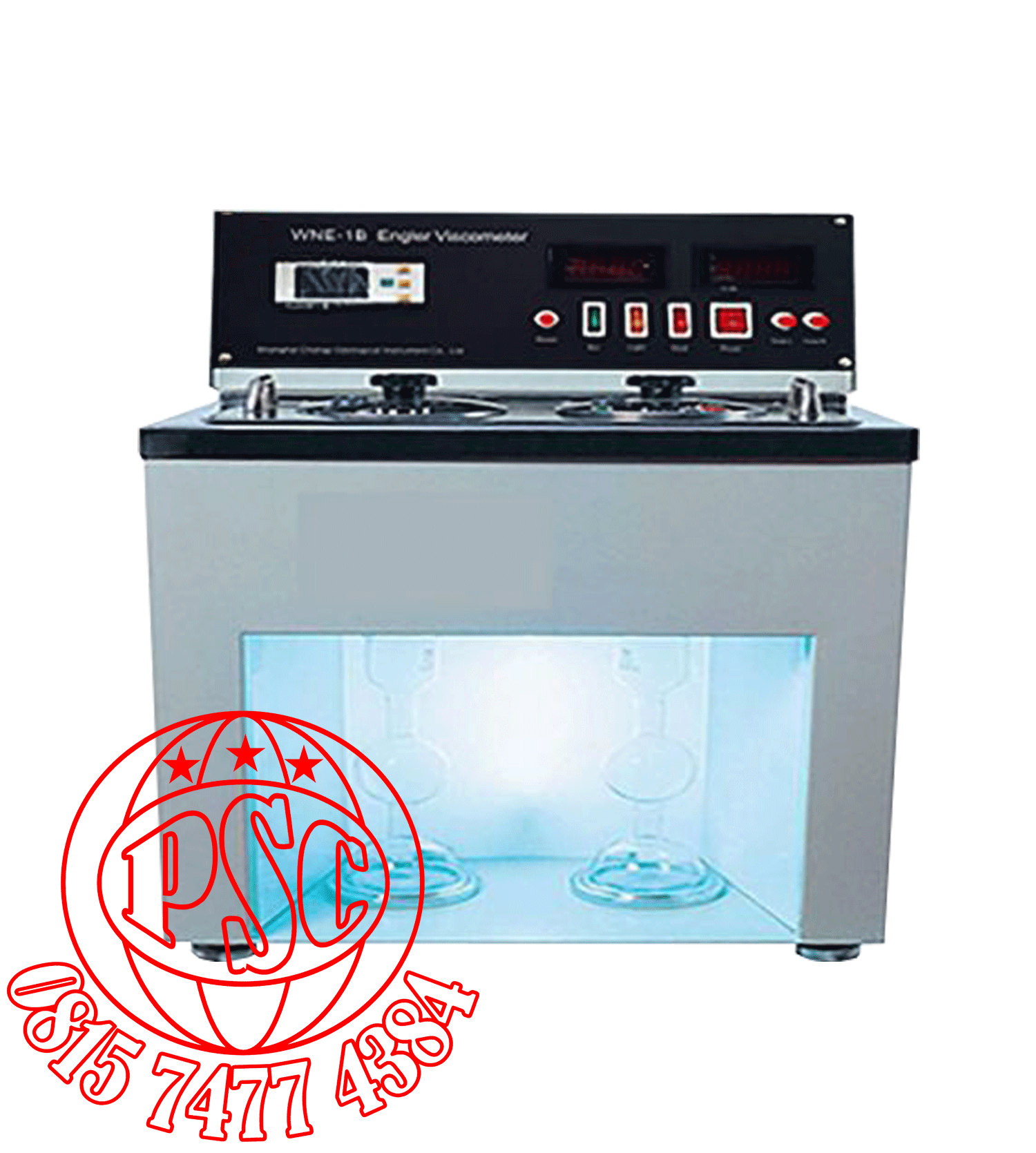

WNE-1B Engler Viscometer

This instrument is designed and made as per national standard ASTM D1665 and GB/T266 Petroleum Products- Determination of Engler Viscosity, T0622 Bitumen Engler Viscosity Determination (Engler viscometer method) in national industrial standard JTG E20-2011 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering and Shanghai enterprise standard Q/YXYY11 WNE-1 Engler Viscometer.It is suitable to determine the rate of time (seconds) of liquid flow out from Engler viscometer and time (seconds) of distilled water flow out at 20ºC under certain temperature and cubage.This rate is the Engler viscosity.Unit is Engler degree.

Specifications

Power supply

AC ( 220 ±10 % )V, 50 Hz

Standard water value

( 51 ±1 ) s

Temp. range

( 0~100 ) ºC

Temp. control accuracy

±0.1 ºC

Engler viscosity thermometer

Correspond with GB/T 514

Specification of measuring flask

( 200 ±0.2 ) ml

Inner crucible

Stainless steel material

Timing

Max 999.9s

Timing mode

LED electronic timing

Heating power

700W

Ambient temp.

( -10~+40 ) ºC

R H

≤85 %

Dimension

430 × 410 × 620 mm

Maximum power consumption

800 W

Accessories & documents List

Name

Unit

Qty

Memo

WNE-1B Engler Viscometer

Set

1

Temperature sensor

Pcs

1

Installed in the instrument

Receiving flask (100ml)

Pcs

2

Engler thermometer (0~50)ºC, scale division  is  0.5ºC

Pcs

1

Engler thermometer (0~100) ºC, scale division  is  0.1ºC

Pcs

1

Wooden stopper of viscometer

Pcs

2

Fuse 10A (φ5×20)

Pcs

2

Stopping ring for thermometer (1#)

Pcs

2

Operating Manual

Pcs

1

Temperature control device usage manual

Pcs

1

Quality Certificate

Pcs

1

Repair Guarantee

Pcs

1

Reagent & Auxiliary Equipments

Name

Specification

Quantity

Memo

Glycerol or silicone oil

Open flash point >180ºC

2 bottles

Absolute ethyl alcohol

Analytical pure 500ml

1 bottle

Petroleum solution

Industry grade

2L

Trichloro ethylene

Distilled water

3 grade 500 ml

Some

Filter sieve

Hole 1.18 mm

1 piece
