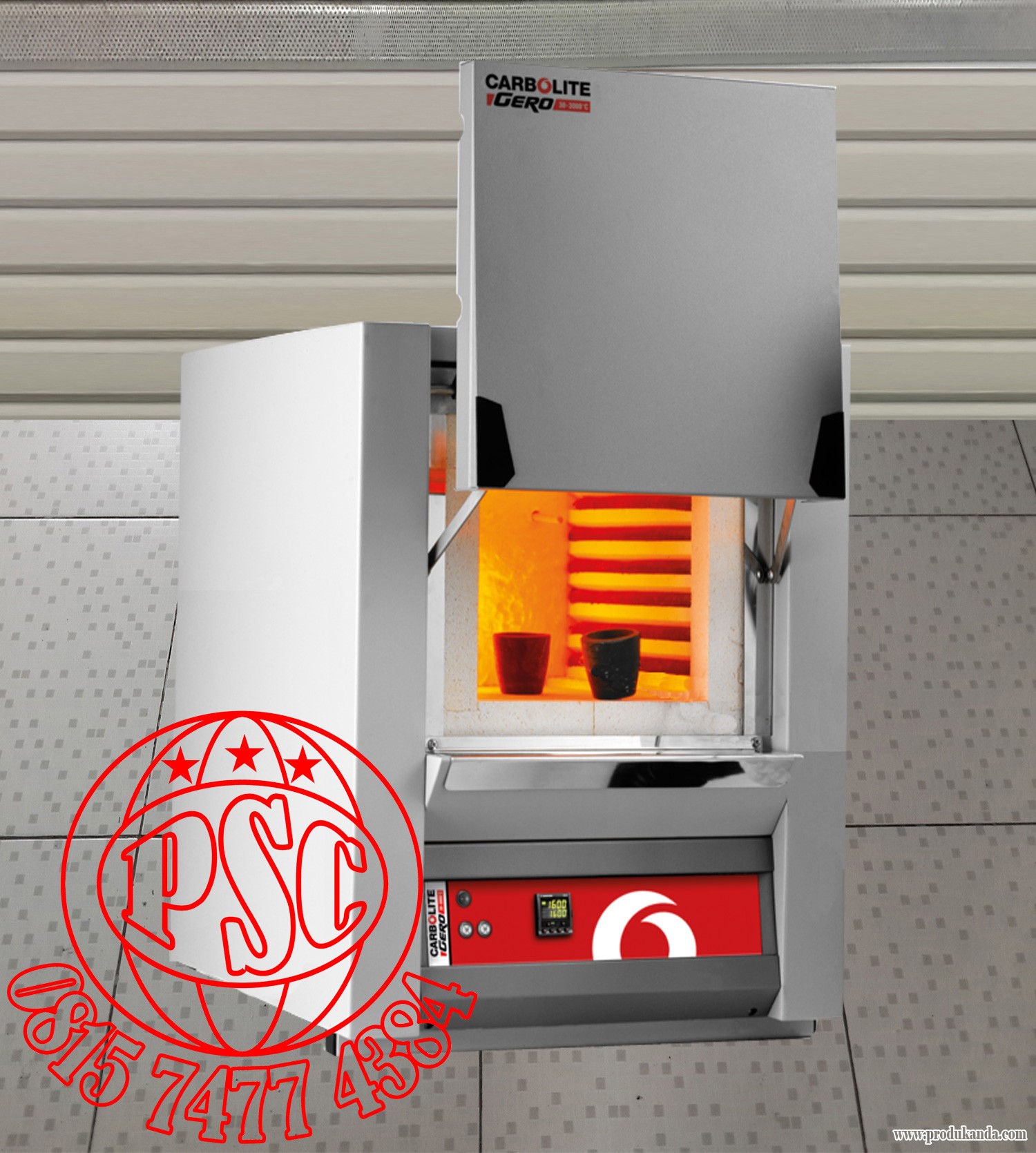

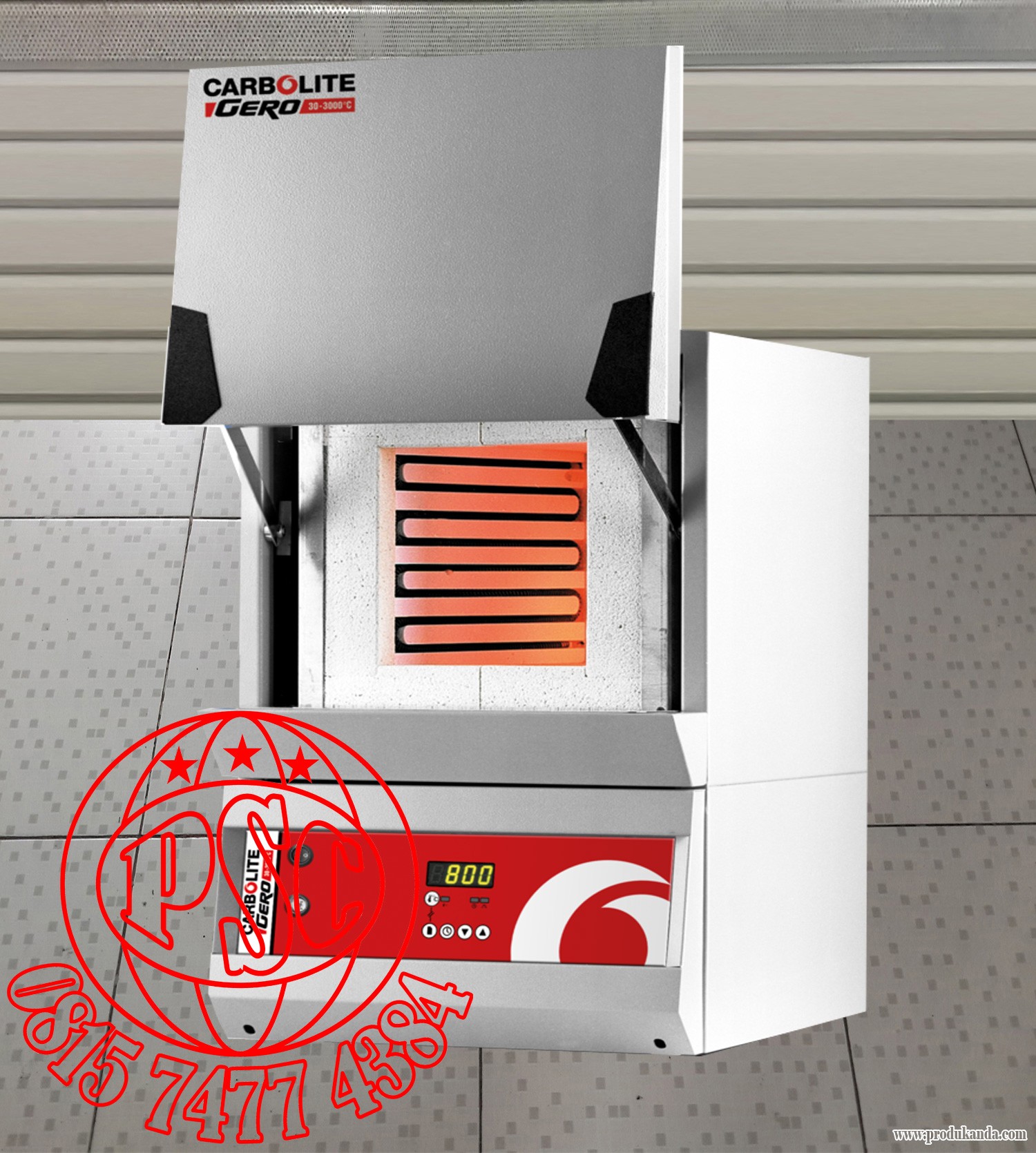

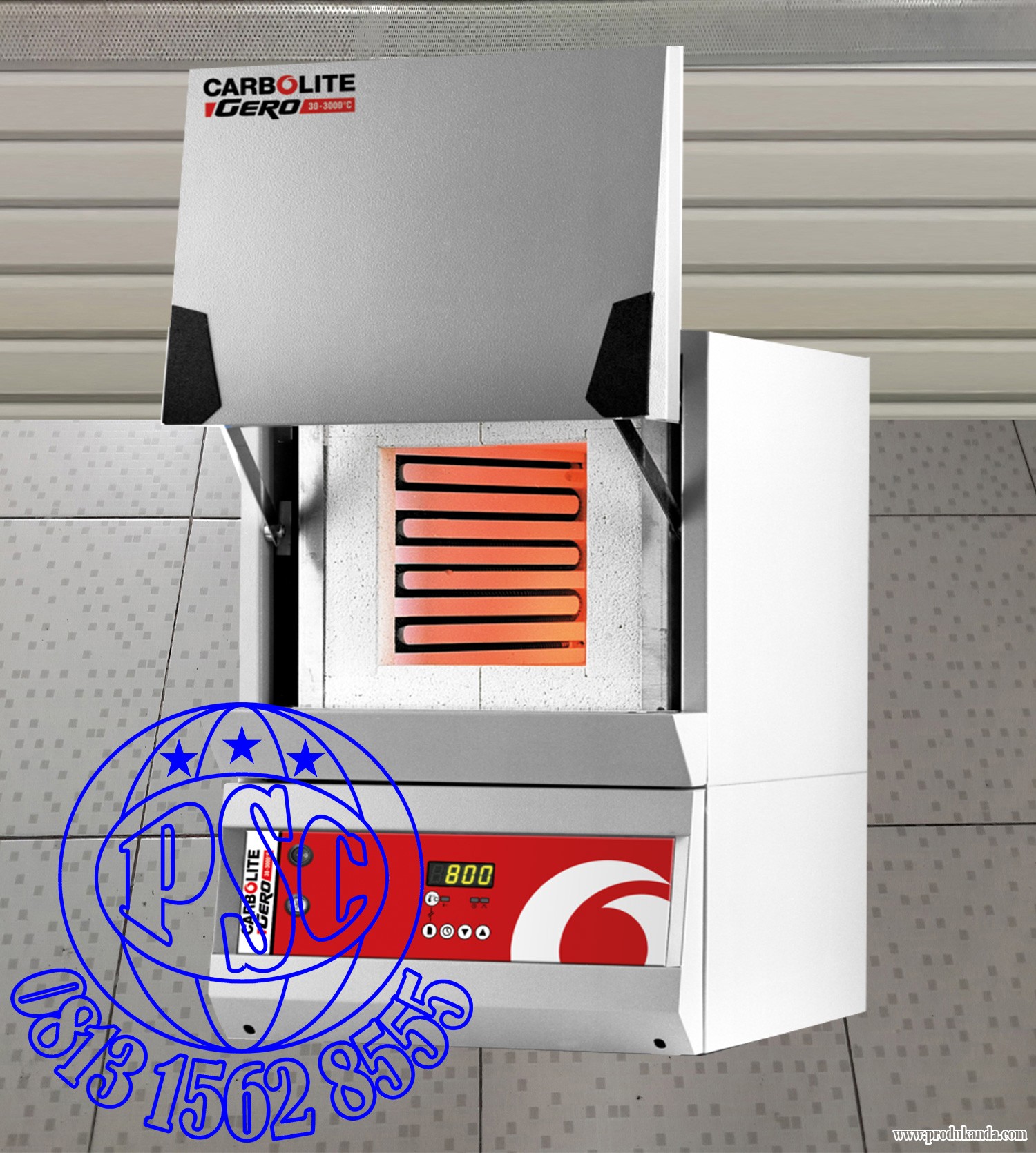

Laboratory Chamber Furnaces CWF Carbolite Gero |
|||
|
Model CWF 11/5, CWF 11/13, CWF 11/23 |
|||
|
Model CWF 12/5, CWF 12/13, CWF 12/23, CWF 12/36, CWF 12/65 |
|||
|
Model CWF 13/5, CWF 13/13, CWF 13/23, CWF 32/36, CWF 13/65 |
|||
|
Model CWF-B 11/13, CWF-B 12/13, CWF-BAL 11/21 |
|||
|
Technical Specifications |
|||
|
Model |
CWF 11/5 |
CWF 11/13 |
CWF 11/23 |
|
Max temp ( °C ) |
1100 |
1100 |
1100 |
|
Max continuous operating temp ( °C ) |
1000 |
1000 |
1000 |
|
Volume ( litres ) |
5 |
13 |
23 |
|
Heat-up time ( mins ) |
47 |
90 |
36 |
|
Dim Internal H x W x D |
135 x 140 x 250 mm |
200 x 200 x 325 mm |
235 x 245 x 400 mm |
|
Dim External H x W x D |
585 x 375 x 485 mm |
655 x 435 x 610 mm |
705 x 505 x 675 mm |
|
Dim Ext with door open H x W x D |
800 x 375 x 485 mm |
905 x 435 x 610 mm |
990 x 505 x 675 mm |
|
Temp uniformity of ± 5 °C H x W x D |
85 x 90 x 110 mm |
120 x 120 x 185 mm |
155 x 165 x 285 mm |
|
Max power ( W ) |
2400 |
3100 |
7000 |
|
Holding power ( W ) |
790 |
1500 |
1900 |
|
Thermocouple type |
R |
R |
R |
|
Weight ( kg ) |
30 |
47 |
68 |
|
|
|
|
|
|
Model |
CWF 12/5 |
CWF 12/13 |
CWF 12/23 |
|
Max temp ( °C ) |
1200 |
1200 |
1200 |
|
Max continuous operating temp ( °C ) |
1100 |
1100 |
1100 |
|
Volume ( litres ) |
5 |
13 |
23 |
|
Heat-up time ( mins ) |
51 |
80 |
45 |
|
Dim Internal H x W x D |
135 x 140 x 250 mm |
200 x 200 x 325 mm |
235 x 245 x 400 mm |
|
Dim External H x W x D |
585 x 375 x 485 mm |
655 x 435 x 610 mm |
705 x 505 x 675 mm |
|
Dim Ext with door open H x W x D |
800 x 375 x 485 mm |
905 x 435 x 610 mm |
990 x 505 x 675 mm |
|
Temp uniformity of ± 5 °C H x W x D |
85 x 90 x 125 mm |
120 x 120 x 200 mm |
155 x 165 x 325 mm |
|
Max power ( W ) |
2400 |
3100 |
7000 |
|
Holding power ( W ) |
850 |
1550 |
2250 |
|
Thermocouple type |
R |
R |
R |
|
Weight ( kg ) |
30 |
47 |
68 |
