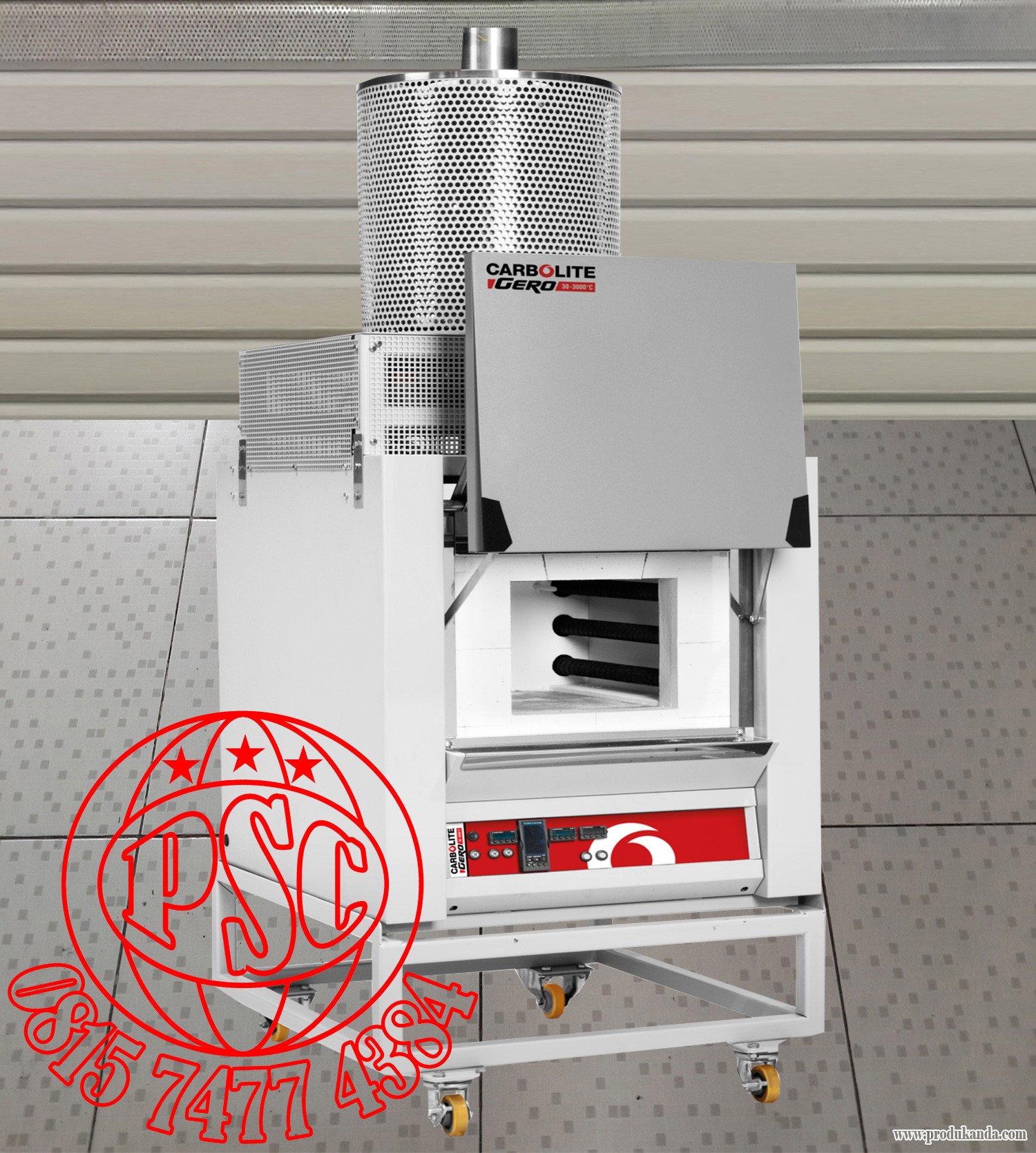

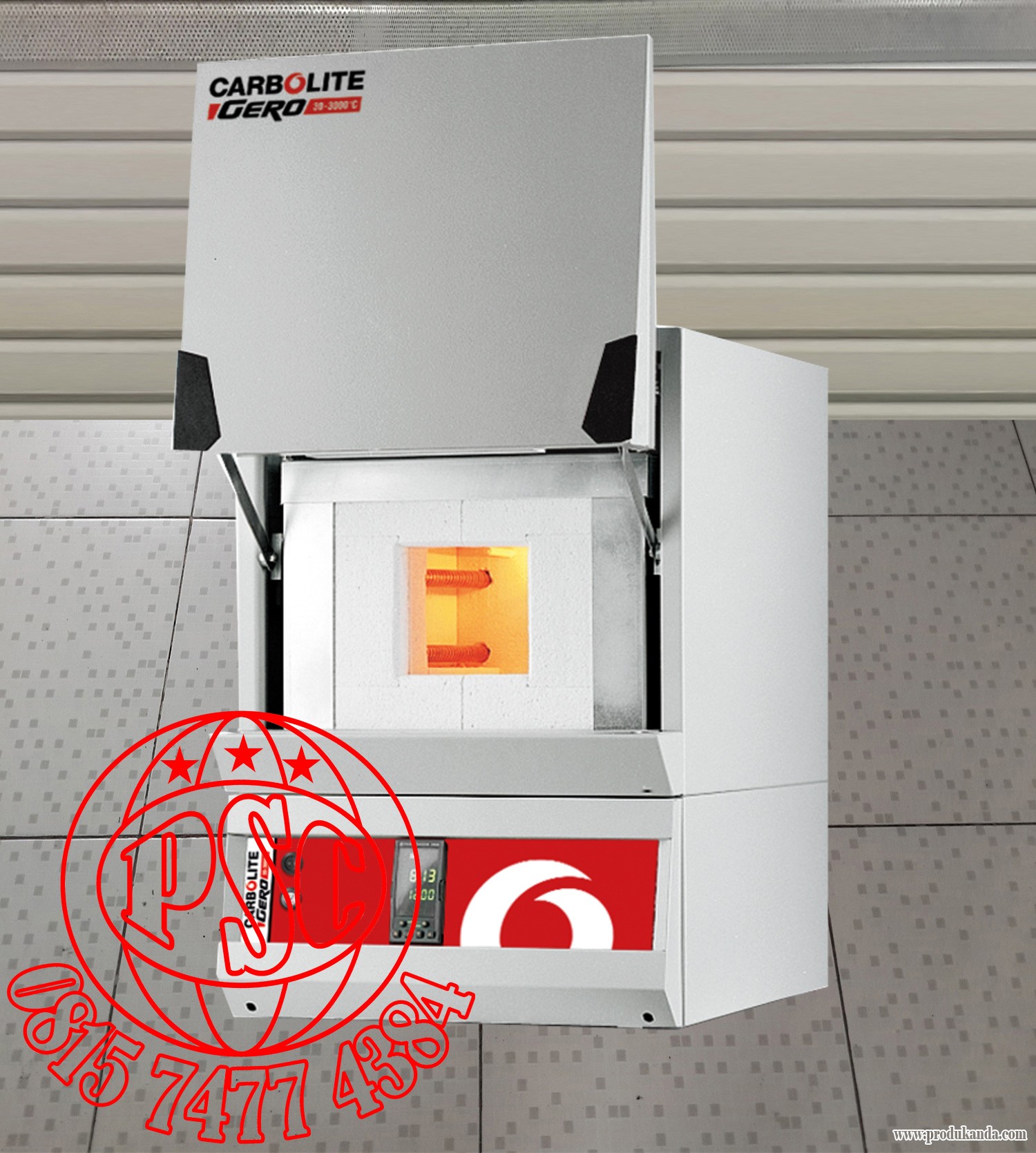

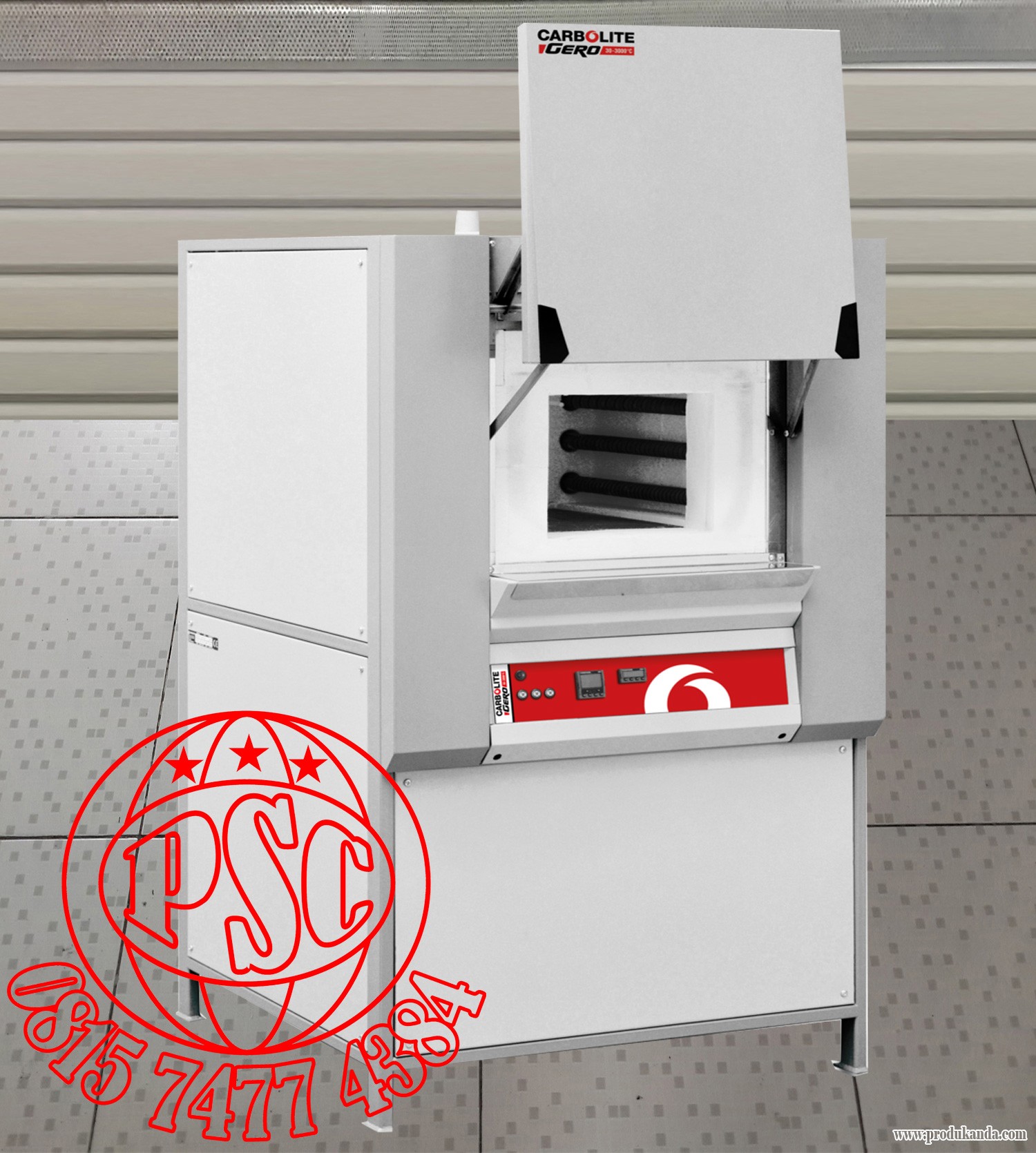

Furnaces RHF Carbolite Gero |
|||
|
Technical Specifications |
|||
|
Model |
RHF 14/3 |
RHF 14/8 |
RHF 14/15 |
|
Max temp ( °C ) |
1400 |
1400 |
1400 |
|
Volume ( litres ) |
3 |
8 |
15 |
|
Heat-up time ( mins ) |
33 |
22 |
35 |
|
Dim Int H x W x D ( mm ) |
120 x 120 x 205 |
170 x 170 x 270 |
220 x 220 x 310 |
|
Dim Ext H x W x D ( mm ) H ( door open ) |
655 x 435 x 610 ( 905 ) |
705 x 505 x 675 ( 990 ) |
810 x 690 x 780 ( 1105 ) |
|
Configuration |
Bench-top |
Bench-top |
Bench-top |
|
Max power ( W ) |
4500 |
8000 |
10000 |
|
Holding power ( W ) |
1900 |
3200 |
2900 |
|
Thermocouple type |
R |
R |
R |
|
Weight ( kg ) |
42 |
64 |
125 |
|
Power supply required per phase |
Single phase 200-240V 30A,380-415V 2 phase 15A |
Single phase 200-240V 50A,380-415V 2 phase + N 25A |
Single phase 200-240V 62A,380-415V 3 phase + N 22A,200-220V 3 phase delta 38A |
|
|
|||
|
Model |
RHF 14/35 |
RHF 15/3 |
RHF 15/8 |
|
Max temp ( °C ) |
1400 |
1500 |
1500 |
|
Volume ( litres ) |
35 |
3 |
8 |
|
Heat-up time ( mins ) |
38 |
45 |
40 |
|
Dim Intl H x W x D ( mm ) |
250 x 300 x 465 |
120 x 120 x 205 |
170 x 170 x 270 |
|
Dim Ext H x W x D ( mm ) H ( door open ) |
885 x 780 x 945 ( 1245 ) |
655 x 435 x 610 ( 905 ) |
705 x 505 x 675 ( 990 ) |
|
Configuration |
Bench-top |
Bench-top |
Bench-top |
|
Max power ( W ) |
1600 |
4500 |
8000 |
|
Holding power ( W ) |
6000 |
2000 |
3500 |
|
Thermocouple type |
R |
R |
R |
|
Weight ( kg ) |
179 |
46 |
61 |
|
Power supply required per phase |
380-415 3 phase + N 35A,200-220V 3 phase delta 60A,440-480V 3 phase no N 35A |
220-240V single phase 36A,380-415V, 2 phasse + N, 18A |
380-415V single phase 17.5,200-220 3 phase delta 30A,200-208V 3 phase + delta 38A,380-415V 3 phase delta 17.5A |
