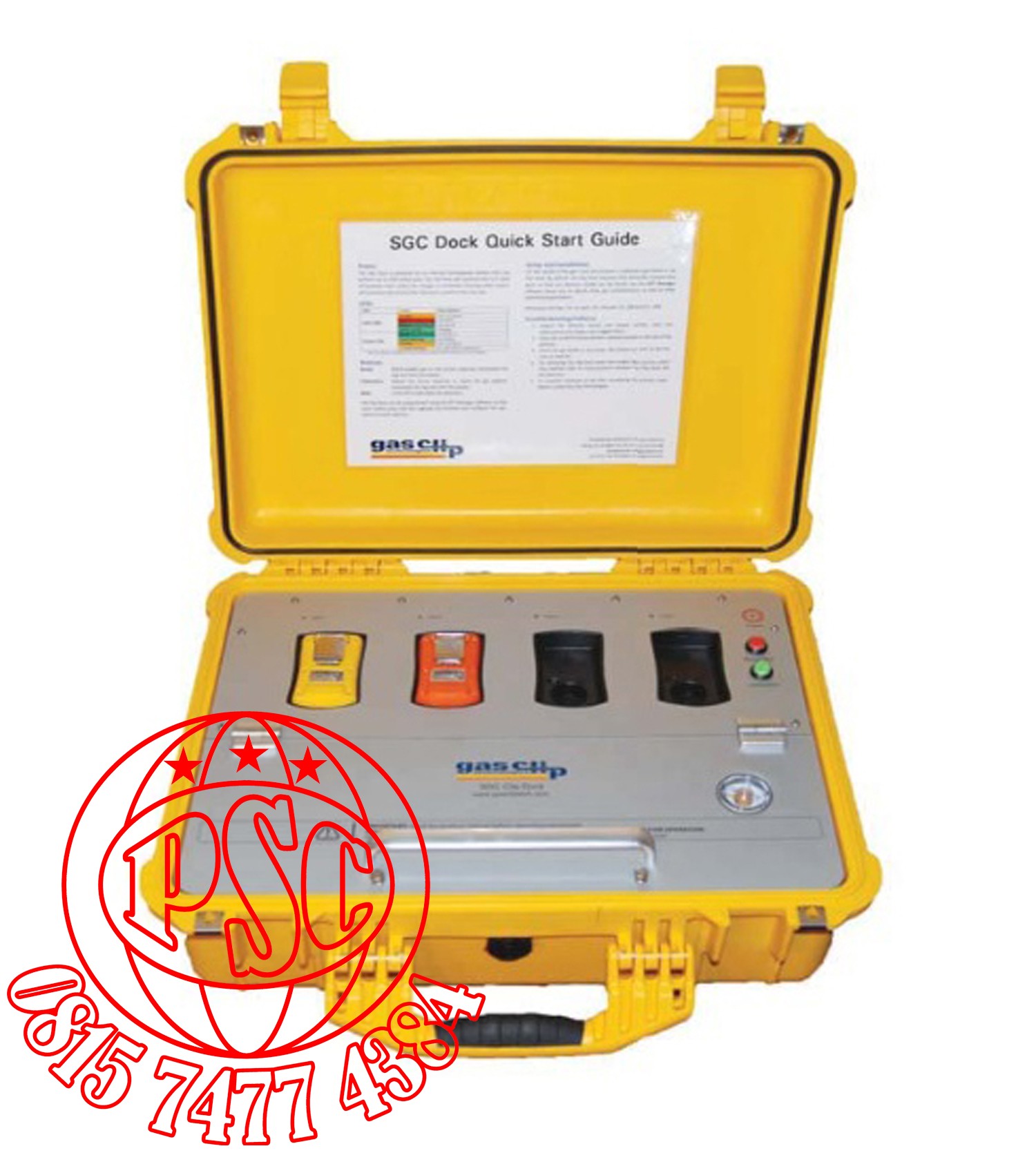

Gas Clip SGC-DOCK Calibration Docking Station

Specifications

Size Pelican Case Version

18.50” × 14.06” × 6.93”

( 47 cm × 35.7 cm × 17.6 cm )

Wall Mount SGC Dock Version

17.00” × 11.00” × 1.75”; (Top) / 2.50” ( Bottom )

( 43.2 cm × 27.9 cm × 4.4 cm (Top ) / 6.4 cm ( Bottom ))

Information Stored Bump/Calibration Logs, Individual monitor event logs, Firmware ( unit and docking station ) and Unit Configurations Unit Compatibility Works with all SGC and SGC Plus instruments Calibration Gas 58 L or 116 L gas cylinders; larger cylinder configurations available

Gas Clip Technologies GCT Manager software provides users the ability to communicate and program the SGC Dock or Wall Mount SGC Dock via IR link or USB memory stick.  In order to communicate with a SGC Dock  system via infrared, an IR link is required.   Following is a full list of programmable features offered when  communicating with the SGC Dock or Wall Mount SGC Dock using the GCT Manager Software  via the IR link :

Docking Station Location

Number of Event Logs

Auto Power-Off Time

Gas Cylinder Expiration Date

Gas Cylinder Lot #

Gas Cylinder Concentration

Feature Administration Controls

Station Test Logs

Individual Instrument Logs

Inventory Report

All IR link Software features
