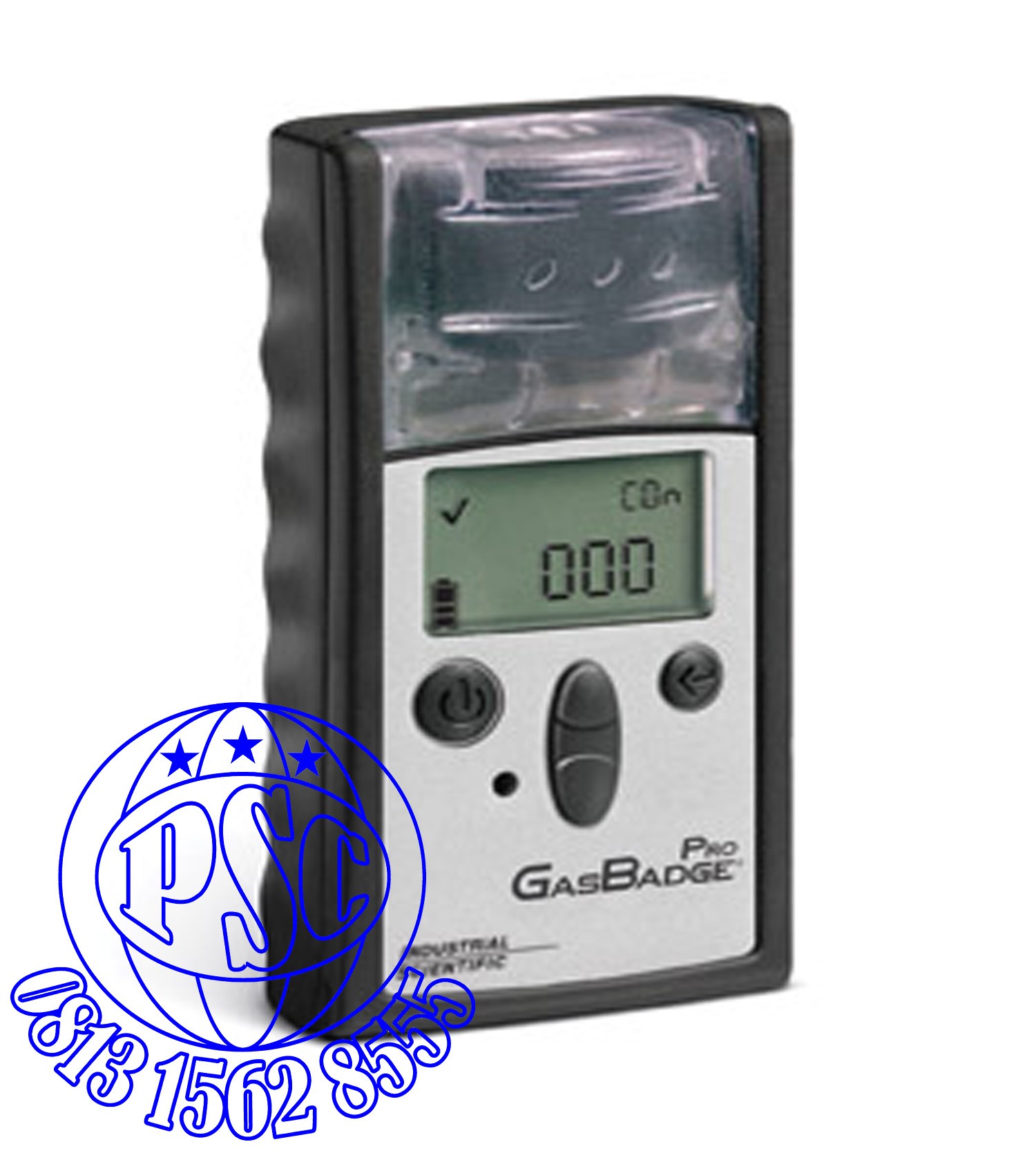

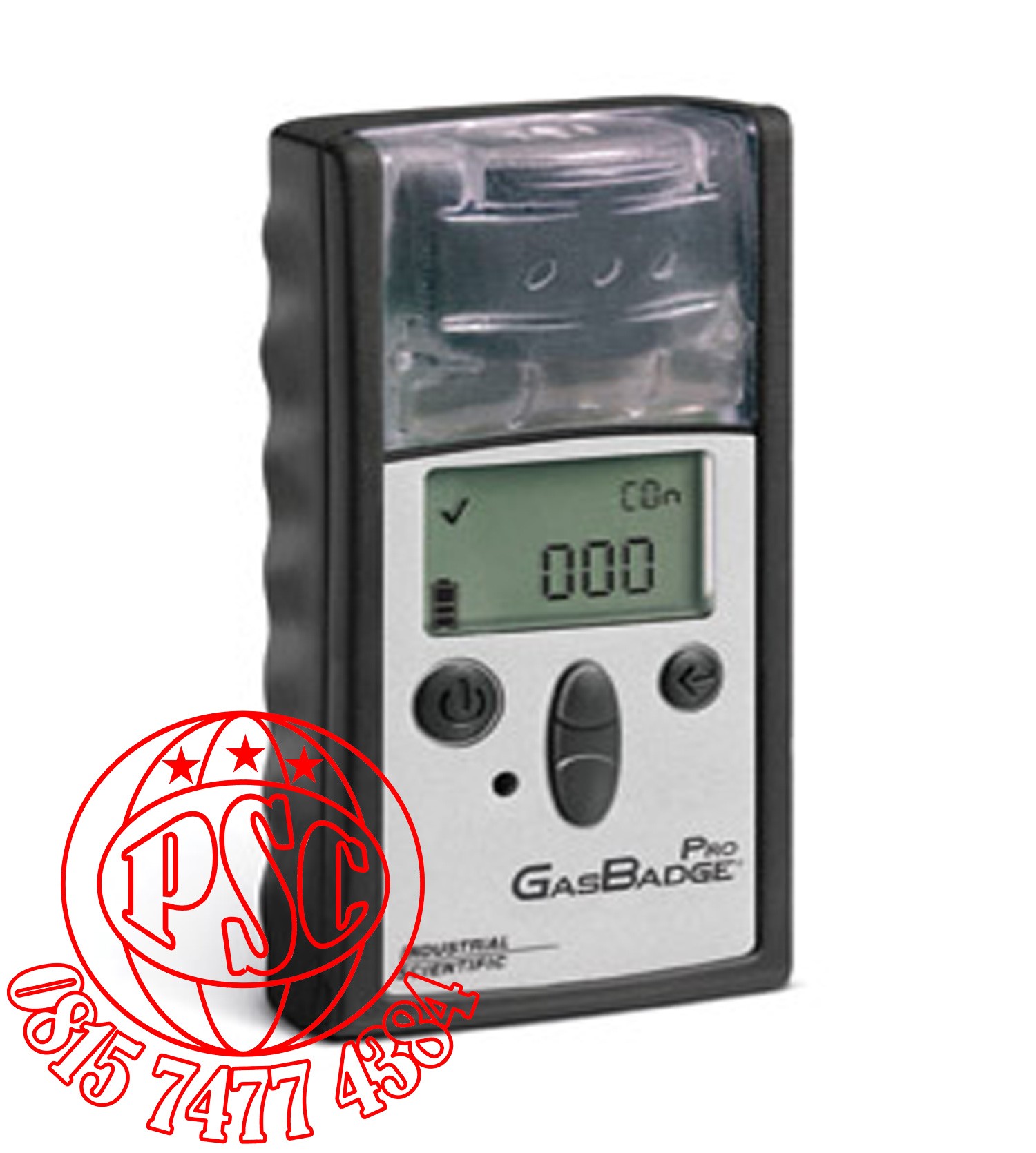

Single Gas Detector GasBadge Pro Indsci |
||||
|
Specification |
||||
|
Case |
Rugged, water-resistant polycarbonate shell with protective concussion-proof overmold. RFI resistant. |
|||
|
Dimensions |
3.7 x 2 x 1.1 inches ( 94 mm x 50.8 mm x 27.9 mm ) |
|||
|
Weight |
3 oz. ( 85 grams ) |
|||
|
Measuring Ranges |
Gas |
Symbol |
Range |
Increments |
|
Carbon Monoxide |
CO |
0-1,500 |
1 ppm |
|
|
Hydrogen Sulfide |
H₂S |
0-500 ppm |
0.1 ppm |
|
|
Oxygen |
O₂ |
0-30 % of volume |
0.1 % |
|
|
Nitrogen Dioxide |
NO₂ |
0-150 ppm |
0.1 ppm |
|
|
Sulfur Dioxide |
SO₂ |
0-150 ppm |
0.1 ppm |
|
|
Ammonia |
NH₃ |
0-500 ppm |
1 ppm |
|
|
Chlorine |
Cl₃ |
0-100 ppm |
0.1 ppm |
|
|
Chlorine Dioxide |
ClO₂ |
0-1 ppm |
0.01 ppm |
|
|
Phosphine |
PH₃ |
0-10 ppm |
0.01 ppm |
|
|
Hydrogen Cyanide |
HCN |
0-30 ppm |
0.1 ppm |
|
|
Hydrogen |
H₂ |
0-2,000 ppm |
1 ppm |
|
|
CO/H₂ low |
CO/H₂ low |
0-1,000 ppm |
1 ppm |
|
|
Display |
Custom LCD with graphical icons for easy use |
|||
|
Segmented display for direct gas readings |
||||
|
Backlight for low light conditions |
||||
|
"Go/no-go" display mode |
||||
|
Peak reading indication |
||||
|
Alarms |
User selectable low and high alarms |
|||
|
Ultra-bright LEDs, loud audible alarm ( 95 dB ) and vibrating alarm |
||||
|
Battery/Runtime |
User replaceable 3 V, CR2 Lithium battery |
|||
|
2,600 hour runtime ( typical ) |
||||
|
Event-Logger |
Continually on. Logs last 15 alarm events, stamping how long ago the event occurred, the duration of the event, and the peak reading seen during the event. |
|||
|
Event-logger can be viewed on PC or printed directly from the instrument to an infrared printer. |
||||
|
Datalogger |
One year at one-minute intervals |
|||
|
Temperature Range |
-40º C to 60 ºC ( -40 ºF to 140 ºF ), typical |
|||
|
RH |
90 % |
|||
|
Ordering Information |
||||
|
Part Number |
Description |
|||
|
18100060-1S |
GasBadge Pro for Carbon Monoxide ( CO ) with Standard U.S. Alarms |
|||
|
18100060-2S |
GasBadge Pro for Hydrogen Sulfide ( H₂S ) with Standard U.S. Alarms |
|||
|
Standard GasBadge ® Pro configurations are listed below |
||||
|
Part Number |
Description |
|||
|
18100060-1 |
GasBadge ® Pro - Carbon Monoxide ( CO ) |
|||
|
18100060-2 |
GasBadge ® Pro - Hydrogen Sulfide ( H₂S ) |
|||
|
18100060-3 |
GasBadge ® Pro - Oxygen ( O2 ) |
|||
|
18100060-4 |
GasBadge ® Pro - Nitrogen Dioxide ( NO₂ ) |
|||
|
18100060-5 |
GasBadge ® Pro - Sulfur Dioxide ( SO₂ ) |
|||
|
18100060-6 |
GasBadge ® Pro - Ammonia ( NH₃ ) |
|||
|
18100060-7 |
GasBadge ® Pro - Chlorine ( Cl₂ ) |
|||
|
18100060-8 |
GasBadge ® Pro - Chlorine Dioxide ( ClO₂ ) |
|||
|
18100060-9 |
GasBadge ® Pro - Phosphine ( PH₃ ) |
|||
|
18100060-B |
GasBadge ® Pro - Hydrogen Cyanide ( HCN ) |
|||
|
18100060-C |
GasBadge ® Pro - Hydrogen ( H₂ ) |
|||
