Gilian AirCon-2 Area Air Sampling Pump ( 2 - 30 LPM ) Sensidyne

Model

AirCon-2 Sampler

Battery Accessories

Programmable Model with Battery Power

Four-Hour Battery Pack

Power Mod. Charger ( 120V & 230V )

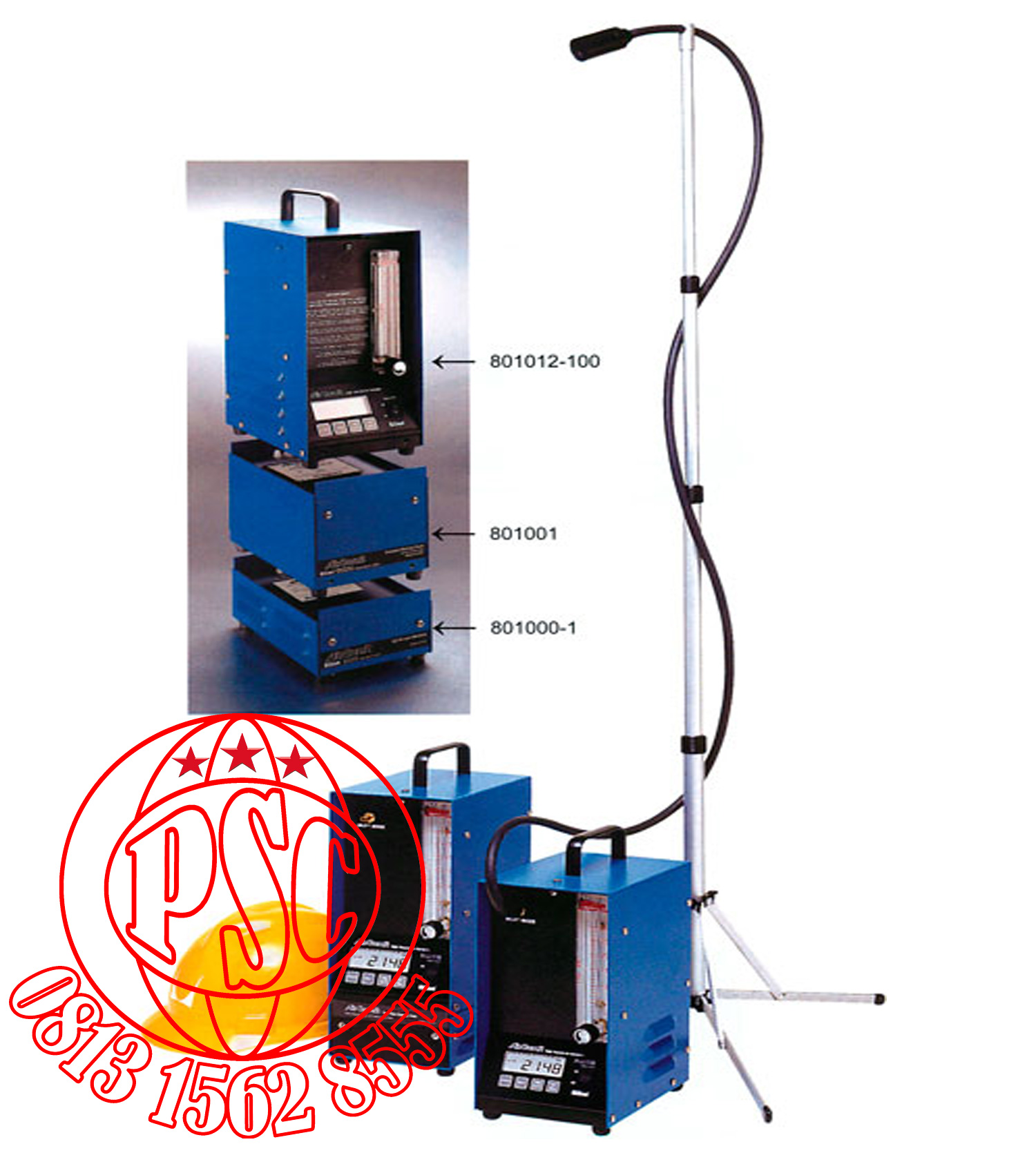

Part Number

801012 -100 ( * )

801001 ( ** )

No AC Cord Supplied: 801000-1

With USA AC Cord: 801000-2

With Euro AC Cord: 801000-3

Electrical Input

3.4A @ 12 Vdc

95-240 Vdc

@50-60 Hz

Electrical Output

12 Vdc, 13 AH

3.6A @ 14Vdc

( 51 watts )

Weight

9.5 lbs. ( 4.3 kg )

11.5 lbs. ( 5.2 kg )

2 lbs. ( 0.9 kg )

Overall Dimensions

5.7 W x 7.5 D x 13.0"H

5.25 W x 7.5 D x 5.5"H

5.25 W x 7.5 D x 3.5"H

(14.5 W x 19 D x 33 cm H )

( 13.3 W x 19 D x 14 cm H )

( 13.3 W x 19 D x 8.9 cm H )

Operating Temp.

-4° to 113°F ( -20° to 45°C D124 )

-40o to 113°F ( -40° to 45°C )

Recommended Filter Media

Airborne Substance

Filter Description

Preload Cassette Part No.

Cassette

Filter Part No. (Replaceable )

Asbestos ( OSHA, NIOSH ) PCM

25 mm, 0.8 micron, MCEF

GCS 25080

25 mm

GF25080

Asbestos ( EPA, AHERA ) TEM

25 mm, 0.45 micron, MCEF

GCS 25455-50

25 mm

GF25450

Dust

37 mm, 5 micron, PVC

GCU 37500 PVC

37 mm

Previously weighed ( 0.1 mg )

GCU 37500 PVC PW

37 mm

* Battery-powered Sampler does not include a battery pack or  power module, which must be ordered separately.

** Battery replacement requires two batteries, part no. 700285.
