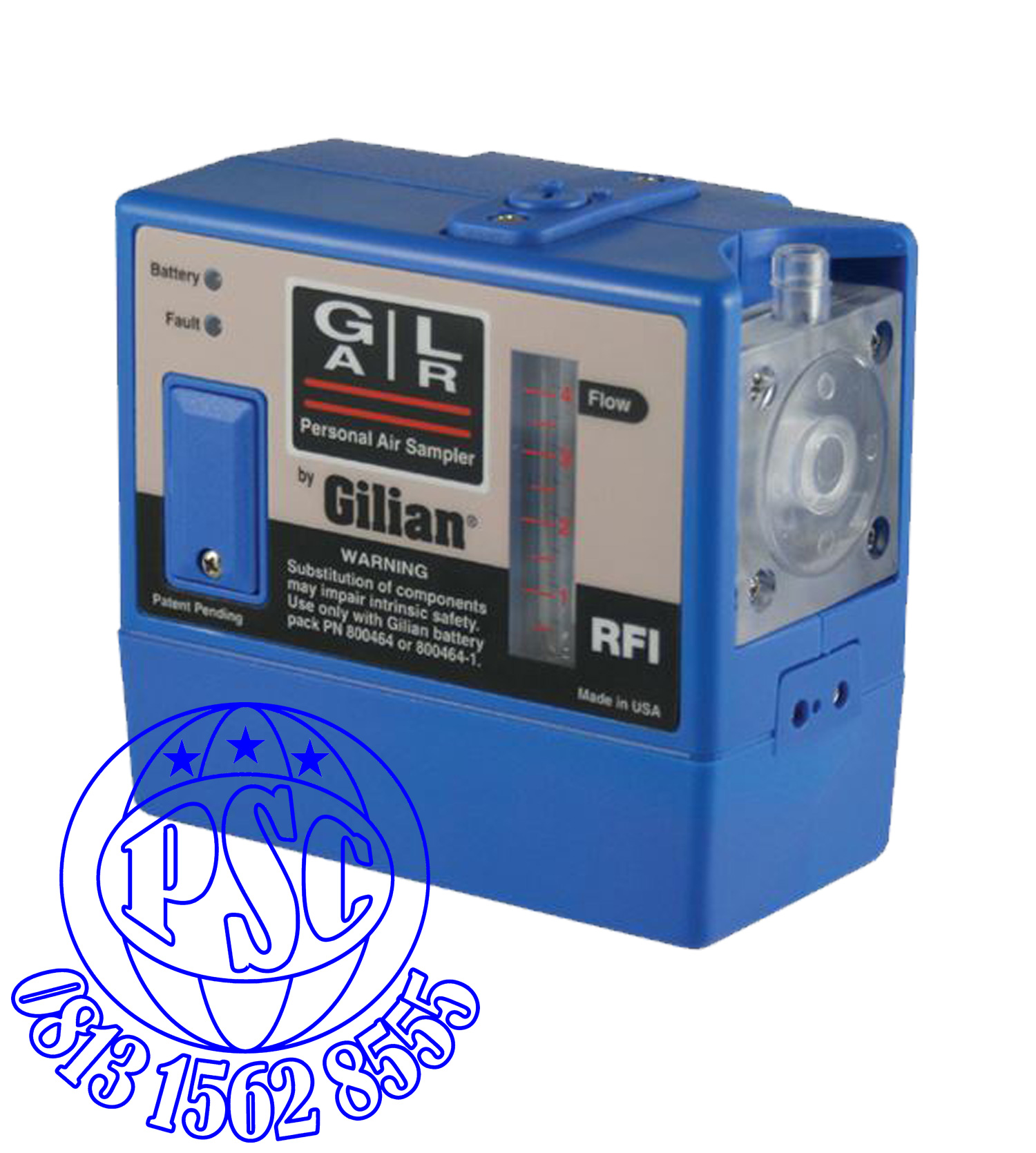

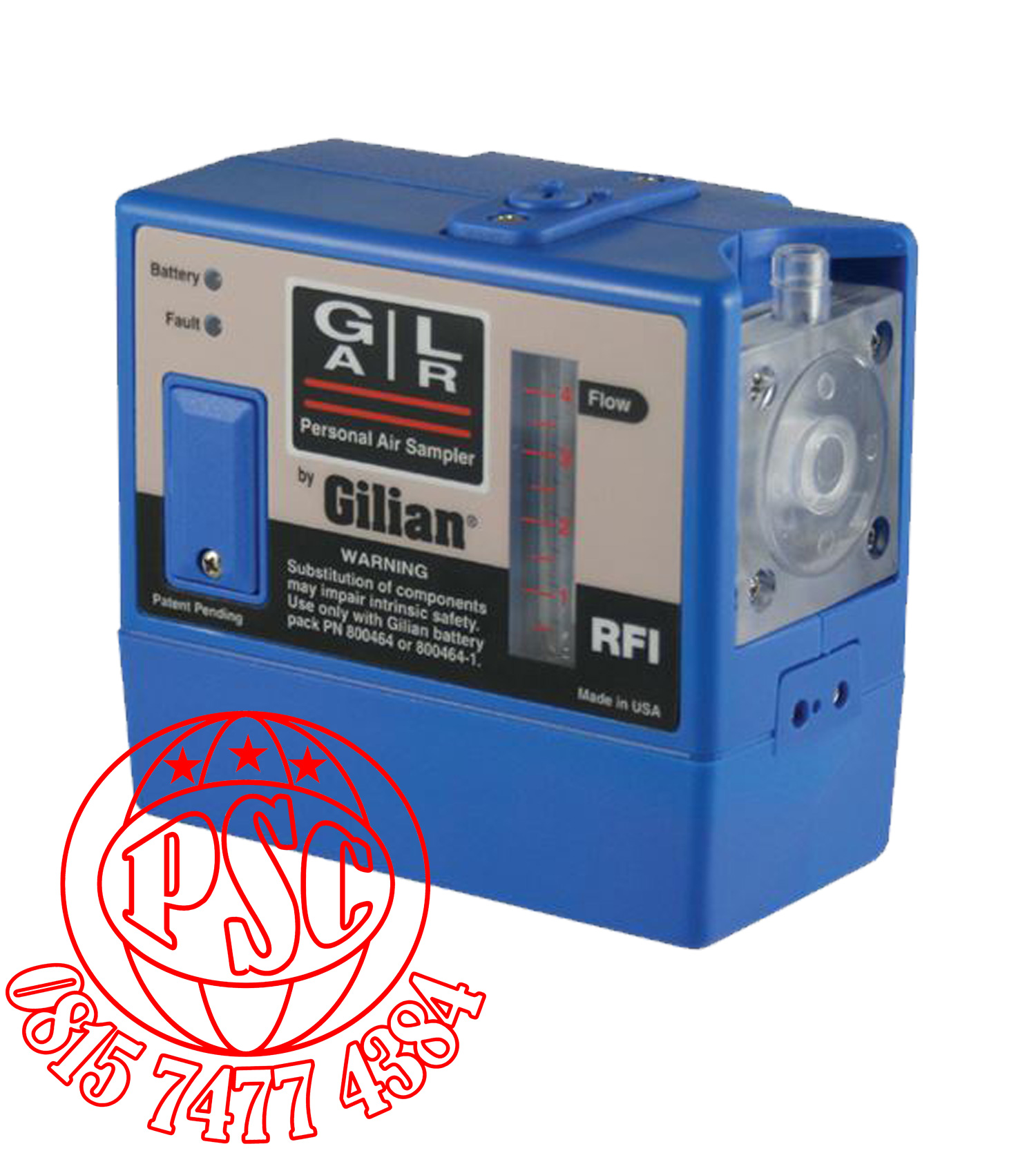

Gilian GilAir-3 Air Sampling Pumps Sensidyne

Product Specifications

Performance

Flow Range

1- 3000 cc/min ( Total ),

850 - 3000 cc/min ( High Flow );

20-500 cc/min ( Constant Low Flow );

1-750 cc/min ( Constant Pressure )

Constant Flow Control

± 5% of set flow at 1000-3000 cc/min

Flow Compensation

3000 cc up to 8” H 20 back pressure

2500 cc up to 15” H 20 back pressure

1000 cc up to 25” H 20 back pressure

850 cc up to 20” H 20 back pressure

Run Time

8 hour minimum

Flow Fault

If flow changes exceed 5%, fault icon appears. If fault exceeds 30 seconds, pump shuts down. Pump attempts to restart every 3 minutes for up to 1 hour

Environmental

Temperature Ranges

Operating

32°F to 104°F ( 0°C to 40°C )

Storage  Charging

-49°F to 113°F ( -45°C to 45°C )

41°F to 104°F ( 5°C to 40°C )

Humidity Ranges

Operating

0-85 %RH, non-condensing

Storage

0-100 %RH, non-condensing

Controls

Power Switch, Flow Control Screw & Buttons ( Clock, Program ), Programming ( PROG ) Button ( Program )

Indicators

Elapsed Time ( Clock, Program )

Icons ( LCD )

Low Battery, Flow Fault, Clock ( Clock & Program )

Dimensions

3.9 W x 3.6 H x 2.0 D inches

10.0 W x 9.0 H x 5.1 D cm

Weight

 210 oz ( 595 g )

Electrical

Battery Pack

NiMH

Interface Connectors

Charging Jack

Charging Time

14-18 hours

Approvals/Performance

Intrinsic Safety - UL

Class 1, Div 1, Groups A, B, C, D; Class 2, E, F, G; Class 3

EMC : Emissions Standards

EN 55011:2009/A1:2010 Group 1, ClassA ICES-003 - Issue 2 Class A

FCC PArt 15 (per ANSI C63.4:2015) Class A Verification

EMI : Immunity Standards

EN 61326-1:2013;

IEC 61000-4-2:2006 / EN 61000-4-2:2009;

IEC 61000-4-3:2006 / EN 61000-4-3:2006/A1:2008/A2:2010

Description

Part Number

GilAir-3 R Sampling Pump, Basic

800485-171

GilAir-3 RC Sampling Pump, Clock

800508-171

GilAir-3 RP Sampling Pump, Program

800510-171

GilAir-3 R Sampling Pump, Basic, Starter Kit, 120V

800485-171-1201

GilAir-3 RC Sampling Pump, Clock, Starter Kit, 120V

800508-171-1201

GilAir-3 RP Sampling Pump, Program, Starter Kit. 120V

800510-171-1201

GilAir-3 R Sampling Pump, Basic, Starter Kit, 230V

800485-171-2301

GilAir-3 RC Sampling Pump, Clock, Starter Kit, 230V

800508-171-2301

GilAir-3 RP Sampling Pump, Program, Starter Kit. 230V

800510-171-2301

Single Unit Charger w/ Power Adapter, USB GilAir-3/5-Euro cord

911-9901-EU-R

Single Unit Charger w/ Power Adapter, USB GilAir-3/5-US cord

911-9901-US-R

GilAir-3/5 BDX-2-US Five Unit Charger, Universal, 120V, US Cord

811-9919-US

GilAir-3/5 BDX-2-Euro Five Unit Charger, Universal, 230V, Euro Cord

811-9919-EU

Replacement Battery Pack

783-0008-03

Low Flow Module, Constant Flow, Blue

800518

Low Flow Module, Multi-Flow, Blue

800519
