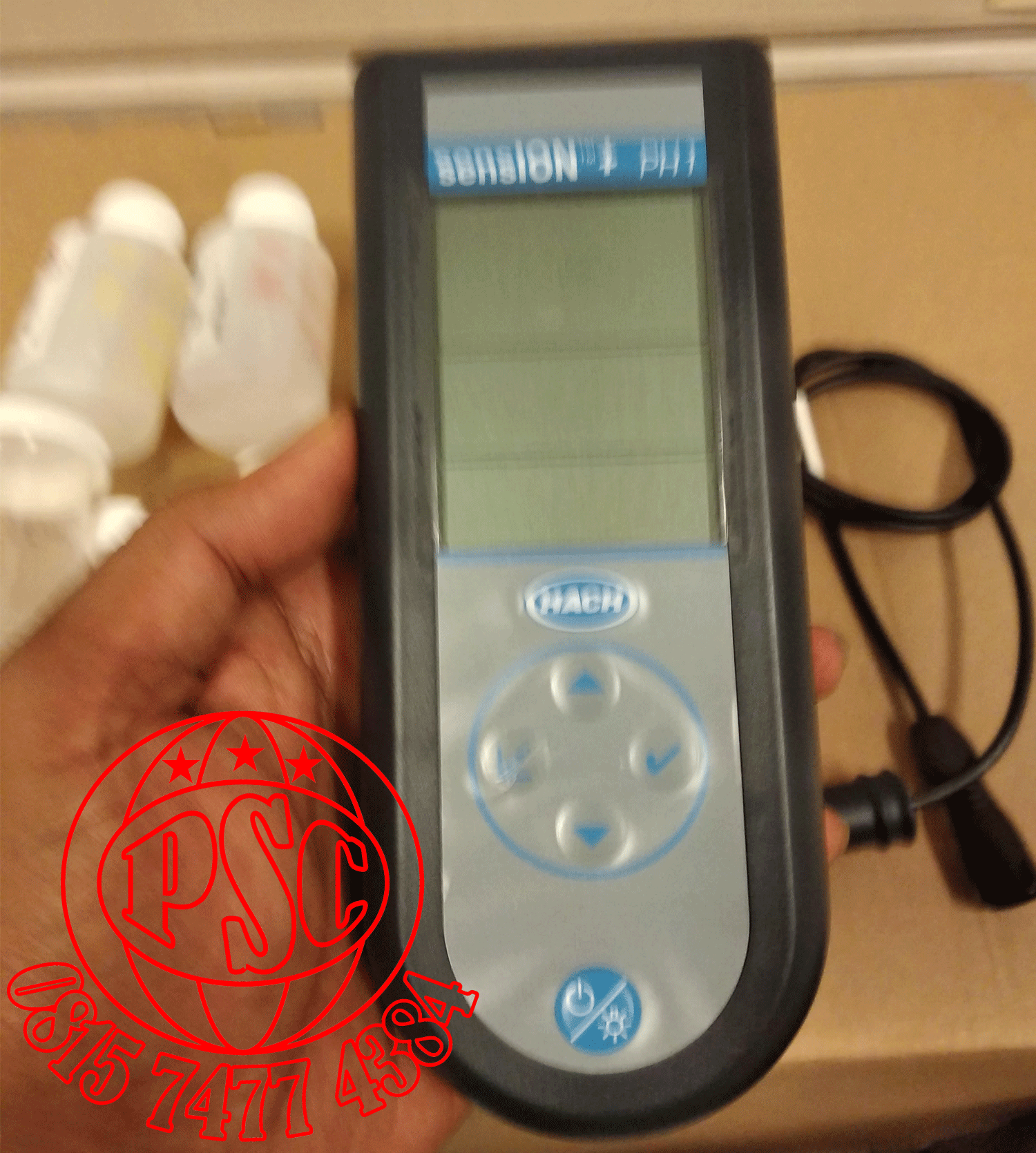

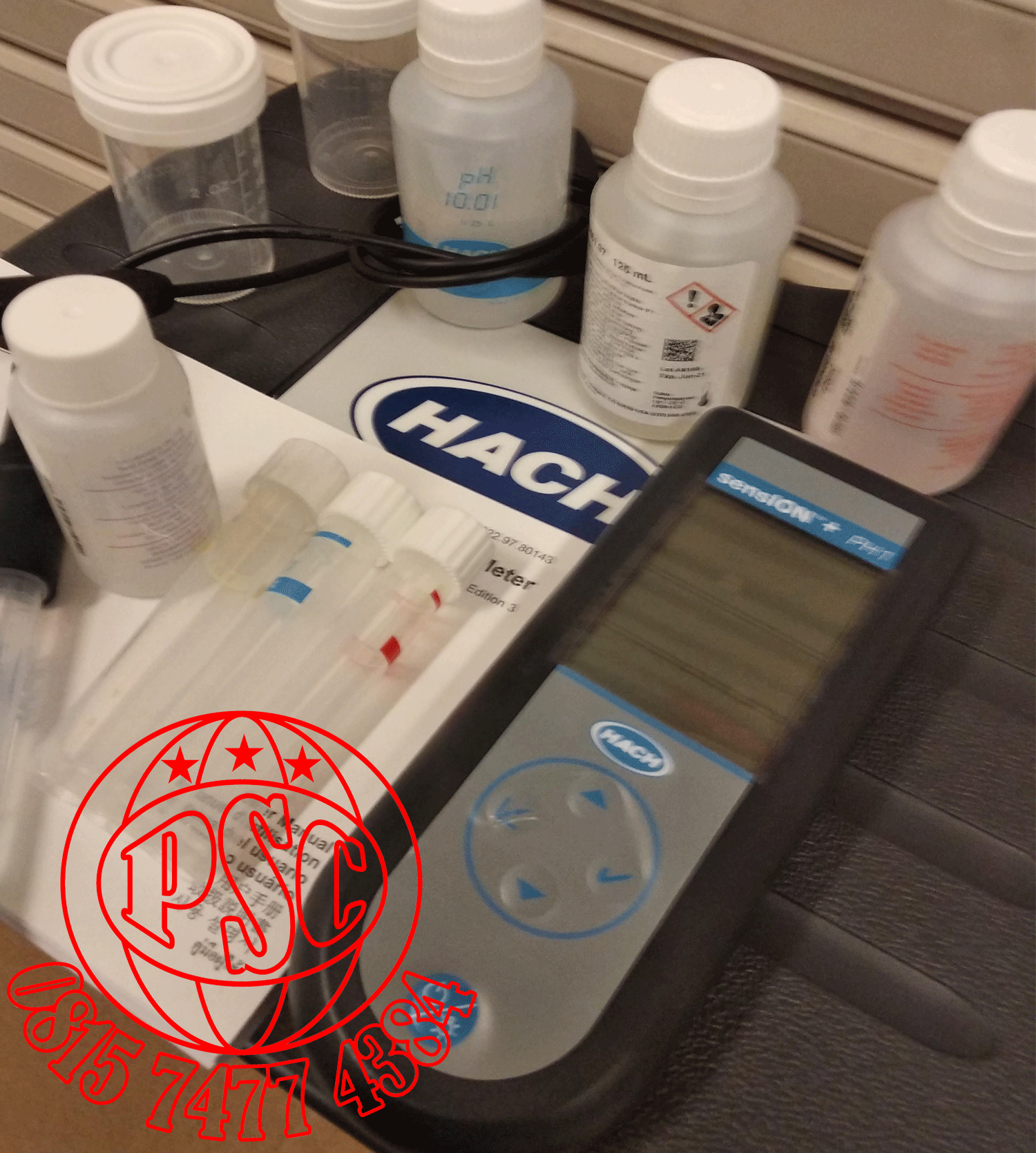

Hach Sension+ PH1 Portable pH/ORP Meter

Specifications

Accuracy

ORP : ±1 mV

AC Power Adapter and USB/DC Adapter

No

Automatic Buffer Recognition

pH 2.01, 4.01, 7.00, 9.21, 10.01

Backlight

Yes

Barometric Pressure Measurement

-

Calibration Curves Display

Slope and assymetry potential displayed

Compliance Certifications

CE.WEEE

Dimensions ( H x W x D )

38 x 73 x 186 mm

Display

Backlit LCD with pictograms

Display Type

128 x 64 pixel, simultaneous readings

Electrode stand

No

GLP Features

-

Height ( Overall )

-

Inputs

MP-5

Interface Languages

Icon based, no language needed

Internal Data Storage

-

IP Rating

IP67

Manual Languages

Multi-lingual

Measurement Method

Auto stabilisation, continuous

Measuring Range ORP

± 1999 mV

Model

pH1

mV Resolution

0.1 mV ( 0 - 200 Mv ) 1 mV ( for rest of range )

Operating Humidity

< 80 % RH ( non-condensing )

Operating Interface

Keypad

Operating Temperature

0 - 50 °C ( 32 - 122 °F )

Parameter

pH, mV, ORP/Redox, Temperature

PC Data Transfer Software

-

pH Accuracy

≤ 0.02 pH ( ± 1 digit )

pH Electrode calibration

1 to 3 points calibration

pH Measurement Range

-2.00 - 19.99 pH

pH Resolution

0.01 pH

Power Supply

Batteries ( see Battery Requirements )

Pressure compensation

-

Probes included

No

Resolution

0.01 pH

0.1 mV ( ±199.9 mV range )

Simultaneous measurements

pH, Temperature

Temperature Accuracy

0.2 °C ( ± 1 digit )

Temperature Compensation

Automatic or manual

Temperature Measurement

-20.0 - 150.0 °C

( -4.0 - 302.0 °F )

Temperature Resolution

0.1 °C ( 0.1 °F )

Water Resistance

IP67

Weight

0.3 kg

P/N

LPV2500.97.0002
