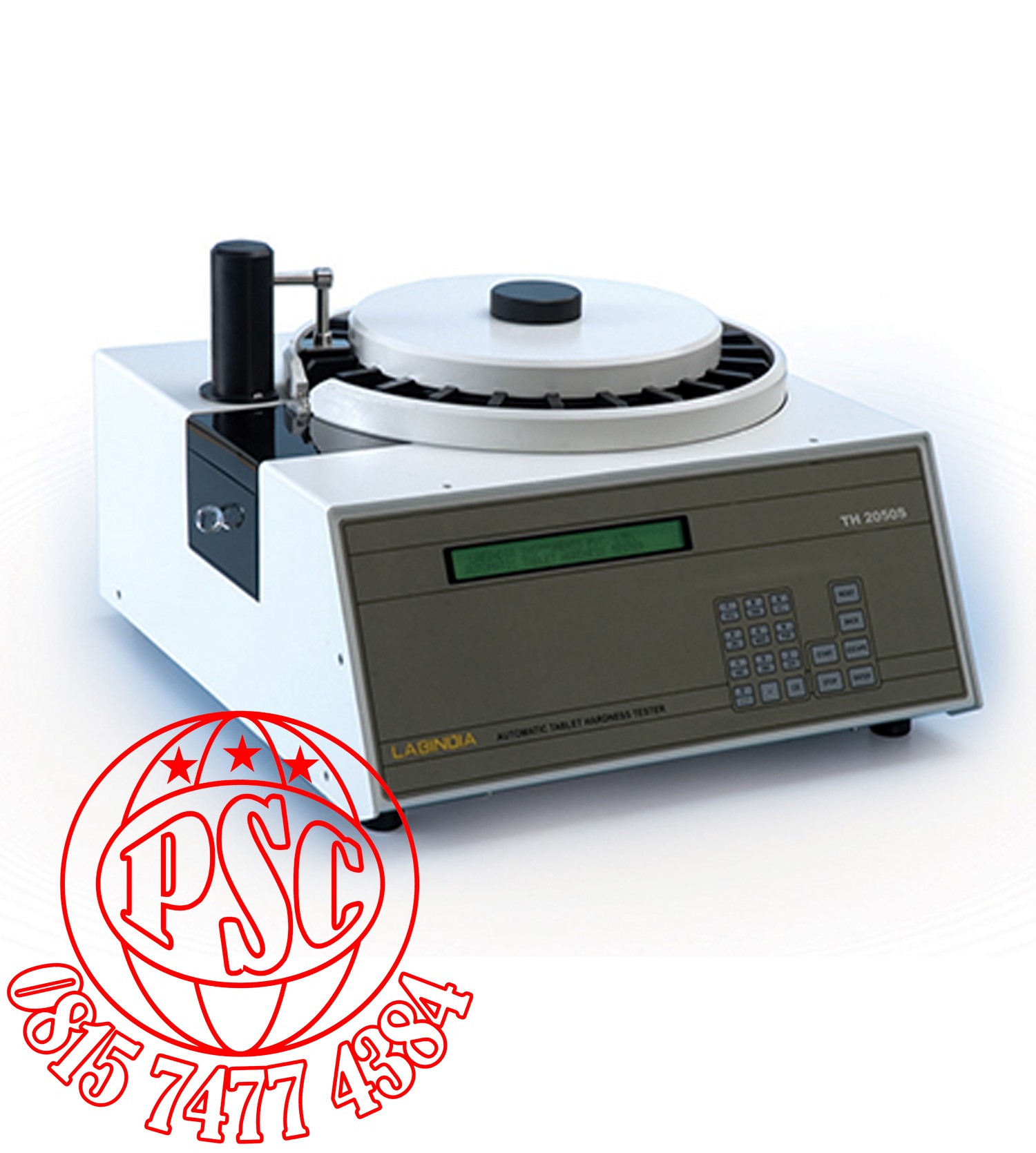

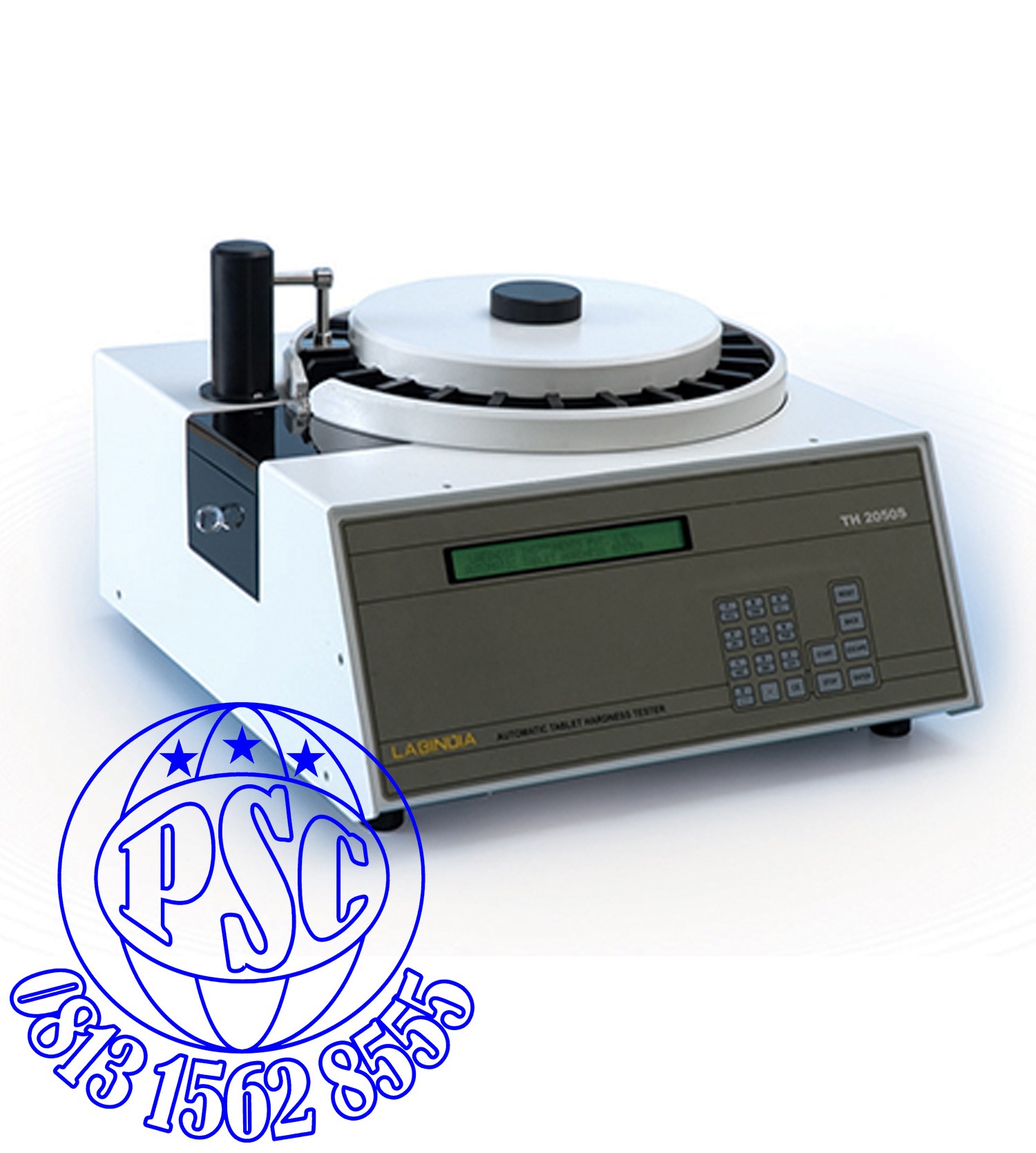

Hardness Tester 24 Point Carousel Labindia Analytical

Standard Features

Advance Micro-controller based user-friendly state-of-the-art product design with Alphanumeric keyboard.

24 Position Carousel for Automatic measurement of tablet parameters- Width, Thickness, Length/Diameter & Hardness. It fulfills the Pharmacopeial requirement of 20 tablet testing in single run.

The built in Sweeping blades cleans the tablet path for removal of broken pieces, debris and dust.

Large Non-Volatile data storage memory: 99 methods, Users Result and Validation data

Wide Measurement Range and Units :

• Tablet Hardness upto 500N; N, Kp, Kgf, Pounds or SC

• Tablet Diameter / Length upto 32 mm; inch or mm

• Tablet Thickness upto 18 mm; inch or mm

Automatic run can be performed continuously up to 1 - 99 tablets. RUN can be re-started on power failure or on

System Reset with last run parameters.

Two Tier - a] ADMIN, and b] USER password protection for method editing and Validation.

Validation/Calibration protocol with verification for Hardness - 3 point Load Cell calibration with Standard weights,

Width/Length/Diameter & 3 point Thickness Calibration with Standard thickness gauges.

GLP complaint print reports of Results, Program methods & Validation/Calibration data with built-in Parallel port printer interface.

Built in dual RS 232 C interface for data transfer for PC & Balance for Sample Tablet weight transfer.
