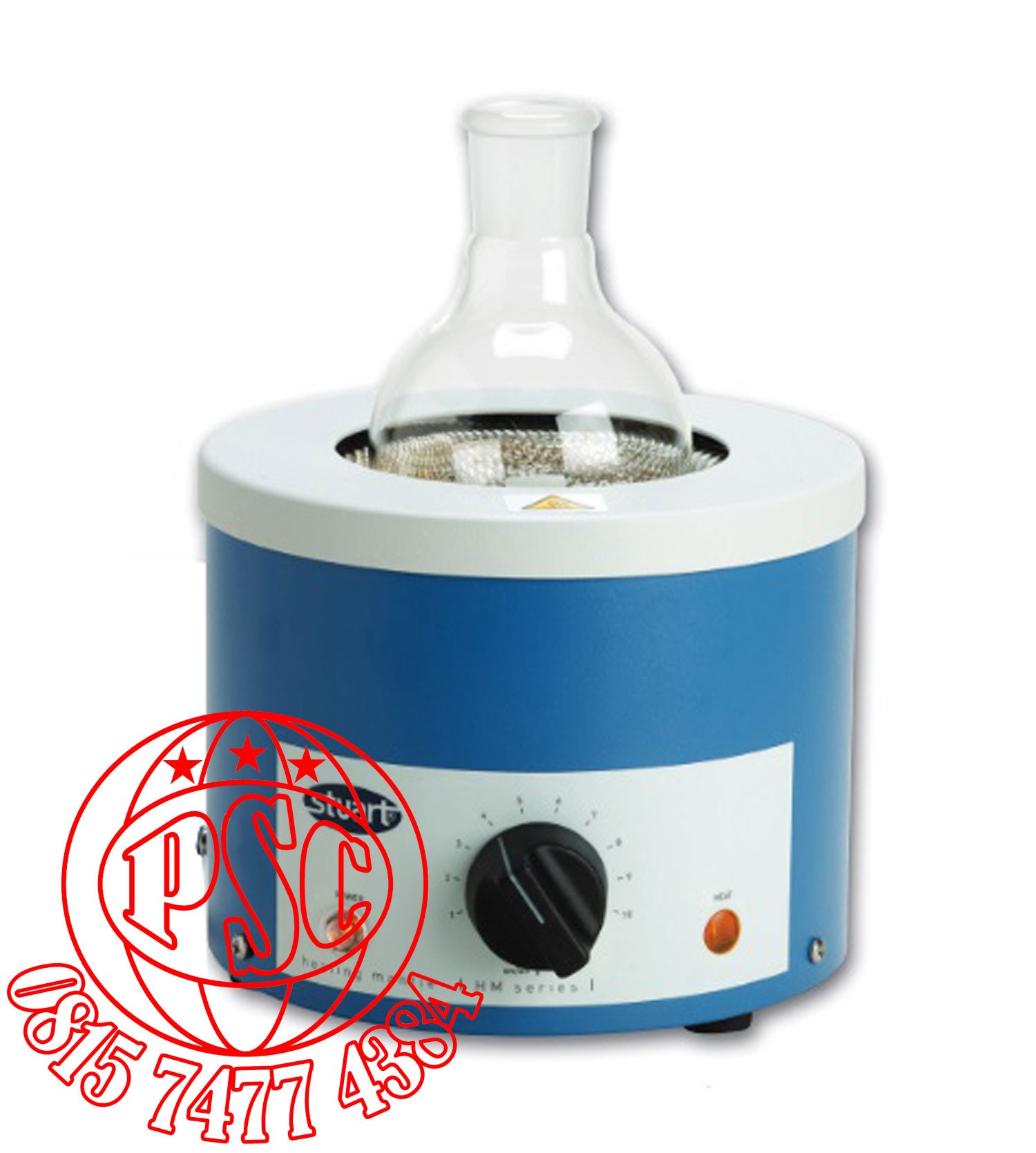

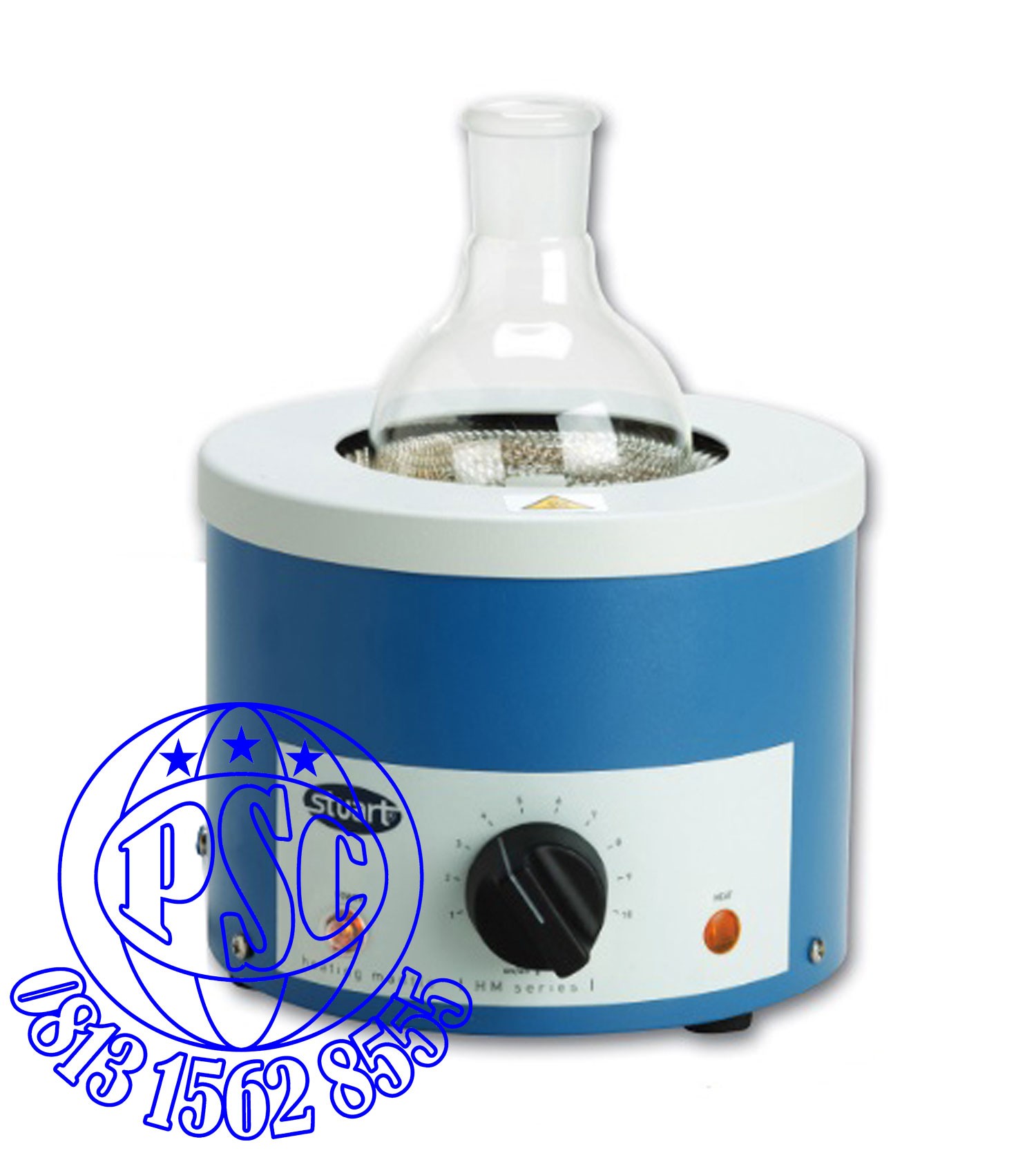

HM Series of Heating Mantles Stuart

- Controlled up to 450 ºC

- Range of sizes available

- Tough lightweight, easy to clean aluminium casing

- Integrated clamp fitting

The HM series are a range of controlled heating mantles, available in a range of sizes to accommodate round bottom flasks from 50ml to 1000ml. The entire range is constructed with a robust aluminium casing, making them tough and easy to clean.

All units feature an integrated clamp rod fitting to enable secure fitting of a standard clamp rod. Non slip feet are also fitted as standard.

For added safety, all units feature an emergency cut out which will automatically trigger in the event of a spillage.

Technical specification

Model

Flask Capacity

Dimensions, mm ( d x w x h )

Electrical supply

HM50C

50 ml

175 x 175 x 150

230V, 50/ 60Hz 75 W

HM100C

100 ml

175 x 175 x 150

230V, 50/ 60Hz 100 W

HM250C

250 ml

175 x 175 x 150

230V, 50/ 60Hz 200 W

HM500C

500 ml

220 x 220 x 170

230V, 50/ 60Hz 280 W

HM1000C

1000 ml

220 x 220 x 170

230V, 50/ 60Hz 380W

Ordering Information

Model

Description

HM50C

Controlled heating mantle for 50 ml flasks

HM100C

Controlled heating mantle for 100 ml flasks

HM250C

Controlled heating mantle for 250 ml flasks

HM500C

Controlled heating mantle for 500 ml flasks

HM1000C

Controlled heating mantle for 1000 ml flasks
