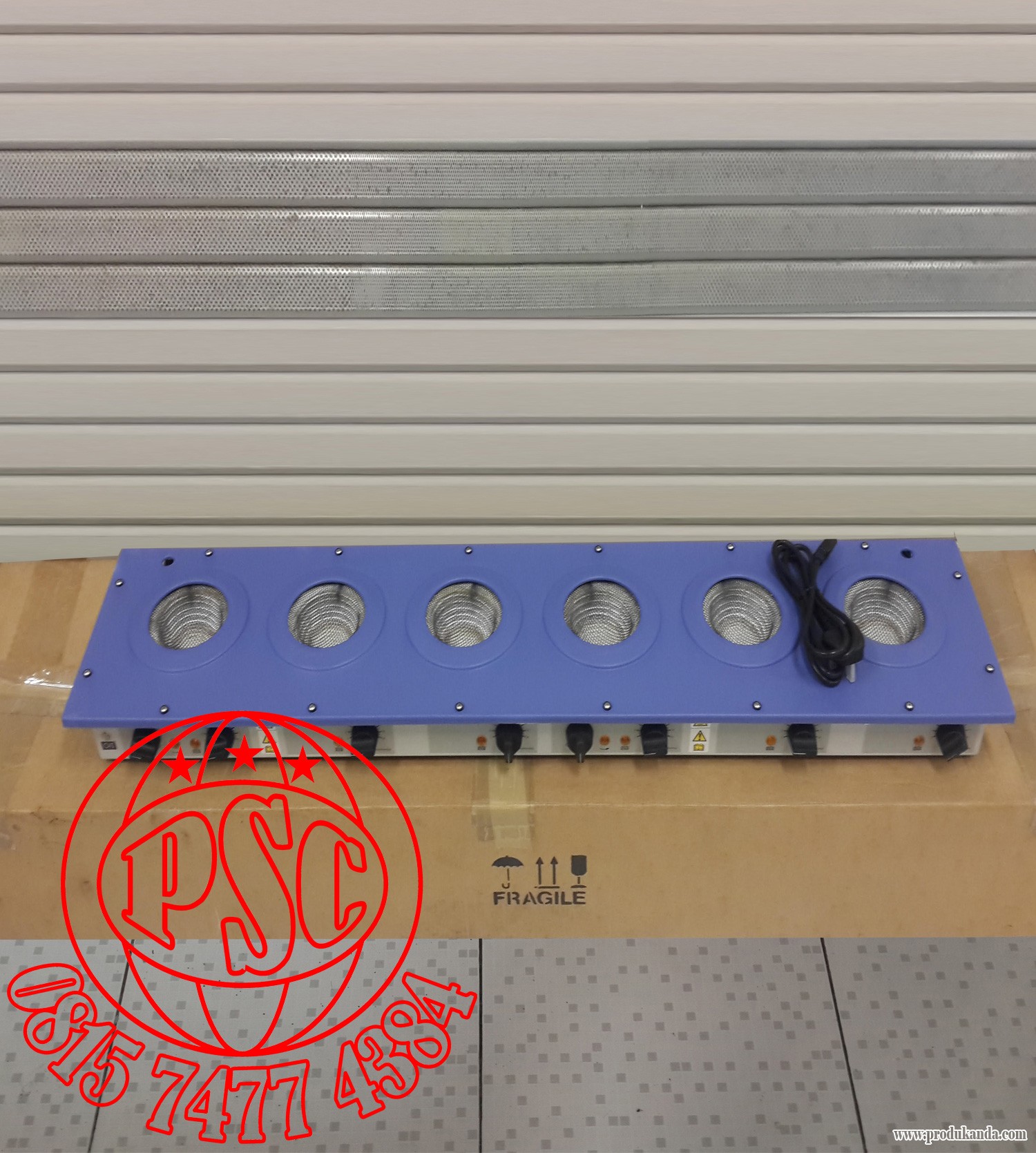

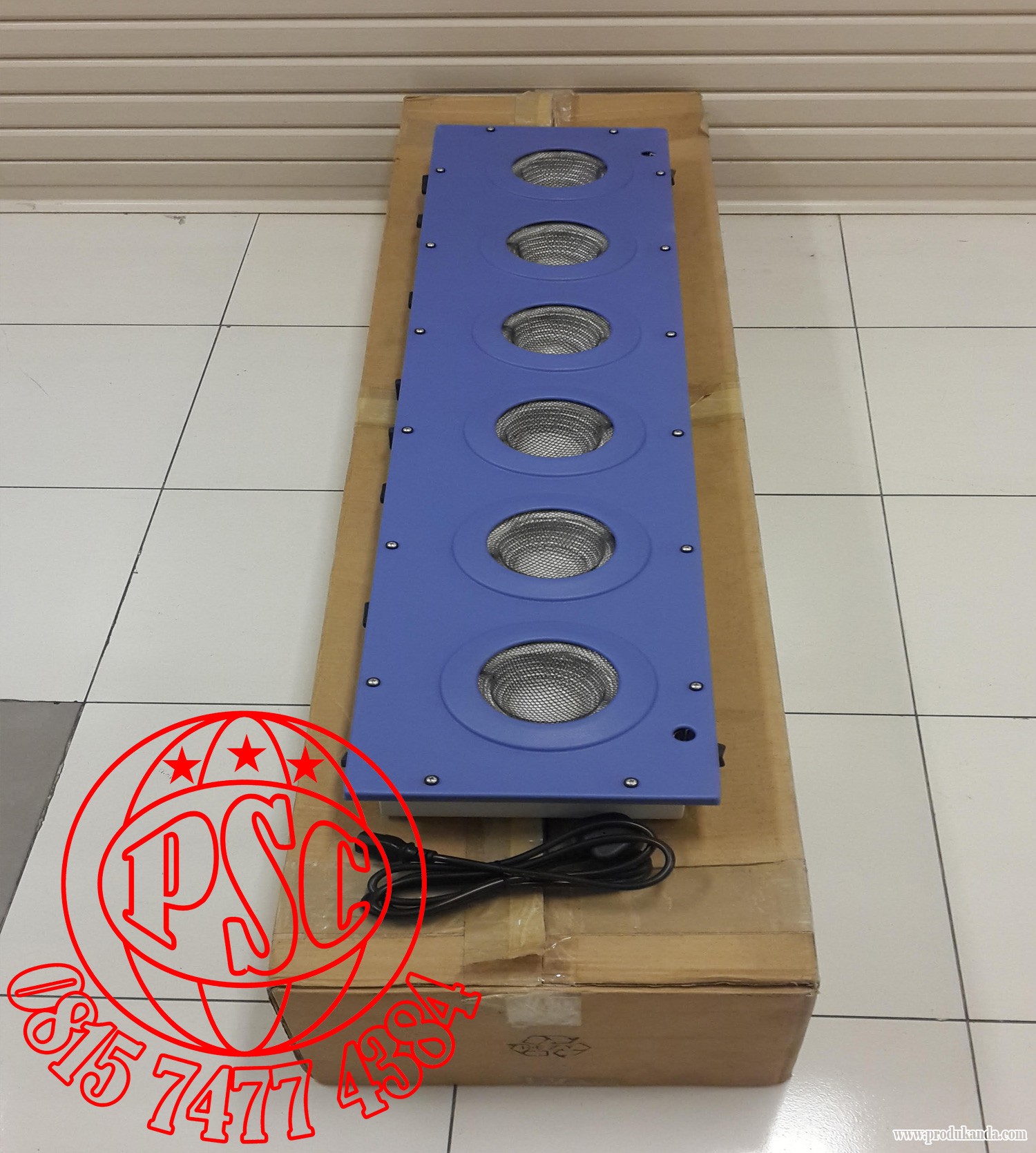

Multi ( Extraction ) Mantles : 6 Recess Model |
|||||
|
The Multi ( Extraction ) Mantle with six recesses has a built-in electronic controller and offers a choice of heater only ( EME6 ) or heater/stirrer ( EMEA6 ) combination models. |
|||||
|
The vented case's unique air flow ensures the outer case remains safe to touch. |
|||||
|
For both Heater EME6 and Heater/Stirrer EMEA6 models |
|||||
|
Individual built-in solid state electronic controls enable easy regulation of heater, while removing sparking associated with mechanical switching |
|||||
|
Three 12.7 mm diameter support rods are included |
|||||
|
Round bottom flask capacity from 100 ml to 1000 ml at all 6 positions |
|||||
|
Top cover is polypropylene and external surfaces are powder coated giving good general chemical resistance |
|||||
|
Coiled heating element is suspended within a thermal insulating cartridge to provide maximum heat transfer and support |
|||||
|
Earth ( ground ) screen encloses the heater for added safety |
|||||
|
Individual heater cartridges are replaceable |
|||||
|
Neon lights indicate when power is on and supplied to heaters and, if applicable, supplied to stirrers |
|||||
|
Additional Features for Heater/Stirrer EMEA6 models |
|||||
|
Allow the solution to be stirred and heated simultaneously |
|||||
|
Provide stirring speeds of between 50 to 1000 rpm |
|||||
|
One stirring control operates each set of three recesses |
|||||
|
Technical Specification |
|||||
|
Material |
Polypropylene top on powder coated aluminium |
||||
|
Max element temp. |
450°C |
||||
|
Heater EME6 Model Ordering Information |
|||||
|
Model |
Flask |
Dimensions |
Reces |
Electrical |
Shipping |
|
Capacity |
D x W x H. mm |
Requirements |
Weight, kg |
||
|
EME60100/CEB |
6 x 100 ml |
270 x 1210 x 110 |
6 |
230v 50/ 60Hz, 420W UK and EU plug |
10.1 |
|
EME60100/CEBX1 |
6 x 100 ml |
270 x 1210 x 110 |
6 |
115v 50/ 60Hz, 420W |
10.1 |
|
EME60250/CEB |
6 x 250 ml |
270 x 1210 x 110 |
6 |
230v 50/ 60Hz, 900W UK and EU plug |
10.1 |
|
EME60250/CEBX1 |
6 x 250 ml |
270 x 1210 x 110 |
6 |
115v 50/ 60Hz, 900W |
10.1 |
|
EME60500/CEB |
6 x 500 ml |
285 x 1450 x 130 |
6 |
230v 50/ 60Hz, 1200W UK and EU plug |
12.5 |
|
EME60500/CEBX1 |
6 x 500 ml |
285 x 1450 x 130 |
6 |
115v 50/ 60Hz, 1200W |
12.5 |
|
EME61000/CEB |
6 x 1000 ml |
285 x 1450 x 130 |
6 |
230v 50/ 60Hz, 1800W UK and EU plug |
12.5 |
|
EME61000/CEBX1 |
6 x 1000 ml |
285 x 1450 x 130 |
6 |
115v 50/ 60Hz, 1800W |
12.5 |
|
Heating/Stirrer EMEA6 Model Ordering Information |
|||||
|
Model |
Flask |
Dimensions |
Reces |
Electrical |
Shipping |
|
Capacity |
D x W x H. mm |
Requirements |
Weight, kg |
||
|
EMEA60100/CE |
6 x 100 ml |
270 x 1210 x 110 |
6 |
230v 50/ 60Hz, 500W UK and EU plug |
10.1 |
|
EMEA60100/CEX1 |
6 x 100 ml |
270 x 1210 x 110 |
6 |
115v 50/ 60Hz, 500W |
10.1 |
|
EMEA60250/CE |
6 x 250 ml |
270 x 1210 x 110 |
6 |
230v 50/ 60Hz, 980W UK and EU plug |
10.1 |
|
EMEA60250/CEX1 |
6 x 250 ml |
270 x 1210 x 110 |
6 |
115v 50/ 60Hz, 980W |
10.1 |
|
EMEA60500/CE |
6 x 500 ml |
285 x 1450 x 130 |
6 |
230v 50/ 60Hz, 1280W UK and EU plug |
12.5 |
|
EMEA60500/CEX1 |
6 x 500 ml |
285 x 1450 x 130 |
6 |
115v 50/ 60Hz, 1280W |
12.5 |
|
EMEA61000/CE |
6 x 1000 ml |
285 x 1450 x 130 |
6 |
230v 50/ 60Hz, 1880W UK and EU plug |
12.5 |
|
EMEA61000/CEX1 |
6 x 1000 ml |
285 x 1450 x 130 |
6 |
115v 50/ 60Hz , 1880W |
12.5 |
